Mitsubishi Lancer. Manual - part 210





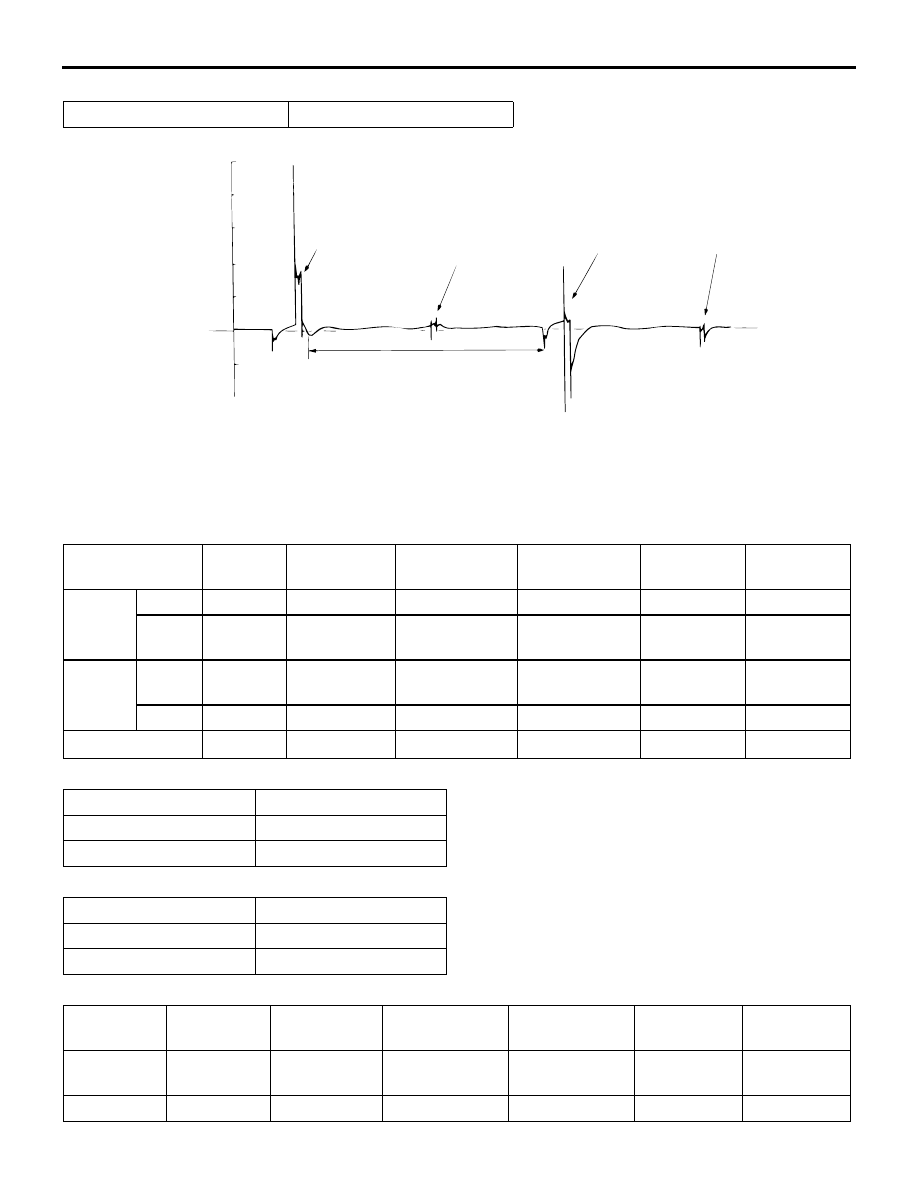

IGNITION SYSTEM

ENGINE ELECTRICAL

16-32

ON-VEHICLE SERVICE

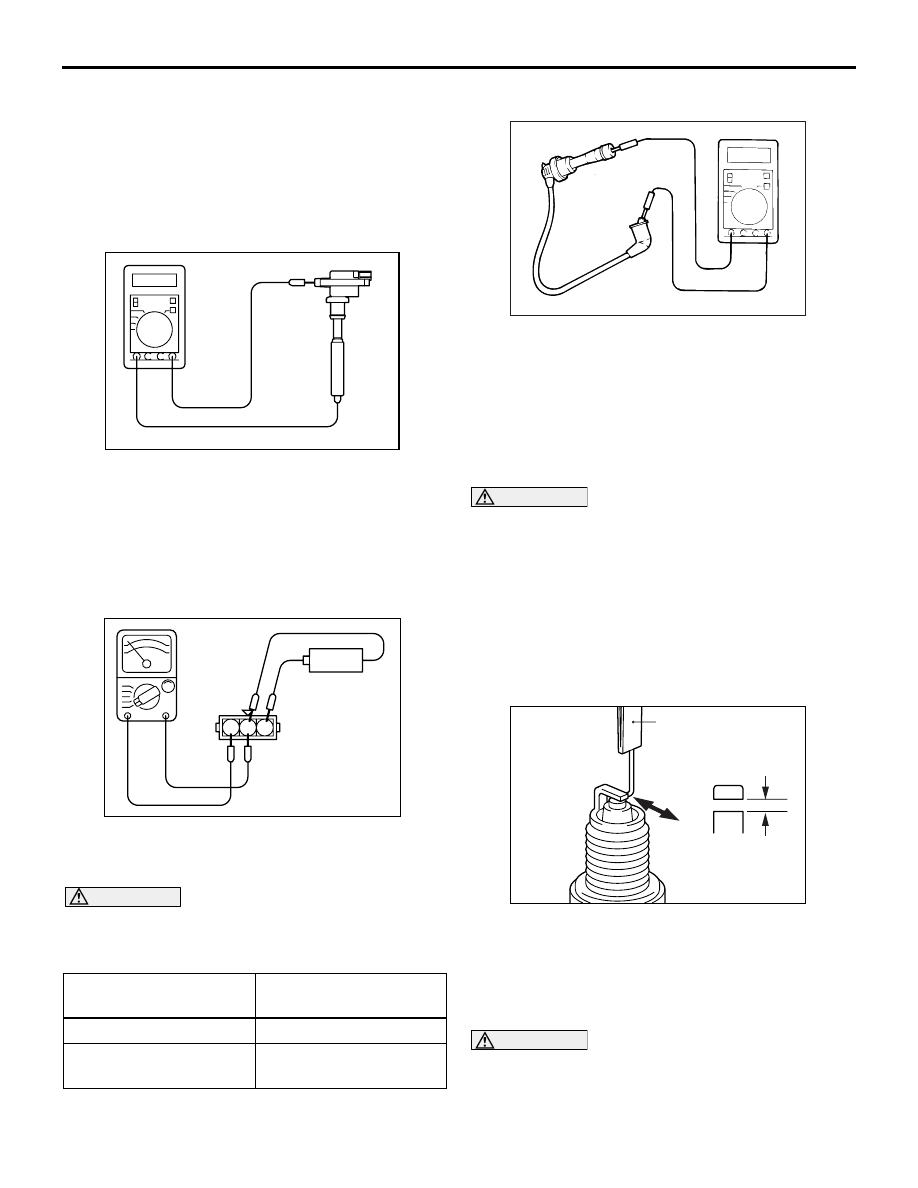

IGNITION COIL (WITH BUILT-IN POWER
TRANSISTOR) CHECK

M1163001200324

Check by the following procedure, and replace if
there is a malfunction.

SECONDARY COIL RESISTANCE CHECK

AKX01264

Measure the resistance between the high-voltage
terminals of the ignition coil.

Standard value: 8.5

 11.5 k

PRIMARY COIL AND POWER TRANSIS-
TOR CONTINUITY CHECK

NOTE:

.

AKX01265AD

1.5 V

1 2 3

+

 An analogue-type circuit tester should be used.

Connect the negative (-) prove of the circuit tester
to terminal No. 1.

CAUTION

This test must be performed quickly (in less than
10 seconds) to prevent coil from burning and
power transistor from breakage.

1.5 V power supply
between 2

 3

Continuity between 1



2

When current is flowing

Continuity

When current is not
flowing

No continuity

RESISTIVE CORD CHECK

M1163001400124

AKX00382

Measure the resistance of the all spark plug cables.
1. Check cap and coating for cracks.
2. Measure resistance.

Limit: Maximum 19 k

SPARK PLUG CHECK AND CLEANING
<4G1>

M1163004300342

CAUTION

When pulling off the spark plug cable from the
plug always hold the cable cap, not the cable.
1. Remove the spark plug cables.
2. Remove the spark plugs.
3. Check for burned out electrode or damaged

insulator. Check for even burning.

4. Remove carbon deposits with wire brush or plug

cleaner. Remove sand from plug screw with
compressed air.

AKX01272AG

Plug gap gauge

Measurement
direction

5. Use a plug gap gauge to check that the plug gap

is within the standard value range.

Standard value: 1.0

 1.1 mm

If the plug gap is not within the standard value
range, adjust by bending the earth electrode.

CAUTION

Be careful not to allow foreign matter in cylin-
ders.
6. Clean the engine plug holes.
7. Install the spark plugs.

IGNITION SYSTEM

ENGINE ELECTRICAL

16-33

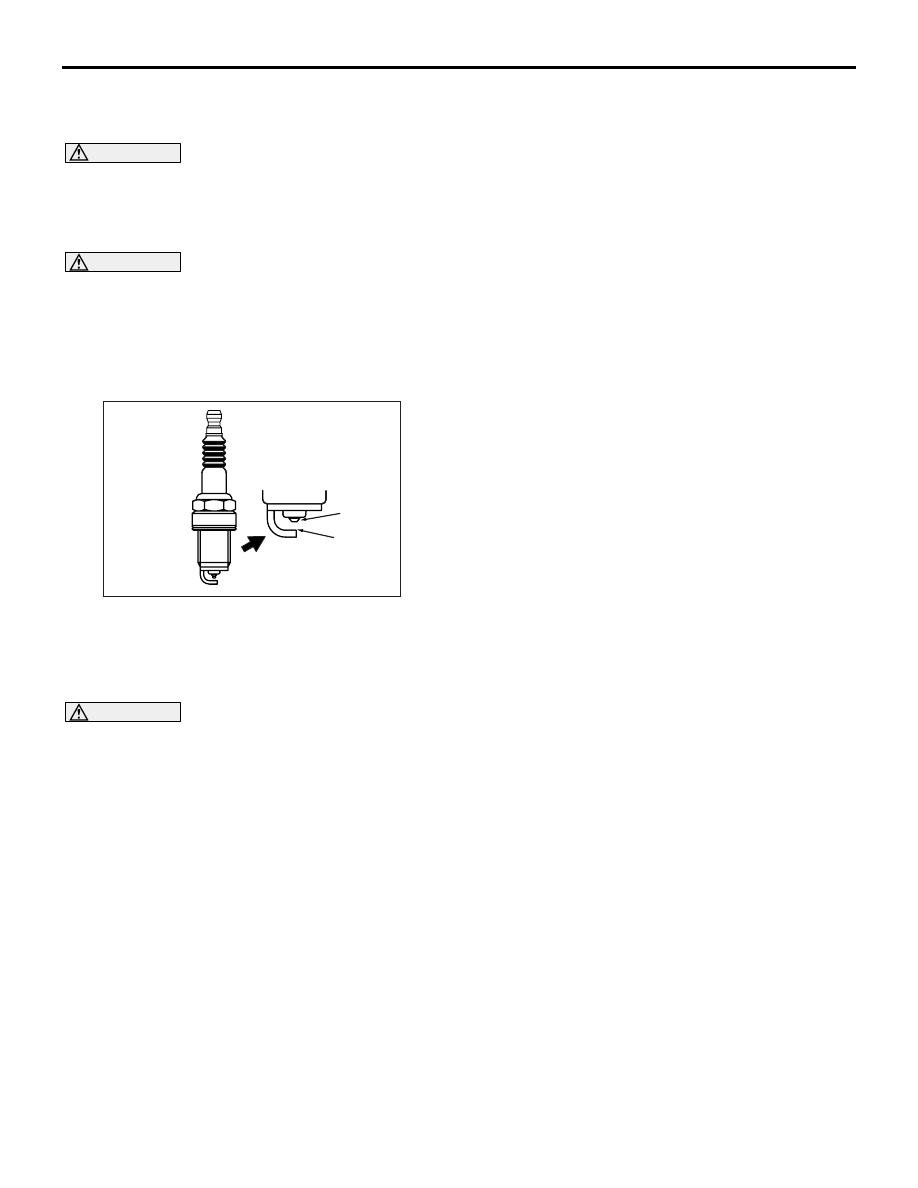

SPARK PLUG CHECK AND CLEANING
<4G6>

M1163004300353

CAUTION

When pulling off the spark plug cable from the
plug always hold the cable cap, not the cable.
1. Remove the spark plug cables.
2. Remove the spark plugs.

CAUTION

• Do not attempt to adjust the gap of the iridium

plug.

AKX00383 AL

Platinum
tip

Iridium
tip

Always use a plug cleaner and finish cleaning
within 20 seconds. Do not use wire brushes.
Otherwise, the iridium and platinum tip may
be damaged.

3. Check the plug gap and replace if the limit is

exceeded.
Standard value: 1.0

 1.1 mm

Limit: 1.3 mm

CAUTION

Be careful not to allow foreign matter in cylin-
ders.
4. Clean the engine plug holes.
5. Install the spark plugs.

CAMSHAFT POSITION SENSOR CHECK

M1163004400219

Check the camshaft position sensor circuit if
self-diagnosis code No. P0340 is shown.
(Refer to GROUP 13A

− Troubleshooting − Inspection

chart for diagnosis code <4G1>

P.13A-15

 or GROUP

13B

− Troubleshooting − Inspection chart for diagnosis

code <4G6>

P.13B-15

 ).

CRANK ANGLE SENSOR CHECK

M1163004500272

Check the crank angle sensor circuit if self-diagnosis
code No. P0335 is shown.
(Refer to GROUP 13A

− Troubleshooting − Inspection

chart for diagnosis code <4G1>

P.13A-15

 or GROUP

13B

− Troubleshooting − Inspection chart for diagnosis

code <4G6>

P.13B-15

 ).

DETONATION SENSOR CHECK

M1163002900047

Check the detonation sensor circuit if self-diagnosis
code No. P0325 is shown.
(Refer to GROUP 13A

− Troubleshooting − Inspection

chart for diagnosis code <4G1>

P.13A-15

 or GROUP

13B

− Troubleshooting − Inspection chart for diagnosis

code <4G6>

P.13B-15

).

IGNITION SECONDARY VOLTAGE
WAVEFORM CHECK USING AN
OSCILLOSCOPE

M1163001700170

MEASUREMENT METHOD

1. Clamp the secondary pickup around the spark

plug cable.
NOTE:

.

The peak ignition voltage will be reversed
when the spark plug cables No. 2 and No. 4,
or No. 1 and No. 3 cylinders are clamped.

Because of the two-cylinder simultaneous igni-
tion system, the waveforms for two cylinders in
each group appear during waveform observa-
tion (No. 1 cylinder - No. 4 cylinder, No. 2 cyl-
inder - No. 3 cylinder). However, waveform
observation is only applicable for the cylinder
with the spark plug cable clamped by the sec-
ondary pickup.

Identifying which cylinder waveform is dis-
played can be difficult. For reference, remem-
ber that the waveform of the cylinder attached
to the secondary pickup will be displayed as
stable.

2. Clamp the spark plug cable with the trigger

pickup.
NOTE: Clamp the trigger pickup to the same
spark plug cable clamped by the secondary
pickup.

IGNITION SYSTEM

ENGINE ELECTRICAL

16-34

STANDARD WAVEFORM

Observation Conditions

Function

Secondary

Pattern height

High (or Low)

Pattern selector

Raster

Engine revolutions

Curb idle speed

AKX00278

kV

0

Secondary

ignition voltage

wave pattern

Ignition voltage
(point D)

Spark line (point A)

Dwell section

Wave dampling reduction section (point B)

Point C

Time

AD

IGNITION SYSTEM

ENGINE ELECTRICAL

16-35

Observation Conditions (The only change from above condition is the pattern selector.)

Pattern selector

Display

AKX01275

kV

Secondary ignition
voltage wave pattern

0

2

NO. 1 cylinder

NO. 3 cylinder
ignition noise

Newtral section

NO. 4 cylinder

NO. 2 cylinder
ignition noise

Time

AC

WAVEFORM OBSERVATION POINTS

Point A: The height, length and slope of the spark line show the following trends (Refer to abnormal
waveform examples, 1, 2, 3 and 4).

Spark line

Plug gap Condition of

electrode

Compression
force

Concentration
of air mixture

Ignition
timing

Spark plug
cable

Length

Long

Small

Normal

Low

Rich

Advanced

Leak

Short

Large

Large wear

High

Lean

Retarded

High
resistance

Height

High

Large

Large wear

High

Lean

Retarded

High
resistance

Low

Small

Normal

Low

Rich

Advanced

Leak

Slope

Large

Plug is fouled −

Point B: Number of vibration in reduction vibration section (Refer to abnormal waveform example 5)

Number of vibrations

Coil and condenser

3 or more

Normal

Except above

Abnormal

Point C: Number of vibrations at beginning of dwell section (Refer to abnormal waveform example 5)

Number of vibrations

Coil

− 6 or higher

Normal

Except above

Abnormal

Point D: Ignition voltage height (distribution per each cylinder) shows the following trends.

Ignition
voltage

Plug gap

Condition of
electrode

Compression
force

Concentration
of air mixture

Ignition
timing

Spark plug
cable

High

Large

Large wear

High

Lean

Retarded

High
resistance

Low

Small

Normal

Low

Rich

Advanced

Leak
