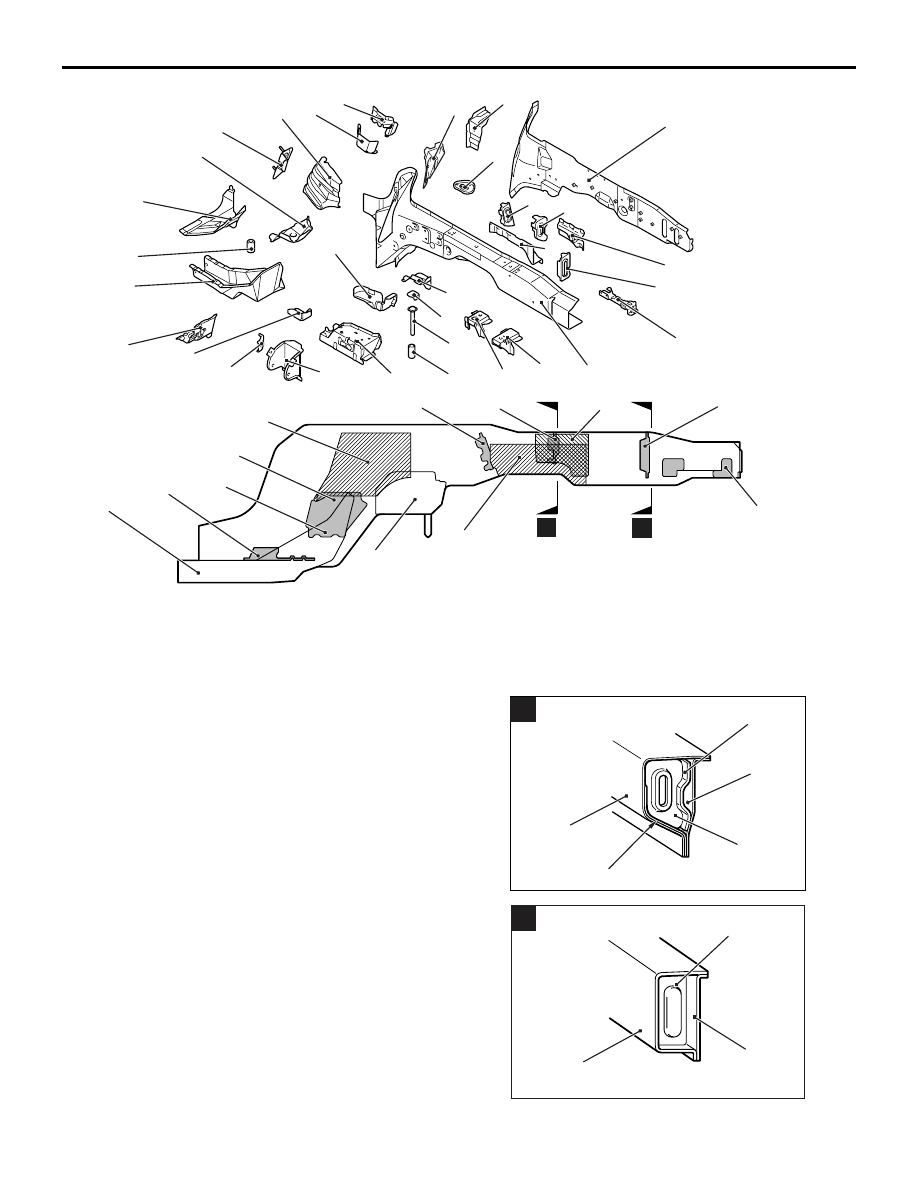

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-14

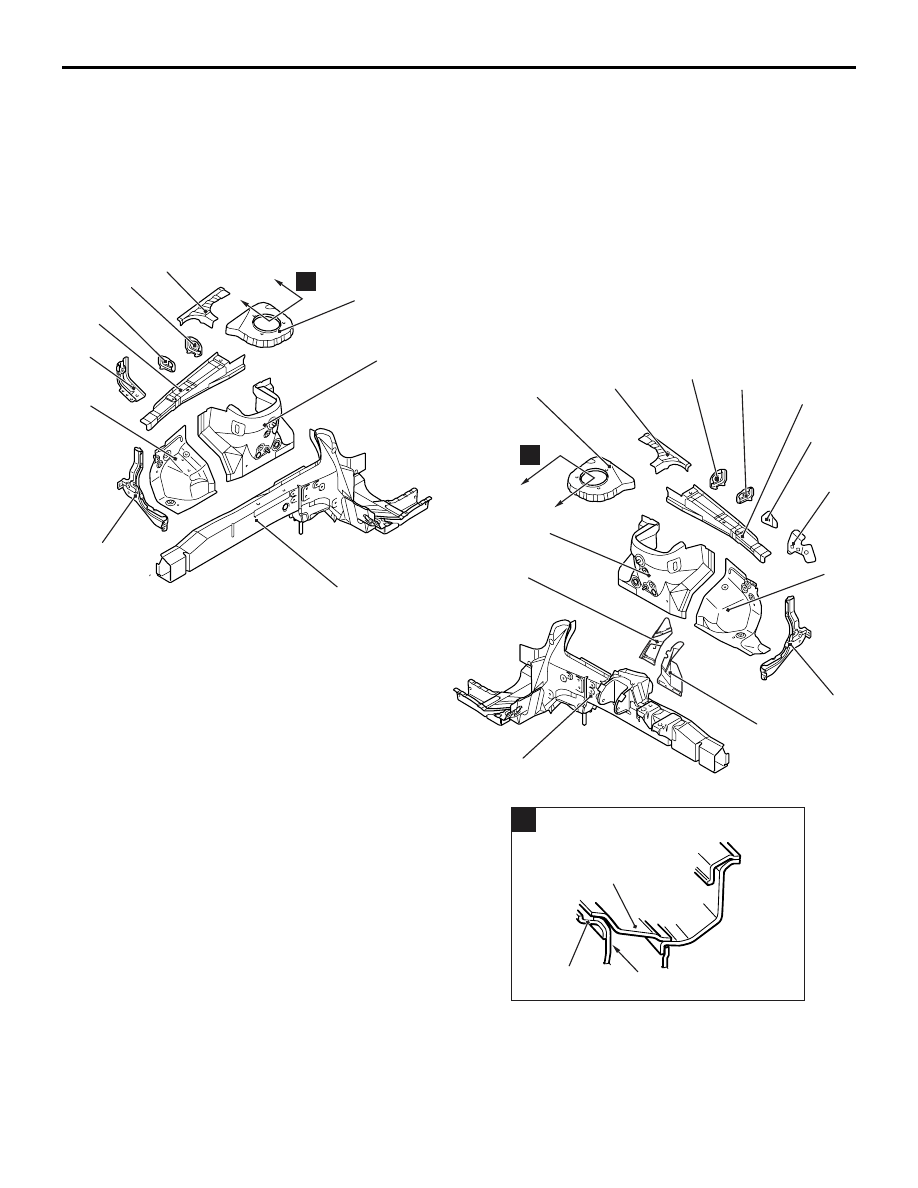

Fender Shield

The cross section of the front sidemember has been
increased and a steel sheet with variable thickness*
has been adopted for the front sidemember inner to
increase the thickness of the cabinet side in the aim
to improve safety in collision, body rigidity, and real-
ize lightweight.

NOTE: *: A steel sheet of varying thickness that is
welded into one steel sheet.

The spring house panel has been designed to be
directly installed with the cowl top lower panel, and
the body rigidity of the suspension attachment holder
has been increased to improve operational stability
and quietness.

AB300971AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

1

2

4

5

6

7

8

9

10

Right side

Left side

A

A

1.

Headlamp support panel side

2.

Front fender shield

3.

Engine mount reinforcement plate

4.

Front upper frame inner

5.

Upper frame bulkhead front

6.

Upper frame bulkhead

7.

Spring house bracket reinforcement

8.

Spring house bracket

9.

Spring house panel

10. Front sidemember
11. Transmission mount reinforcement plate rear
12. Spring house reinforcement
13. Fender shield reinforcement
14. Transmission mount reinforcement plate

AB300973AB

A

Cowl top
lower panel

Spring house
bracket

Spring
house panel

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-15

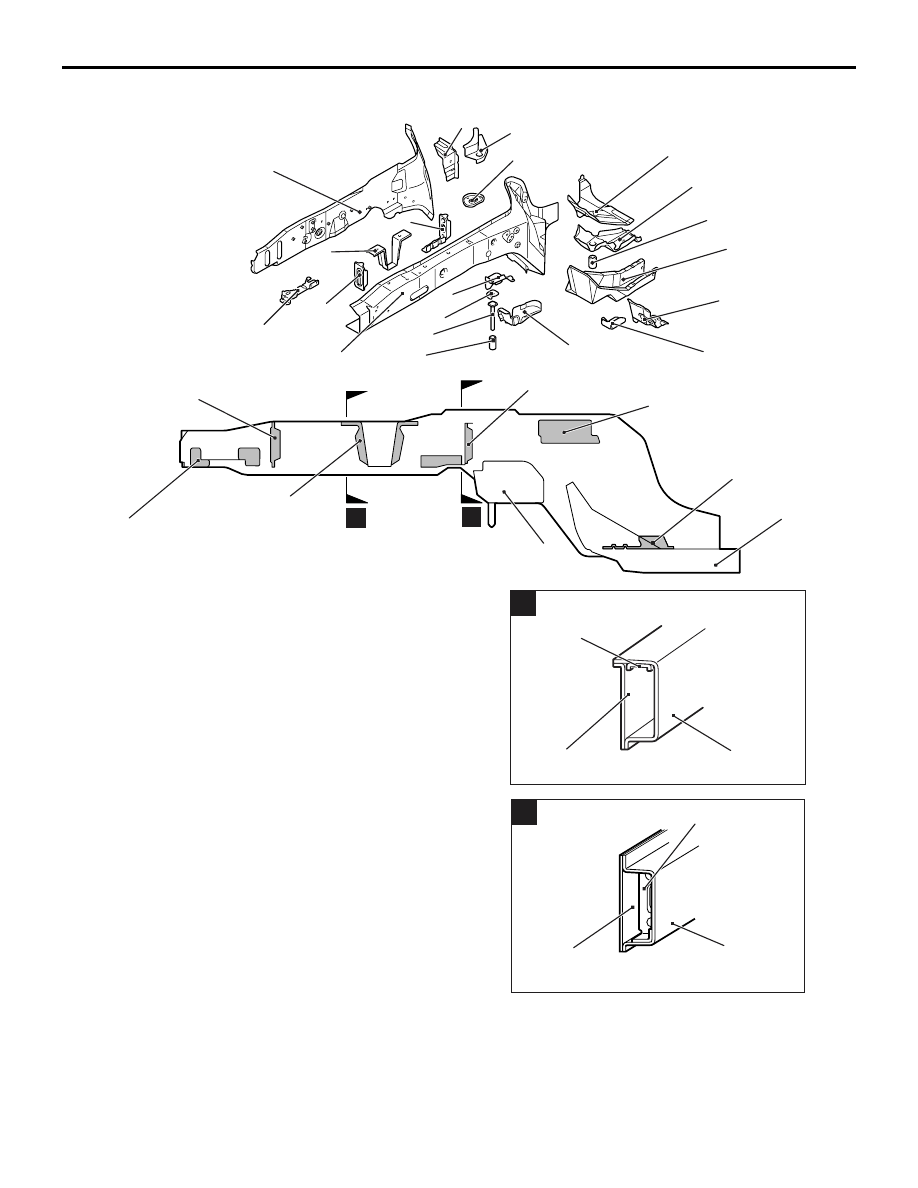

Front Sidemember Reinforcement

AB300776AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Right side

AB300783AB

2

3

4

5

9

13

8

16

A

B

1.

Sidemember inner

2.

Front sidemember bulkhead A

3.

Front sidemember inner reinforcement lower

4.

Front sidemember bulkhead

5.

Front bumper stay bracket (LH drive vehicles)

6.

Sidemember outer

7.

Front sidemember gusset rear

8.

Front sidemember inner reinforcement rear

9.

Tie down reinforcement

10. Dash panel extension
11. Pipe support rear
12. Pipe nut
13. Front sidemember rear
14. Dash crossmember extension
15. Suspension crossmember support bracket
16. Suspension crossmember bracket inner
17. Pipe support front
18. Retainer
19. Square head bolt
20. Pipe

AB300781AB

A

1

4

6

AB200280

AE

1

3

6

B

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-16

AB300777AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15 16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

Left side

AB300784 AB

3

8

9

10

14

15

16

17

18

19

20

29

A

B

1.

Suspension crossmember support bracket

2.

Dash crossmember extension

3.

Front sidemember rear

4.

Pipe nut

5.

Dash panel extension

6.

Pipe support rear

7.

Foot rest bracket (LH drive vehicles)

8.

Front sidemember reinforcement inner (LH drive
vehicles)

9.

Front sidemember outer reinforcement A (LH drive
vehicles)

10. Front sidemember outer reinforcement B (LH drive

vehicles)

11. Front sidemember inner reinforcement upper
12. Front sidemember gusset rear
13. Sidemember outer
14. Tie down reinforcement
15. Front sidemember bulkhead rear
16. Front sidemember bulkhead front
17. Front sidemember inner reinforcement
18. Front sidemember outer reinforcement
19. Front sidemember bulkhead A
20. Front bumper stay bracket (LH drive vehicles)
21. Sidemember inner
22. Battery bracket front
23. Battery bracket rear
24. Pipe support front
25. Retainer
26. Square head bolt
27. Pipe

28. Suspension crossmember bracket inner
29. Transmission mount reinforcement
30. Transmission mount bracket
31. Transmission mount reinforcement rear

AB200039

AE

13

16

17

18

21

A

AB200283

AE

13

19

21

B

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-17

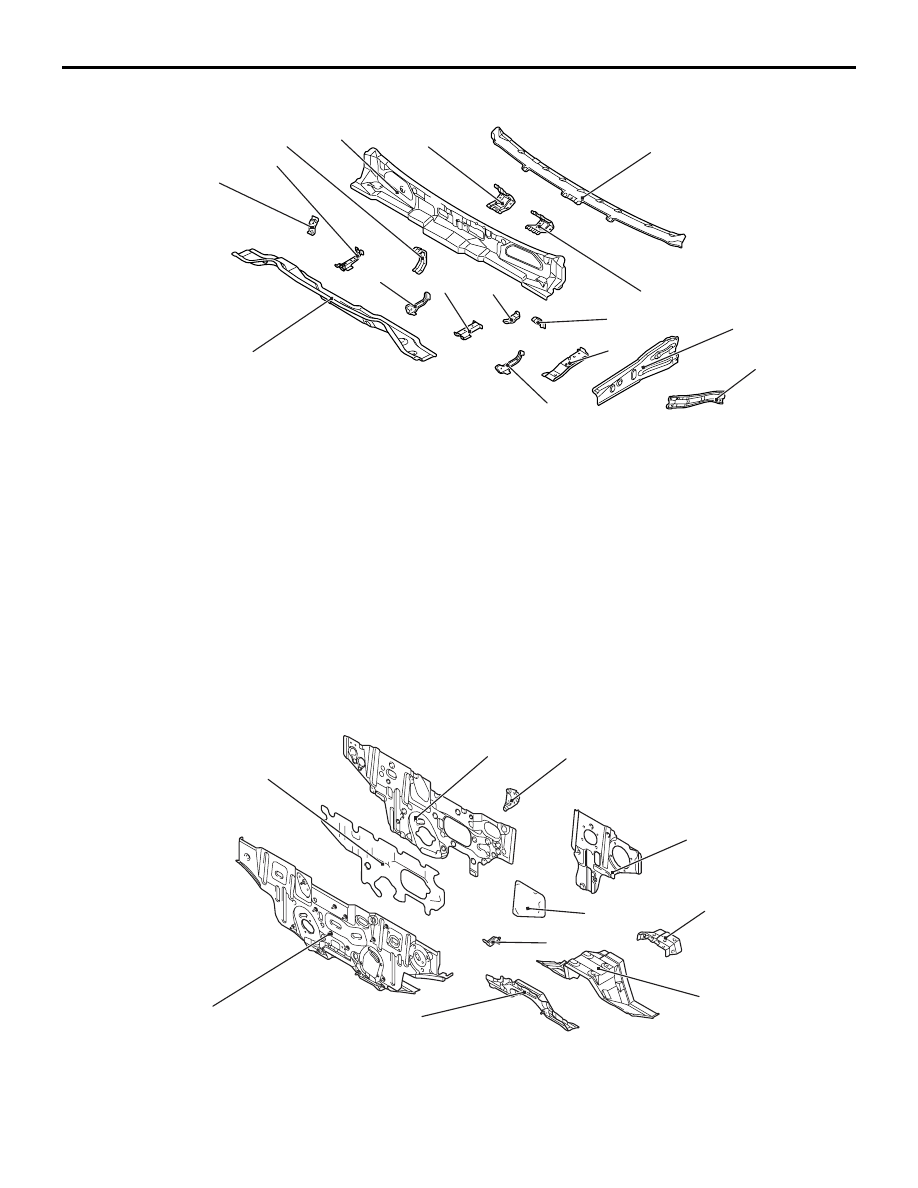

Front Deck

Dash Panel

• A dash panel crossmember has been added and

the thickness of the dash panel lower has been
increased to improve collision stability.

• A silencer (steel sheet binding type vibration

damping material) has been added between the
dash panel and dash panel silencer to control the
penetrating sound and vibration from the engine.

AB300780AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

1.

Cowl top lower panel

2.

Brake oil reservoir tank bracket

3.

Cowl top lower reinforcement

4.

Cowl top lower reinforcement G

5.

Cowl top upper reinforcement centre

6.

Cowl top inner panel

7.

Deck stay bracket

8.

Cowl top upper panel

9.

Clutch pedal support bracket

10. Cowl top upper reinforcement
11. Upper frame bulkhead rear
12. Wiper bracket centre
13. Front upper frame extension inner
14. Cowl top lower reinforcement F

15. Upper outer frame extension
16. Upper frame to front pillar brace

AB300782 AB

1

2

3

4

5

6

7

8

9

10

1.

Dash panel crossmember

2.

Dash panel

3.

Dash silencer centre

4.

Dash silencer panel

5.

Accelerator pedal reinforcement

6.

Dash panel reinforcement

7.

Dash silencer side

8.

Accelerator pedal stopper bracket

9.

Dash panel reinforcement lower

10. Dash panel lower
