BODY COMPONENTS

BODY CONSTRUCTION

1-2

BODY COMPONENTS

M4010001000146

AB300927

AC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

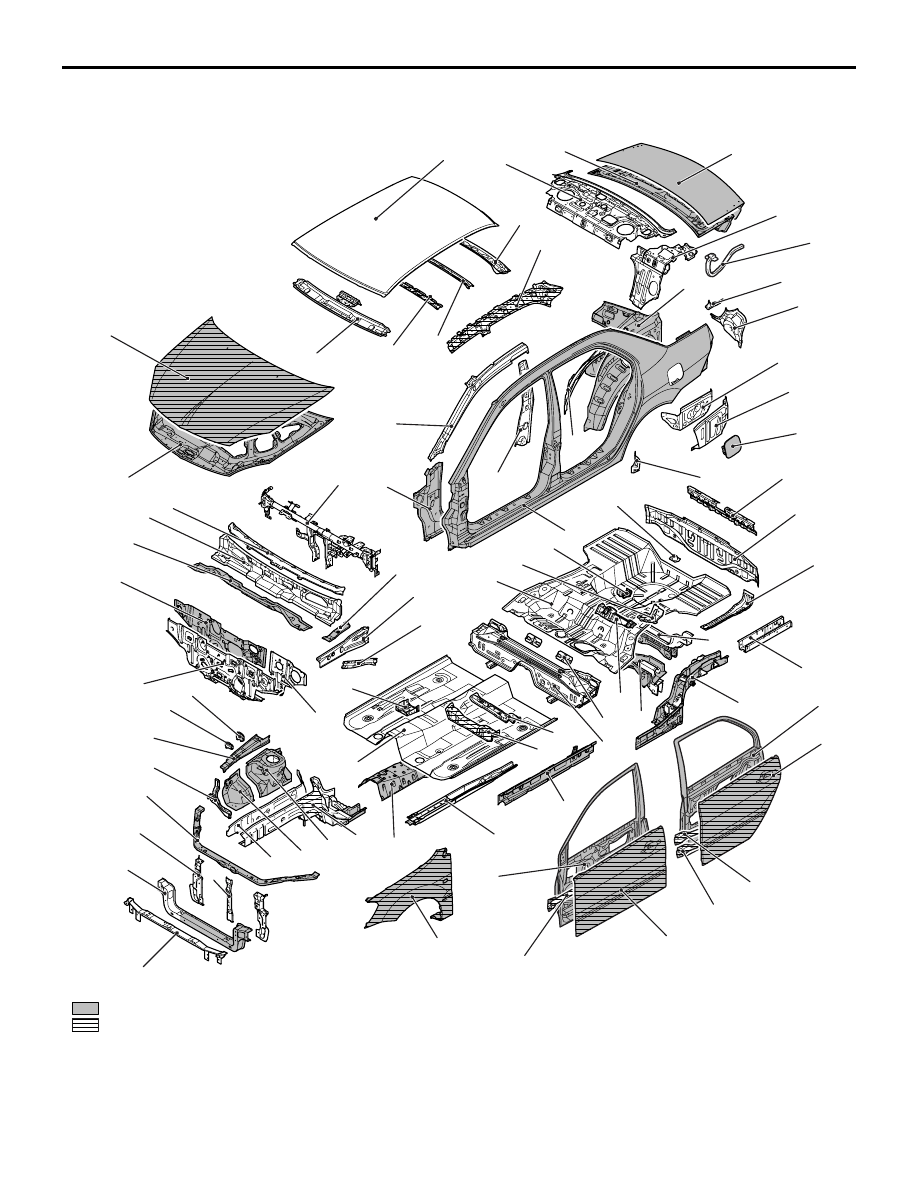

<Sedan>

 : High-tensile steel panels

 : Anti-corrosion steel panels

77

BODY COMPONENTS

BODY CONSTRUCTION

1-3

1.

Front bumper reinforcement

2.

Front end crossmember

3.

Hood lock stay

4.

Headlamp support side panel

5.

Front end upper bar

6.

Headlamp support panel side

7.

Front upper frame inner

8.

Upper frame bulkhead front

9.

Upper frame bulkhead

10. Dash panel
11. Dash silencer panel
12. Dash panel reinforcement
13. Cowl top lower panel
14. Cowl top inner panel
15. Cowl top upper panel
16. Upper frame to front pillar brace
17. Upper frame outer extension
18. Front upper frame extension inner
19. Front deck crossmember
20. Hood inner panel
21. Hood outer panel
22. Roof rail front
23. Roof bow front
24. Rear roof bow
25. Roof side rail inner
26. Roof rail rear
27. Roof panel
28. Rear shelf panel
29. Trunk lid inner panel
30. Trunk lid outer panel
31. Rear shelf  brace
32. Trunk lid hinge
33. Quarter panel inner
34. Quarter corner panel
35. Rear combination lamp housing
36. Rear floor side brace
37. Quarter outer panel lower extension
38. Fuel filler lid
39. Side sill end plate

40. Rear wheel house inner panel
41. Centre pillar inner
42. Front pillar inner upper
43. Front pillar inner lower
44. Side outer panel
45. Spare tyre bracket
46. Rear end panel inner
47. Rear end panel outer
48. Towing hook reinforcement
49. Jack bracket
50. Rear seatback reinforcement
51. Rear floor sidemember extension
52. Rear floor crossmember
53. Rear floor sidemember
54. Upper arm crossmember
55. Rear floor pan
56. Child anchor bracket lower
57. Rear floor seat belt reinforcement
58. Rear floor panel extension
59. Rear door panel inner
60. Rear door panel outer
61. Rear door side door beam upper
62. Rear door side door beam
63. Front door panel outer
64. Front door side door beam
65. Front door panel inner
66. Front floor side sill inner
67. Front floor crossmember rear
68. Front floor crossmember front
69. Front floor sidemember
70. Front fender
71. Instrument panel centre reinforcement bracket
72. Front floor pan
73. Backbone reinforcement
74. Sidemember inner
75. Spring house panel
76. Front fender shield
77. Sidemember outer

BODY COMPONENTS

BODY CONSTRUCTION

1-4

AB300928

AC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

16

17

18

19

20

21

22

23

24

25

26

27

28 29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

 : High-tensile steel panels

 : Anti-corrosion steel panels

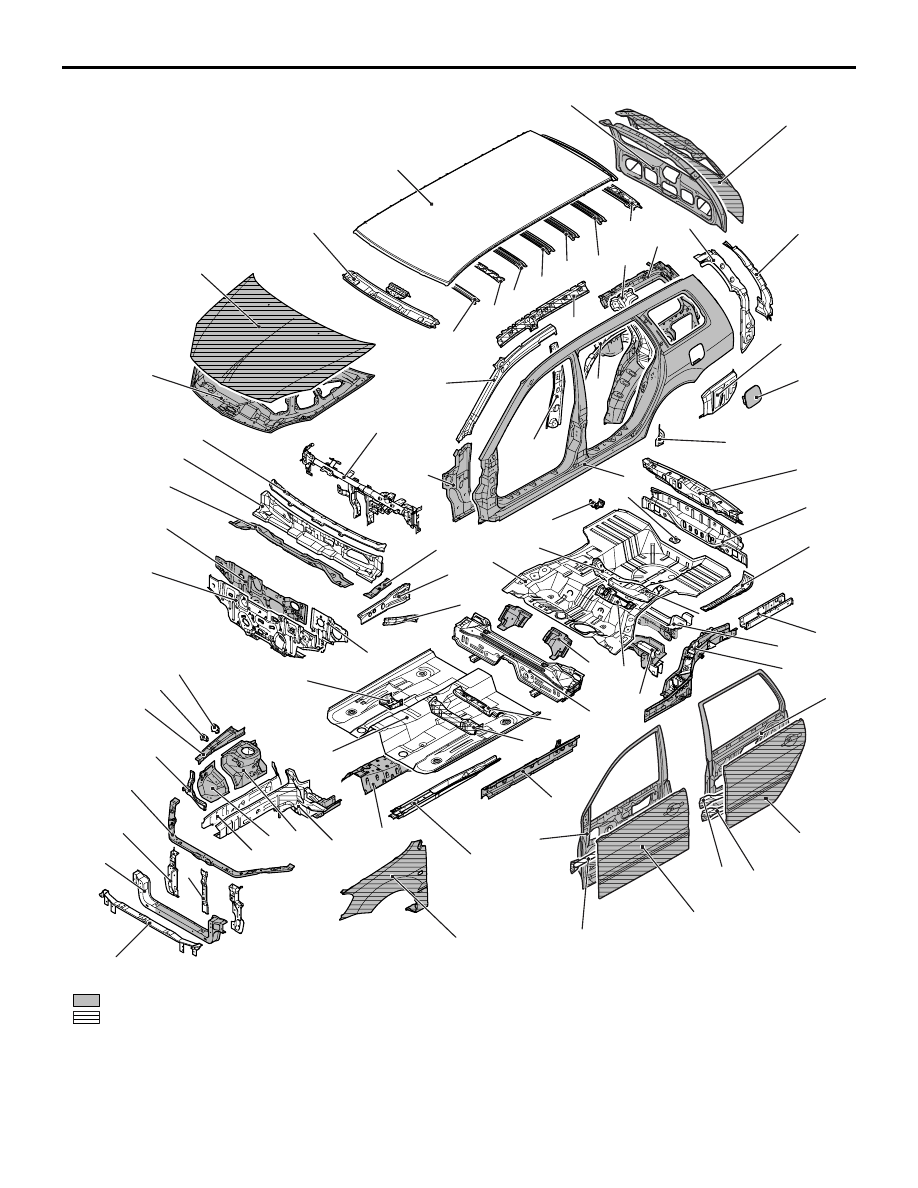

<Wagon>

15

79

BODY COMPONENTS

BODY CONSTRUCTION

1-5

1.

Front bumper reinforcement

2.

Front end crossmember

3.

Hood lock stay

4.

Headlamp support side panel

5.

Front end upper bar

6.

Headlamp support panel side

7.

Front upper frame inner

8.

Upper frame bulkhead front

9.

Upper frame bulkhead

10. Dash panel
11. Dash silencer panel
12. Dash panel reinforcement
13. Cowl top lower panel
14. Cowl top inner panel
15. Cowl top panel upper
16. Upper frame to front pillar brace
17. Upper outer frame extension
18. Upper frame extension inner
19. Front deck crossmember
20. Hood inner panel
21. Hood outer panel
22. Roof rail front
23. Roof panel
24. Roof bow A
25. Roof bow front reinforcement
26. Roof bow B
27. Roof bow C
28. Roof bow D
29. Roof bow E
30. Roof rail rear
31. Tailgate panel inner
32. Tailgate panel outer
33. Rear gate pillar reinforcement
34. Quarter panel inner
35. Rear pillar reinforcement upper
36. Roof side rail inner
37. Rear lamp housing
38. Quarter outer panel lower extension
39. Fuel filler lid
40. Side sill end plate

41. Rear wheel house inner panel
42. Centre pillar inner
43. Front pillar inner upper
44. Front pillar inner lower
45. Side outer panel
46. Rear end crossmember inner
47. Rear end crossmember outer
48. Spare tyre bracket
49. Towing hook reinforcement
50. Rear floor crossmember brace
51. Rear floor sidemember extension
52. Rear floor crossmember
53. Jack bracket
54. Rear floor crossmember upper
55. Rear floor pan
56. Rear floor sidemember
57. Upper arm crossmember
58. Child anchor bracket lower
59. Rear floor seat belt reinforcement Large
60. Rear floor panel extension
61. Rear door panel inner
62. Rear door panel outer
63. Rear door side door beam
64. Rear door side door beam upper
65. Front door panel outer
66. Front door side door beam
67. Front door panel inner
68. Front floor side sill inner
69. Front floor crossmember front
70. Front floor crossmember rear
71. Instrument panel centre reinforcement bracket
72. Front floor pan
73. Backbone reinforcement
74. Front floor sidemember
75. Front fender
76. Sidemember inner
77. Spring house panel
78. Front fender shield
79. Sidemember outer
