Mitsubishi Lancer (4A9 engine). Manual - part 163

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-314

Speaker System Circuit

AUDIO AMPLIFIER

TWEETER
(LH)

TWEETER
(RH)

FRONT DOOR
SPEAKER (LH)

FRONT DOOR
SPEAKER (RH)

REAR DOOR
SPEAKER
(LH)

REAR DOOR
SPEAKER
(RH)

SUB WOOFER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

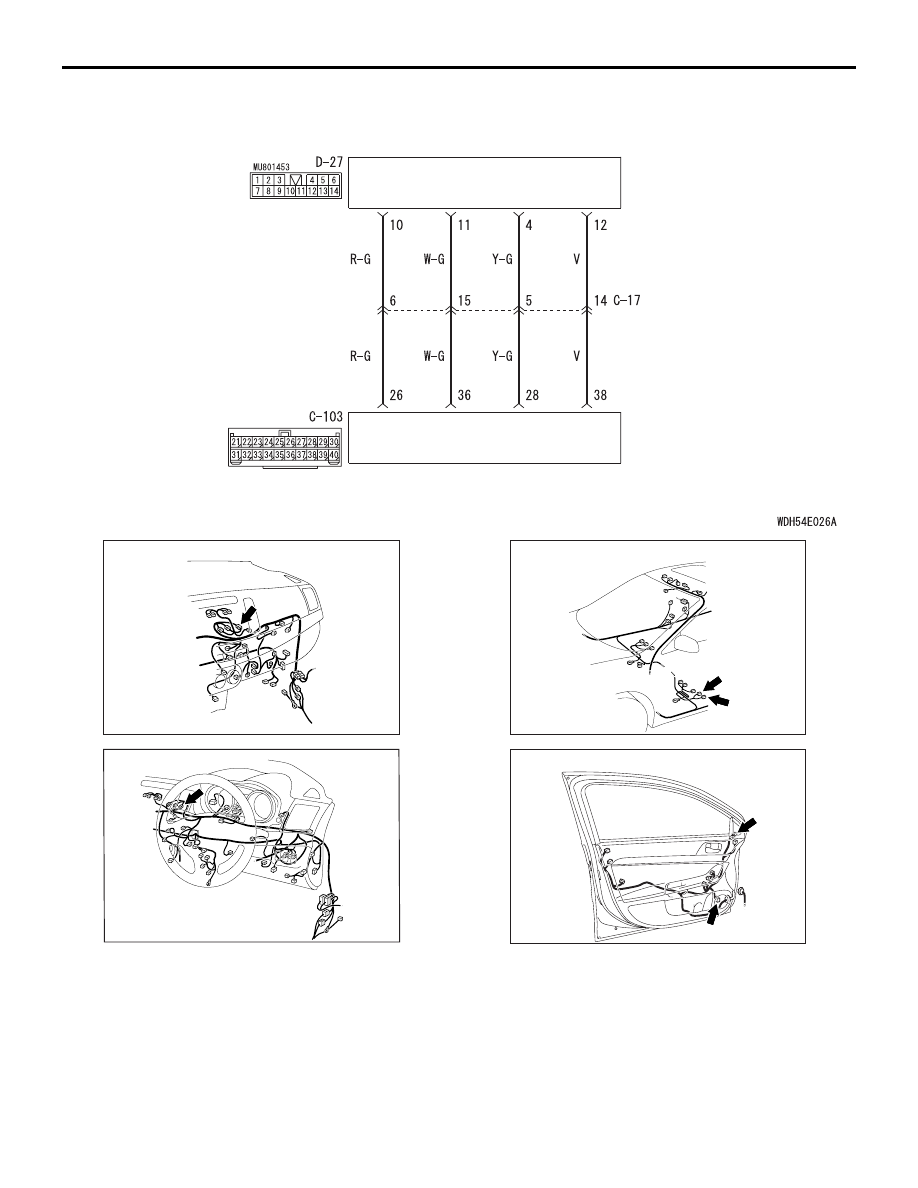

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-315

AUDIO AMPLIFIER

RADIO AND CD PLAYER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

AC701094

Connector: C-105 <LHD>

BG

AC701122 CH

Connector: C-105 <RHD>

AC612722

AH

Connectors: D-26, D-27

D-26

D-27

AC612730

Connectors: E-02, E-12

AD

E-02 (B)

E-12

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-316

COMMENTS ON TROUBLE SYMPTOM
If the audio sound is not output, the radio and CD
player, audio amplifier, or power supply circuit of
audio amplifier may have a problem. In addition, if
any of the speakers is short-circuited, the protection
circuit inside the radio and CD player disables all the
speakers to sound. Therefore, if all the speakers do
not output sound, the speaker circuit may be shorted
or the speaker may be defective. Also, the option
coding information may be inconsistent.

PROBABLE CAUSES

• Malfunction of radio and CD player

• Malfunction of audio amplifier

• Malfunction of speaker or tweeter

• Option coding information inconsistency

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. ETACS-ECU coding data check
(1) Operate the M.U.T.-III to read the ETACS-ECU

option coding information (Refer to GROUP 00

−

Coding List ).

(2) Check that the "Number of speaker" is set to

"Premium."

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Operate the M.U.T.-III to set the option
coding "Number of speaker" to "Number of
speaker," and check the trouble symptom.

STEP 2. Connector check: D-26, D-27 audio
amplifier connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Resistance measurement at D-26 audio
amplifier connector
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between D-26 audio

amplifier connector terminal No.24 and the body
earth.

OK: Continuity exists (2

Ω or less)

(3) Measure the resistance between D-26 audio

amplifier connector terminal No.31 and the body
earth.

OK: Continuity exists (2

Ω or less)

(4) Measure the resistance between D-26 audio

amplifier connector terminal No.32 and the body

AC612731

Connectors: E-04, E-10

AD

E-04 (B)

E-10

AC612733

Connector: E-21

AB

AC612732

Connector: E-22

AB

AC801775 BJ

F-25 (B)

Connector: F-25 <LANCER SPORTBACK>

AC701264 AR

Connector: F-25 <LANCER>

F-25 (B)

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-317

earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

STEP 4. Check the wiring harness between the D-
26 audio amplifier connector terminal No.24, 31,
32 and the body earth

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness.

STEP 5. Voltage measurement at D-26 audio
amplifier connector
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Voltage between D-26 audio amplifier connector

terminal No.25 and the body earth

OK: System voltage

(3) Voltage between D-26 audio amplifier connector

terminal No.35 and the body earth

OK: System voltage

(4) Voltage between D-26 audio amplifier connector

terminal No.36 and the body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Go to Step 6.

STEP 6. Check the wiring harness between D-26
audio amplifier connector terminal No.25, 35, 36
and fusible link No.36 <petrol> or 38 <diesel>.

• Check the power supply lines for open circuit and

short circuit.

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-31, and repair if necessary.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 7. Connector check: C-103, C-105 radio and
CD player connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

STEP 8. Check the wiring harness between C-105
radio and CD player connector terminal No.7, 17
and D-26 audio amplifier connector No.34 or D-27
audio amplifier connector No.3.

• Check the communication line for open circuit

and short circuit.

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-17, and repair if necessary.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

STEP 9. Check the following connectors.
Check the following connectors:

• E-12 front door speaker (LH) connector

• E-10 front door speaker (RH) connector

• E-22 rear door speaker (LH) connector

• E-21 rear door speaker (RH) connector

• E-02 tweeter (LH) connector

• E-04 tweeter (RH) connector

• F-25 sub woofer connector

Q: Are all the connectors in good condition?

YES :

Go to Step 10.

NO :

Repair the defective connector.

STEP 10. Check the speaker, tweeter or
subwoofer.
(1) Remove the speaker, tweeter or subwoofer.

Refer to .

(2) Check that the speaker or tweeter outputs the

noise when the voltage of 5 V is applied to the
speaker or tweeter connector terminal. <speaker
or tweeter>

(3) Check that the subwoofer outputs the noise when

the voltage of 5 V is applied to the subwoofer
connector terminal. <subwoofer>

Q: Do the speaker, tweeter or subwoofer output the

noise?
YES :

Go to Step 11.

NO :

Replace the speaker, tweeter or subwoofer.
