Mitsubishi Lancer (4A9 engine). Manual - part 11





AC808409AB

A

Parking brake lever

AC808410AD

Shift lock release
switch

PRECAUTIONS BEFORE SERVICE

GENERAL

00-41

3. Insert a screwdriver or a similar tool from the

section "A" shown in the figure. While pressing the
shift lock forced release switch, move the shift
lever.

<CVT-LHD>
1. Turn the ignition switch to the position other than

the LOCK (OFF) position.

AC

Shift lock release
button cover

2. Remove the shift lock forced release switch cover

shown in the figure. While pressing the shift lock
forced release switch with a screwdriver or a
similar tool, move the selector lever.

<CVT-RHD>
1. Turn the ignition switch to the position other than

the LOCK (OFF) position.

AC808328AB

Shift lock release
button cover

2. Remove the shift lock forced release switch cover

shown in the figure. While pressing the shift lock
forced release switch with a screwdriver or a
similar tool, move the selector lever.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-42

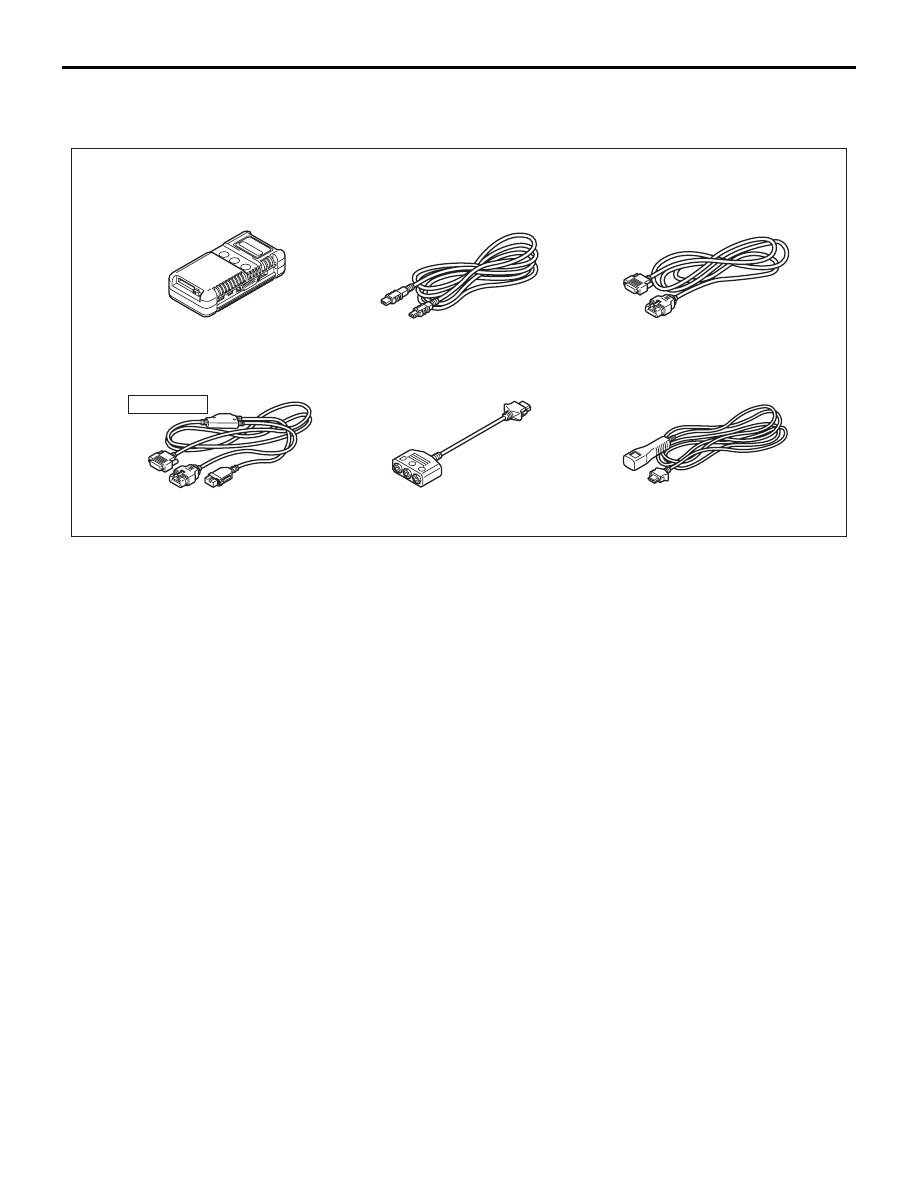

MULTI USE TESTER (M.U.T.-III) SUB
ASSEMBLY

M1001012400301

MB991910

MB991824

MB991827

MB991826

MB991911

MB991825

AC502279

MULTI USE TESTER (M.U.T.-III) sub assembly

Vehicle communication interface (V.C.I.)

M.U.T.-III USB cable

M.U.T.-III main harness A

Do not use

M.U.T.-III main harness B

M.U.T.-III adapter harness

M.U.T.-III trigger harness

AF

Refer to the "M.U.T.-III OPERATION MANUAL" for
instructions on handling the M.U.T.-III.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-43

CAUTION

Turn the ignition switch to the "LOCK" (OFF)
position before connecting or disconnecting the
M.U.T.-III.

AC608435

MB991827

MB991824

MB991910

AB

Diagnosis connector

<LH drive vehicles>

AC700191

MB991827

MB991824

AB

Diagnosis connector

<RH drive vehicles>

MB991910

Connect the M.U.T.-III to the diagnosis connector as
shown in the illustration.

HOW TO PERFORM CHASSIS NUMBER
(CHASSIS NO.) WRITING

M1001015200425

Follow the procedure below to register the Chassis No. of the Wireless Control Module (WCM) and the Key-
less Operation System (KOS).
Chassis No. is stored in the engine-ECU, WCM, and the KOS-ECU. If the Chassis No. is improperly erased,
the engine warning lamp or the keyless operation system warning indicator illuminates, and the diagnosis
code is displayed. When the engine-ECU, WCM, and the KOS-ECU are replaced, follow the procedure below
to write the Chassis No.

AC700593

OK

IMMOBI/KOS/Keyless

Special Function

Engine key Code
Reg. & Chassis No.
Registration

<When Engine-ECU is replaced>

<When WCM or KOS-ECU are replaced>

System Select

Chassis No. Registration

Coding

OK

OK

AB

System Select

IMMOBI/KOS/Keyless

Engine Key Code
Registration Completed

Chassis No. Registration
Completed

Result of Chassis No.
Registration

Chassis No. Registration
Confirmation

Engine Chassis No.
Registration

Engine Chassis No.
Registration
Confirmation

OK

OK

OK

Engine Chassis No.
Registration
Completed

Result of Engine
Chassis No.
Registration

OK

PRECAUTIONS BEFORE SERVICE

GENERAL

00-44

NOTE: Perform the variant coding of the engine-
ECU when the chassis No. or the vehicle identifica-
tion number is registered to the engine-ECU.
