Mitsubishi Evolution X. Manual - part 927





COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-69

STEP 4. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the data list on the combination meter.

• Item 87: Tachometer

• Should read engine speed.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does it read engine speed?

YES : Go to Step 5.
NO :  Troubleshoot the MFI (Refer to GROUP 13A,

Diagnosis

P.13A-44

). Complete the engine

troubleshooting, and then go to Step 6.

STEP 5. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Conduct the actuator test of the combination meter.

• Item 2: Tachometer

• The tachometer operates up to the set position.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normally?

YES : Go to Step 6.
NO :  Replace the combination meter.

STEP 6. Retest the system
Check that the tachometer works normally.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Go to Step 1.

Inspection Procedure 4: Tone alarm does not sound normally.

CAUTION

Before replacing the combination meter, be sure
to check that the power supply circuit, ground
circuit, and communication circuit are normal.

.

TECHNICAL DESCRIPTION (COMMENT)

When the following signals are received via the CAN
communication, the combination meter sounds the
incorporated tone alarm according to the each pat-
tern.

Seat belt reminder function

• Ignition switch ON signal

• Vehicle speed signal

• Driver's seat belt switch signal

• Front passenger's seat belt switch signal

Keyless operation key reminder tone alarm func-

tion (vehicles with KOS)

• Ignition switch OFF signal

• IG knob push switch ON signal

• Driver's door switch ON signal

Ignition key reminder tone alarm function (vehi-

cles without KOS)

• Ignition switch OFF signal

• Key reminder switch OFF signal

• Driver's door switch ON signal

Light reminder tone alarm function

• Ignition switch OFF signal

• Lighting switch ON signal

• Driver's door switch ON signal

Door-ajar warning tone alarm function

• Ignition switch ON signal

• Any door switch or trunk lid latch ON signal

• Vehicle speed signal

Freeze warning tone alarm

• Ignition switch ON signal

• Ambient temperature signal

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-70

Parking brake reminder tone alarm function

• Ignition switch ON signal

• Parking brake switch ON signal

• Vehicle speed signal

Multi information display interrupt display tone

alarm

• Display condition signal of information display

from each warning (When there is a fixed tone
alarm sounding pattern for each warning, that
pattern has the priority.)

Multi information meter switch operation tone

alarm

• ON signal for combination multi information meter

switch

Turn-signal light tone alarm function

• Turn-signal light switch ON signal

Paddle shift cancel tone alarm, Theft-alarm func-

tion, ETACS-ECU function customize tone
alarm, A/C operation tone alarm, audio opera-
tion tone alarm

• Sounding request signal from the ETACS-ECU

If the tone alarm does not sound normally, the con-
nector(s) and wiring harness in the CAN bus lines, or
each ECU or the combination meter may have a
problem.

.

TROUBLESHOOTING HINTS

• The combination meter may be defective

• The each ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

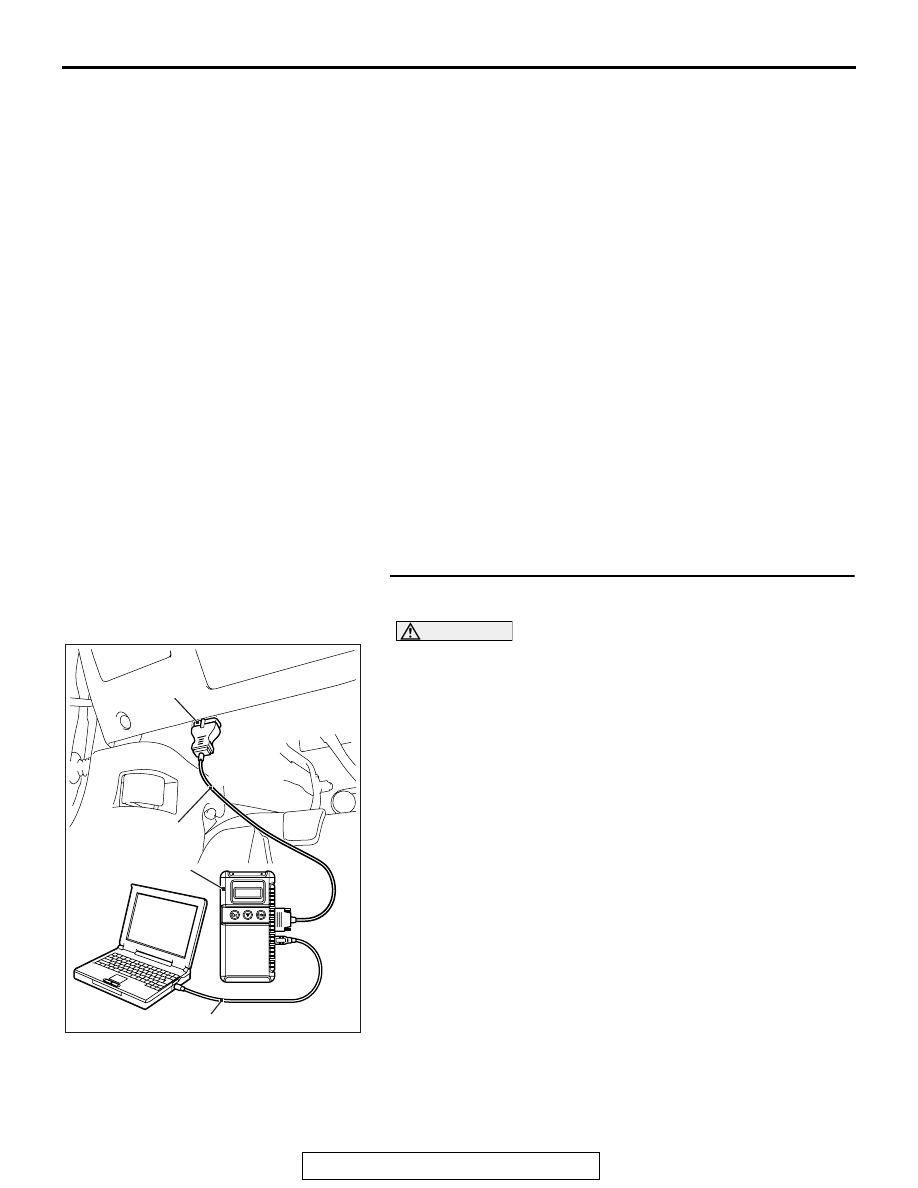

(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-25

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-71

STEP 2. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.
Q: Is the DTC set?

YES : Troubleshoot the combination meter (Refer to

P.54A-28

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read for any
diagnostic trouble code.
Check if diagnostic trouble code is set to the engine control
module, TC-SST-ECU, ASC-ECU, ETACS-ECU, WCM,
KOS-ECU, audio and A/C-ECU.
Q: Is the DTC set to the any of the above?

YES <Set to the engine control module.> : Troubleshoot

the engine control module (Refer to GROUP 13A,
Diagnosis

P.13A-44

).

YES <Set to the TC-SST-ECU.> : Troubleshoot the

TC-SST (Refer to GROUP 22C, Diagnosis

P.22C-10

).

YES <Set to the ASC-ECU.> : Troubleshoot the ASC

(Refer to GROUP 35C, Diagnosis

P.35C-20

).

YES <Set to the ETACS.> : Troubleshoot the ETACS

(Refer to

P.54A-582

).

YES <Set to the WCM.> : Troubleshoot the WCM (Refer to

GROUP 42C, diagnosis

P.42C-14

).

YES <Set to the KOS.> : Troubleshoot the KOS (Refer to

GROUP 42B, Diagnosis

P.42B-20

).

YES <Set to the audio.> : Troubleshoot the audio (Refer to

P.54A-288

).

YES <Set to the A/C.> : Troubleshoot the A/C (Refer to

GROUP 55, Auto A/C Diagnosis

P.55-9

).

NO <The diagnostic trouble code is not set.> : Go to

Step 4.

STEP 4. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Conduct the actuator test of the combination meter.

• Item 12: Tone alarm

• The tone alarms sound normally.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Replace the combination meter.

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-72

STEP 5. Retest the system
Check that the tone alarm normally.
Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the combination meter.

Inspection Procedure 5: The combination meter light does not illuminate normally or the multi
information display is not displayed normally.

CAUTION

Before replacing the combination meter, be sure
to check that the power supply circuit, ground
circuit, and communication circuit are normal.

.

TECHNICAL DESCRIPTION (COMMENT)

When the signal from each ECU is received via the
CAN communication, the combination meter illumi-
nates the corresponding display light or warning
light, or has the multi information display to display
corresponding information.

If the lights do not illuminate or the multi information
display does not display normally, the wiring harness
and connector(s) in the CAN bus lines, or the each
ECU or the combination meter may have a problem.

.

TROUBLESHOOTING HINTS

• The combination meter may be defective

• The each ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)
