DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-63

DTC SET CONDITIONS

ASC-ECU monitors the signals from each wheel speed sensor
while the vehicle is being driven. If any abnormality below is
detected in the sensor signals, ASC-ECU sets the relevant
diagnostic trouble code.

• Irregular change in the wheel speed sensor signal

• Wheel speed sensor signal continuously indicates higher

value than the values of other wheel speed sensors.

.

PROBABLE CAUSES

Current trouble

• Excessive gap between the wheel speed sensor and the

magnetic encoder for wheel speed detection

• Adhesion of foreign materials on the wheel speed sensor

• Adhesion of foreign materials on the magnetic encoder for

wheel speed detection

• Wheel bearing malfunction

• Malfunction of wheel speed sensor

• Damaged wiring harness and connectors

• External noise interference

• Improper installation of the wheel speed sensor

• Deformation of the magnetic encoder for wheel speed

detection

• ASC-ECU malfunction

• Disturbance of magnetization pattern for magnetic encoder

for wheel speed detection

• The number of poles on the magnetic encoder for wheel

speed detection (the number of N-pole and S-pole) is
changed.

Past trouble

• When DTC No. C102B is also set, perform the diagnosis

with a particular emphasis on the wiring harness and con-
nector failures between ASC-ECU and the wheel speed
sensor. For diagnosis procedures, refer to How to Treat
Past Trouble (GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points

P.00-16

).

• When the diagnostic trouble code No.C102B is not set, the

following conditions may be present:

• Wheel(s) spinning

• Unstable vehicle attitude (spin)

• External noise interference

• Vehicle ran with the parking brake applied.

DIAGNOSIS

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A

• MB991997: ASC check harness

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-64

STEP 1. Using scan tool MB991958, diagnose the CAN bus
lines.
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. DTC recheck after repairing the CAN bus line
Q: Is DTC C1032 set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

STEP 3. Scan tool diagnostic trouble code
Check if DTC No. C102B is also set.
Q: Is DTC C102B also set?

YES : Carry out the diagnosis for code No. C102B. ( Refer

to

P.35C-38

.)

NO :  Go to Step 4.

STEP 4. Check of wheel speed sensor installation status
Check the installation status of wheel speed sensor <RR> (dis-
connection of wheel speed sensor, looseness of mounting bolt,
etc.).
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Reinstall the wheel speed sensor <RR> correctly.

(Refer to

P.35C-274

.) Then go to Step 16.

STEP 5. Check of wheel speed sensor as a single unit
Refer to

P.35C-277

.

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Replace the wheel speed sensor <RR>. (Refer to

P.35C-274

.) Then go to Step 16.

STEP 6. Wheel bearing looseness check
NOTE: Wheel bearing looseness may increase the gap
between the wheel speed sensor and the wheel speed detec-
tion magnet encoder. Check the wheel bearing <RR> for loose-
ness. (Refer to GROUP 27

−

 On-vehicle Service

P.27-33

.)

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Replace the rear wheel hub assembly. (Refer to

GROUP 27

− Rear Axle Hub Assembly

P.27-36

.)

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-65

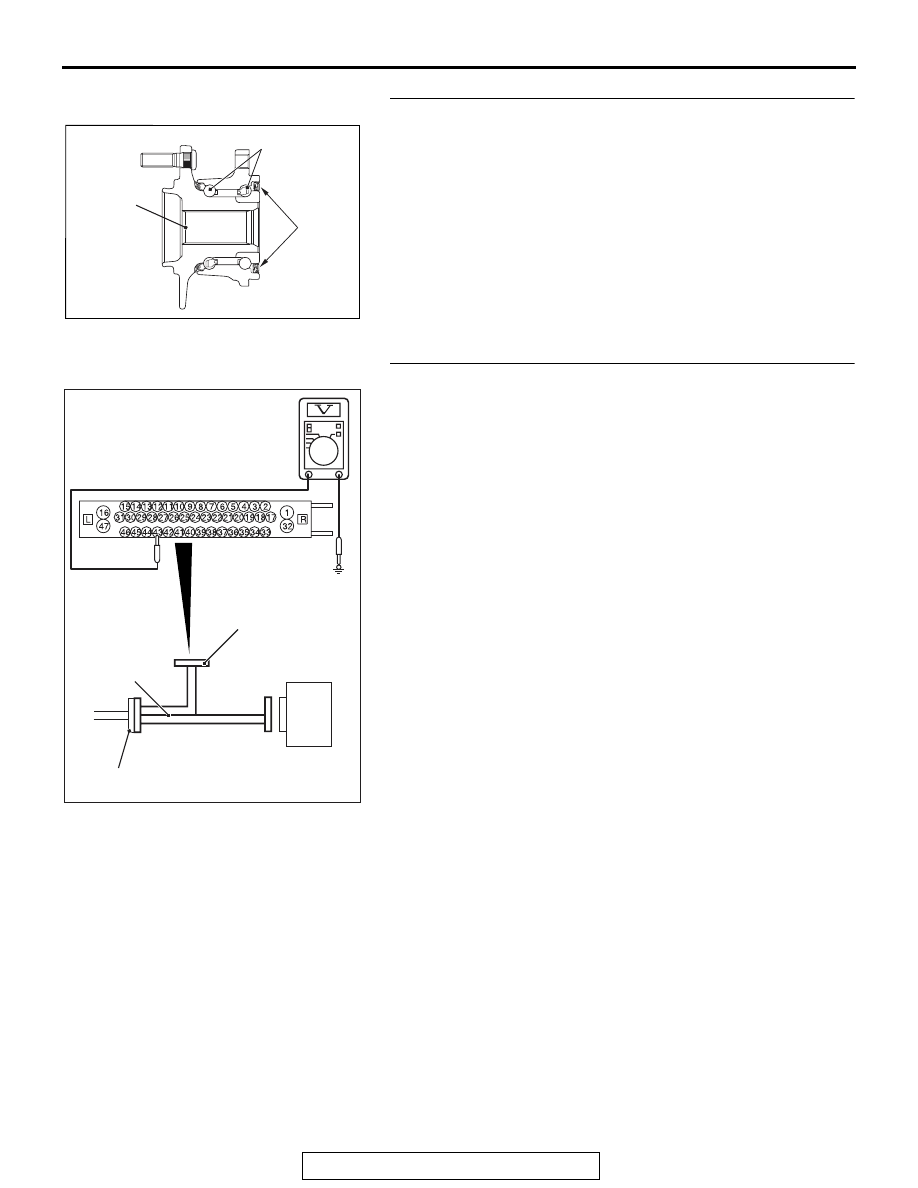

STEP 7. Check of wheel speed detection encoder
Check the encoder for adhesion of foreign materials or defor-
mation.
Q: Is the check result normal?

YES : Go to Step 8.
NO (Adhesion of foreign materials) : Clean the encoder

so as not to disturb the magnetization pattern on the
encoder while taking care of the magnet, magnetic
substance, and magnetic attraction.

NO (Deformation) : Replace the rear wheel hub assembly.

(Refer to GROUP 27

− Rear Axle Hub Assembly

P.27-36

.)

STEP 8. Voltage measurement at A-05 ASC-ECU connector
(1) Disconnect the ASC-ECU connector, connect the ASC

check harness (Special tool: MB991997) to the wiring
harness-side connector, and then measure at the special
tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 43 and
the body ground as well as between the ground terminal
No. 42 and the body ground.

OK: 1 volt or less

Q: Is the check result normal?

YES  : Go to Step 9.
NO (Not normal at the terminal No. 43 or 42) : Go to Step

10.

AC608248AB

Magnetic
encoder

Rear Wheel
bearing

Rear wheel
hub
assembly

AC400817CK

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-66

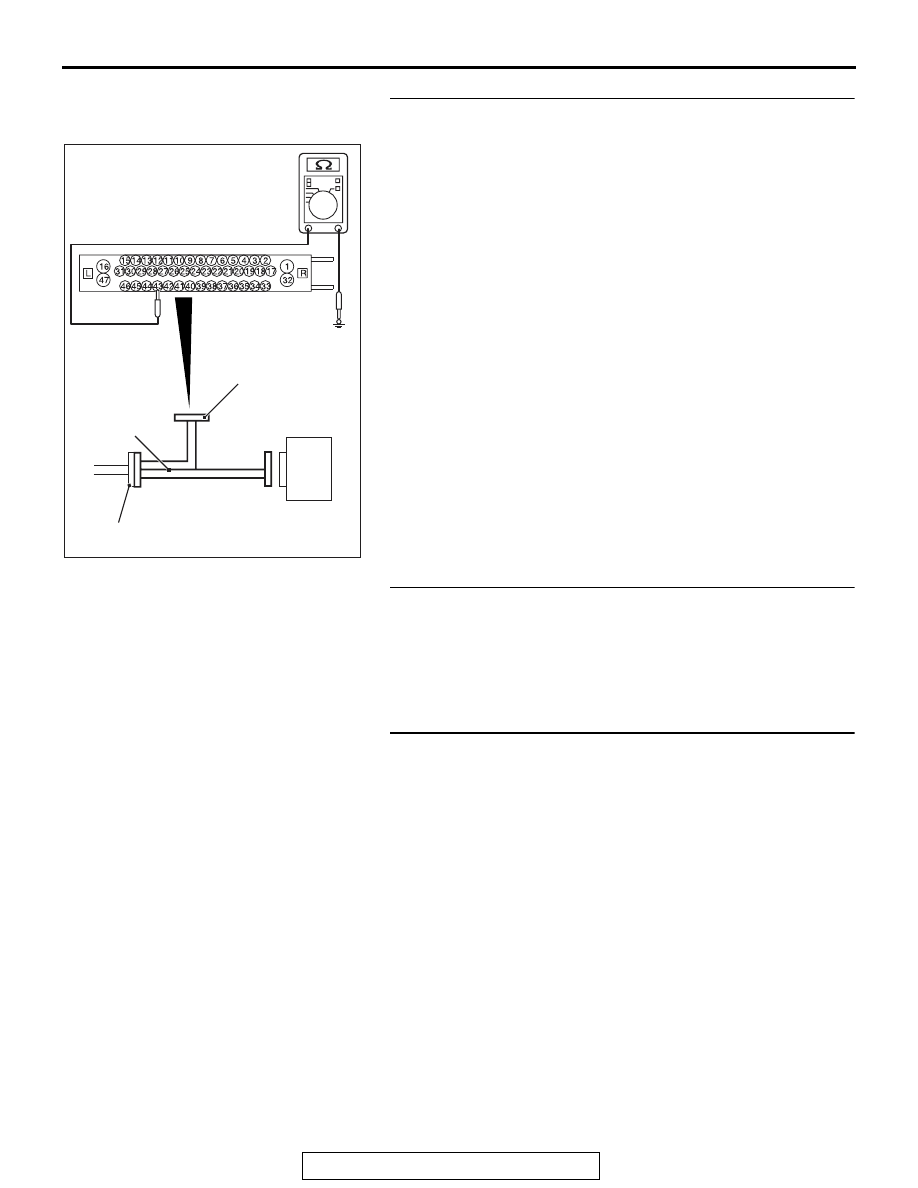

STEP 9. Resistance measurement at A-05 ASC-ECU
connector
(1) Disconnect the ASC-ECU connector, connect the ASC

check harness (Special tool: MB991997) to the wiring
harness-side connector, and then measure at the special
tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Measure the resistance between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 43 and
the body ground as well as between the ground terminal
No. 42 and the body ground.

OK: No continuity

Q: Is the check result normal?

YES  : Go to Step 12.
NO (Not normal at the terminal No. 43 or 42) : Go to Step

10.

STEP 10. Connector check: A-05 ASC-ECU connector,
C-47 intermediate connector, D-09 wheel speed sensor
<RR> connector
Q: Is the check result normal?

YES : Go to Step 11.
NO :  Repair the defective connector. Then go to Step 16.

STEP 11. Wiring harness check between A-05 ASC-ECU
connector terminal No. 43 and D-09 wheel speed sensor
<RR> connector terminal No. 1, and between A-05
ASC-ECU connector terminal No. 42 and D-09 wheel speed
sensor <RR> connector terminal No. 2

• Short circuit check of wheel speed sensor <RR> circuit

Q: Is the check result normal?

YES : Replace the wheel speed sensor <RR>. (Refer to

P.35C-274

.) Then go to Step 16.

NO :  Repair the wiring harness. Then go to Step 16.

AC400817CL

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector
