AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-435

WARNING

•

Before deployment, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
air bag deployment. See Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal
(Refer to

P.52B-439

) for post-deployment handling

instructions.

•

If the side-air bag fails to deploy, do not go near
the module.

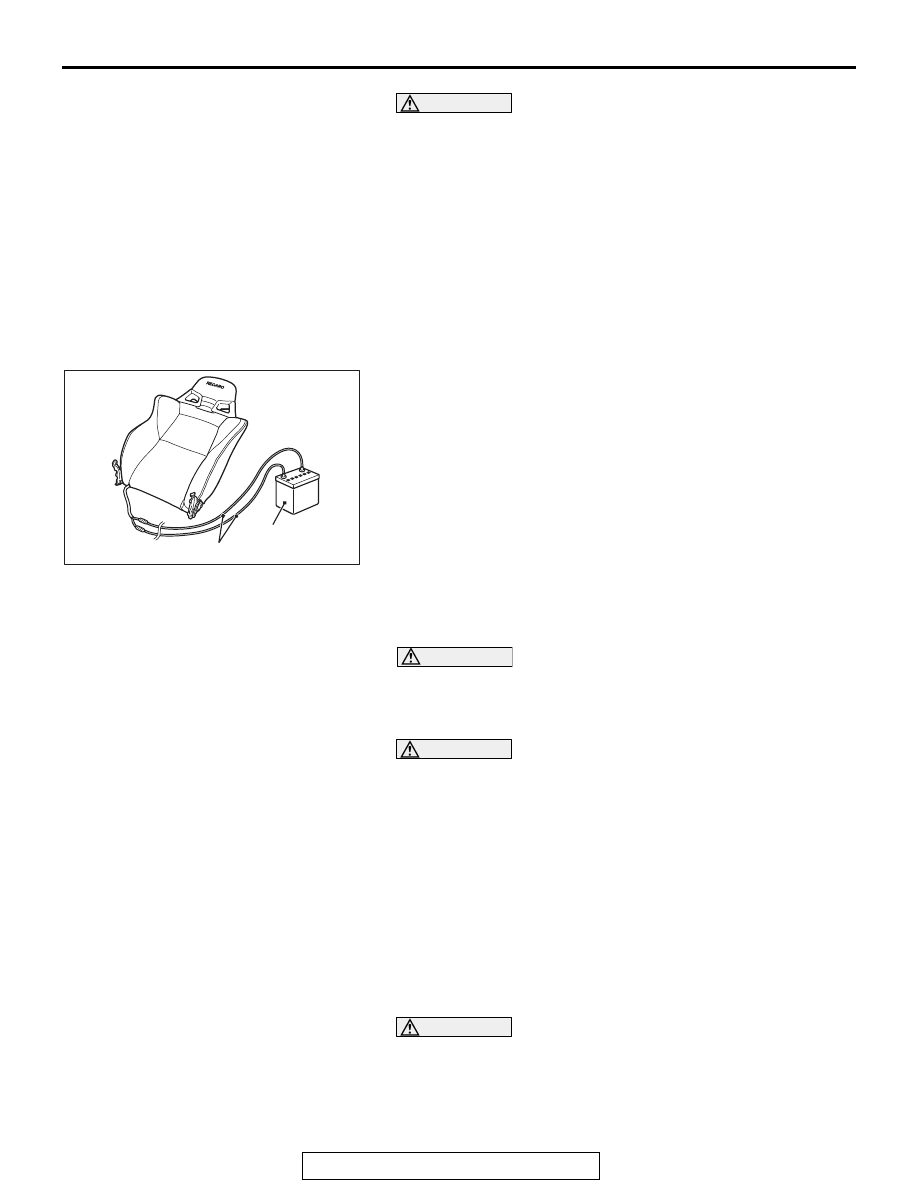

6. At a location as far away from the front seatback as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them to the
two terminals of the battery (which has been removed from
the vehicle) to deploy the air bag.

7. Discard the deployed side-air bag module as specified in

Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-439

).

.

DEPLOYMENT OUTSIDE THE VEHICLE
<CURTAIN AIR BAG MODULE>

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Deploy the air bag in a wide, flat area at least 6
meters (20 feet) away from obstacles and other
people.

•

Do not perform deployment outside if a strong
wind is blowing. If there is a slight breeze, place
the air bag module downwind from the battery.

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

WARNING

Store the curtain air bag module on a flat surface with
its operation surface facing up. Do not place anything
on top of them.

2. Remove the curtain air bag module from the vehicle (Refer

to

P.52B-409

).

AC708664 AC

Deployment wires

Vehicle battery

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-436

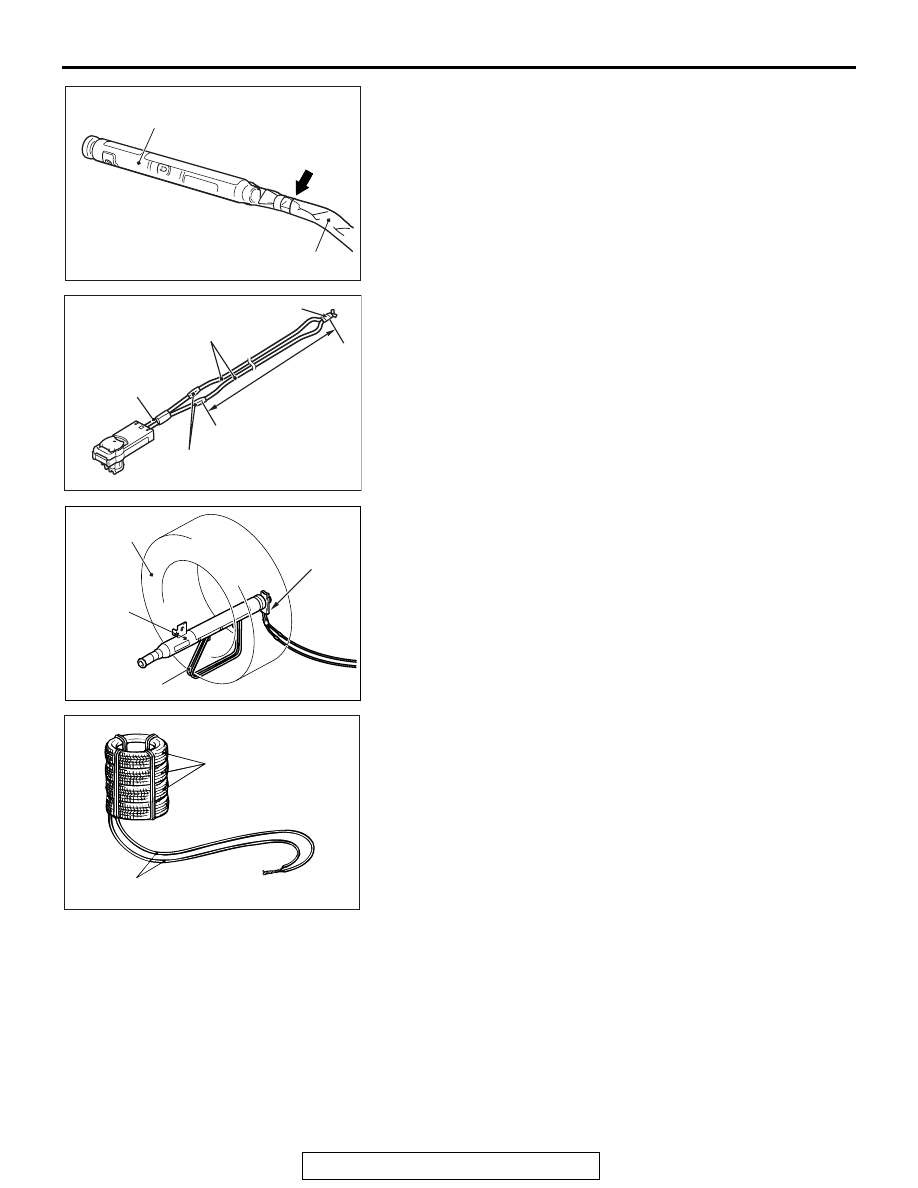

3. Cut the inflator from the air bag as shown in the figure using

a cutter or a similar tool.

4. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB991885, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the air bag module.
NOTE: This prevents the air bags from being unintentionally
deployed because of the static and others.

5. Connect the special tool MB991885 to the curtain air bag

module.

6. Feed a thick wire through the bracket of the inflator, and

connect it to an old tire without a wheel.

7. Place the tire to which the inflator is fixed onto the two

stacked tires. Then, place 1 or more old tires without wheel
onto the stacked tires, and tie and fix all the tires with rope.
(4 positions)

AC303536AD

Inflator

Air bag

AC103480

MB991885

AL

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

AC303641

MB991885

AE

Inflator

Wire

Old tire
without wheel

ACX00611AE

Old tires
without wheels

Deployment wires

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-437

WARNING

•

Before operation, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
air bag deployment. See Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal
(Refer to

P.52B-439

) for post-operation handling

instructions.

•

If the air bag fails to deploy, do not go near the
module.

8. At a location as far away from the air bag module as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them to the
two terminals of the battery (which has been removed from
the vehicle) to deploy the air bag.

9. Discard the deployed air bag module as specified in

Deployed Air Bag Module and Seat Belt Pre-tensioner
Disposal (Refer to ).

.

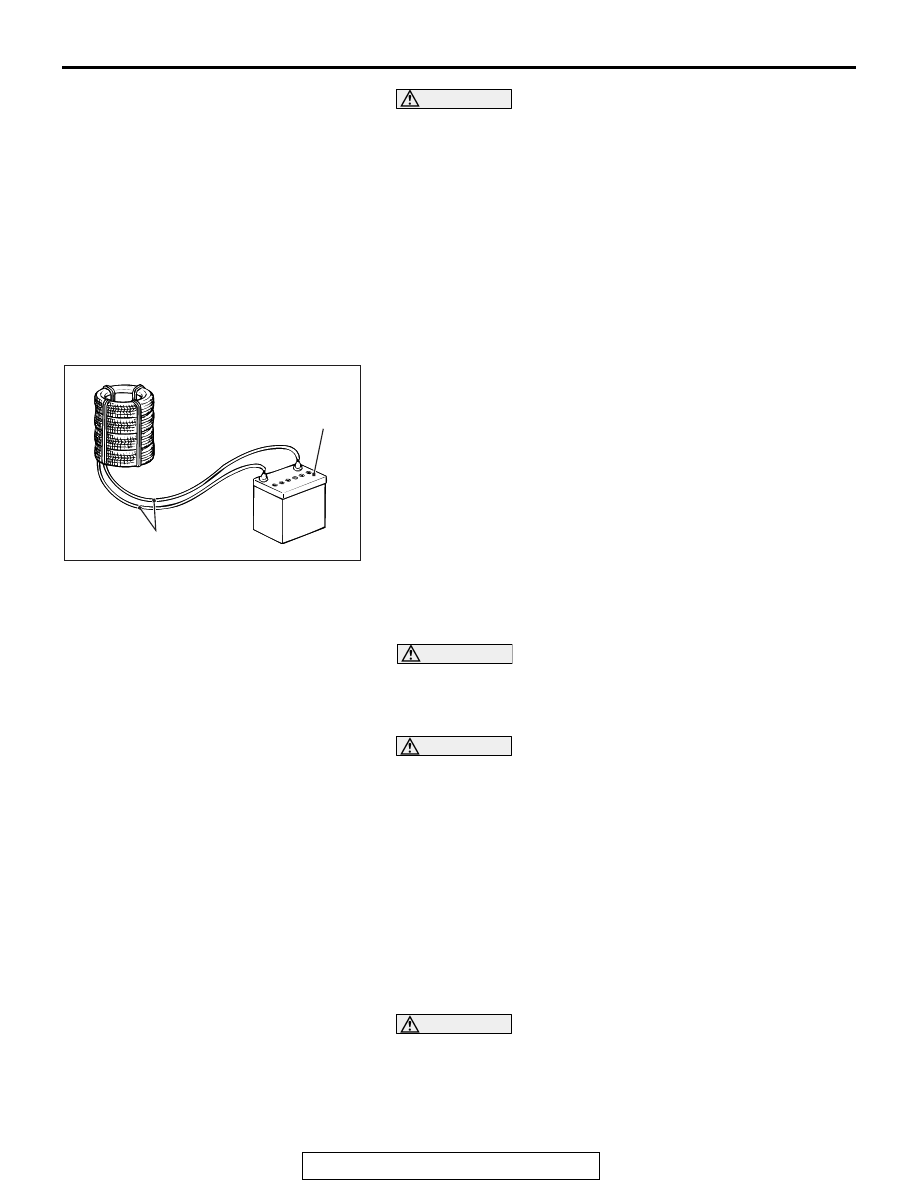

DEPLOYMENT OUTSIDE THE VEHICLE <SEAT
BELT PRE-TENSIONER>

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Operate the seat belt pre-tensioner in a wide, flat
area at least 6 meters (20 feet) away from obsta-
cles and other people.

•

Do not perform operation outside if a strong wind
is blowing. If there is a slight breeze, place the seat
belt pre-tensioner downwind from the battery.

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

WARNING

Store the seat belt pre-tensioner on a flat surface with
its operation surface facing up. Do not place anything
on top of them.

2. Remove the seat belt pre-tensioner from the vehicle (Refer

to

P.52B-413

).

ACX01315AG

Deployment wires

Vehicle battery

ACX01315

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-438

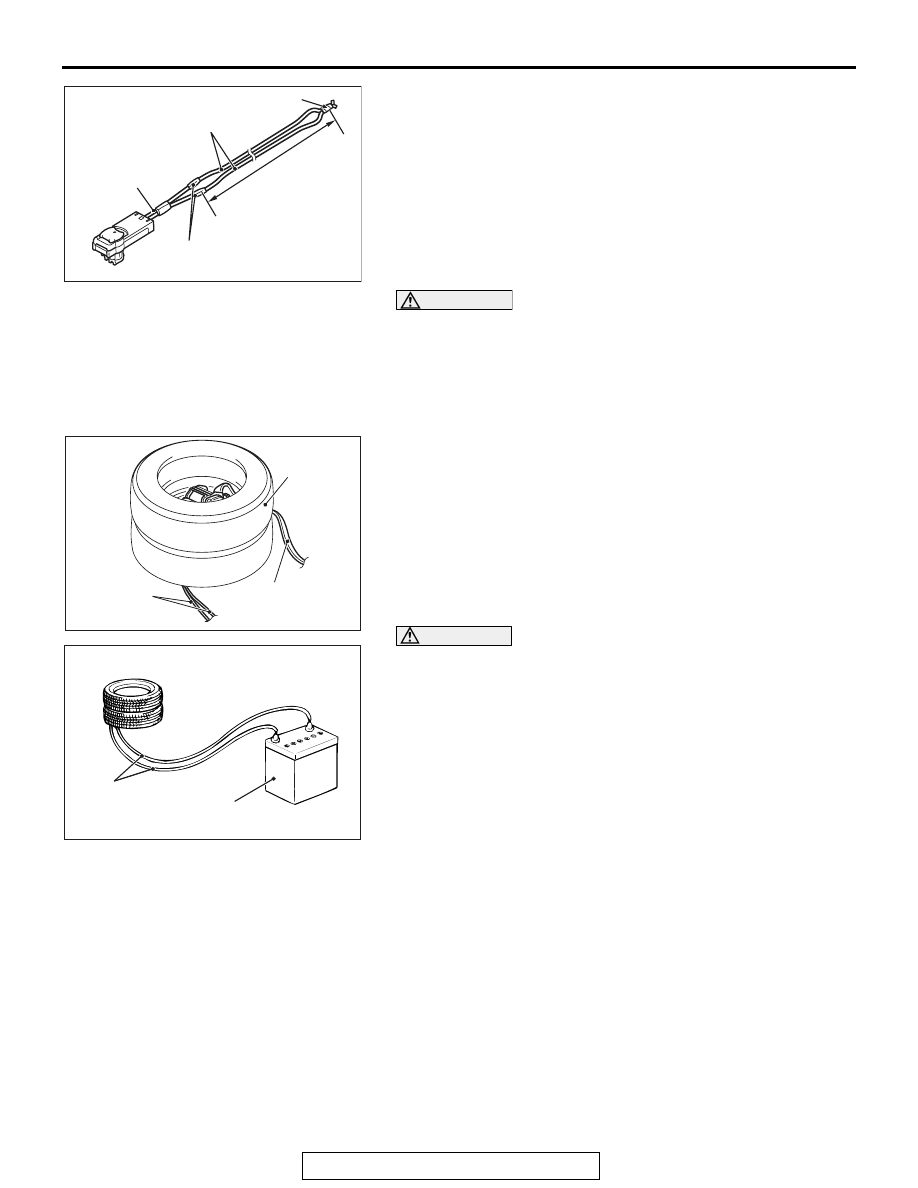

3. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB991885, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected operation of
the seat belt pre-tensioner.
NOTE: This prevents the unintentional activation of inflator
caused by the static or others.

4. Connect the special tool MB991885, which the deployment

wires is attached to, to the seat belt pre-tensioner connector.

CAUTION

The adapter harness below the wheel should be loose. If it
is too tight, the reaction when the seat belt pre-tensioner
operates could damage the adapter harness.
5. Pass the thick wires through the hole on the seat belt

pre-tensioner bracket and secure them to the front (raised
part) of the wheel in two places.

6. Pull the seat belt out to the outside of the tire, and then place

one tire without a wheel on top.

WARNING

•

Before operation, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the operation, so wait at least 30 minutes to allow
it to cool before attempting to handle it. Although
not poisonous, do not inhale gas from seat belt
pre-tensioner operation. See Deployed Air Bag
Module and Operated Seat Belt pre-tensioner Dis-
posal (Refer to

P.52B-416

) for post-operation han-

dling instructions.

•

If the seat belt pre-tensioner fails to operate, do
not go near the seat belt pre-tensioner.

7. At a location as far away from the seat belt pre-tensioner as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them to the
two terminals of the battery (which has been removed from
the vehicle) to operate the seat belt pre-tensioner.

8. Discard the operated seat belt pre-tensioner as specified in

Deployed Air Bag Module and Seat Belt pre-tensioner
Disposal (Refer to

P.52B-439

).

AC103480

MB991885

AL

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

AC105388AF

Tires
without
wheels

Seat belt

Deployment
wires

AC004294 AF

Vehicle battery

Deployment wires
