AC605713

E-19

E-20

E-21

E-22

E-23

E-24

E-25

E-26

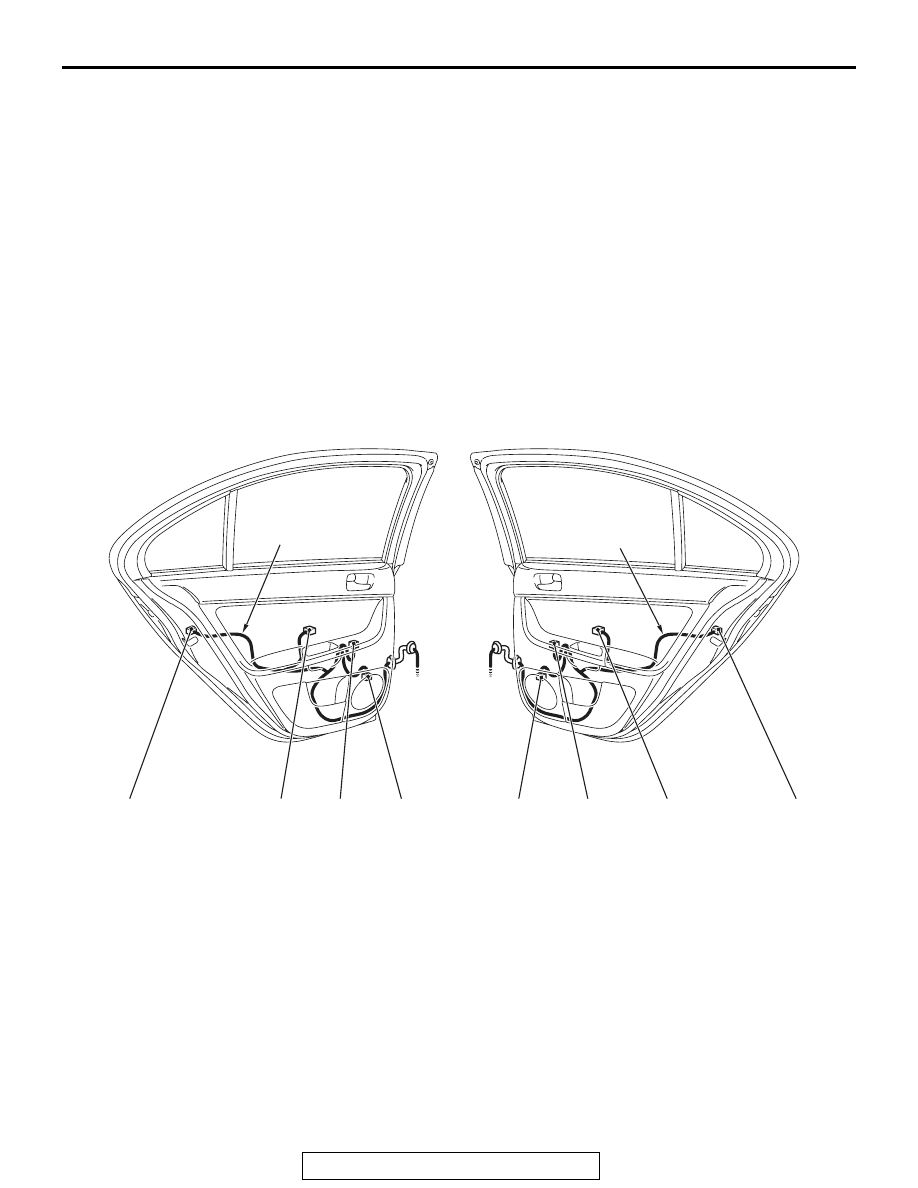

Rear wiring door
harness (LH)

Rear wiring door
harness (RH)

AE

(LH)

REAR DOOR

(RH)

E-16

(6-B)

Front door lock actuator (LH)

E-17

(2-GR)

Lock switch (LH) <Vehicles with KOS>

E-18

(6)

Unlock sensor (LH) <Vehicles with
KOS>

E-19

(6-B)

Rear door lock actuator (RH)

E-20

(6-GR)

Rear power window motor (RH)

E-21

(8)

Rear power window sub switch (RH)

E-22

(2)

Rear door speaker (RH)

E-23

(2)

Rear door speaker (LH)

E-24

(8)

Rear power window sub switch (LH)

E-25

(6-GR)

Rear power window motor (LH)

E-26

(6-B)

Rear door lock actuator (LH)

DOOR

TSB Revision

CONFIGURATION DIAGRAMS

80A-19

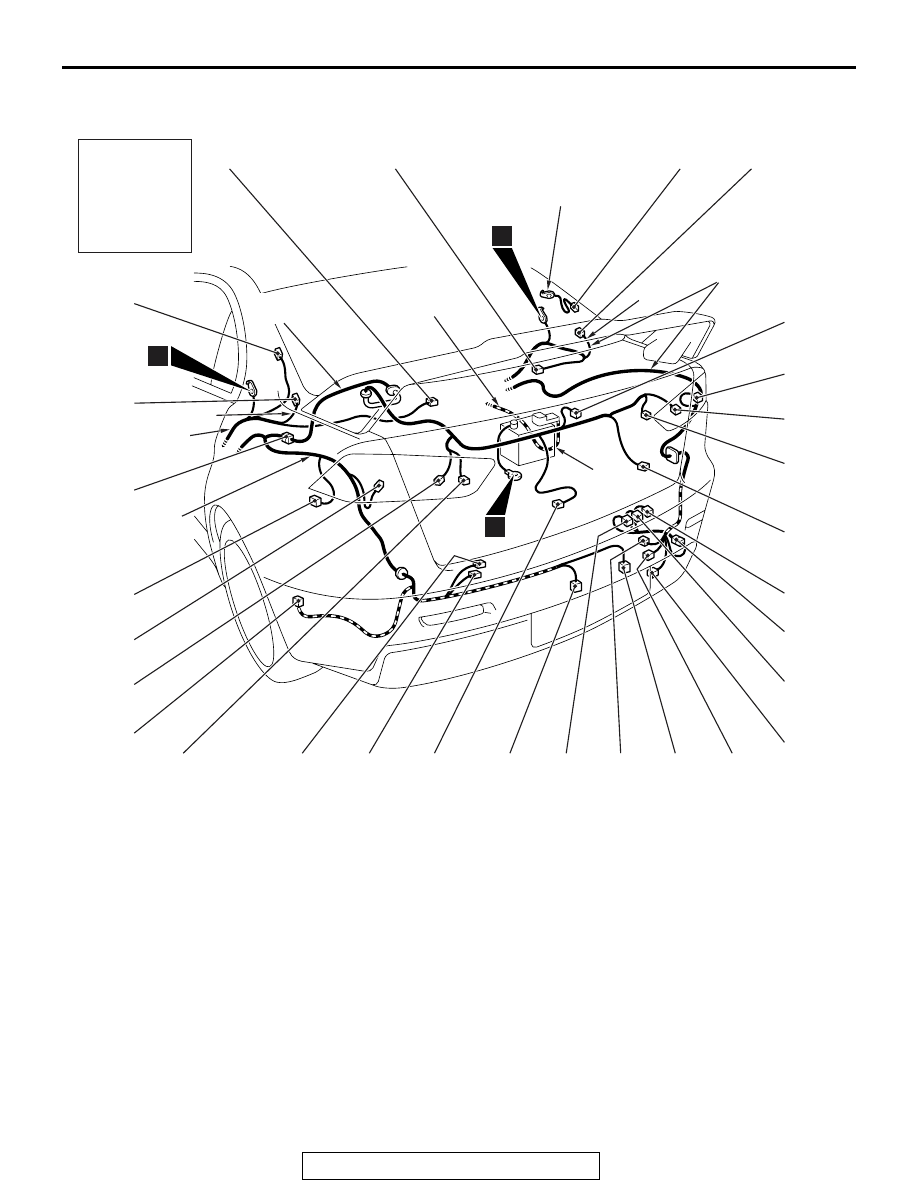

LUGGAGE COMPARTMENT

TSB Revision

CONFIGURATION DIAGRAMS

80A-20

LUGGAGE COMPARTMENT

M1801001500902

AC708221

AC704968

Connector
symbol

F

Rear window
defogger grounding

Rear floor wiring
harness (RH)

Battery (+)
wiring harness

Battery

Rear floor wiring
harness (LH)

Rear floor wiring
harness (LH)

AB

F-01

F-02

F-03

F-04

F-18

F-15

F-19

F-21

F-17

F-16

F-14

F-20

F-22

Y

F-25

F-24

F-26

F-23

F-27

F-28

F-29

F-06

F-05

F-07

F-08

F-09

F-10

F-11

F-12

F-13

Y

15

11

9

Trunk lid
wiring harness

F-01

(2)

Luggage compartment light

F-02

(3)

Inside transmission antenna assembly
(Rear) <Vehicles with KOS>

F-03

(1-B)

Rear window defogger (

−)

F-04

(2-B)

Curtain air bag module (squib) (RH)

F-05

(2-GR)

High-mounted stoplight

F-06

(4)

Rear combination light (RH)

F-07

(2-GR)

Taillight (RH)

F-08

(3-GR)

Backup light (RH)

F-09

(2)

Trunk lid opener switch <Vehicles with
KOS>

F-10

(2-B)

Direction valve (LH)

F-11

(4)

Rear floor wiring harness (RH) and
AYC sub wiring harness combination

F-12

(2-B)

Direction valve (RH)

F-13

(3-B)

Pressure sensor

F-14

(2-GR)

Electric pump

F-15

(2-GR)

License plate light (RH)

F-16

(3-B)

Proportioning valve (for ACD control)

F-17

(3-B)

Proportioning valve (for AYC control)

F-18

(2-GR)

License plate light (LH)

F-19

(3)

Trunk lid latch

F-20

(3-GR)

Outside transmission antenna
assembly (Trunk lid) <Vehicles with
KOS>

F-21

(2-GR)

Outer buzzer <Vehicles with KOS>

F-22

(3-GR)

Backup light (LH)

F-23

(2-GR)

Evaporative emission ventilation
solenoid

F-24

(2-GR)

Taillight (LH)

F-25

(4)

Rear combination light (LH)

F-26

(4-B)

Sub woofer <Vehicles with audio
amplifier>

F-27

(10)

Rear floor wiring harness (LH) and
trunk lid wiring harness combination

F-28

(2-B)

Curtain air bag module (squib) (LH)

F-29

(1-B)

Rear window defogger (+)

80B-1

GROUP 80B

SPLICE LOCATIONS

CONTENTS

HOW TO READ SPLICE



LOCATIONS. . . . . . . . . . . . . . . . . . . .

80B-2

INDEX. . . . . . . . . . . . . . . . . . . . . . . . .

80B-3

ENGINE COMPARTMENT. . . . . . . . .

80B-4

ENGINE AND TRANSAXLE  . . . . . . .

80B-4

DASH PANEL . . . . . . . . . . . . . . . . . . .

80B-5

STEERING COLUMN . . . . . . . . . . . . .

80B-5

FLOOR AND ROOF . . . . . . . . . . . . . .

80B-6

LUGGAGE COMPARTMENT . . . . . . .

80B-6

HOW TO READ SPLICE LOCATIONS

TSB Revision

SPLICE LOCATIONS

80B-2

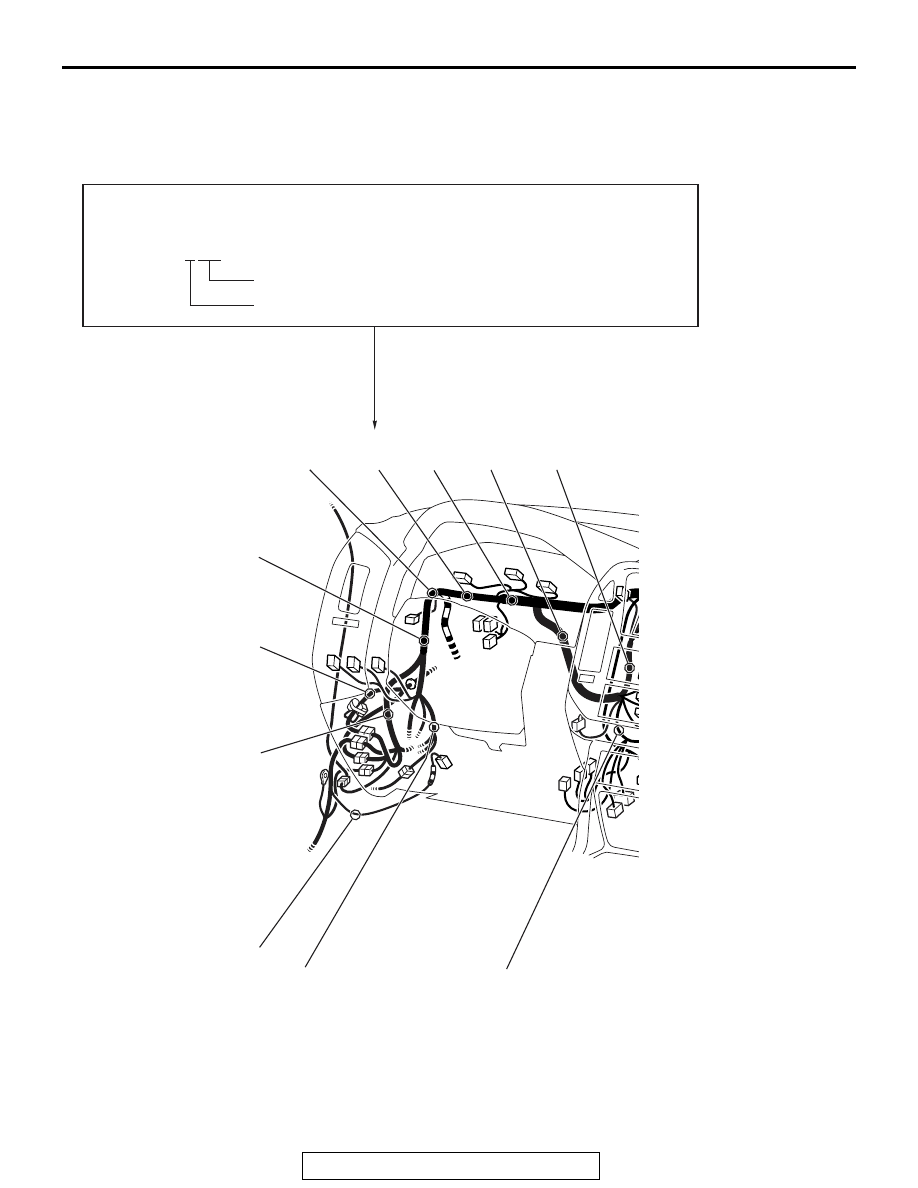

HOW TO READ SPLICE LOCATIONS

M1802000100454

"Splice locations" describes splice points of each wiring harness on an actual vehicle. Some variations are
included in one splice location. Accordingly, some locations may not be applicable for individual vehicles.

ACX02177

S009
S010

S011
S012
S013

S014
S015
S016
S017
S018

S019
S020
S021
S022
S023

S024

S076
S077

S078
S079
S080

S081

S082
S083

S084

S085
S086

AC

Indicates a splice point number.
The splice point numbers are identical to those in "CIRCUIT DIAGRAMS," making them easy to use.
In addition, the splice point numbers are usually numbered clockwise.

         Example: S 013

  Sequential number

  Prefix meaning splice point

S087 S090
S088 S091
S089
