MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-537

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

STEP 1. Using scan tool MB991958, check data list item 83:
Power Steering Pressure Switch.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

83, Power Steering Pressure Switch.

• If the steering wheel is not turned while idling, "OFF" will

be displayed.

• If the steering wheel is turned while idling, "ON" will be

displayed.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points − How to

Cope with Intermittent Malfunctions

P.00-15

NO : Go to Step 2.

STEP 2. Check the power steering fluid level.
Refer to GROUP 37, On-vehicle Service − Fluid Level Check

P.37-24

Q: Are there any abnormalities?

YES : Repair it. Then go to Step 7.
NO : Go to Step 3.

STEP 3. Check the power steering pressure switch.
Refer to GROUP 37, On-vehicle Service − Power Steering Pres-

sure Switch Check

P.37-27

Q: Are there any abnormalities?

YES : Replace the power steering pressure switch. Then go

to Step 7.

NO : Go to Step 4.

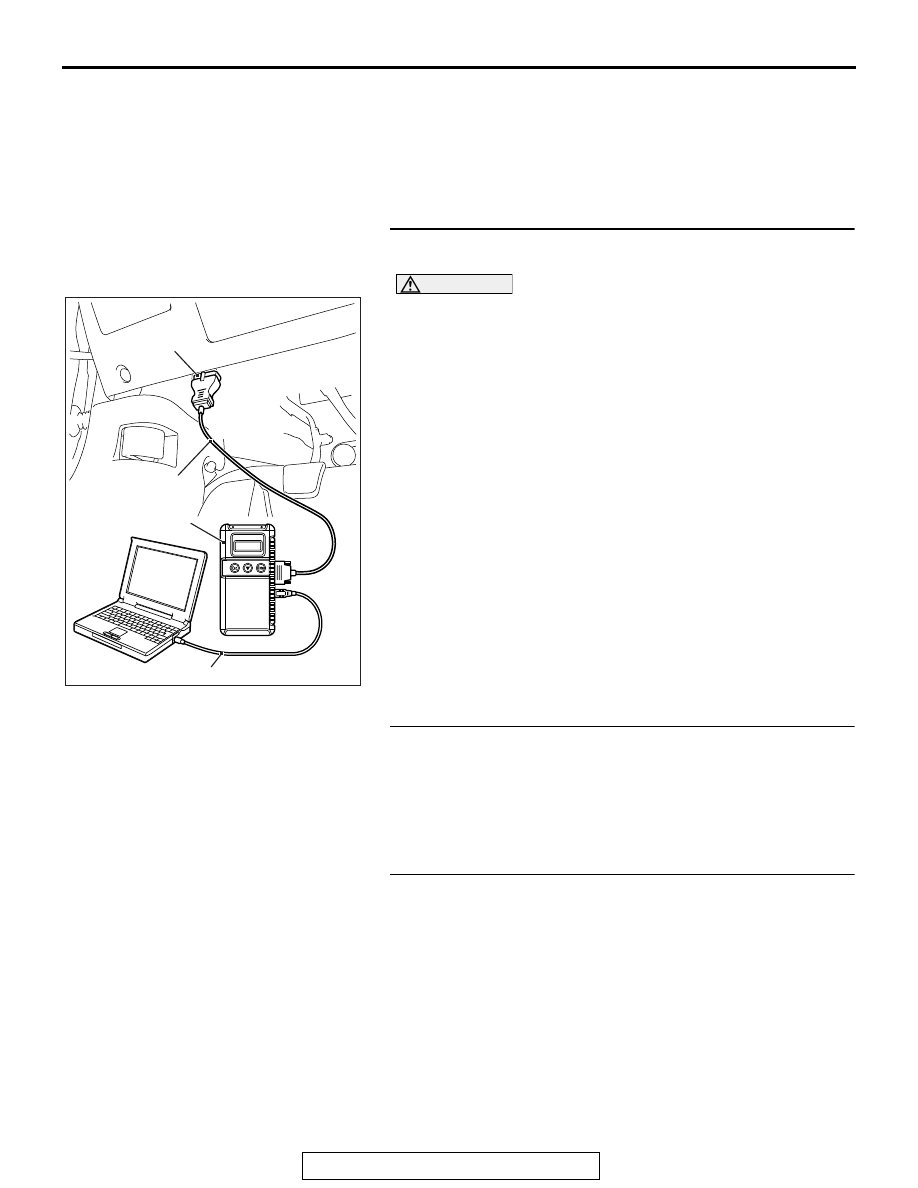

AC608435

Data link connector

MB991827

MB991824

MB991910

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-538

STEP 4. Check the oil pump pressure.
Refer to GROUP 37, On-vehicle Service − Oil Pump Pressure

Test

P.37-26

Q: Are there any abnormalities?

YES : Repair it. Then go to Step 7.
NO : Go to Step 5.

STEP 5. Check harness connector B-19 at the power
steering pressure switch and harness connector B-09 at
ECM for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 6.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 7.

STEP 6. Check for harness damage between power
steering pressure switch connector B-19 (terminal No. 1)
and ECM connector B-09 (terminal No. 58).
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

P.42B-11

or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step 7.

NO : Repair it. Then go to Step 7.

STEP 7. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function − OBD-II Drive Cycle − Pattern 16

P.13A-9

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0554 set?

YES : Retry the troubleshooting.
NO : The inspection is complete.

DTC P0603: EEPROM Malfunction

TECHNICAL DESCRIPTION

• ECM stored the information such as the idle

learned value and so on in the memory of ECM.

DESCRIPTIONS OF MONITOR METHODS

To check whether the information such as the idle

learned value and so on is stored in the memory
of ECM.

MONITOR EXECUTION

Once per driving cycle

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-539

Sensor (The sensor below is determined to be

normal)

• Not applicable

DTC SET CONDITIONS
Logic Flow Chart

Check Condition

• Ignition switch is "ON" position.

Judgement Criterion

• The latest data that was flashed while the ignition

switch was in "LOCK" (OFF) position are not
stored correctly.

FAIL-SAFE AND BACKUP FUNCTION

• None

OBD-II DRIVE CYCLE PATTERN

None.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• ECM failed.

Start

End

Yes

Malfunction

Good

Specified

times monitored

Communication status

fails

Monitoring

conditions

AK704415

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-540

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0603 set?

YES : Replace the ECM. When the ECM is replaced,

P.42B-11

or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

NO : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points − How to

Cope with Intermittent Malfunctions

P.00-15

DTC P0606: Engine Control Module Main Processor Malfunction

AC608435

Data link connector
