Mitsubishi Lancer Evolution X. Manual - part 232

POWER STEERING GEAR BOX AND LINKAGE

TSB Revision

POWER STEERING

37-43

DISASSEMBLY SERVICE POINT

.

<<A>> TIE-ROD REMOVAL

1. Move the bellows and pull the rack bar toward arrow

direction.

CAUTION

Do not tighten the vise strongly in order not to damage the
rack bar.
2. Wrap rack bar with cloth in order not to damage, and fix the

rack bar with a vise.

3. Use special tool variable spanner (MB992249) to remove

the tie-rod.

ASSEMBLY SERVICE POINT

.

>>A<< TIE-ROD INSTALLATION

CAUTION

Do not tighten the vise strongly in order not to damage the
rack bar.
1. Wrap rack bar with cloth in order not to damage, and fix the

rack bar with a vise.

2. Use special tool variable spanner (MB992249) to tighten the

tie-rod to the specified torque.

Tightening torque: 89 ± 9 N⋅ m

.

AC701536 AB

Steering gear

Rack bar

Bellows

AC706056AB

Tie-rod

MB992249

Cloth

AC706056AB

Tie-rod

MB992249

Cloth

POWER STEERING GEAR BOX AND LINKAGE

TSB Revision

POWER STEERING

37-44

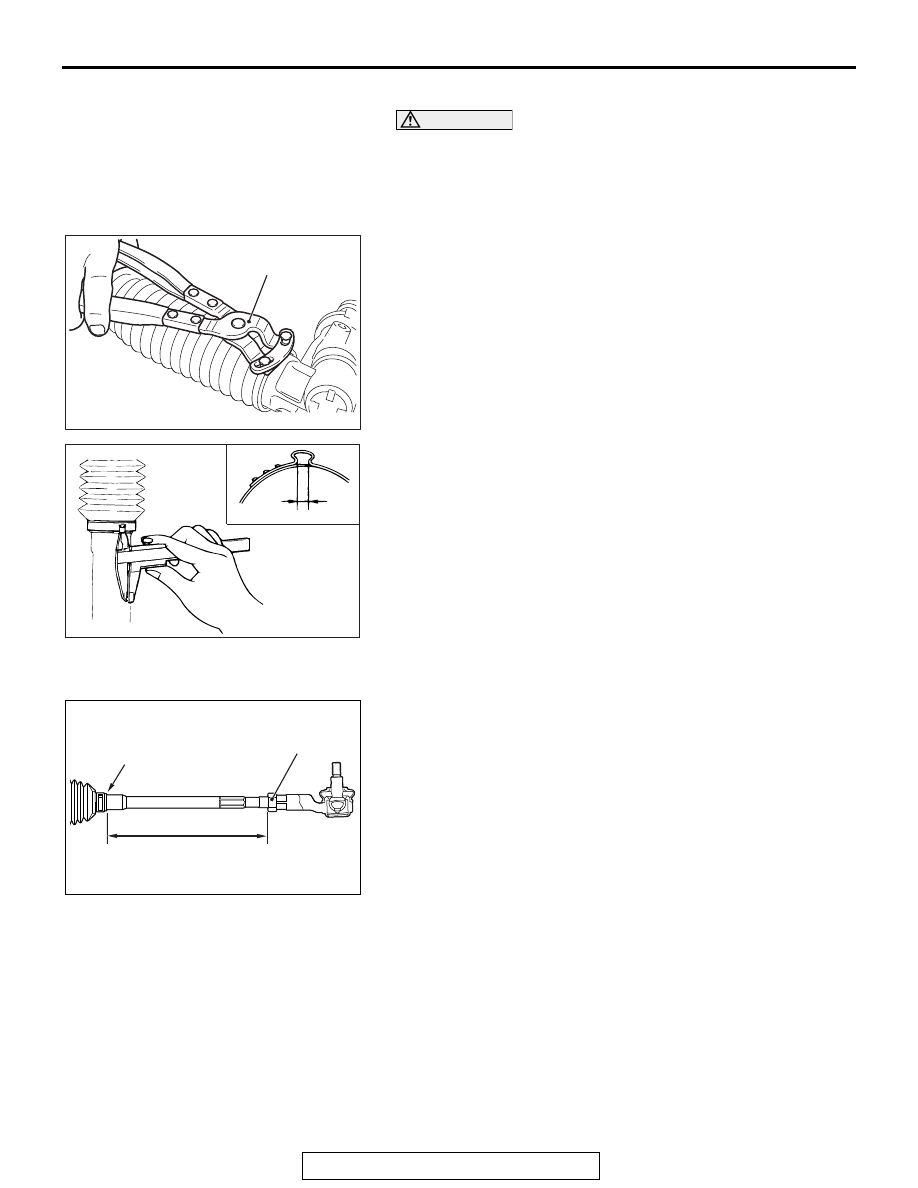

>>B<< BAND INSTALLATION

CAUTION

• Secure the rack housing, and firmly crimp the bellows

band by the bellows band clipping tool (special tool:
MB992209).

• Crimp the bellows band securely until the special tool

(MB992209) contacts the stopper.

1. Using the special tool (MB992209), crimp the bellows band.

2. Check that the crimping width of the band (A) is within the

range of the standard value.

Standard value (A): 2.4 − 2.8 mm (0.09 − 0.11 in)

.

>>C<< TIE-ROD END/JAM NUT INSTALLATION

Screw in the tie-rod to the length shown in the figure, and
hand-tighten the locking nut.
NOTE: Install the steering gear and linkage to the body, adjust
the toe-in, and then tighten the jam nut to the specified torque.

AC701769

MB992209

AD

ACX01166 AC

A

AC703667

198 mm (7.8 in)

AE

Jam nut

Edge of bellows
assembly groove

POWER STEERING OIL PUMP ASSEMBLY

TSB Revision

POWER STEERING

37-45

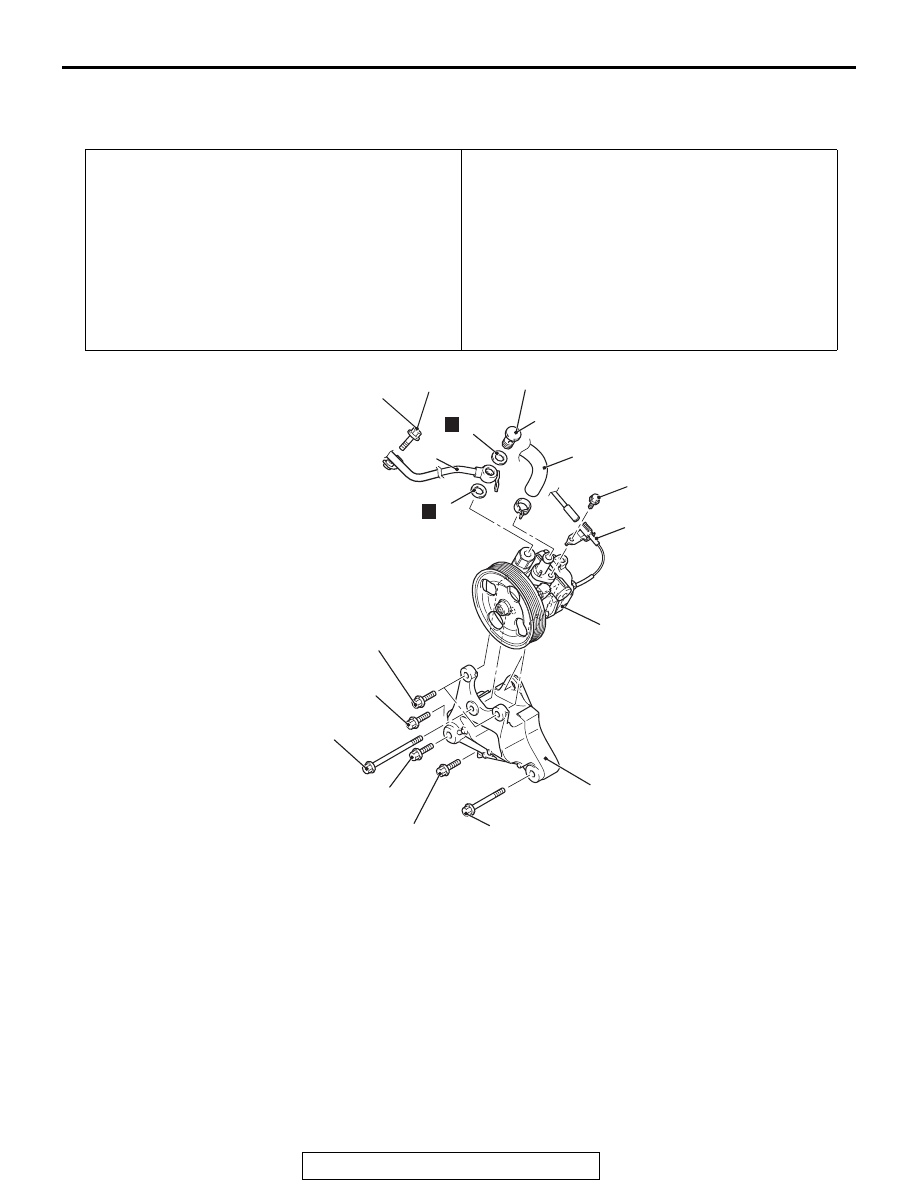

POWER STEERING OIL PUMP ASSEMBLY

REMOVAL AND INSTALLATION

M1372005201655

Pre-removal Operation
• Power Steering Fluid Draining (Refer to

P.37-24

.)

• Radiator Condenser Tank removal (Refer to GROUP 14 −

Radiator

P.14-32

.)

• Generator and Others belt Removal (Refer to GROUP

11A − Crankshaft Pulley

P.11A-21

.)

• Generator Assembly, Auto-tension and Idler Pulley Dis-

connection (Refer to GROUP 11B − Generator and Ignition

System

P.11B-10

.)

Post-installation Operation
• Generator assembly, Auto-tension and Idler Pulley Con-

nection (Refer to GROUP 11B − Generator and Ignition

System

P.11B-10

.)

• Generator and Others belt Installation (Refer to GROUP

11A − Crankshaft Pulley

P.11A-21

.)

• Radiator Condenser Tank Installation (Refer to GROUP

14 − Radiator

P.14-32

.)

• Drive Belt Tension Adjustment (Refer to GROUP 11A −

On-vehicle Service − Drive Belt Tension Check

P.11A-7

.)

• Power Steering Fluid Refilling and Bleeding (Refer to

P.37-25

.)

AC711515 AM

1

57 ± 7 N·m
42 ± 5 ft-lb

3

4

N

25 ± 4 N·m
18 ± 2 ft-lb

11 ± 1 N·m
97 ± 8 in-lb

6

4

N

5

7

23 ± 2 N·m
17 ± 1 ft-lb

25 ± 4 N·m
18 ± 2 ft-lb

48 ± 7 N·m
35 ± 5 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

8

2

13 ± 2 N·m
115 ± 18 in-lb

Removal steps

1. Pressure switch connector

connection

2. Clamp bolt
3. Eye bolt
4. Gasket

5. Pressure hose assembly

connection

>>

A

<<

6. Suction hose connection
7. Oil pump assembly
8. Oil pump bracket

Removal steps (Continued)

POWER STEERING OIL PUMP ASSEMBLY

TSB Revision

POWER STEERING

37-46

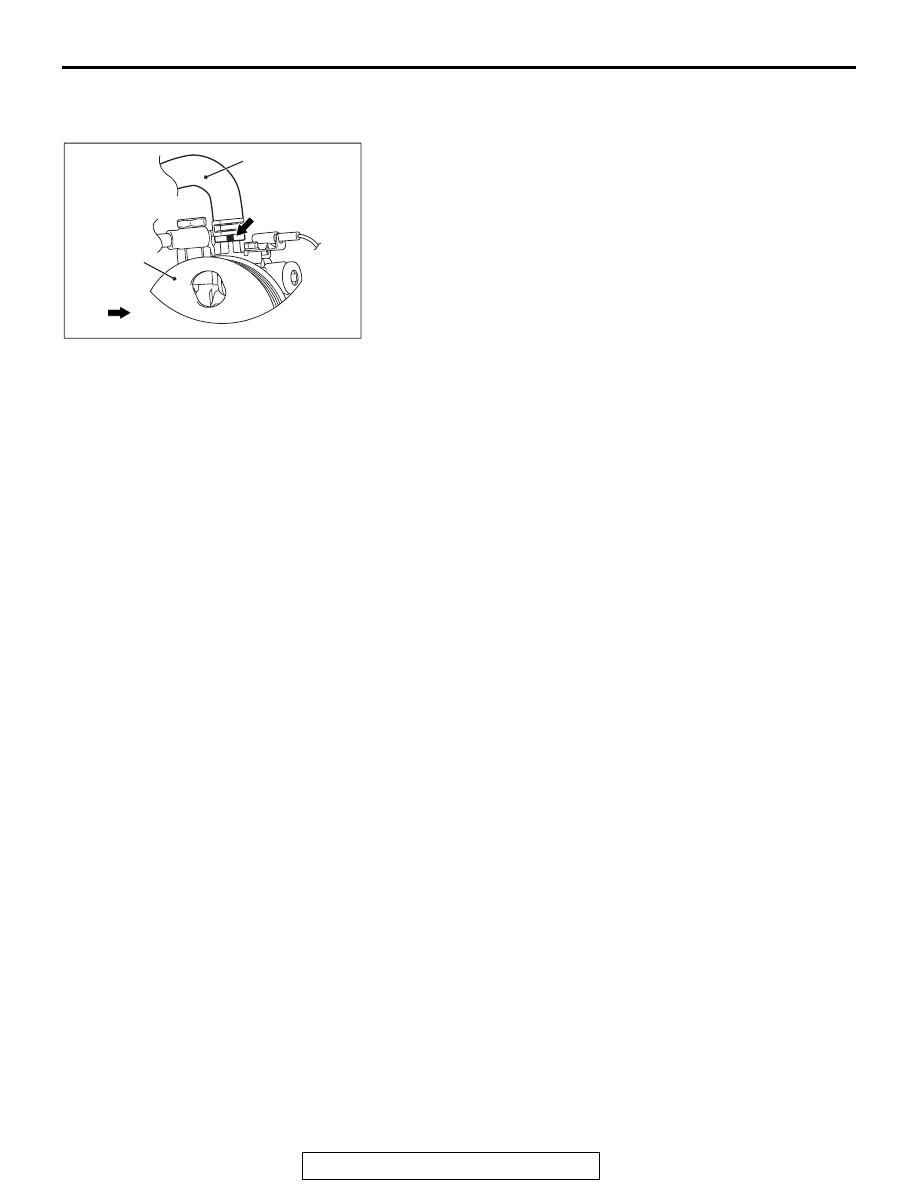

INSTALLATION SERVICE POINT

.

>>A<< SUCTION HOSE INSTALLATION

Install the suction hose with its marking located as shown in the
figure.

INSPECTION

M1372005300347

• Check the drive belt for cracks.
• Check the pulley for uneven rotation.

AC708493 AC

Marking

Oil pump

Suction hose

Vehicle front side
