DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-105

STEP 7. Connector check: A-05 ASC-ECU connector, A-03
wheel speed sensor <FR> connector
Q: Is the check result normal?

YES : Go to Step 8.
NO : Repair the defective connector. Then go to Step 17.

STEP 8. Wiring harness check between A-05 ASC-ECU
connector terminal No. 34 and A-03 wheel speed sensor
<FR> connector terminal No. 1, and between A-05
ASC-ECU connector terminal No. 33 and A-03 wheel speed
sensor <FR> connector terminal No. 2

• Short circuit check of wheel speed sensor <FR> circuit

Q: Is the check result normal?

YES : Replace the wheel speed sensor <FR>. (Refer to

P.35C-300

.) Then go to Step 17.

NO : Repair the wiring harness. Then go to Step 17.

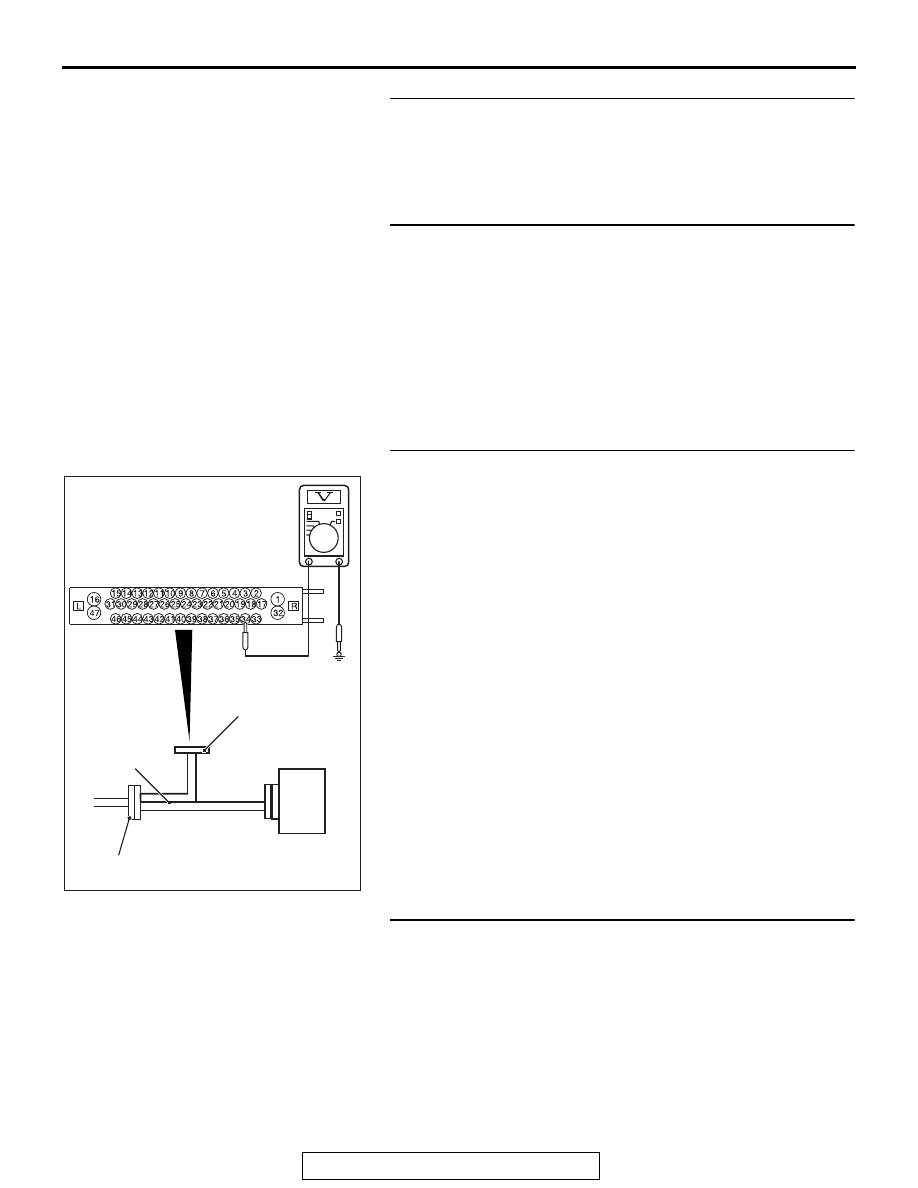

STEP 9. Voltage measurement at A-05 ASC-ECU connector
(1) Disconnect the ASC-ECU connector, connect the special

tool ASC check harness (MB991997) to the ASC-ECU-side
connector and the wiring harness-side connector, and then
measure at the special tool connector side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 34 and
the body ground.

OK: Battery positive voltage

Q: Is the check result normal?

YES : Go to Step 10.
NO : Go to Step 12.

STEP 10. Wiring harness check between A-05 ASC-ECU
connector terminal No. 34 and A-03 wheel speed sensor
<FR> connector terminal No. 1, and between A-05
ASC-ECU connector terminal No. 33 and A-03 wheel speed
sensor <FR> connector terminal No. 2

• Open circuit check of wheel speed sensor <FR> circuit

Q: Is the check result normal?

YES : Go to Step 11.
NO : Repair the wiring harness. Then go to Step 17.

AC400817CG

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-106

STEP 11. Check of wheel speed sensor as a single unit
Refer to

P.35C-303

Q: Is the check result normal?

YES : Go to Step 13.
NO : Replace the wheel speed sensor <FR>. (Refer to

P.35C-300

.) Then go to Step 17.

STEP 12. Connector check: A-05 ASC-ECU connector,
A-03 wheel speed sensor <FR> connector
Q: Is the check result normal?

YES : Go to Step 16.
NO : Repair the defective connector. Then go to Step 17.

STEP 13. Check of wheel speed sensor installation status
Check the installation status of wheel speed sensor <FR> (dis-
connection of wheel speed sensor, looseness of mounting bolt,
etc.).
Q: Is the check result normal?

YES : Go to Step 14.
NO : Reinstall the wheel speed sensor <FR> correctly.

(Refer to

P.35C-300

.) Then go to Step 17.

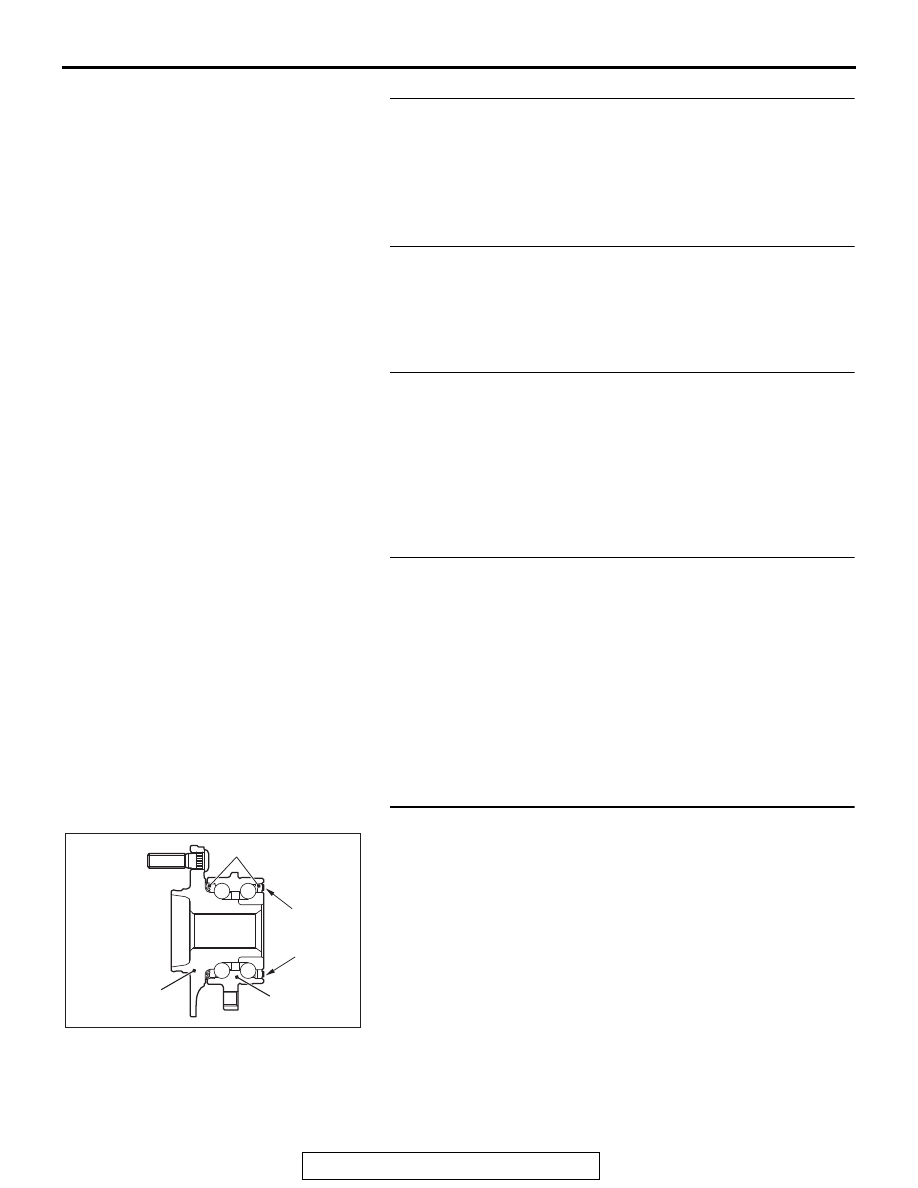

STEP 14. Wheel bearing looseness check
NOTE:

•

Wheel bearing looseness may increase the gap between
the wheel speed sensor and the wheel speed detection
magnet encoder.

•

Check the wheel bearing <FR> for looseness. (Refer to
GROUP 26

−

On-vehicle Service

P.26-7

Q: Is the check result normal?

YES : Go to Step 15.
NO : Replace the front hub assembly. (Refer to GROUP 26

− Front Axle Hub Assembly

P.26-9

STEP 15. Check of wheel speed detection encoder
Check the encoder for adhesion of foreign materials or defor-
mation.
Q: Is the check result normal?

YES : Go to Step 16.
NO (Adhesion of foreign materials) : Clean the encoder

so as not to disturb the magnetization pattern on the
encoder while taking care of the magnet, magnetic
substance, and magnetic attraction.

NO (Deformation) : Replace the front hub assembly. (Refer

to GROUP 26 − Front Axle Hub Assembly

P.26-9

AC704652 AB

Oil seal

Magnetic
encoder

Wheel
bearing

Hub

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-107

STEP 16. Check whether the DTC is reset.
Drive the vehicle at 12mph (20 km/h) or more.
NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.
Q: Is DTC C1047 set?

YES : Replace the hydraulic unit (incorporates in

ASC-ECU).(Refer to

P.35C-298

.) Then go to Step 17.

NO : Intermittent malfunction. (Refer to GROUP 00 − How

to Cope with Intermittent Malfunction

P.00-15

STEP 17. Check whether the DTC is reset.
Drive the vehicle at 12mph (20 km/h) or more.
NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.
Q: Is DTC C1047 set?

YES : Return to Step 1.
NO : This diagnosis is complete.

DTC C1048: RL wheel speed sensor control phase time exceeded

ASC-ECU

(LH)

(RH)

FRONT WHEEL SPEED SENSOR

REAR WHEEL SPEED SENSOR

Wheel Speed Sensor Circuit

AC804587

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-108

CAUTION

• If there is any problem in the CAN bus lines, an incor-

rect diagnostic trouble code may be set. Prior to this
diagnosis, diagnose the CAN bus lines.

• Whenever the ECU is replaced, ensure that the CAN

bus lines are normal.

• When the hydraulic unit (integrated with ASC-ECU) is

replaced, always perform the calibration of steering
wheel sensor, G and yaw rate sensor, brake fluid pres-
sure sensor, cut valve, and inlet valve.(Refer to

CIRCUIT OPERATION

• Each wheel speed detecting section is a kind of a pulse

generator. It consists of the encoder (plate on which the
north and south pole of magnet are arranged alternately) for
detecting the wheel speed, which rotates at the same speed
of the wheels, and the wheel speed sensor. This detecting
section outputs the frequency pulse signals in proportion to
the wheel speed.

• The pulse signals generated by the wheel speed detecting

section are sent to ASC-ECU. ASC-ECU uses the fre-
quency of the pulse signals to determine the wheel speed.

DTC SET CONDITIONS

This diagnostic trouble code is set if any malfunction below is
detected.

• When the brake fluid pressure is decreased for a long time.
• When the brake fluid pressure is held for a long time.

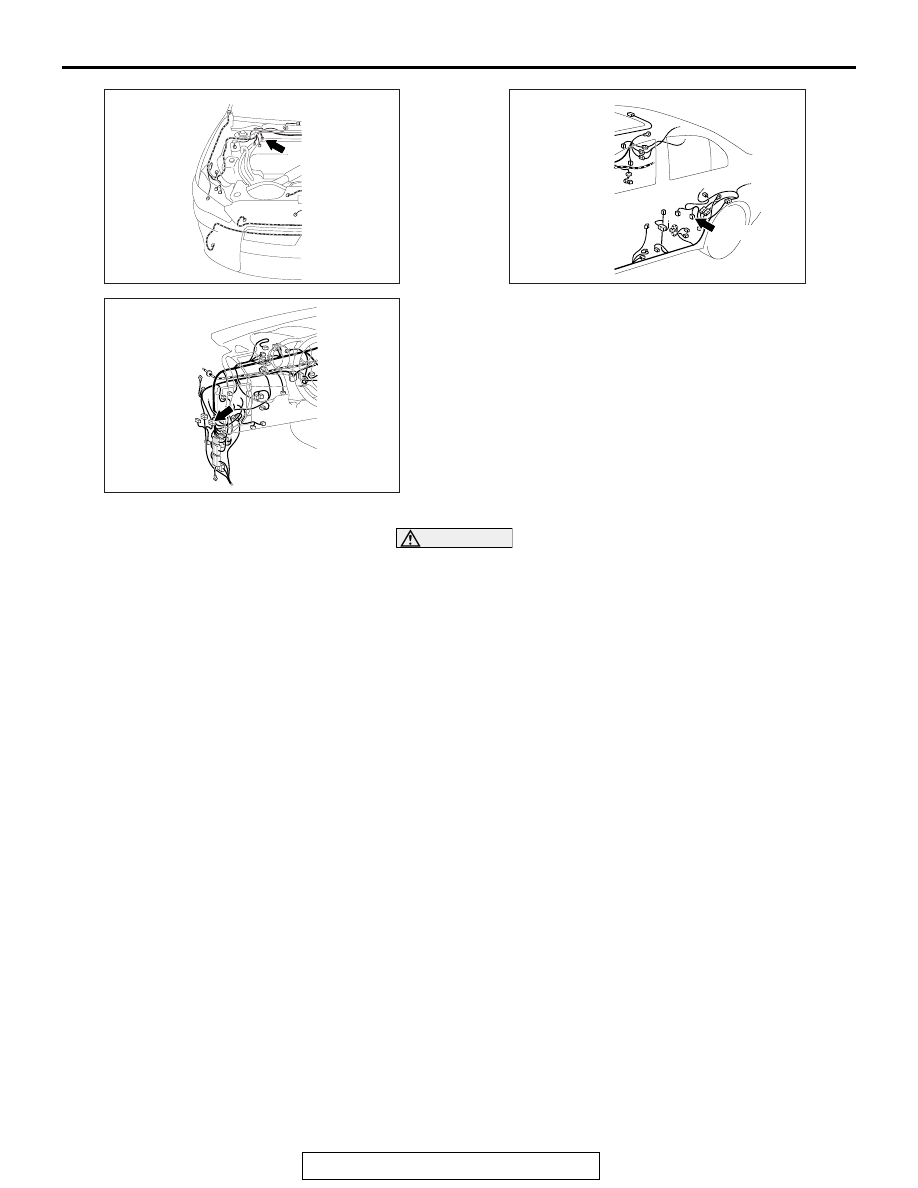

AC708948

Connector: A-05

A-05 (B)

AC708950

Connector: C-45

AC708955

Connector: D-18

D-18 (B)
