HARNESS CONFIGURATION DIAGRAMS - INSTRUMENT PANEL
1-10
C-01
(4)
Radiator <vehicle fitted with heater>
C-02
(2- red)
Passenger seat airbag module (squib)
C-03
(7)
Motor for inside/outside air exchange
damper
C-04
(7)
Instrument panel harness and A/C
harness coupling <vehicle fitted with
heater>
(13)
Instrument panel harness and A/C
harness coupling <vehicle fitted with
fully automatic A/C>
C-05
(2)
Air thermosensor <vehicle fitted with fully
automatic A/C>
C-06
(13)
J/C (5)
C-07
(22- grey)
J/C (1)
C-08
(6)
Motor for air mix door & potentiometer
<vehicle fitted with fully automatic A/C>
C-09
(2)
Heater water temperature sensor
<vehicle fitted with fully automatic A/C>
C-10
(5)
Motor for blower outlet exchange damper
& potentiometer <vehicle fitted with fully
automatic A/C>
C-11
(16- black) Multi-centre display
C-12
(20- black) Multi-centre display
C-13
(4)
Clock <vehicle not fitted with DVD-
MMCS>
C-14
(4)
Hazard switch <vehicle not fitted with
DVD-MMCS>
C-15
(6)
Blower switch <vehicle fitted with heater>
C-16
(12- black) Heater control unit <vehicle fitted with
heater>
C-17
(20- black) A/C-ECU <vehicle fitted with fully
automatic A/C>
C-18
(16- black) A/C-ECU <vehicle fitted with fully
automatic A/C>
C-20
(22- blue)
Instrument panel harness and control
harness coupling
C-21
(10- grey)
Instrument panel harness and control
harness coupling

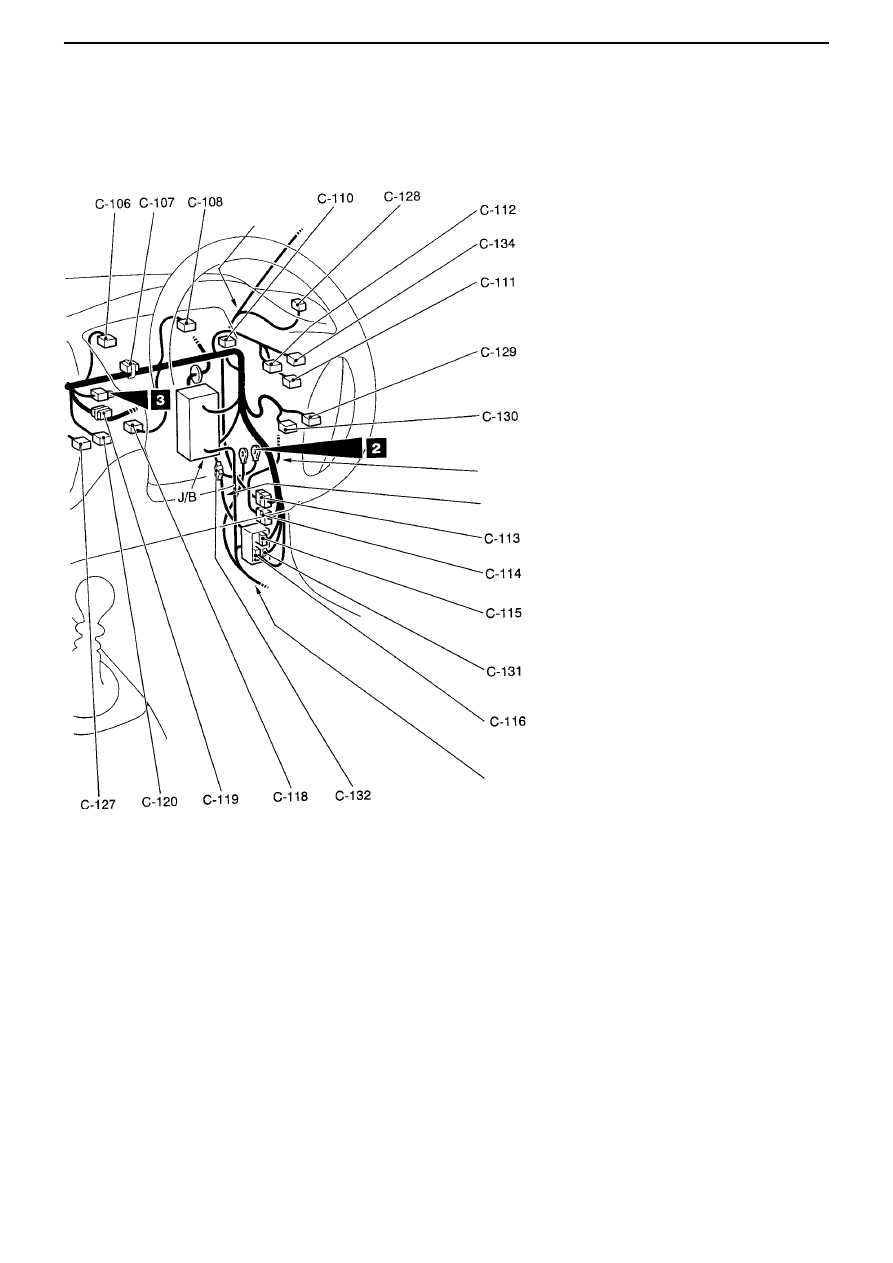

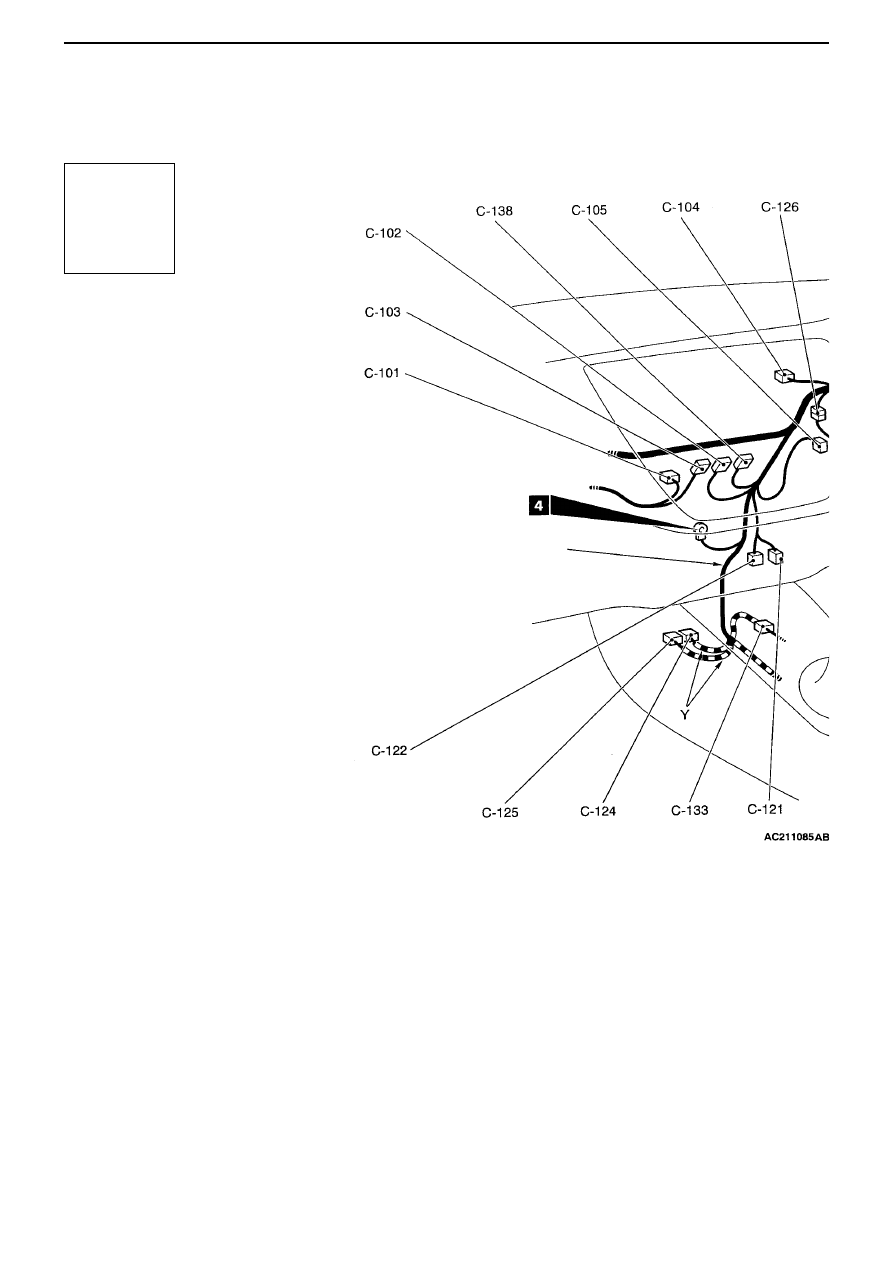

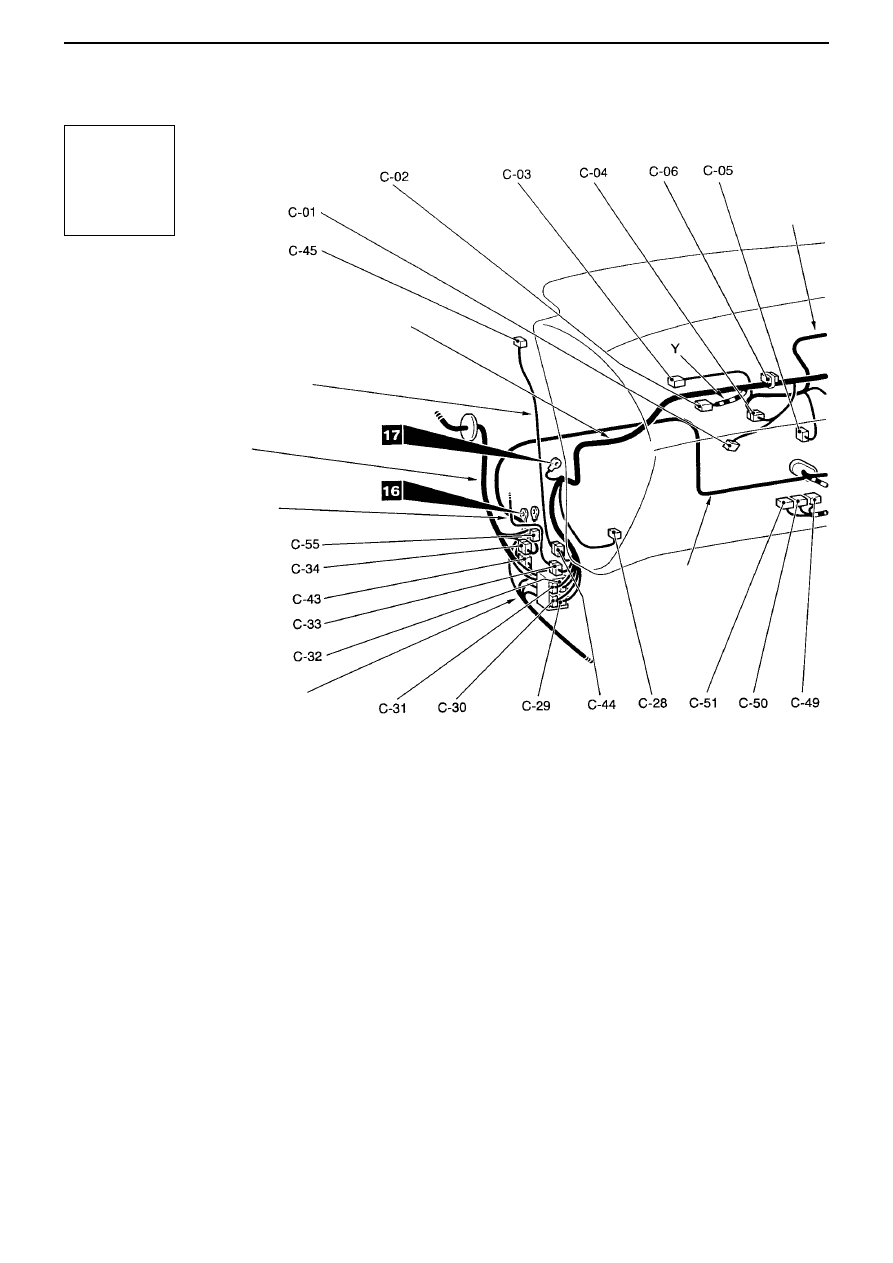

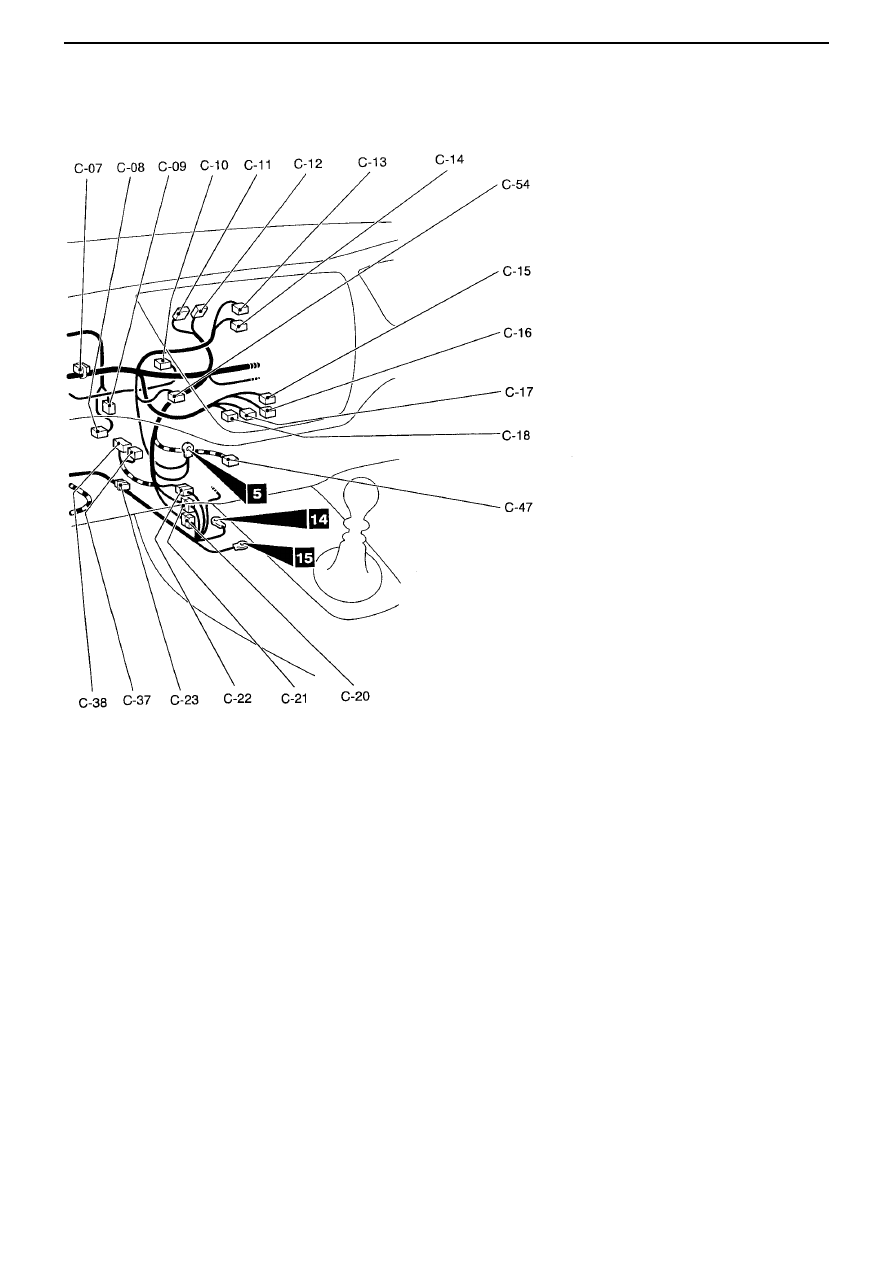

INSTRUMENT PANEL
M3010000700202
A/C harness
Instrument panel harness
Tweeter subharness
Front harness (LH)
Front door harness (LH)
Floor harness
(LH)
Connector
symbol
C
-01
~
-55
Passenger seat side
Control harness
AC211083AB
