Mitsubishi Lancer Evolution 7. Manual - part 39





EQUIPMENT –

Combination Meter

7-9

COMBINATION METER

The combination meter is an easy-to-read pointer type meter. At the center is a tachometer, on the left side
a speedometer, on the right side a fuel meter, engine coolant thermometer, and indicator lamp. It has a sport
and efficient design to allow the driver to read the meters clearly.
D

The tachometer displays the conditions of the current road using three indicators TARMAC, SNOW,

and GRAVEL. [Refer to GROUP 2-Active Center Differential (Active Control System.)]

D

A water spray indicator which lights up when the water splay switch is set to AUTO has been adopted.

D

The speedometer is an electronic type speedometer which operates by the pulse signal generated

by the speed sensor.

D

A large and clear LCD type odo-tripmeter is provided. The odometer continuously displays values

while the tripmeter adopts a twin-trip (trip A, trip B) function which is switched by a reset button.

(Standard meter)

D

The fuel gauge is provided with a triangular mark indicating the location of the fuel filler door to

show clearly that the fuel filler door is on the left side of the car.

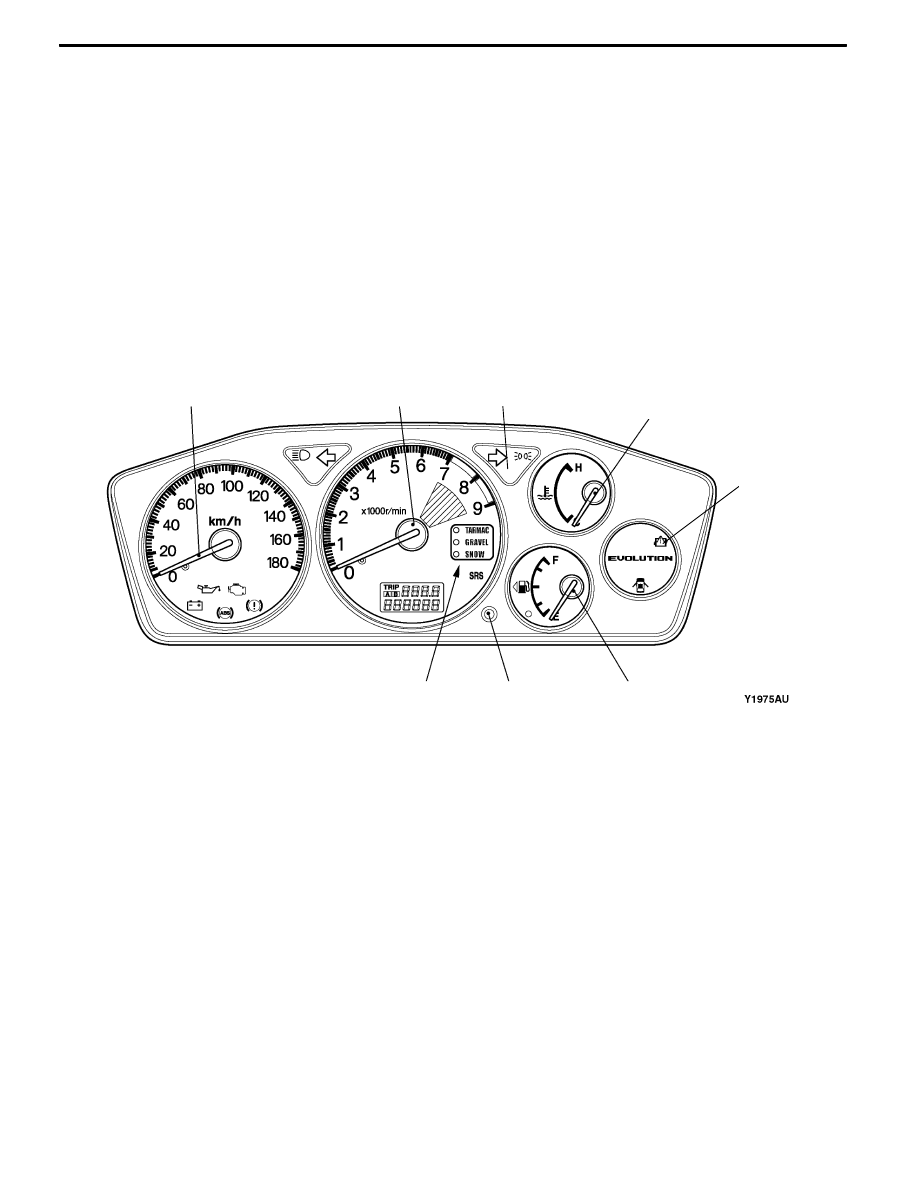

CONSTRUCTION DIAGRAM

Speedometer

Fuel gauge

Tachometer

Mode indicator lamp

Reset button

Rear fog lamp

indicator

Coolant temperature

gauge

Water splay

indicator

EQUIPMENT –

Smart Wiring System (SWS)

7-10

SMART WIRING SYSTEM (SWS)

SWS is a minimal line system which transmits numerous signals using one wiring to control against
increased weight and complication of harnesses which result from the increase in electronic accessories.
Basically the same as the new SPACE RUNNER.
To transmit numerous signals, the ETACS-ECU*, column switch, front ECU, power window main switch
(power window switch of the driver’s seat side) incorporate multi-distribution circuits to carry out
communication between control units.
NOTE

*: ETACS (Electronic Time and Alarm Control System)

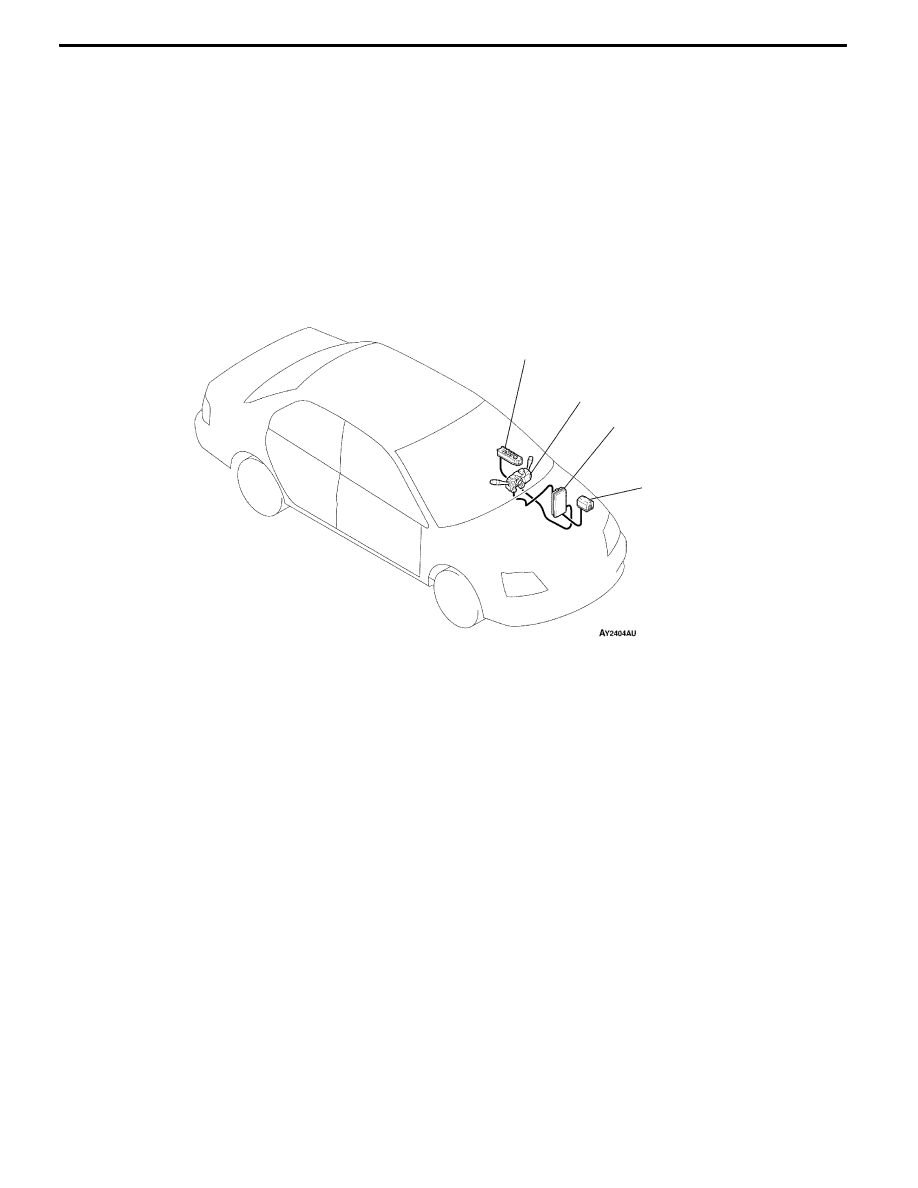

CONSTRUCTION DIAGRAM

Power window switch

Column switch

ETACS-ECU

Front ECU

EQUIPMENT –

Smart Wiring System (SWS)

7-11

COMMUNICATION METHOD

The exclusive signal lines for transmitting the multi-distribution data are connected as follows between
the ETACS-ECU, column switch (incorporated inside the column ECU), front ECU, power window main
switch (incorporated inside the power window ECU) and power window motor assemblies (incorporated
inside the power window motor ECU) for internal communication.

Column

switch

ETACS-ECU

Power window

main switch

Power window

motor assem-

bly (Front RH)

Power window

motor assembly

(Front LH)

Power window

motor assem-

bly (Rear RH)

Power window

motor assembly

(Rear LH)

Single-direction communication

Bidirectional communication

Front ECU

MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT

Multi-distribution is employed by the following circuits. The relation of the input switches, sensors, ECUs
connected by multi-distribution lines, and outputs are also shown below.

Circuit and input switch and sensor

ECUs and switches con-

nected by multi-distribution

Output side

1. Buzzer

D

Lamp still ON reminder warning function

2. Power window

D

Power window timer function

ETACS-ECU

Column

switch

(Lighting switch)

D

Ignition switch (IG1)

D

Driver’s seat door switch

Buzzer

(built-in

ETACS-

ECU)

ETACS-ECU

Power

window

main switch

D

Ignition switch (IG1)

D

Driver’s seat door switch

Power

window

motors

Power window relay

EQUIPMENT –

Smart Wiring System (SWS)

7-12

Circuit and input switch and sensor

Output side

ECUs and switches con-

nected by multi-distribution

3. Windshield wiper washer

D

Windshield mist wiper

D

Windshield low speed wiper

D

Windshield high speed wiper

D

Windshield washer

4. Lighting

D

Headlamp, tail lamp

D

Headlamp auto-cut function

D

Rear fog lamp

5. Flasher

D

Turn signal lamp

D

Hazard warning lamp

Ignition switch (ACC)

ETACS-ECU

Column switch)

Front ECU

Windshield wiper motor

Windshield washer motor

Column switch

Ignition switch (IG2)

ETACS-ECU

Column

switch

(Lighting switch)

Front ECU

Combination meter (High

beam or rear fog lamp

indicator) Illumination lamps

Rear fog lamp

Headlamp

Taillamps

Rear fog lamp

Ignition switch (IG1)

Driver’s seat door switch

Vehicle speed signal

Rear fog lamp switch

ETACS-ECU

Column

switch

(Turn signal lamp
switch)

Combination meter (Turn
signal indicator)

D

Ignition switch (IG1)

D

Hazard warning lamp switch

Turn signal lamps
