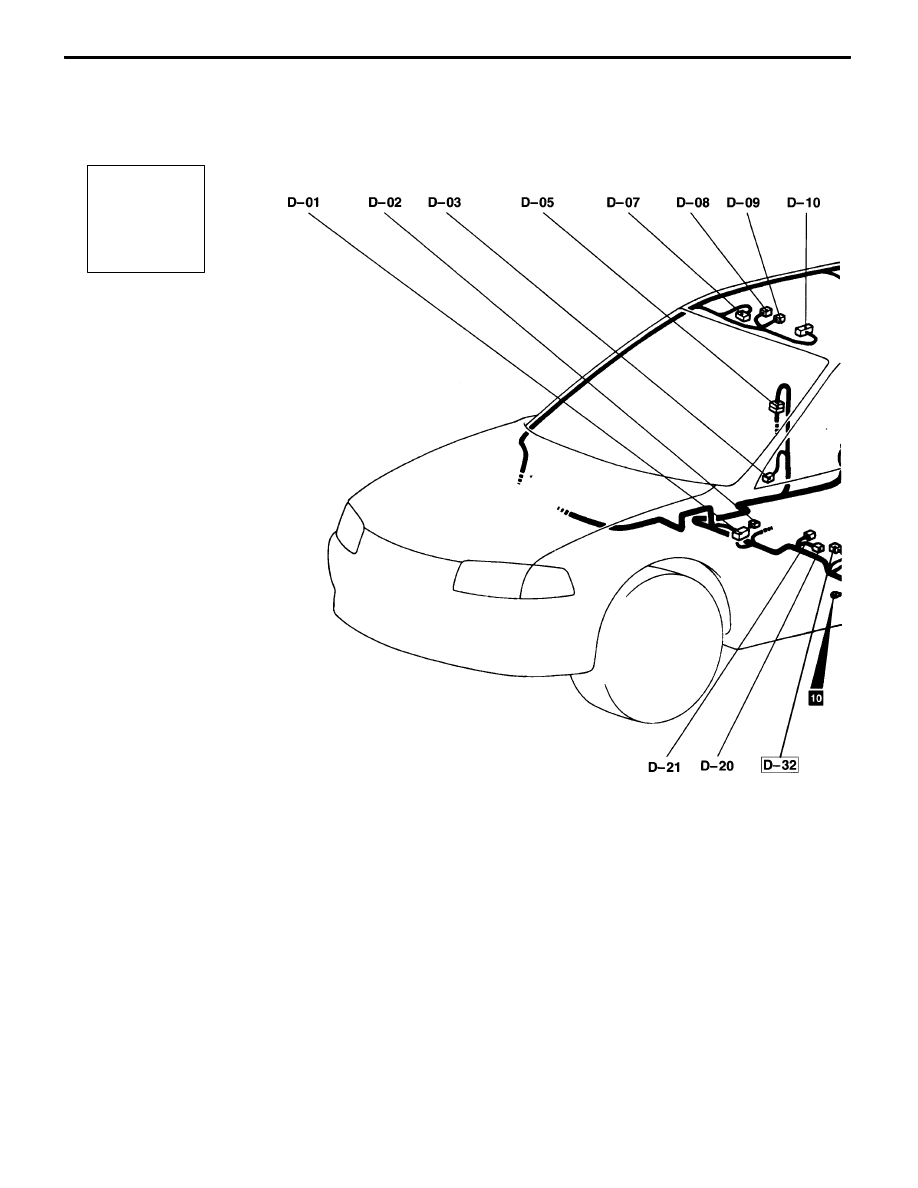

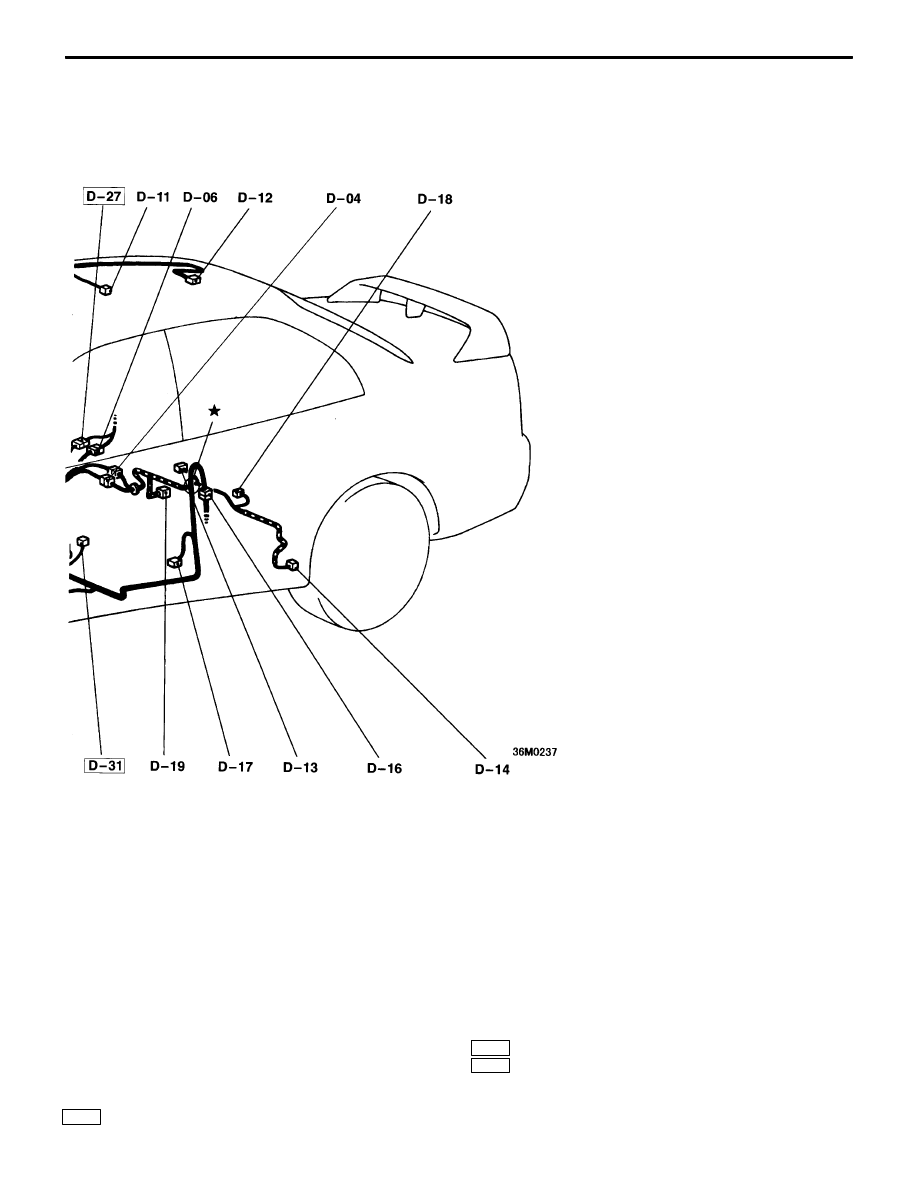

  – Floor and Roof

WIRING HARNESS
CONFIGURATION DIAGRAMS

Connector
symbol

D

C-12

FLOOR AND ROOF

D-01 (20)

Receiver
<vehicles with keyless entry system>

D-02 (2)

Seat belt switch

D-03 (2)

Front door switch (driver’s side)

D-04 (10)

Body harness and fuel harness combina-
tion

D-05 (6)

Body harness and rear door harness
(RH) combination

D-06  (18)

Body harness and rear harness combina-
tion

D-07 (6)

Sunroof switch

D-08 (2)

Room lamp <vehicles with sunroof>

D-09 (1)

Map lamp

D-10 (18)

Sunroof ECU

D-11 (2-GR)

Room lamp <vehicles without sunroof>

D-12 (8)

Sunroof motor

D-13 (3-B)

Fuel gauge unit (sub)

D-14 (2-B)

Rear speed sensor (LH)
<vehicles with ABS>

D-16  (6)

Body harness and rear door harness (LH)
combination

D-17 (2)

Front door switch (passenger’s side)

D-18 (6)

Fuel gauge unit (main)

  – Floor and Roof

WIRING HARNESS
CONFIGURATION DIAGRAMS

NOTE
The connectors with framed
number are newly introduced.

C-13

D-19 (2-B)

Rear speed sensor (RH)
<vehicles with ABS>

D-20  (3-B)

Acceleration sensor <vehicles with ABS>

D-21 (1-B)

Parking brake switch

D-27  (2)

Body harness and rear harness combina-
tion <vehicles with AYC>

D-31 (2)

Water spray switch

D-32 (3-B)

Acceleration sensor (lateral)
<vehicles with AYC>

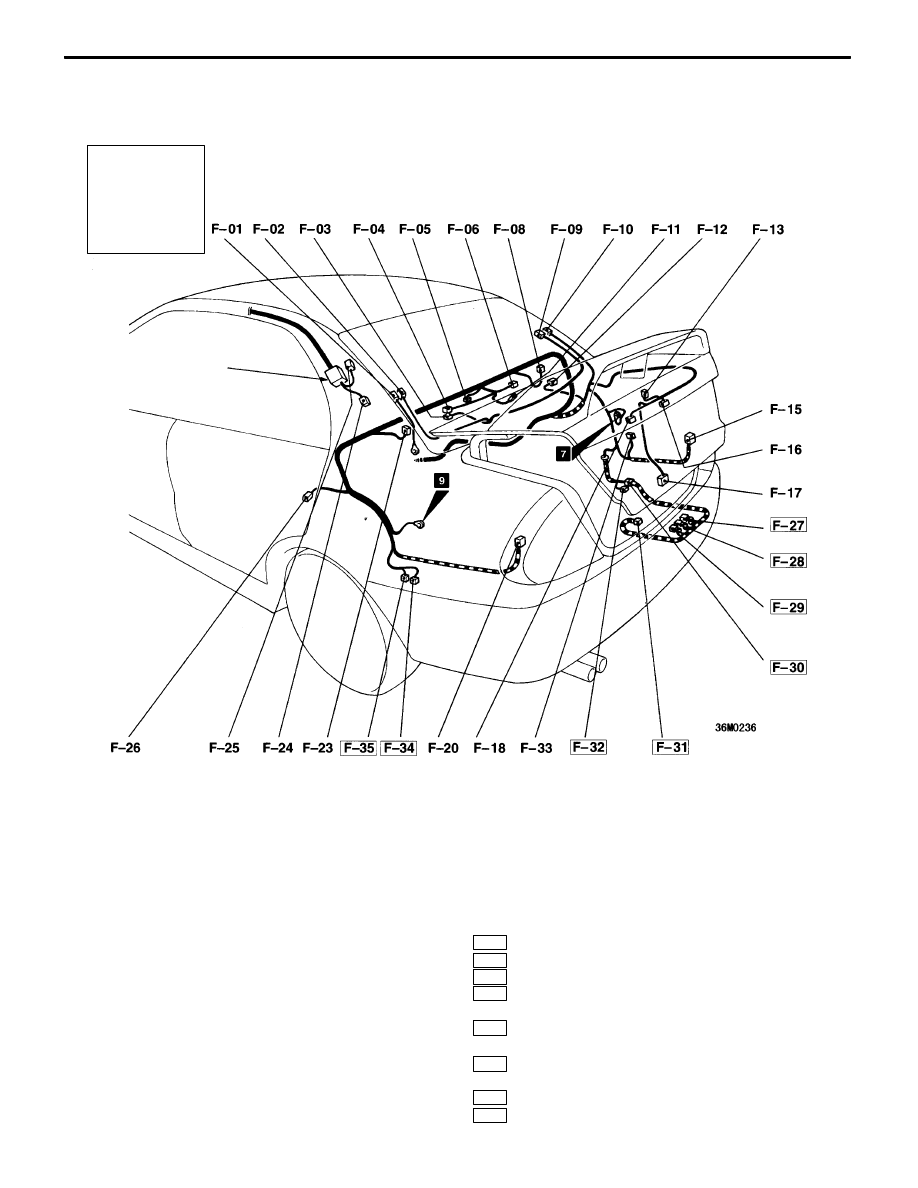

  – Luggage Compartment

WIRING HARNESS
CONFIGURATION DIAGRAMS

Connector
symbol

F

Glass
antenna
amplifier

NOTE
The connectors with framed
number are newly introduced.

C-14

LUGGAGE COMPARTMENT

F-01 (1-B)

Defogger (–) <vehicles without choke coil>

F-02 (1-B)

Defogger (–) <vehicles with choke coil>

F-03 (2)

Choke  coil

F-04 (3)

Choke  coil

F-05 (2)

Trunk room lamp

F-06 (2)

Vacant connector or high mounted stop
lamp (installed on rear shelf)

F-08 (2-B)

Rear speaker (RH)

F-09 (1-B)

Defogger (+) <vehicles with choke coil>

F-10 (1-B)

Defogger (+) <vehicles without choke coil>

F-11 (3)

Rear wiper motor

F-12 (1-B)

Rear door switch (RH)

F-13  (2)

High mounted stop lamp (installed on rear
spoiler)

F-15 (6)

Rear combination lamp (RH)

F-16 (2-GR)

Licence plate lamp (RH)

F-17 (1-B)

Trunk room lamp switch

F-18 (2-GR)

Licence plate lamp (LH)

F-20 (6)

Rear combination lamp (LH)

F-23 (2-B)

Rear speaker (LH)

F-24 (1)

Glass antenna
<vehicles with diversity glass antenna>

F-25 (1)

Glass antenna

F-26 (1-B)

Rear door switch (LH)

F-27 (3-B)

Proportioning valve <vehicles with AYC>

F-28 (2-B)

Direction valve (LH) <vehicles with AYC>

F-29  (2-B)

Direction valve (RH) <vehicles with AYC>

F-30  (8-B)

Rear harness and AYC harness combina-
tion

F-31 (2-B)

Accumulator pressure switch
<vehicles with AYC>

F-32 (2-B)

AYC motor

F-33 (6)

CD changer

F-34 (2)

Rear window washer

F-35 (2)

Windshield washer motor

C-15
