KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-85

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then connect data link connector terminal 1 to ground.

(1) Connect the data link connector terminal 1 to ground.
(2) Close the driver's side door.
(3) Leave the windshield washer switch on for at least ten

seconds. Then the ETACS-ECU tone alarm will sound
once.

2. If the transmitter "LOCK" switch is pushed consecutively

twice within two seconds, the ETACS-ECU tone alarm will
sound, indicating that the hazard answerback function can
be enabled or disabled when the doors are locked.

• Enable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound once.

• Disable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound twice.

3. If the transmitter "UNLOCK" switch is pushed consecutively

twice within two seconds, the ETACS-ECU tone alarm will
sound, indicating that the hazard answerback function can
be enabled or disabled when the doors are unlocked.

• Enable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound once.

• Disable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound twice.

4. Exit the hazard answerback customize mode by observing

one of the following steps.

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then disconnect data link connector terminal 1 from
ground.

(1) Disconnect data link connector terminal 1 from ground.
(2) Turn the ignition switch to position other then "LOCK"

(OFF), or remove the ignition key.

(3) Open the driver's side door,

NOTE: If any operation is not done for at least three minutes
after the ETACS-ECU has entered the customize mode, the
hazard answerback customize mode will be canceled automat-
ically.

.

<When the transmitter is used after connecting the vehicle
communication interface (V.C.I.) MB991824 to the data link
connector>
1. Enter the hazard answerback customize mode by observing

one of the following steps. If the ETACS-ECU enters the
customize mode, its tone alarm will sound once.

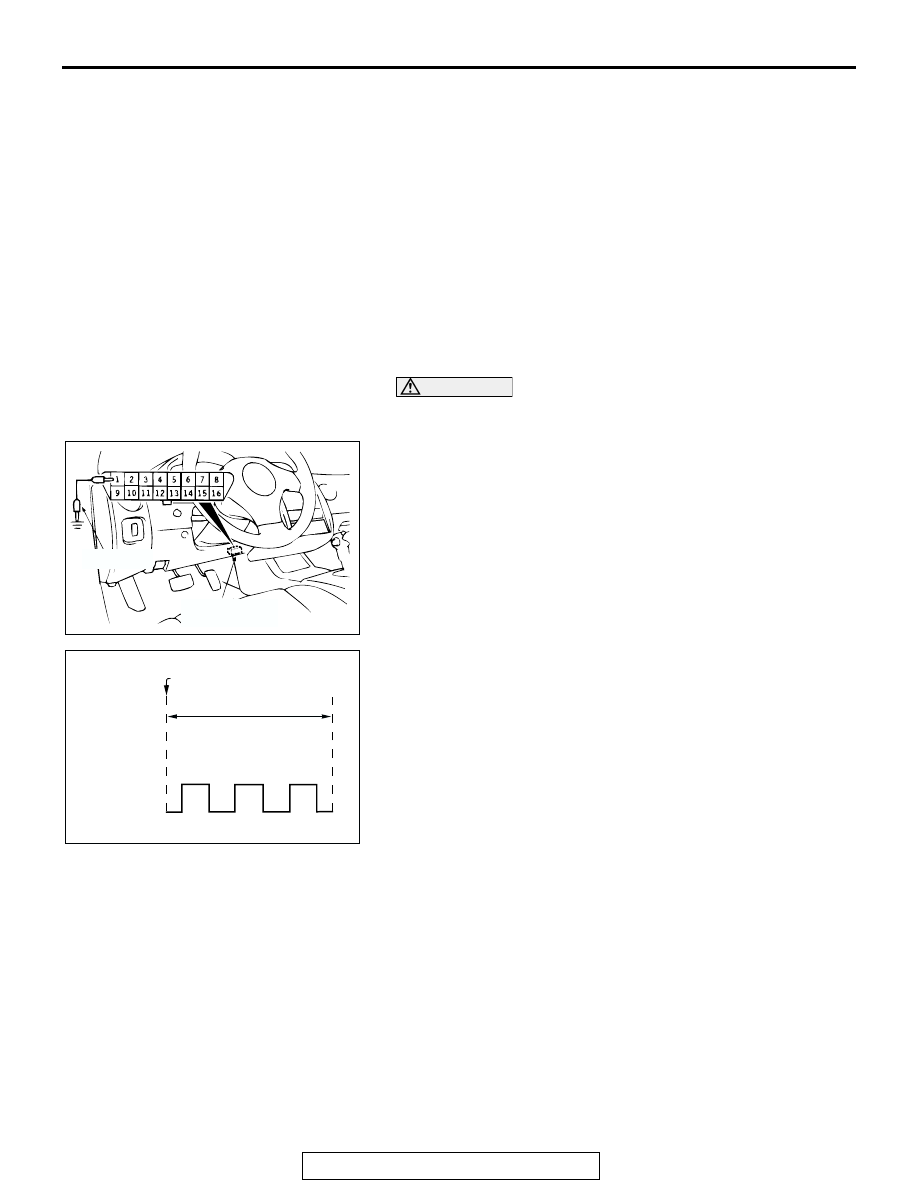

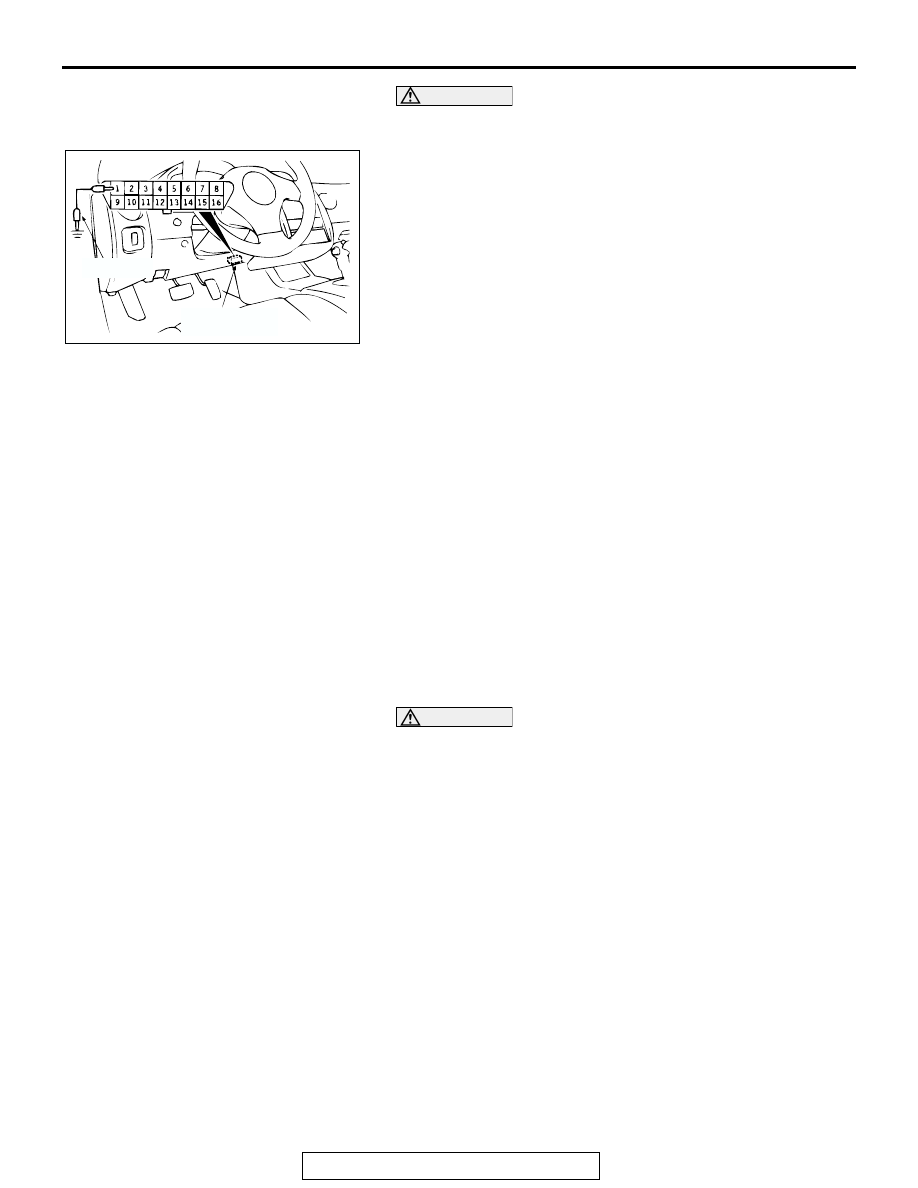

AC000511

GROUND

DATA LINK

CONNECTOR

AB

KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-86

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then connect vehicle communication interface (V.C.I.)
MB991824 to the data link connector.

(1) Connect the vehicle communication interface (V.C.I.)

MB991824 to the data link connector.

(2) Close the driver's side door.
(3) Leave the windshield washer switch on for at least ten

seconds. Then the ETACS-ECU tone alarm will sound
once.

2. If the transmitter "LOCK" switch is pushed consecutively

twice within two seconds, the ETACS-ECU tone alarm will
sound, indicating that the hazard answerback function can
be enabled or disabled when the doors are locked.

• Enable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound once.

• Disable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound twice.

3. If the transmitter "UNLOCK" switch is pushed consecutively

twice (within two seconds), the ETACS-ECU tone alarm will
sound, indicating that the hazard answerback function can
be enabled or disabled when the doors are unlocked.

• Enable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound once.

• Disable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound twice.

4. Exit the hazard answerback customize mode by observing

one of the following steps.

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then disconnect vehicle communication interface (V.C.I.)
MB991824 from the data link connector.

(1) Disconnect vehicle communication interface (V.C.I.)

MB991824 from the data link connector.

(2) Turn the ignition switch to position other then "LOCK"

(OFF), or remove the ignition key.

(3) Open the driver's side door,

NOTE: If any operation is not done for at least three minutes
after the ETACS-ECU has entered the customize mode, the
hazard answerback customize mode will be canceled automat-
ically.

.

<When only the transmitter is used>
1. Remove the ignition key from ignition key cylinder.
2. Push the transmitter "LOCK" switch while holding the

"UNLOCK" switch pushed for four to ten seconds.

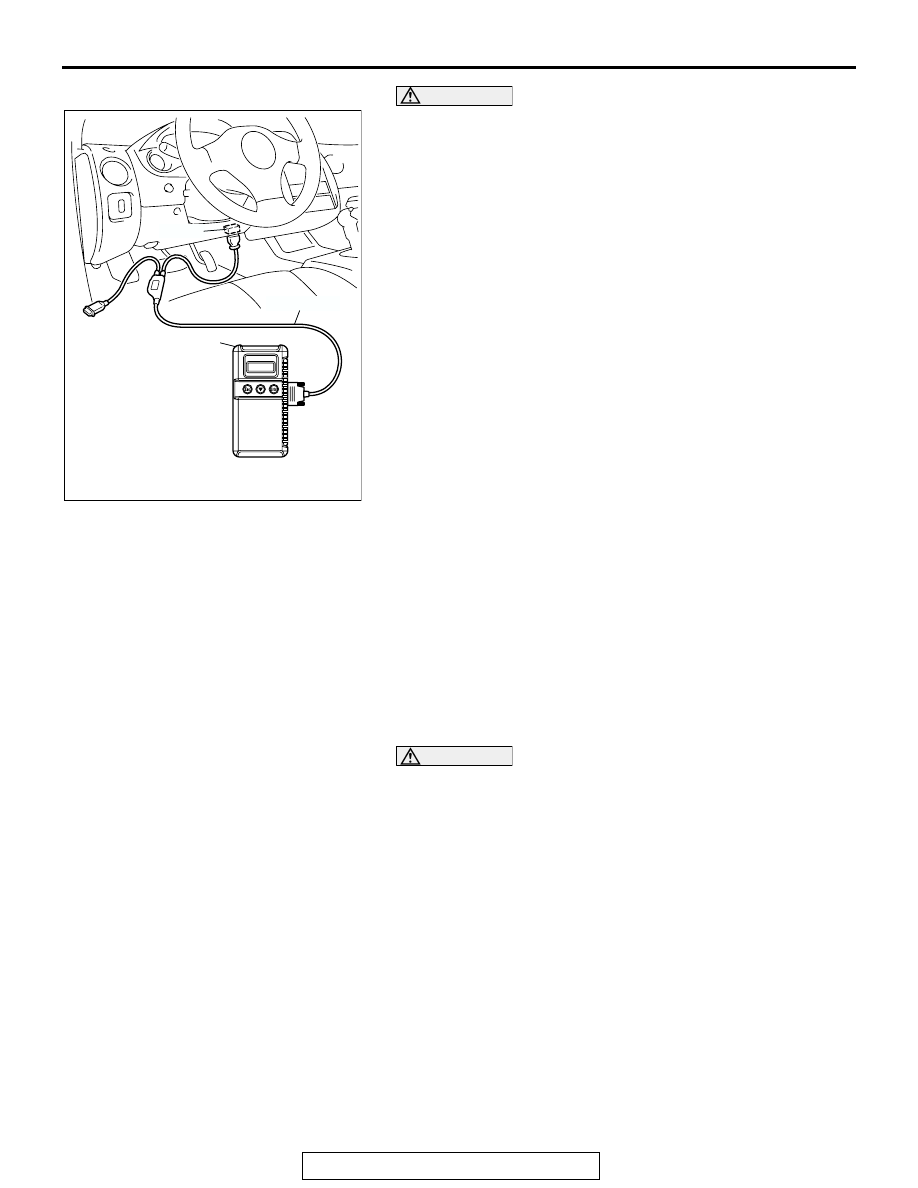

AC305377

AB

MB991911

16-PIN

MB991824

KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-87

3. If the transmitter "LOCK" switch and "UNLOCK" switch are

released in that order, the ETACS-ECU tone alarm will
sound, indicating that the hazard answerback function can
be enabled or disabled when the doors are locked.

• Enable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound once.

• Disable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound twice.

4. If the transmitter "UNLOCK" switch and "LOCK" switch are

released in that order, the ETACS-ECU tone alarm will
sound, indicating that the hazard answerback function can
be enabled or disabled when the doors are unlocked.

• Enable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound once.

• Disable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound twice.

ENABLING/DISABLING THE HORN
ANSWERBACK FUNCTION

1. Remove the ignition key from ignition key cylinder.
2. Push the transmitter "UNLOCK" switch while holding the

"LOCK" switch pushed for four to ten seconds.

3. If the transmitter "LOCK" switch and "UNLOCK" switch are

released at the same time, the ETACS-ECU tone alarm will
sound, indicating that the horn answerback function can be
enabled or disabled.

• Enable the horn answerback function: The

ETACS-ECU tone alarm will sound once.

• Disable the horn answerback function: The

ETACS-ECU tone alarm will sound twice.

SECRET CODE REGISTRATION METHOD

M1428001000322

Required Special Tools:

MB991958: MUT-III Sub Assembly

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991911: MUT-III Main harness B

Each individual secret code is registered inside the transmitter,
and so it is necessary to register these codes with the
EEPROM inside the receiver in the following cases.

• When the transmitter or ETACS-ECU is replaced

• If more transmitters are to be used

• If it appears that a problem is occurring because of faulty

registration of a code.

KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-88

A maximum of four different codes can be stored in the
EEPROM memory (four different transmitters can be used).
When the code for the first transmitter is registered, the previ-
ously registered codes for all transmitters are cleared. There-
fore, if you are using four transmitters or are adding more
transmitters, the codes for all transmitters must be registered at
the same time.

Whenvehicle communication interface (V.C.I.)
MB991824 is not used

1. Insert the ignition key into the key cylinder and check that

the doors have been locked normally when the ignition key
is turned.

2. Insert the ignition key into the key cylinder.

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then connect data link connector terminal 1 to ground.
3. Connect the data link connector terminal 1 to ground.

NOTE: This will connect terminal 1 of the data link connector
to ground, and the system will be in secret code registration
standby mode.

4. Push the hazard warning light switch six times within 10

seconds.
NOTE:

.

•

At this time the code registration monitor request is out-
put and becomes registration mode (all doors locked and
then all doors unlocked).

•

The hazard warning light switch is turned on and off
alternately whenever it is pushed.

5. Press the transmitter switch, and then press it two times

within 10 seconds of the first press. This will register the
code.

6. When registration is completed, the code registration

monitor request is output (all doors locked and then all doors
unlocked).

7. If you are using two or more transmitters or have added a

second transmitter, the same registration procedure should
be carried out within one minute after registering the code
for the first transmitter. After the second registration is
completed, the code registration monitor request is output
(all doors locked and then all doors unlocked).

8. Registration mode will be canceled under the following

conditions:

• When the secret code for four transmitters has been regis-

tered;

AC000511

GROUND

DATALINK

CONNECTOR

AB

AC305378

GROUND

WITHIN 10 SECONDS

HAZARD
WARNING
LIGHT
SWITCH

ON

OFF

1

2

3

4

5

6

AC
