WINDOW GLASS

GENERAL INFORMATION

M1422000100072

The windshield, quarter window <ECLIPSE> and lift-
gate glass <ECLIPSE> are attached by an ure-
thane-base adhesive to the window frame. This
adhesive provides improved glass holding and seal-
ing, and also permits use of body openings having a
greater structural strength.

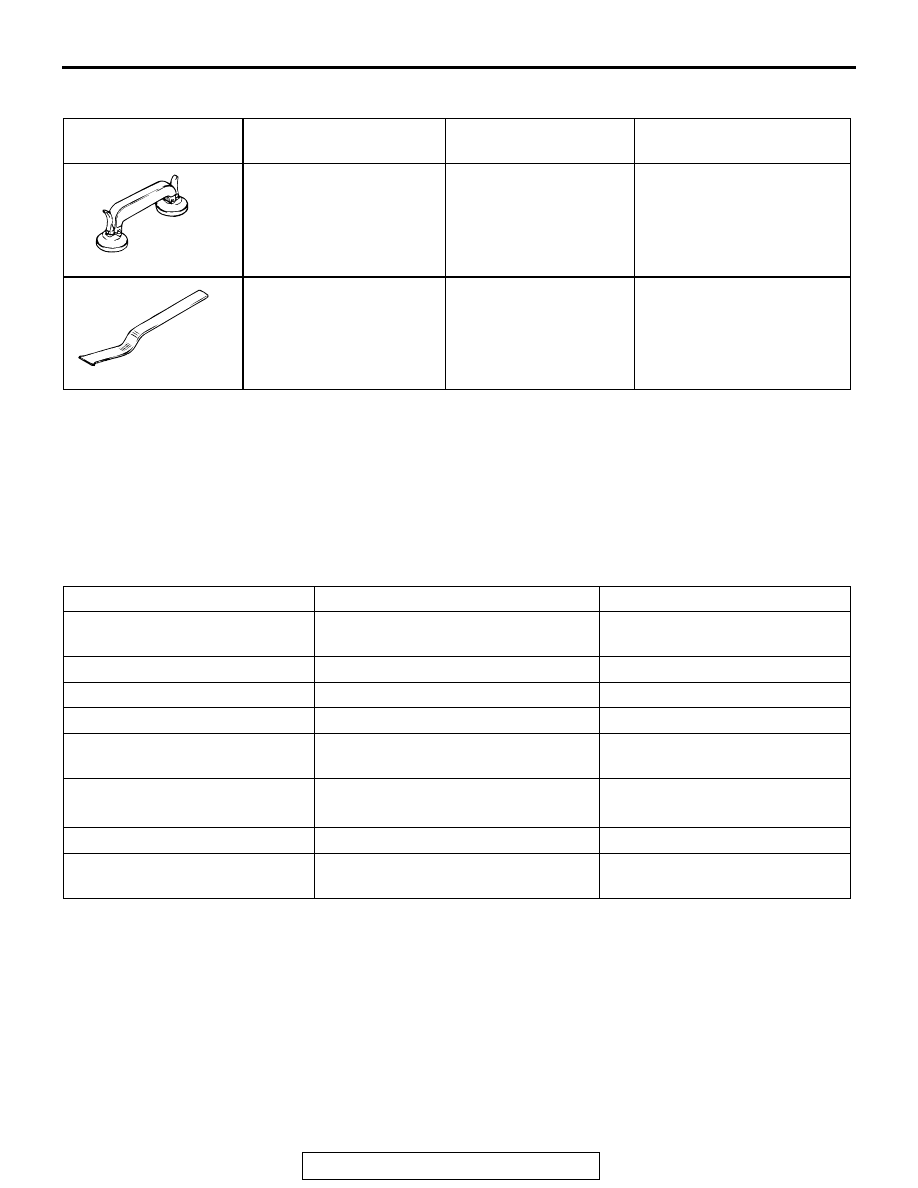

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990480 Glass holder

General service tool

Removal and installation of
window glass

MB990449 Window
molding remover

General service tool

Removal of drip molding

MB990480

MB990449

ITEM

APPLICATION

QUANTITY

Wire (dia

× length)

For cutting adhesive

Five pieces of wire 0.6 mm

× 1 m

(0.02 in

× 3.3 ft)

Glass adhesive knife

For cutting adhesive

One

Sealant gun

For adhesive application

One

Wiping shop towels

-

As required

Sealer

For prevention of water leaks and
gathering after adhesive application

As required

3M

TM

 AAD Part No. 8880 or

equivalent

For cleaning

As required

Glass holder MB990480

For holding window glass

Two

Window molding remover
MB990449

For roof drip molding removal

One

WINDOW GLASS

TSB Revision

BODY

42-14

WINDSHIELD

REMOVAL AND INSTALLATION

M1422001000335

Pre-removal and Post-installation Operation
• Front Deck Garnish Removal and Installation (Refer to GROUP 51, Windshield Wiper and Washer

P.51-15

.)

• Drip Garnish Removal and Installation (Refer to GROUP 51, Garnish and Molding

P.51-9

.) <ECLIPSE SPYDER>

• Front Pillar Trim Removal and Installation (Refer to GROUP 52A, Trim

P.52A-8

.)

• Headlining Removal and Installation (Refer to GROUP 52A, Headlining

P.52A-12

.)

• Inside Rear View Mirror Removal and Installation (Refer to GROUP 52A, Inside Rear View Mirror

P.52A-13

.)

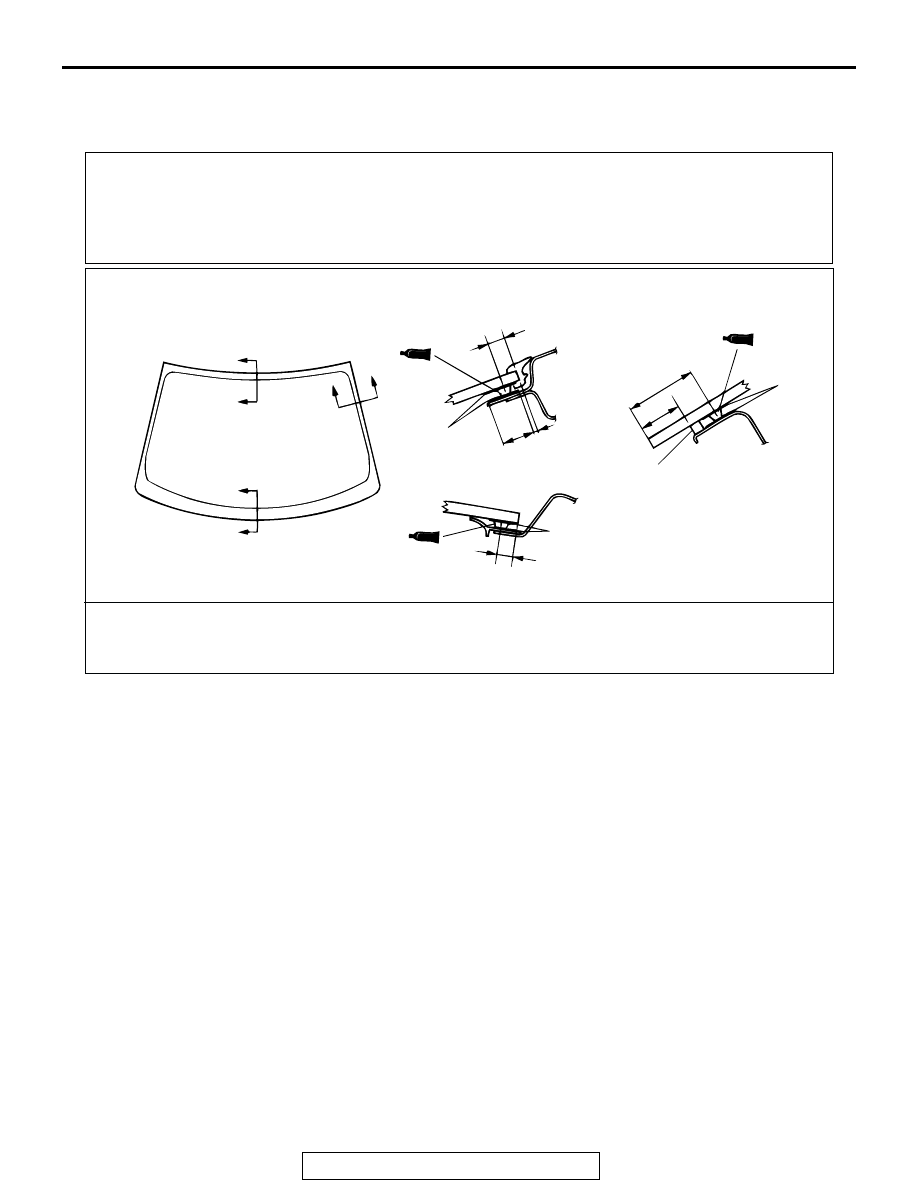

AC000454

A

A

C

C

B

B

SECTION A – A

9.5 (0.4)

1.6 (0.6)

1.5 (0.1)

(Entire

circumference)

SECTION B – B

mm (in)

26 (1.0)

12 (0.5)

4

PRIMER

PRIMER

SECTION C – C

7.5 (0.3)

PRIMER

ADHESIVE: 3M™ AAD PART NO.8609 SUPER FAST URETHANE AND 3M™AAD PART NO.8608 SUPER FAST
URETHANE PRIMER OR EQUIVALENT

AB

WINDOW GLASS

TSB Revision

BODY

42-15

Required Special Tool:

• MB990480: Glass Holder

• MB990449: Window molding remover

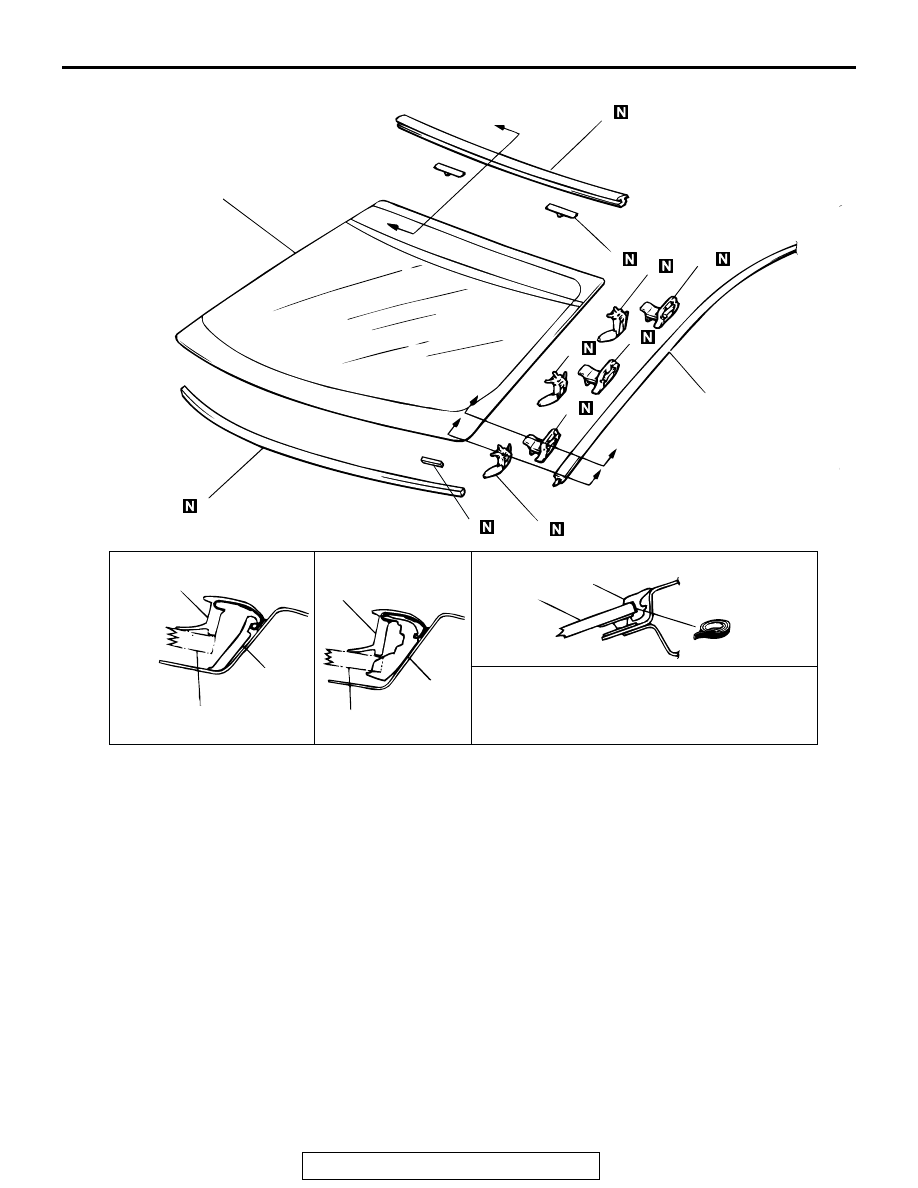

AC000455

6

F

F

3

7

10

7

9

9

1

D

D

E

E

7

4

2

SECTION D – D

1

8, 9

2

SECTION E – E

1

2

6, 7

SECTION F – F

2

5

ADHESIVE TAPE: DOUBLE-SIDED TAPE
[6 mm (0.24 in) WIDE AND 0.125 mm (0.0049 in)
THICK]

AB

5

REMOVAL STEPS

<<A>> >>D<<

1. ROOF DRIP MOLDING <ECLIPSE>

<<B>> >>C<<

2. WINDSHIELD

>>C<<

3. GLASS STOPPER

>>C<<

4. WINDOW SPACER

>>C<<

5. SPACER

>>C<<

6. WINDSHIELD UPPER MOLDING

>>B<<

7. FRONT DRIP MOLDING CLIP A

<ECLIPSE>

>>B<<

8. FRONT DRIP MOLDING CLIP B

<ECLIPSE>

>>A<<

9. DRIP MOLDING CLIP A <ECLIPSE>

>>A<<

10. DRIP MOLDING CLIP B <ECLIPSE>

REMOVAL STEPS (Continued)

WINDOW GLASS

TSB Revision

BODY

42-16

REMOVAL SERVICE POINTS

.

<<A>> ROOF DRIP MOLDING REMOVAL

CAUTION

If the roof drip molding has become warped, should be
replaced (do not re-use).
Use special tool MB990449 to lever out the roof drip molding.

.

<<B>> WINDSHIELD REMOVAL
1. To protect the body (paint surface), apply cloth tape to all

body areas around the installed

2. Using piano wire

(1) Using a sharp-point drill, make a hole in the windshield

adhesive.

(2) Pass the piano wire from the inside of the vehicle through

the hole.

(3) Using a sharp-point drill, make a hole in the windshield

adhesive.

(4) Pass the piano wire from the inside of the vehicle through

the hole.

CAUTION

Do not let the piano wire touch the edge of the windshield.

(5) Pull the piano wire alternately from the inside and outside

along the windshield to cut the adhesive.

AC003626AB

MB990449

ACX00474 AB
