AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-229

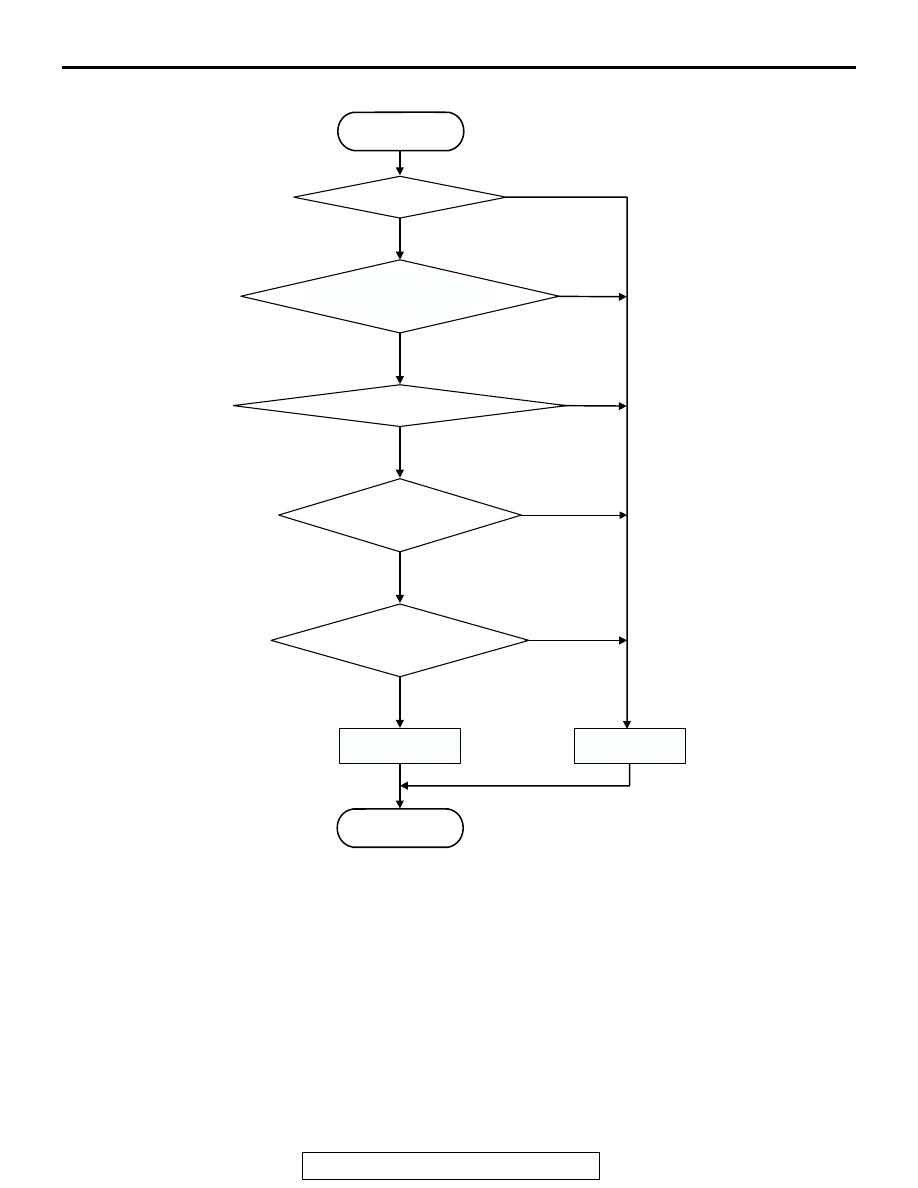

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS (Entry Conditions and
Malfunction Thresholds)

Check Conditions

• Solenoid status: either solid ON or OFF.

• Shift status: in-gear.

• Voltage of battery: 10 volts or more.

Judgement Criteria

• Solenoid voltage: 3 volts or less. (0.3 second)

• If DTC 33 (P0763) is set consecutively four times,

the transaxle is locked into 3rd gear as a fail-safe
measure, and the "N" range light flashes once
per second.

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, and keep the vehicle stopped in P
range for 5 seconds.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the second solenoid valve

• Damaged harness or connector

• Malfunction of the PCM

AC205283

Good

Malfunction

END

START

In-gear?

Shift solenoid-C is in ON
or OFF steady state

Voltage of battery > 10 V

Solenoid circuit
voltage < 3 V

Continuous failure
for 0.3 sec.

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Second solenoid valve is in
  ON or OFF steady state

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-230

DIAGNOSIS

Required Special Tool:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

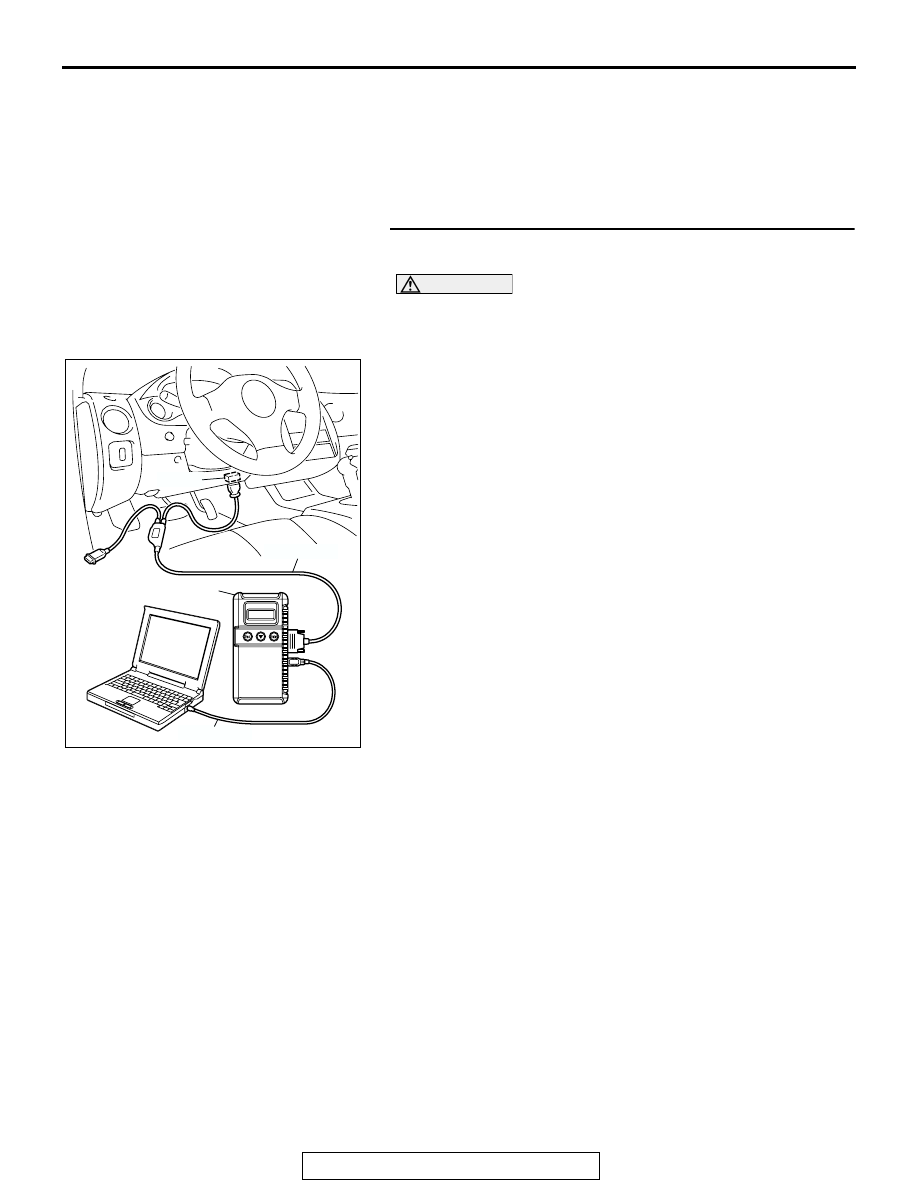

STEP 1. Using scan tool MB991958, check actuator test
item 03: Second Solenoid Valve.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to actuator test mode for item 03:

Second Solenoid Valve.

• An audible clicking or buzzing should be heard when the

second solenoid valve is energized.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the solenoid valve operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO :  Go to Step 2.

AC303127

AB

MB991911

16-PIN

MB991827

MB991824

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-231

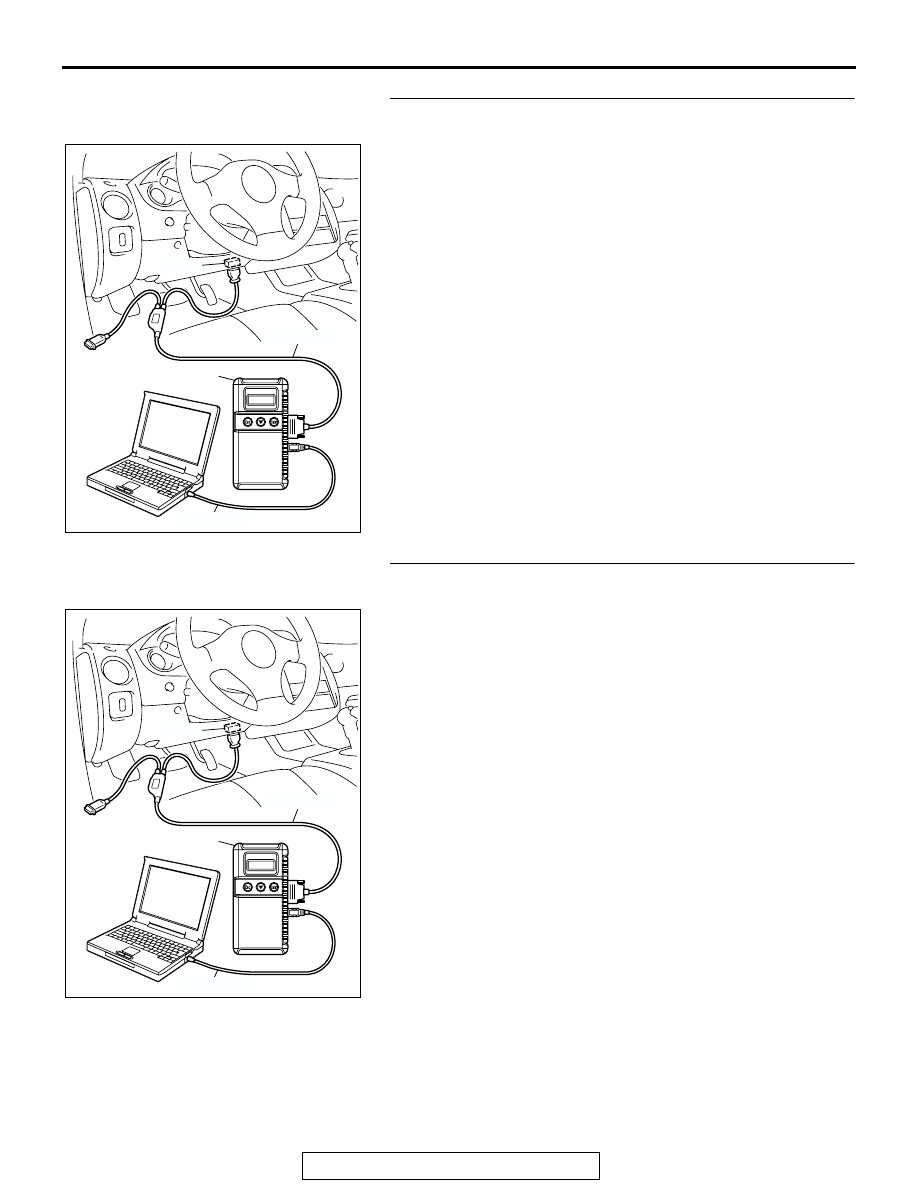

STEP 2. Using scan tool MB991958, read the A/T
diagnostic trouble code.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check for A/T diagnostic trouble code.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC 54 set? (DTC 54 may be set along with multiple

DTCs).
YES : Refer to

P.23A-279

 DTC 54: A/T Control Relay

System.

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/T
diagnostic trouble code.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check for A/T diagnostic trouble code.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are DTC 32 and DTC 34 set? (Multiple DTCs may be set).

YES : Go to Step 8.
NO :  Go to Step 4.

AC303127

AB

MB991911

16-PIN

MB991827

MB991824

AC303127

AB

MB991911

16-PIN

MB991827

MB991824

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-232

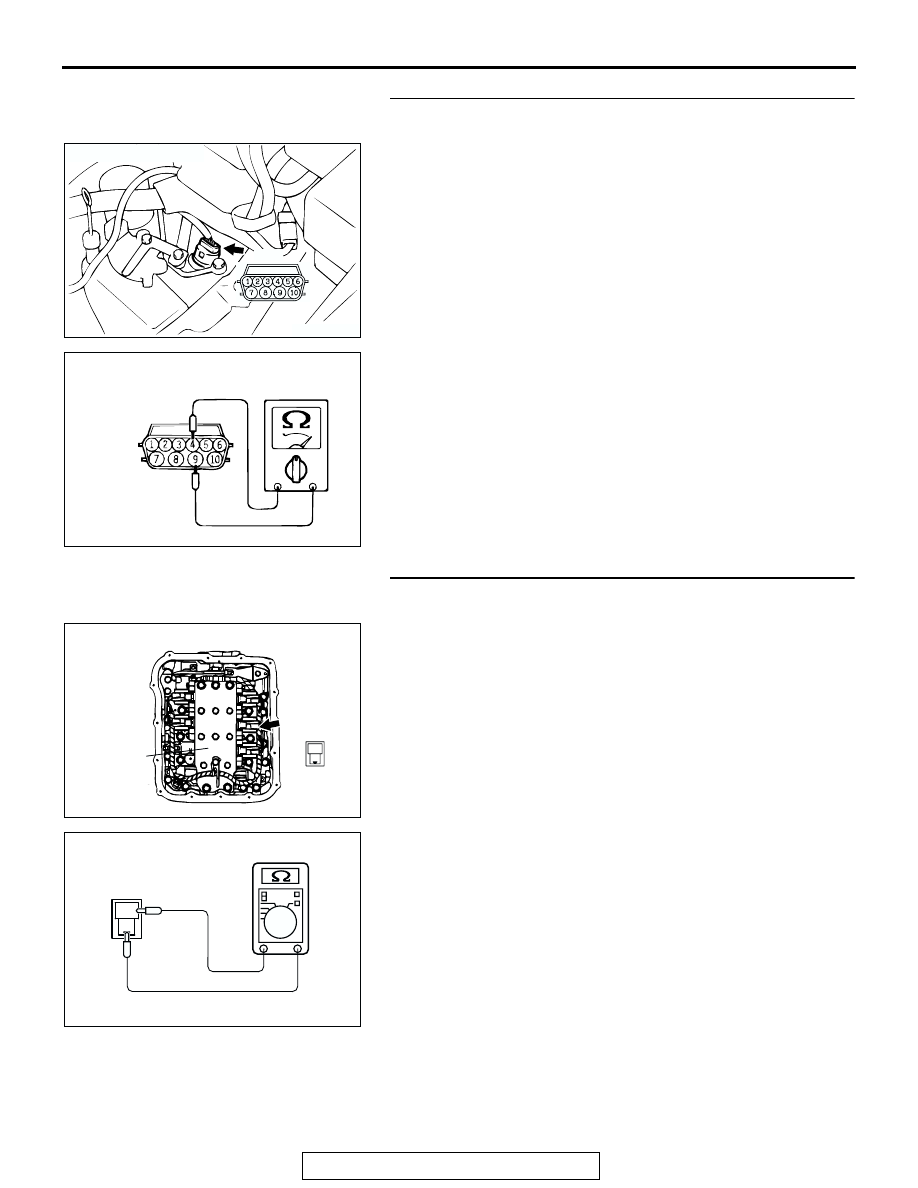

STEP 4. Measure the Second solenoid valve resistance at
A/T control solenoid valve assembly connector B-40.
(1) Disconnect connector B-40 and measure at the solenoid

valve side.

(2) Measure the resistance between solenoid valve assembly

connector B-40 terminals 4 and 9.

Resistance value: 2.7

−3.4 Ω [at 20°C (68°F)]

Q: Is the measured resistance 2.7

−3.4 Ω [at 20°C (68°F)]?

YES : Go to Step 6.
NO :  Go to Step 5.

STEP 5. Measure the solenoid valve resistance at the
second solenoid valve assembly inside the transaxle.
(1) Disconnect connector B-40-2 and measure at the solenoid

valve side.

(2) Measure the resistance between Second solenoid valve

terminals 1 and 2.

Resistance value: 2.7

−3.4 Ω [at 20°C (68°F)]

Q: Is the measured resistance 2.7

−3.4 Ω [at 20°C (68°F)?

YES : Replace the harness wire between A/T control

solenoid valve assembly connector B-40 and the
solenoid valves.

NO :  Replace the Second solenoid valve. Refer to GROUP

23B, Valve Body

P.23B-74

.

ACX02479

CONNECTOR: B-40

AK

B-40

AC001964AN

B-40 HARNESS CONNECTOR:
A/T CONTROL SOLENOID VALVE
ASSEMBLY SIDE

AC002219

CONNECTOR: B-40-2

CL

B-40-2

VALVE BODY
ASSEMBLY

2

1

2

1

AC201141BG

B-40-2 HARNESS
CONNECTOR:
UNDERDRIVE
SOLENOID VALVE SIDE
