STEP 12. Check harness for short circuit to ground
between transmission range switch connector B-41
terminal 3 and combination meter connector C-43 terminal
11. <Vehicles with sport mode>
Q: Is the harness wire in good condition?
YES : Go to Step 5.
NO : Repair or replace the harness wire.
STEP 13. Check PCM connector C-61 <2.4L Engine> or
C-63 <3.0L Engine> for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connector and terminals in good condition?
YES : Go to Step 5.
NO : Repair or replace the damaged components. Refer to
GROUP 00E, Harness Connector Inspection
P.00E-2
.

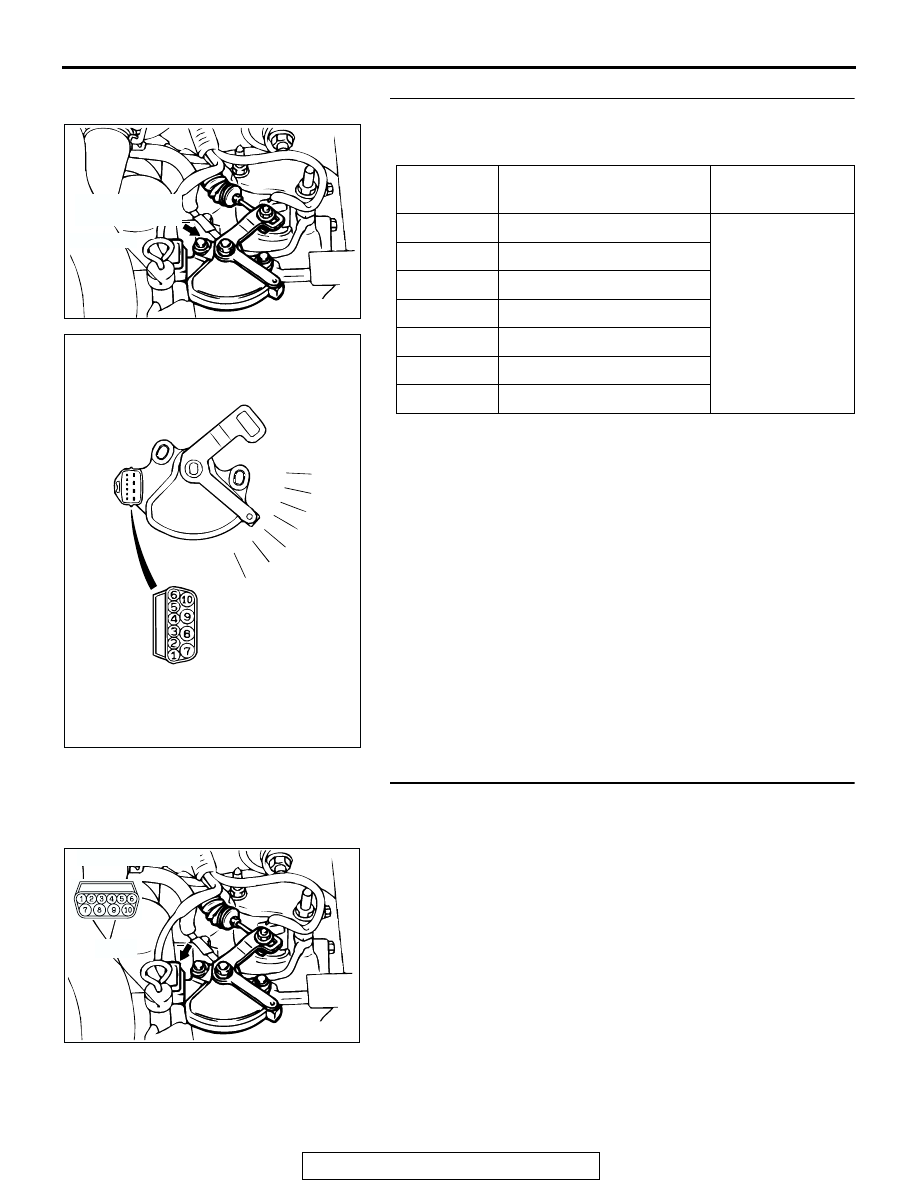

AC001844

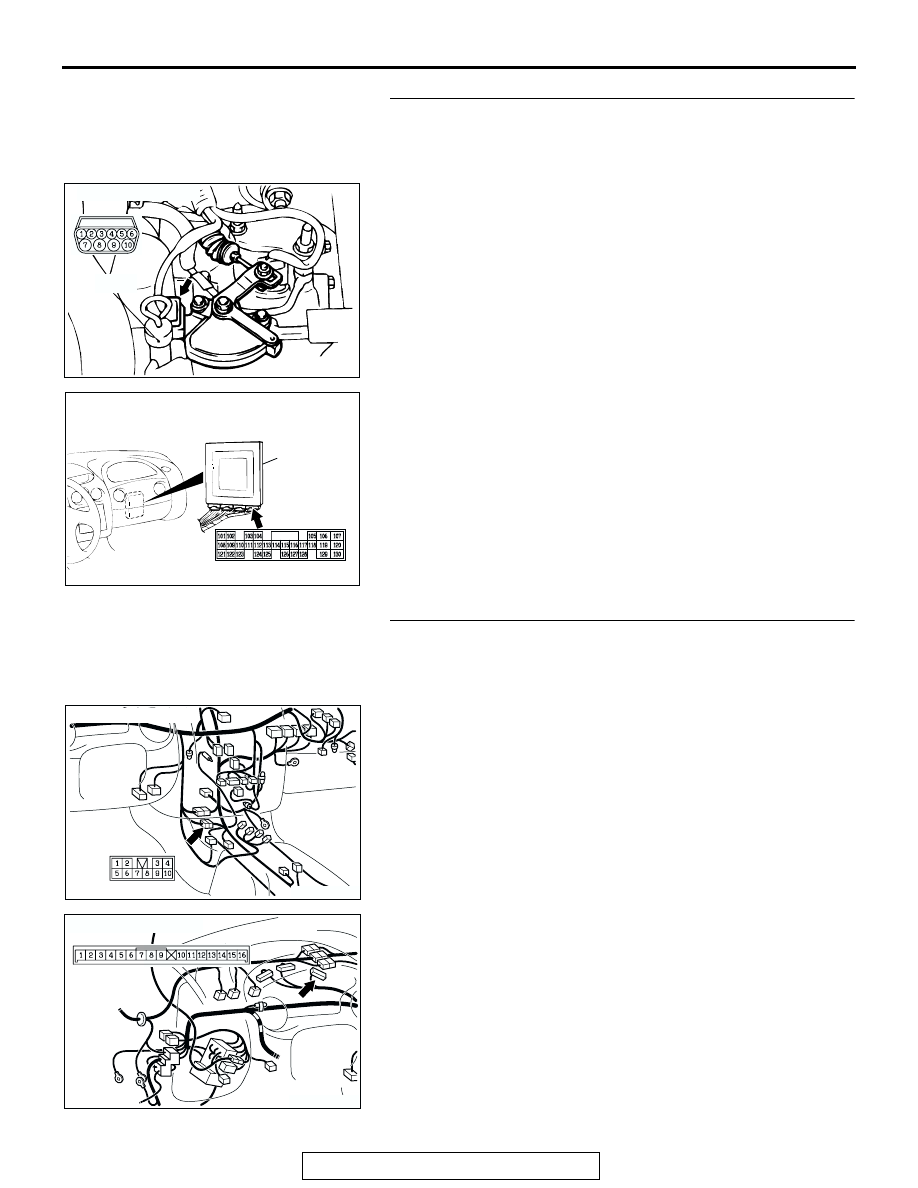

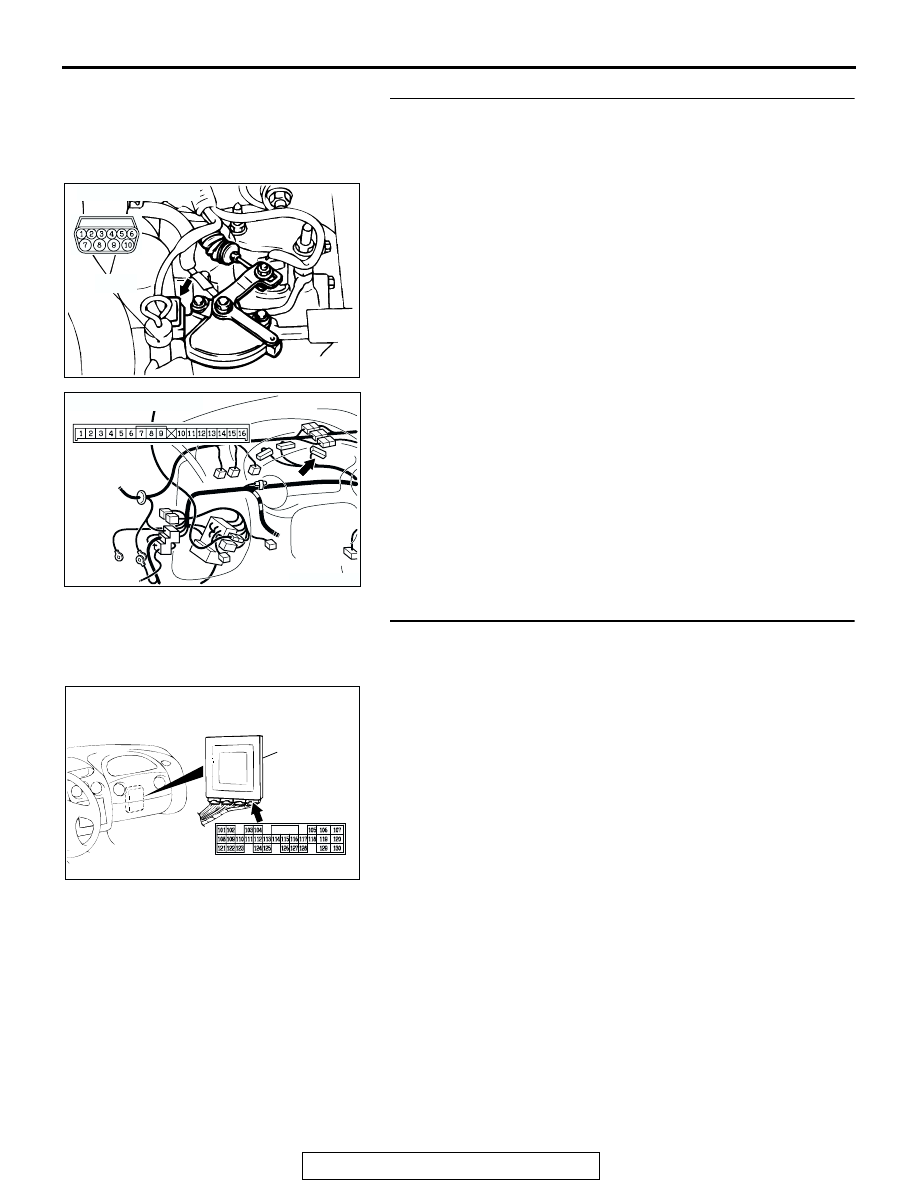

CONNECTOR: B-41
DIPSTICK
AK
B-41

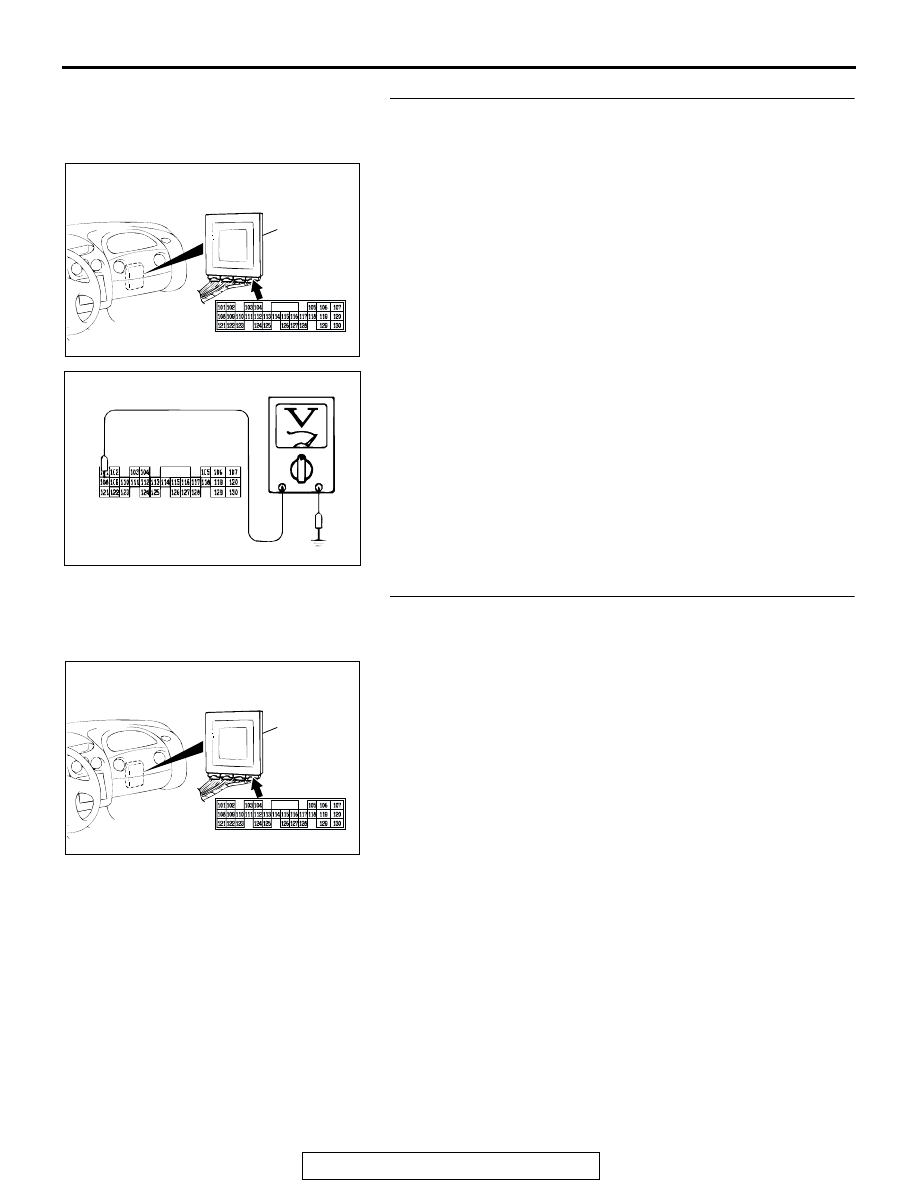

AC001729AW
CONNECTOR: C-43
C-43
AC001657
CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
PCM
BC
C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>
