AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-153

STEP 11. Check the harness for damage between stoplight
switch connector C-03 terminal 1 and PCM connector C-61
<2.4L Engine> or C-63 <3.0L Engine> terminal 123.
Q: Is the harness wire in good condition?

YES : Go to Step 12.
NO :  Repair or replace the harness wire.

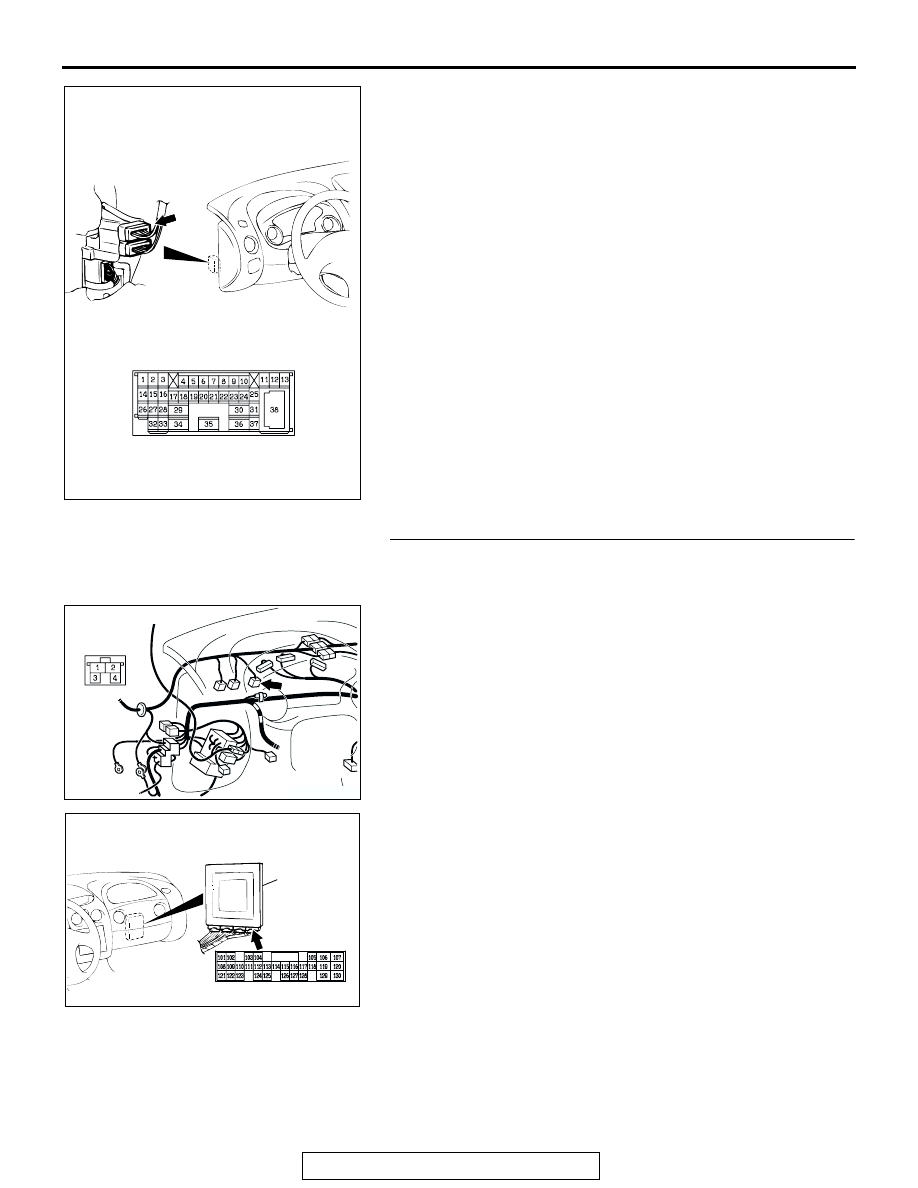

AC106616 AB

CONNECTOR BLOCK (LH)

CONNECTOR: C-89

C-89

AC001729

C-03

CONNECTOR: C-03

AV

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-154

STEP 12. Using scan tool MB991958, check data list item
26: Stoplight Switch.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

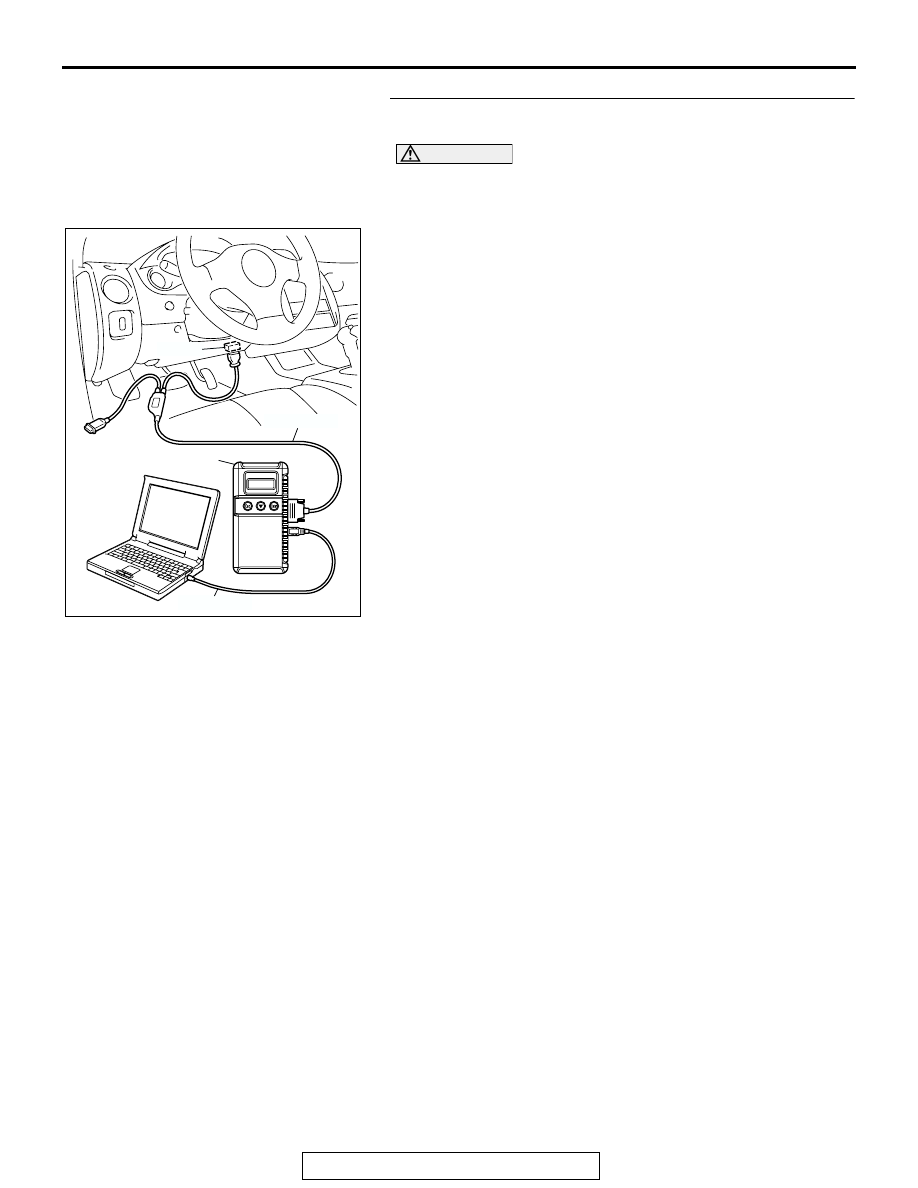

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode for item 26:

Stoplight Switch.

• When the brake pedal is depressed, the display on the

scan tool MB991958 should be "ON."

• When the brake pedal is not depressed, the display on

the scan tool MB991958 should be "OFF."

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the switch operating properly?

YES : If can be assumed that this malfunction may be

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

AC303127

AB

MB991911

16-PIN

MB991827

MB991824

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-155

DTC 27 (P0705): Transmission Range Switch System (Open Circuit)

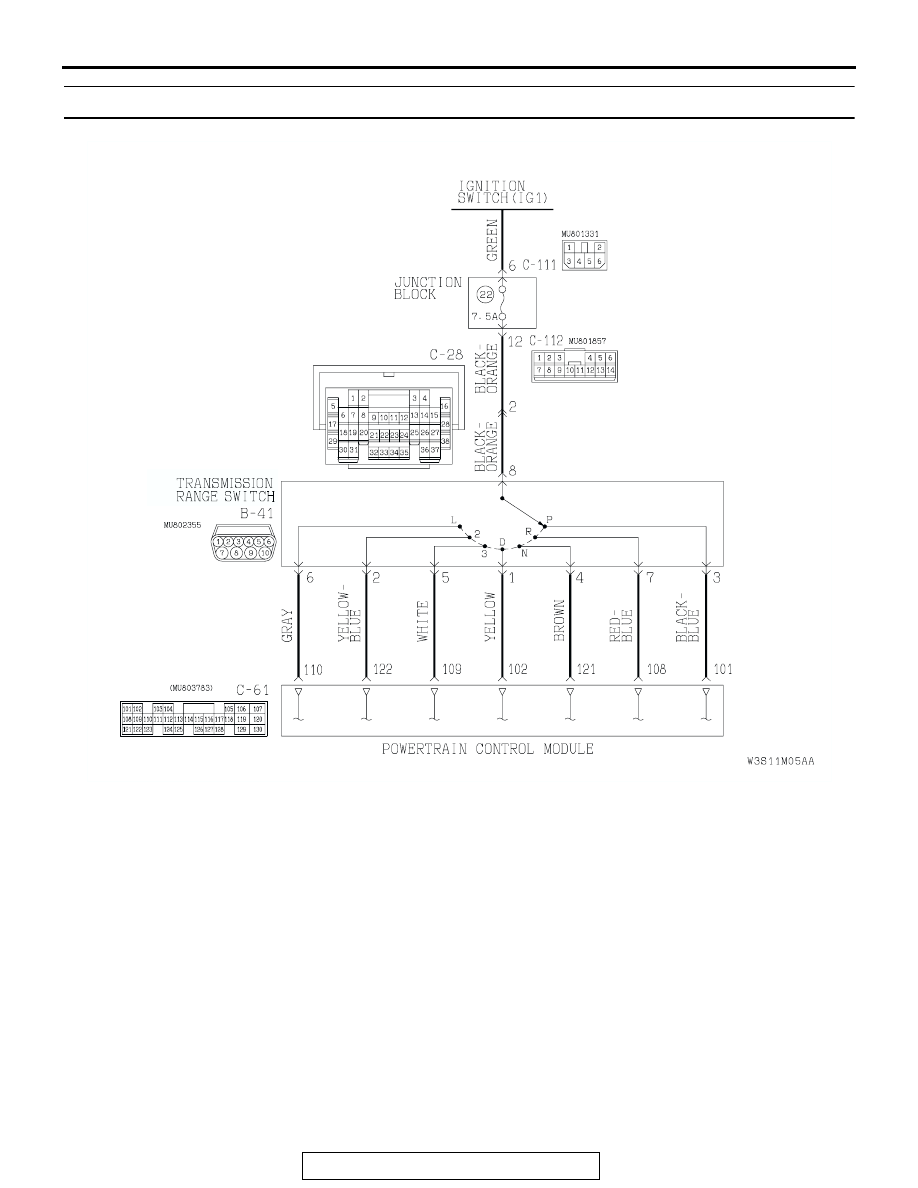

AC106633AC

Transmission Range Switch System Circuit <Vehicles without Sport Mode>

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-156

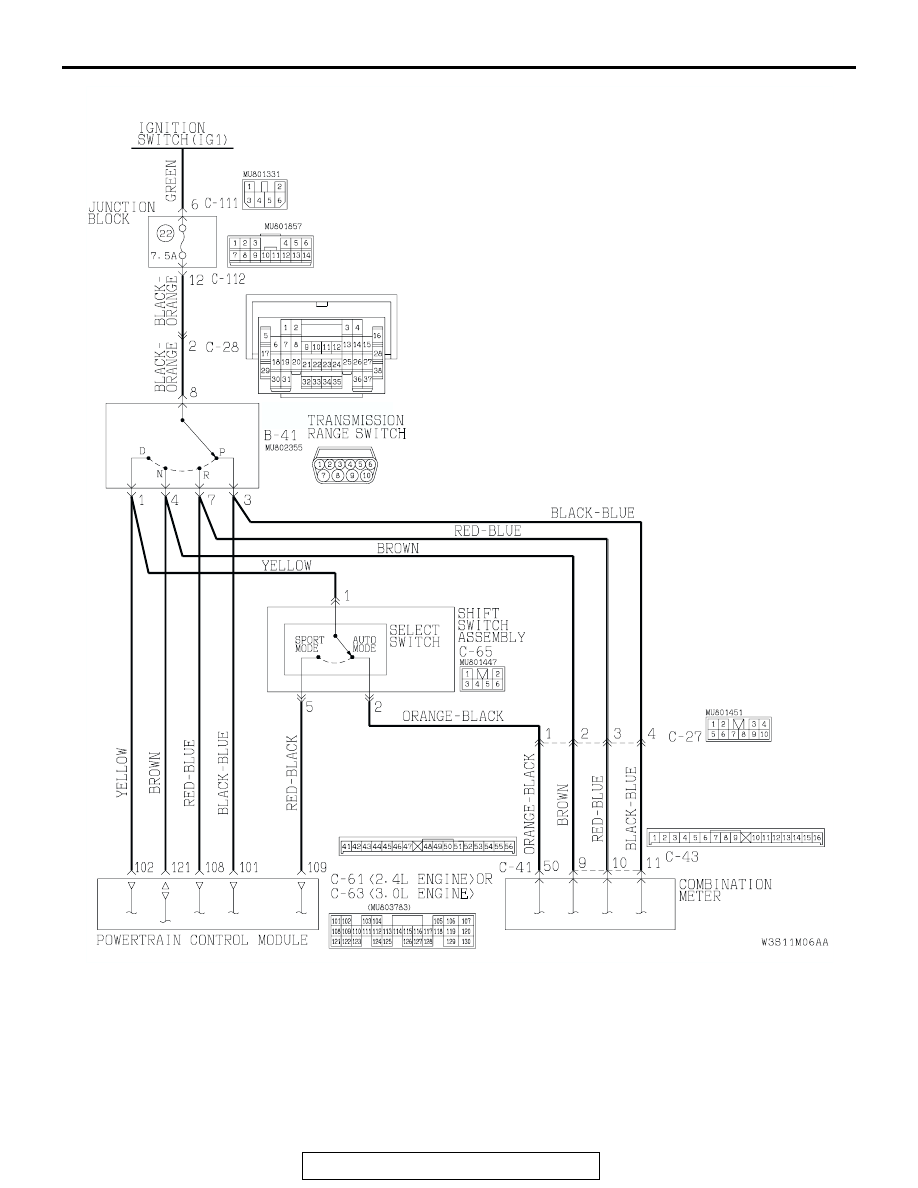

AC106634AC

Transmission Range Switch System Circuit <Vehicles with Sport Mode>
