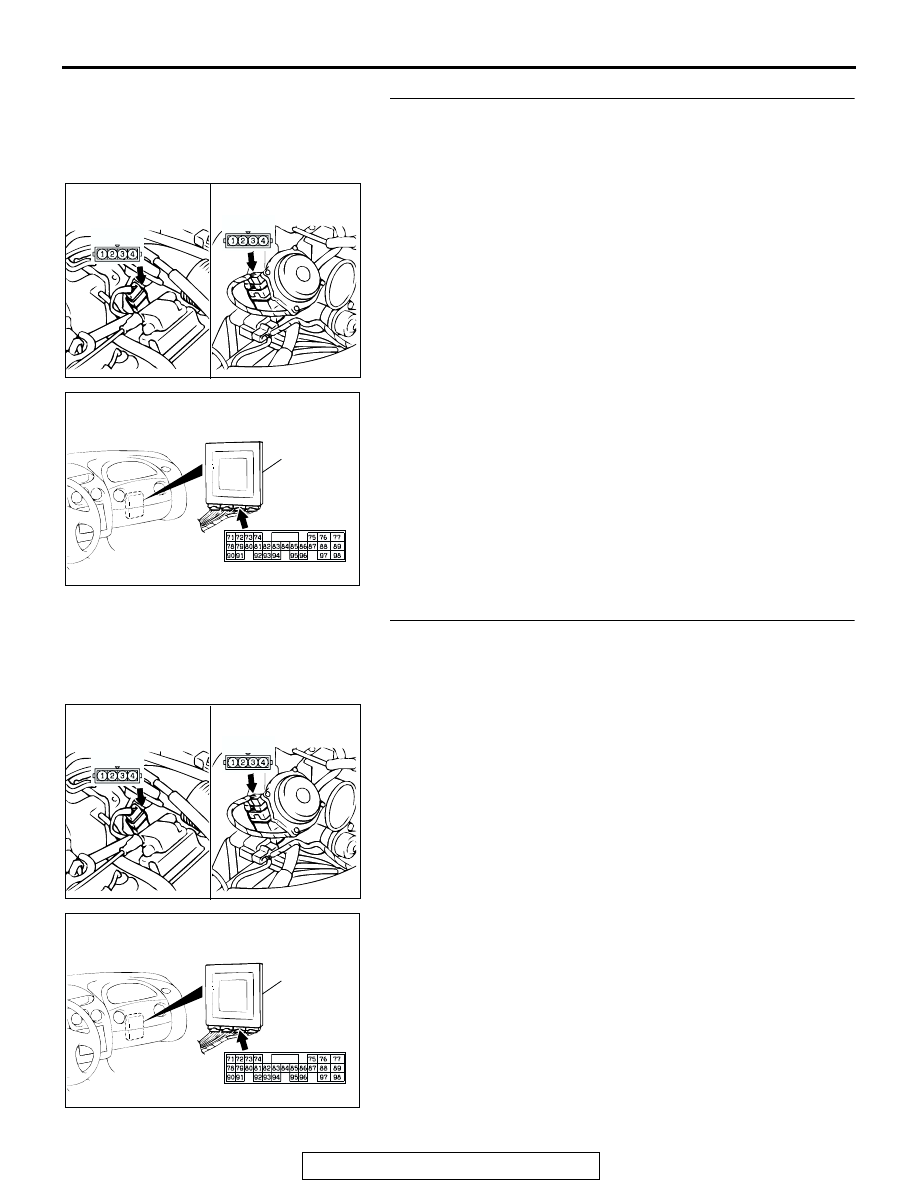

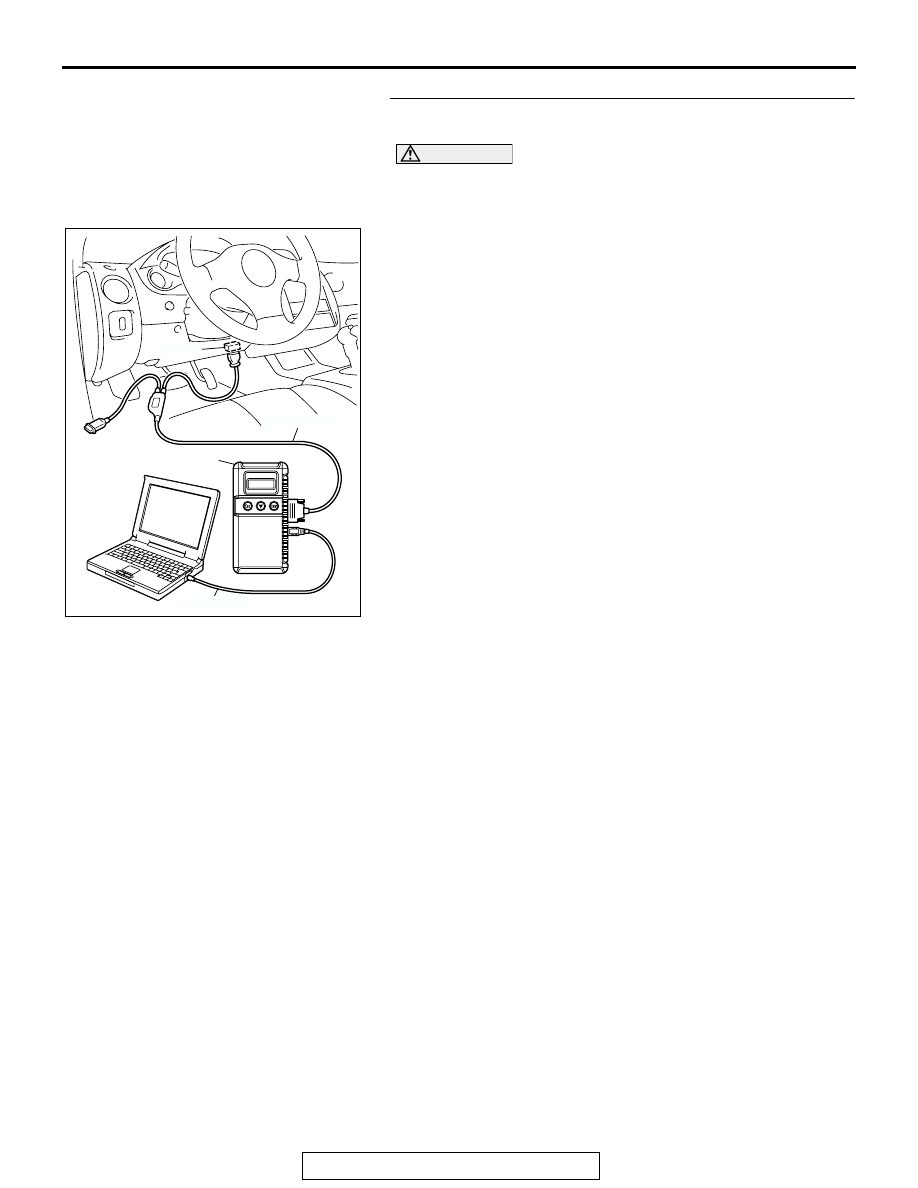

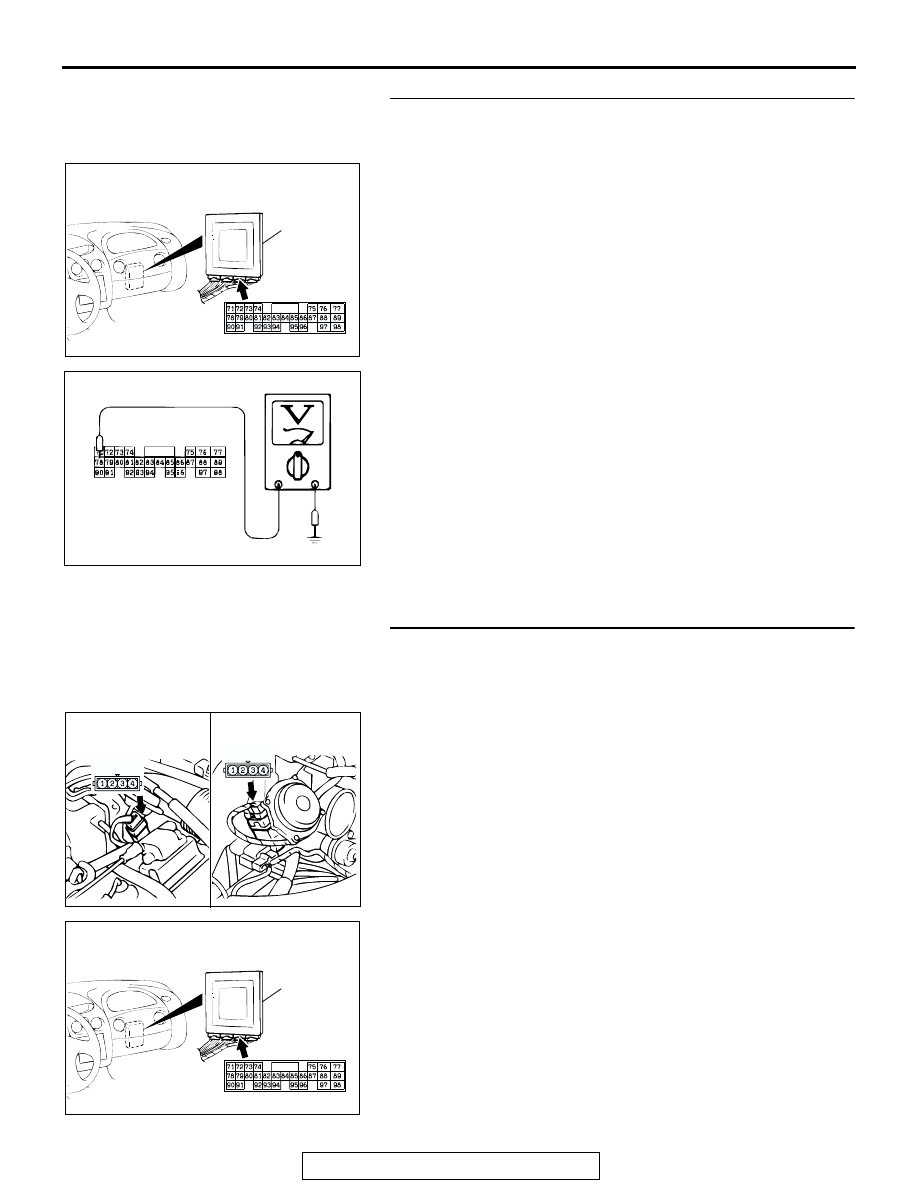

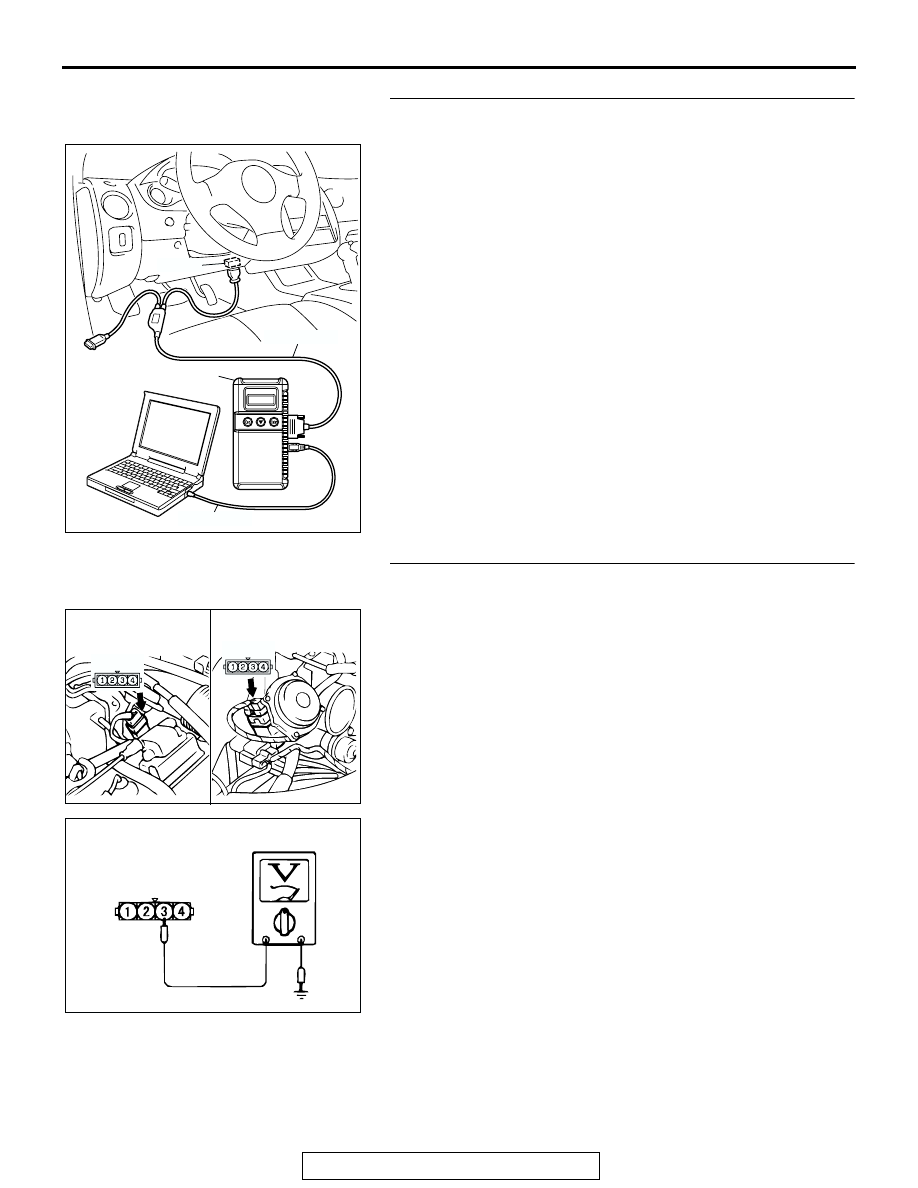

AUTOMATIC TRANSAXLE DIAGNOSIS TSB Revision AUTOMATIC TRANSAXLE 23A-65 STEP 2. Using scan tool MB991958, check data list item 11: TP Sensor. • With the throttle valve in the idle position, voltage should measure between 535 and 735 mV. • With the throttle valve in the full-open position, voltage should measure between 4,500 and 5,500 mV. (4) Turn the ignition switch to the "LOCK" (OFF) position. idle, and between 4,500 and 5,500 mV in the full-open Refer to GROUP 00, How to Use − How to Cope with Intermittent Malfunction . NO : Go to Step 3. STEP 3. Measure the TP sensor output voltage at TP (3) Measure the voltage between terminal 3 and ground by backprobing. • With the throttle valve in the idle position, voltage should measure between 0.535 and 0.735 volts. • With the throttle valve in the full-open position, voltage should measure between 4.5 and 5.5 volts. (4) Turn the ignition switch to the "LOCK" (OFF) position. idle, and between 4.5 and 5.5 volts in the full-open AC303127 AB MB991911 16-PIN MB991827 MB991824 AC001831AF CONNECTOR: B-07 <2.4L ENGINE> <3.0L ENGINE> B-07 B-07 AC001548AJ B-07 HARNESS |
