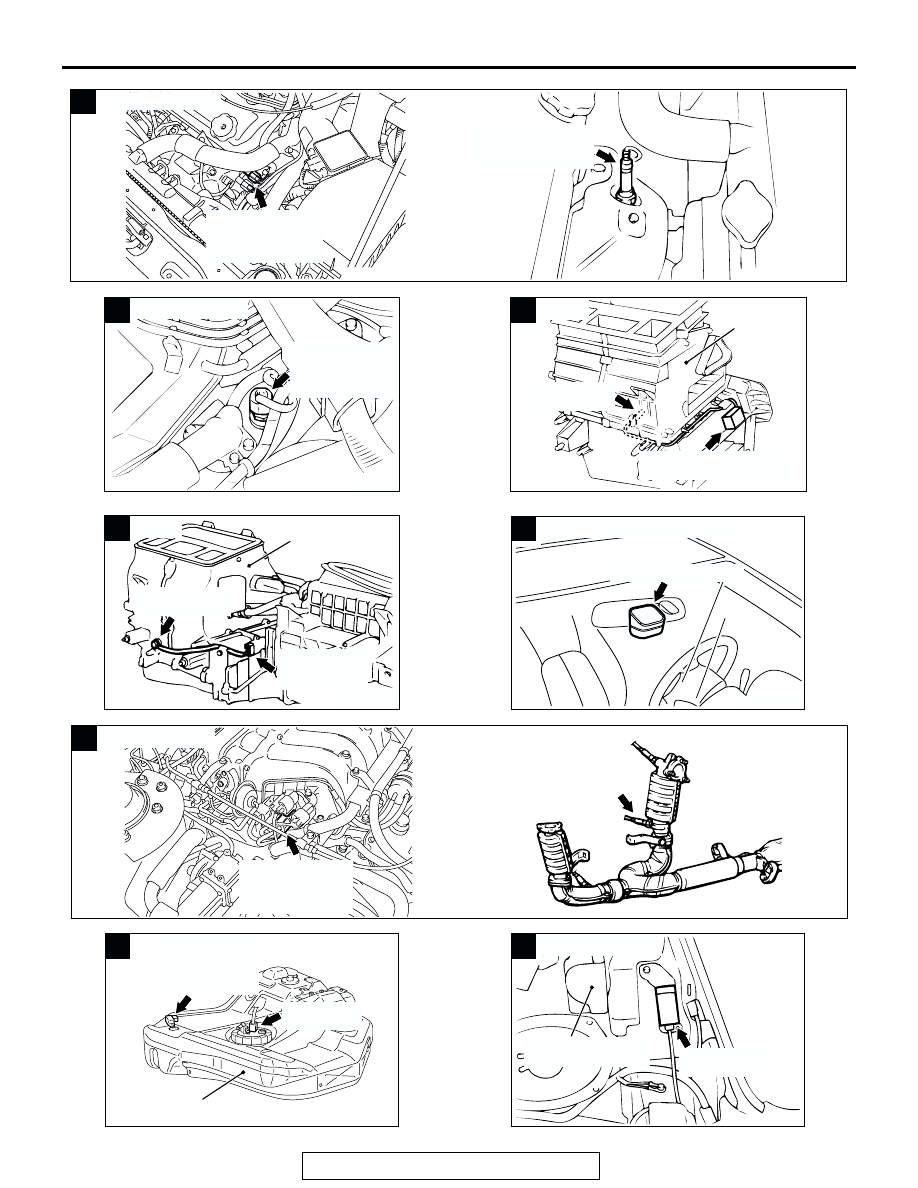

SENSOR

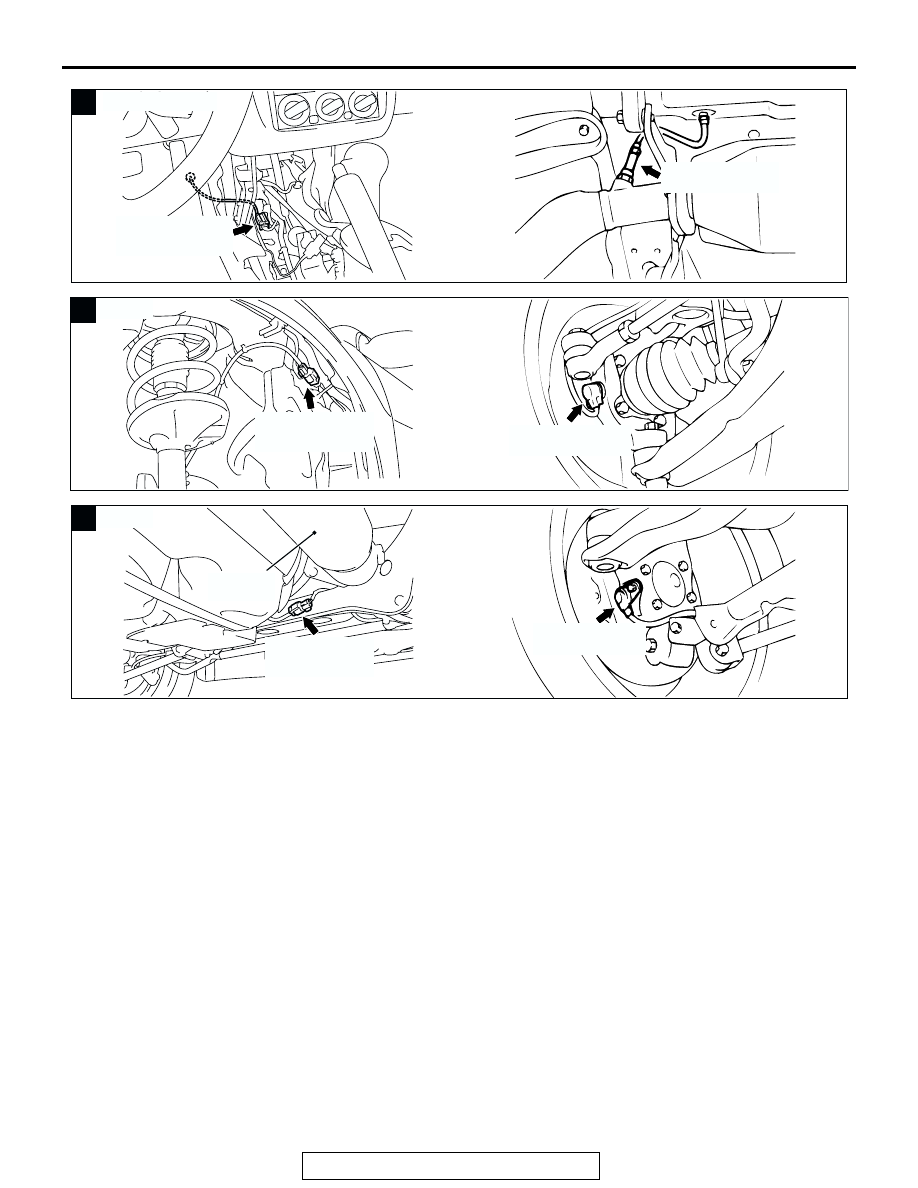

TSB Revision

COMPONENT LOCATIONS

70-13

AC106186 AC

O

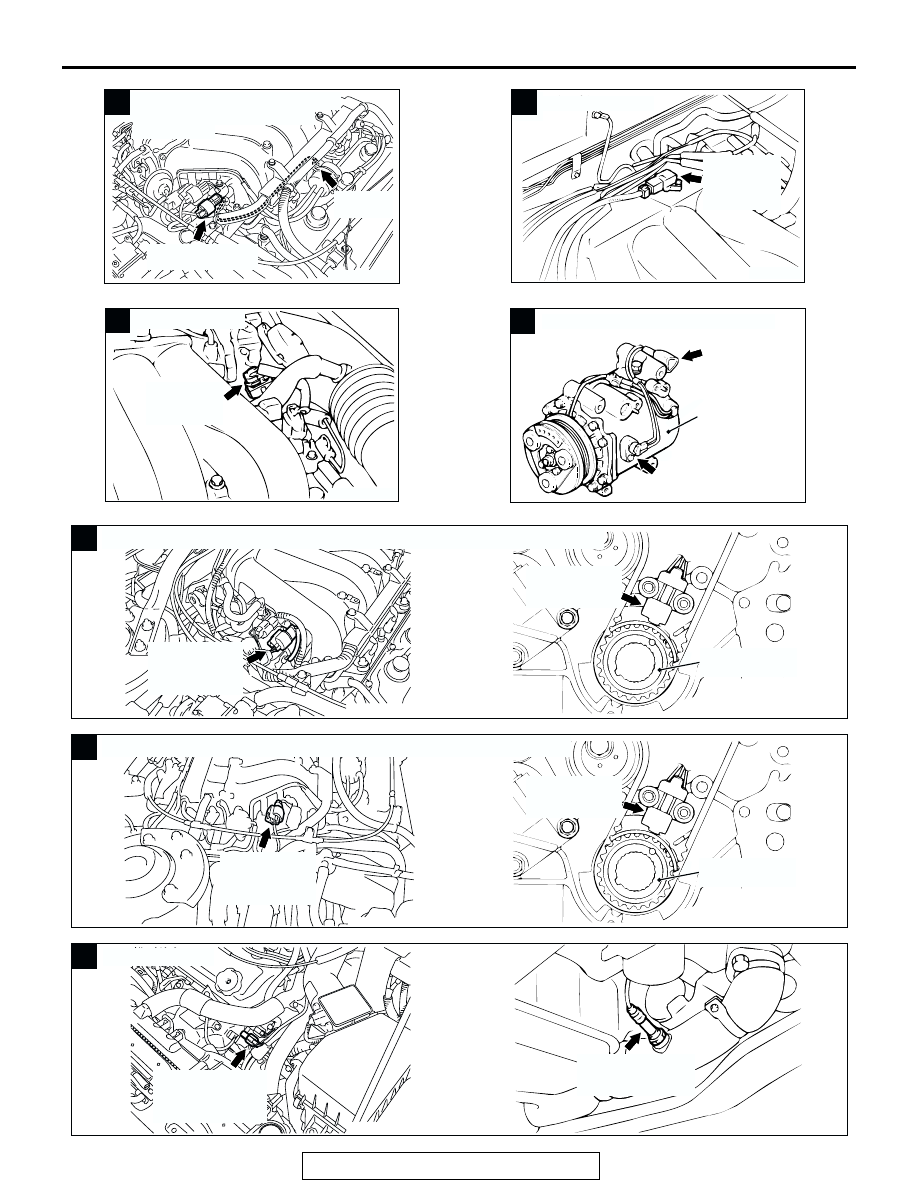

KNOCK
SENSOR

KNOCK SENSOR
CONNECTOR

<3.0L ENGINE (WITH INTAKE
MANIFOLD TUNING  (IMT)
SYSTEM)>

ACX02483 AN

MANIFOLD
ABSOLUTE
PRESSURE
SENSOR

P

<3.0L ENGINE>

ACX02484 AJ

THROTTLE
POSITION
SENSOR

Q

<3.0L ENGINE>

AC106208 AB

A/C
COMPRESSOR
ASSEMBLY

LOCK SENSOR

LOCK SENSOR
CONNECTOR

<3.0L ENGINE>

R

AC106207 AD

CRANKSHAFT
POSITION
SENSOR

CRANKSHAFT
SPROCKET

CRANKSHAFT
POSITION
SENSOR
CONNECTOR

S

<3.0L ENGINE (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

AC106219 AC

CRANKSHAFT
POSITION
SENSOR

CRANKSHAFT
SPROCKET

CRANKSHAFT
POSITION
SENSOR
CONNECTOR

S

<3.0L ENGINE (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

AC106209 AB

T

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)
CONNECTOR

<3.0L ENGINE>

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-14

AC106211AB

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)
CONNECTOR

<3.0L ENGINE>

U

ACX02490 AJ

V

ENGINE
COOLANT
TEMPERATURE
SENSOR

<3.0L ENGINE>

AC106212 AC

AIR THERMO
SENSOR

HEATER
UNIT

W

AIR THERMO
SENSOR CONNECTOR

<A/C>

ACX02492 AG

THERMISTOR
SENSOR

X

THERMISTOR
SENSOR
CONNECTOR

HEATER
UNIT

<A/C>

AC000007AF

COMPASS SENSOR

Y

<MULTI CENTER DISPLAY>

AC106215 AB

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)
CONNECTOR

<3.0L ENGINE>

Z

AC101561AD

FUEL TANK
DIFFERENTIAL
PRESSURE
SENSOR

FUEL PUMP
MODULE

FUEL TANK

a

AC003106 AE

SIDE IMPACT
SENSOR

FRONT SEAT BELT
RETRACTOR (LH)

b

<SIDE AIR BAG>

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-15

AC106216

c

AB

HEATED OXYGEN
SENSOR (REAR)

<2.4L ENGINE>

HEATED OXYGEN
SENSOR (REAR)
CONNECTOR

AC106217 AE

d

WHEEL SPEED
SENSOR (FRONT)

WHEEL SPEED
SENSOR (FRONT)
CONNECTOR

<ABS>

AC106218 AE

WHEEL SPEED
SENSOR (REAR)

WHEEL SPEED
SENSOR (REAR)
CONNECTOR

e

EXHAUST
PIPE

<ABS>

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-16

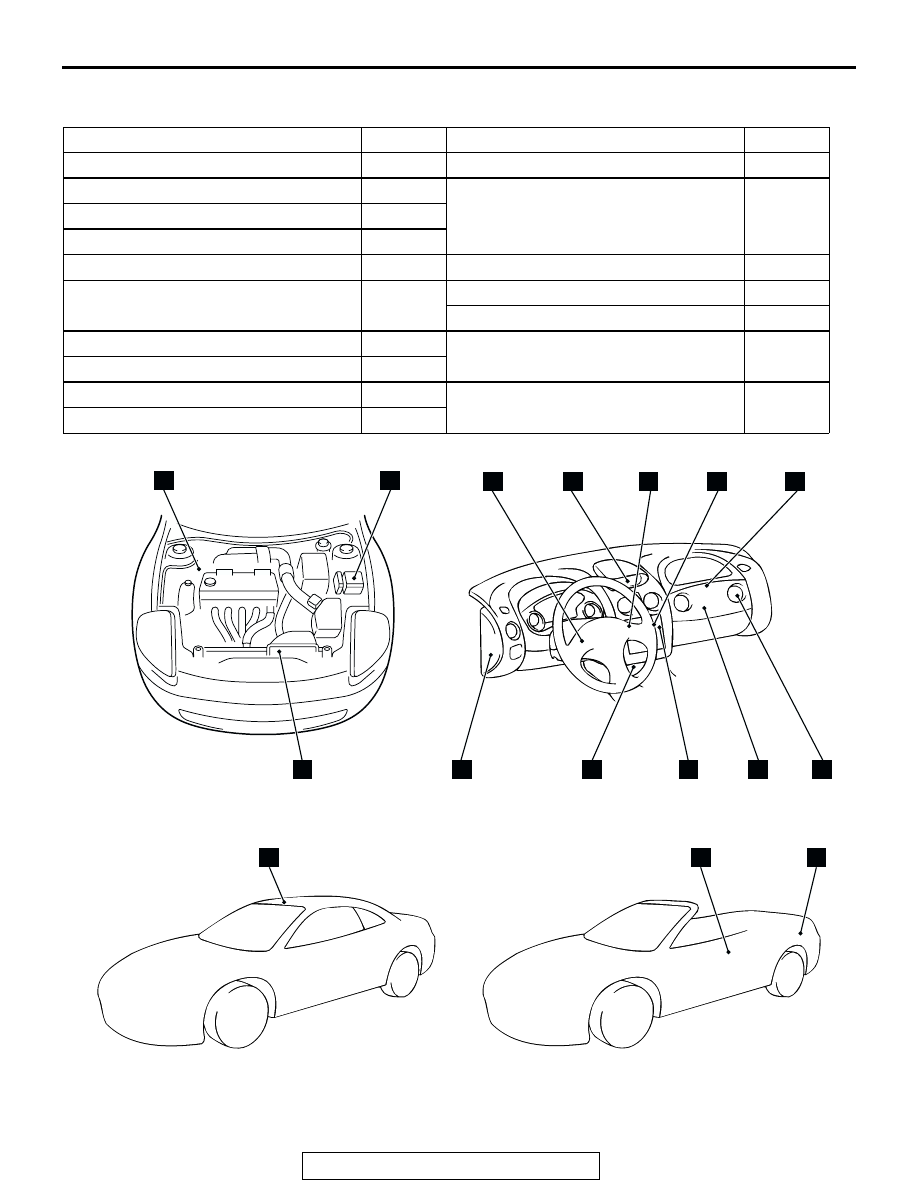

CONTROL UNIT

M1701000700337

NAME

SYMBOL NAME

SYMBOL

ABS-ECU

A

Immobilizer-ECU

J

Auto-cruise control-ECU

F

Motor antenna assembly (with built-in
motor antenna-ECU) <ECLIPSE
SPYDER>

O

Automatic compressor controller <A/C> G
Column-ECU

D

Compass-ECU <Multi center display>

L

Multi center display unit

E

Convertible top control module
<ECLIPSE SPYDER>

N

Powertrain control module <A/T>

K

SRS-ECU

I

Engine control module <M/T>

K

Sunroof motor assembly (with built-in
CPU) <ECLIPSE>

M

ETACS-ECU

H

Fan control module

C

Water shut valve controller <ECLIPSE> P

Front-ECU

B

AC102264 AE

A

B

D

E

F

G

H

I

J

K

L

M

N

O

C

<ECLIPSE>

<ECLIPSE SPYDER>

P
