TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-5

INSTALLATION SERVICE POINT

.

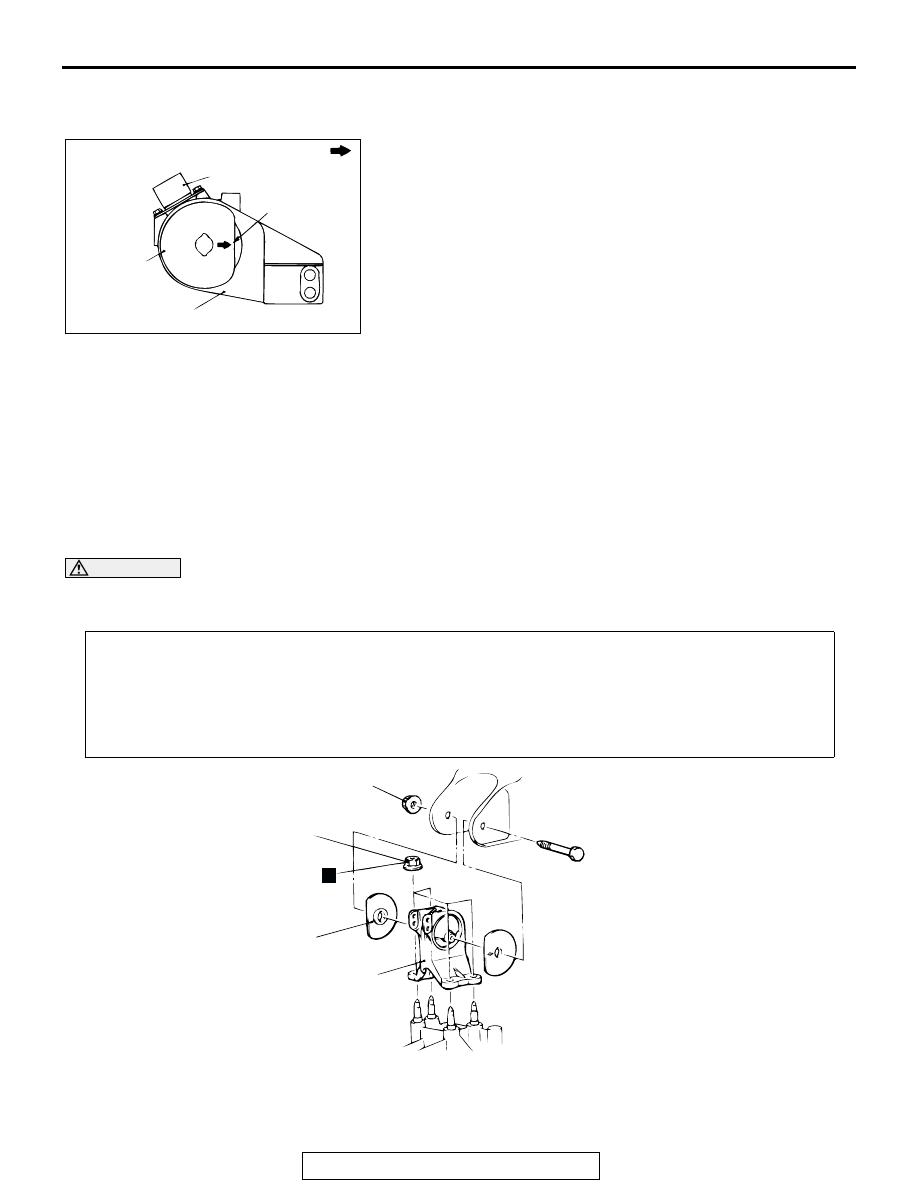

>>A<< ENGINE MOUNT STOPPER INSTALLATION
Clamp the engine mount stopper so that the arrow points in the
direction as shown in the diagram.

INSPECTION

M1321001200124

• Check the insulators for cracks, separation or deformation.

• Check the front insulator stoppers for deformation.

TRANSAXLE MOUNTING

REMOVAL AND INSTALLATION

M1321001400418

CAUTION

Mounting locations marked by

*

should be provisionally tightened, and then fully tightened after plac-

ing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

AC000300

ENGINE SIDE

DYNAMIC DAMPER

ARROW

ENGINE
MOUNT
STOPPER

ENGINE MOUNT BRACKET

AB

Pre-removal and Post-installation Operation
• Air Cleaner Assembly Removal and Installation (Refer to GROUP 15, Air Cleaner

P.15-6

.)

• Battery and Battery Tray Removal and Installation (Refer to GROUP 54A, Battery

P.54A-8

.)

• Centermember Removal and Installation (Refer to

P.32-8

.)

• Transaxle and Rear Roll Stopper Connecting Bolt Removal and Installation (Refer to

P.32-8

.)

• Rear Roll Stopper Bracket Removal and Installation <2.4L Engine-M/T> (Refer to GROUP 22B, Transaxle

P.22B-8

.),

<2.4L Engine-A/T> (Refer to GROUP 23B, Transaxle

P.23B-10

.)

AC000301 AB

1

2

81 ± 12 N·m*
60 ± 9 ft-lb*

57 ± 7 N·m
42 ± 5 ft-lb

N

REMOVAL STEPS

<<A>>

1.

TRANSAXLE MOUNT BRACKET

>>A<<

2.

TRANSAXLE MOUNT STOPPER

TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-6

Required Special Tools:

• MB991453: Engine Hanger Assembly

• MZ203827: Engine Lifter

• MB991454: Engine Hanger

• MB991895: Engine Lifter

• MB991928: Engine Hanger

REMOVAL SERVICE POINT

.

<<A>> TRANSAXLE MOUNT BRACKET REMOVAL

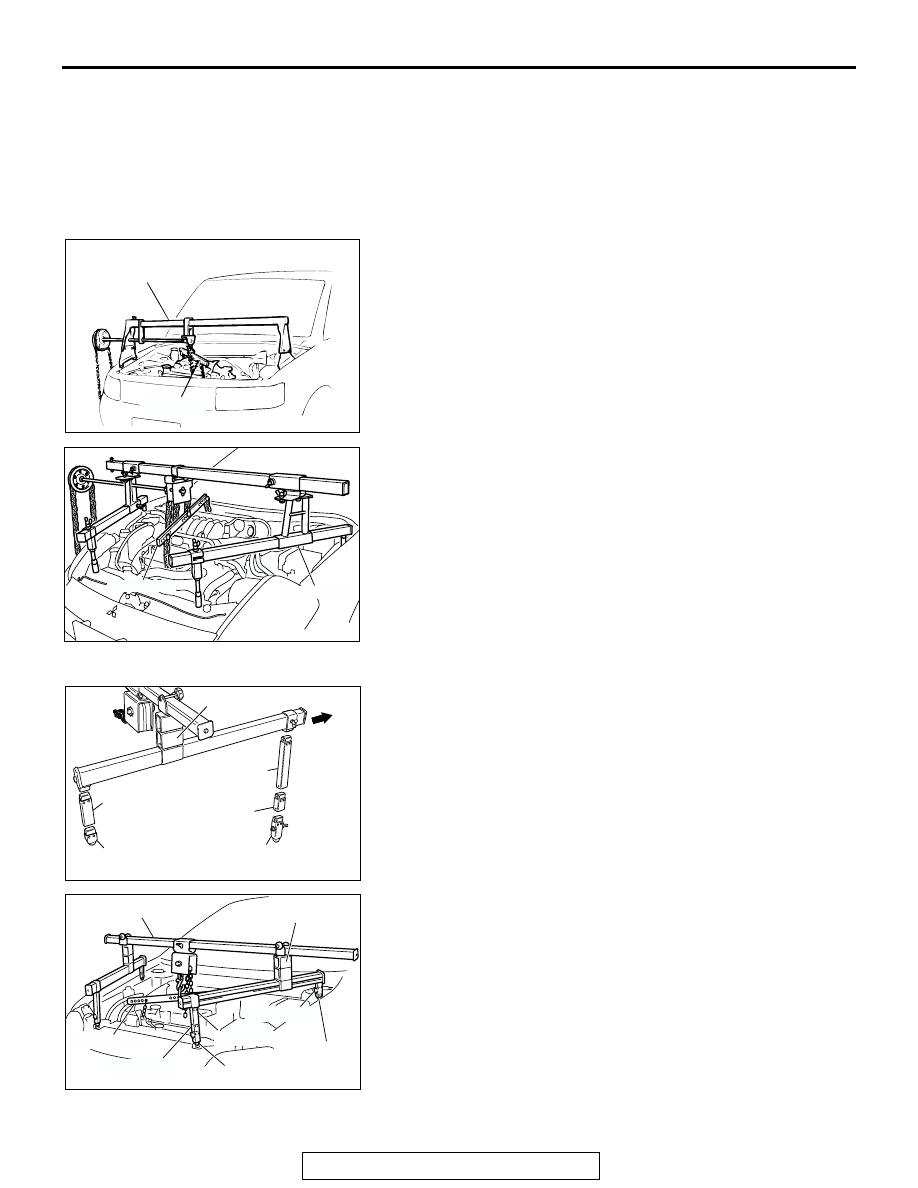

1. Install special tools MB991453 and MZ203827 to the vehicle

body to support the engine and transaxle assembly.

2. Install special tools MB991895 and MB991454 to the vehicle

body to support the engine and transaxle assembly.

3. <Engine hanger MB991928 is used>

(1) Assemble the engine hanger (special tool

MB991928).Set following parts the base hanger.

• Slide bracket (HI)

• Foot (standard) (MB991932)

• Foot (short) (MB991933)

• Joint (50) (MB991929)

• Joint (90) (MB991930)

• Joint (140) (MB991931)

(2) Install special tools MB991928 and MB991454 to the

vehicle body to support the engine and transaxle
assembly.

4. Remove the centermember and rear roll stopper bracket.
5. Remove the bolt and nut of the transaxle mount bracket.
6. After lowering the engine and transaxle assembly, remove

the transaxle mount bracket.

ACX00406

MZ203827

AB

MB991453

AC106164

MB991454

MB991895

AB

AC302468

FOOT (SHORT)
(MB991933)

JOINT (90)
(MB991930)

FOOT (STANDARD)
(MB991932)

JOINT (50)
(MB991929)

JOINT (140)
(MB991931)

FRONT
SIDE

SLIDE BRACKET (HI)

AB

AC302400AC

MB991928

SLIDE BRACKET (HI)

MB991454

MB991932

MB991931

MB991933

MB991929

MB991930

TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-7

INSTALLATION SERVICE POINT

.

>>A<< TRANSAXLE MOUNT STOPPER INSTALLATION
Clamp the transaxle mount stopper so that the arrow points in
the direction as shown in the diagram.

AC000302

ENGINE SIDE

ARROW

TRANSAXLE
MOUNT
BRACKET

AB

TRANS-
AXLE
MOUNT
STOPPER

ENGINE ROLL STOPPER AND CENTERMEMBER

TSB Revision

POWER PLANT MOUNT

32-8

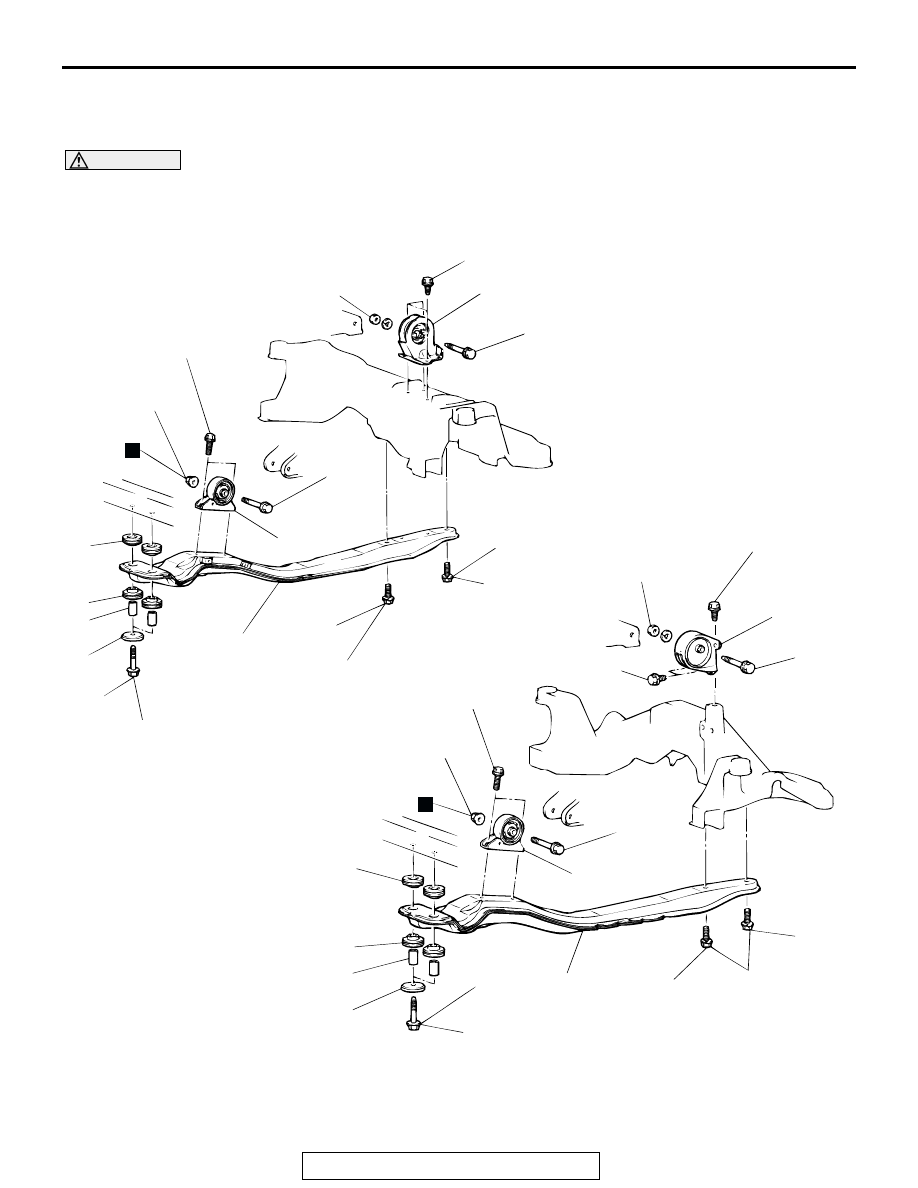

ENGINE ROLL STOPPER AND CENTERMEMBER

REMOVAL AND INSTALLATION

M1321002300135

CAUTION

Mounting locations marked by

*

should be provisionally tightened, and then fully tightened after plac-

ing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

AC000303

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 10 N·m*
34 ± 7 ft-lb*

74 ± 4 N·m
55 ± 3 ft-lb

74 ± 4 N·m
55 ± 3 ft-lb

93 ± 15 N·m
69 ± 11 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 5 N·m*
34 ± 3 ft-lb*

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 10 N·m*
34 ± 7 ft-lb*

93 ± 15 N·m
69 ± 11 ft-lb

74 ± 4 N·m
55 ± 3 ft-lb

45 ± 5 N·m*
34 ± 3 ft-lb*

<3.0L ENGINE>

<2.4L ENGINE>

1

2

2

3

4

5

6

7

8

3

9

10

10

9

1

5

4

8

7

6

3

2

2

2

N

N
