MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-719

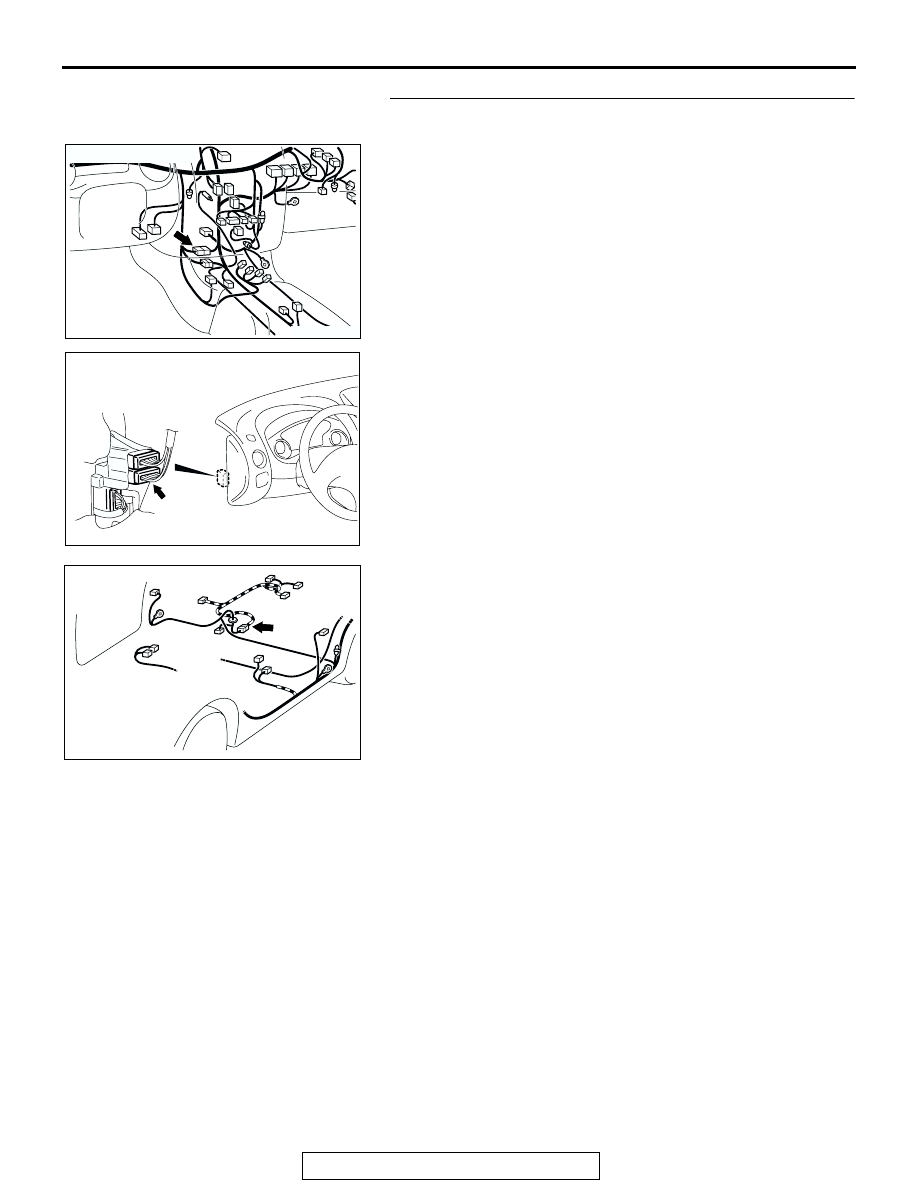

STEP 5. Check the harness wire between ECM connector
C-62 terminal 93 <M/T> or PCM connector C-59 terminal 92
<A/T> and intermediate connector D-16 terminal 5 for
damage.
Q: Is the harness wire in good condition?

YES : Go to Step 22.
NO :  Repair it. Then go to 22.

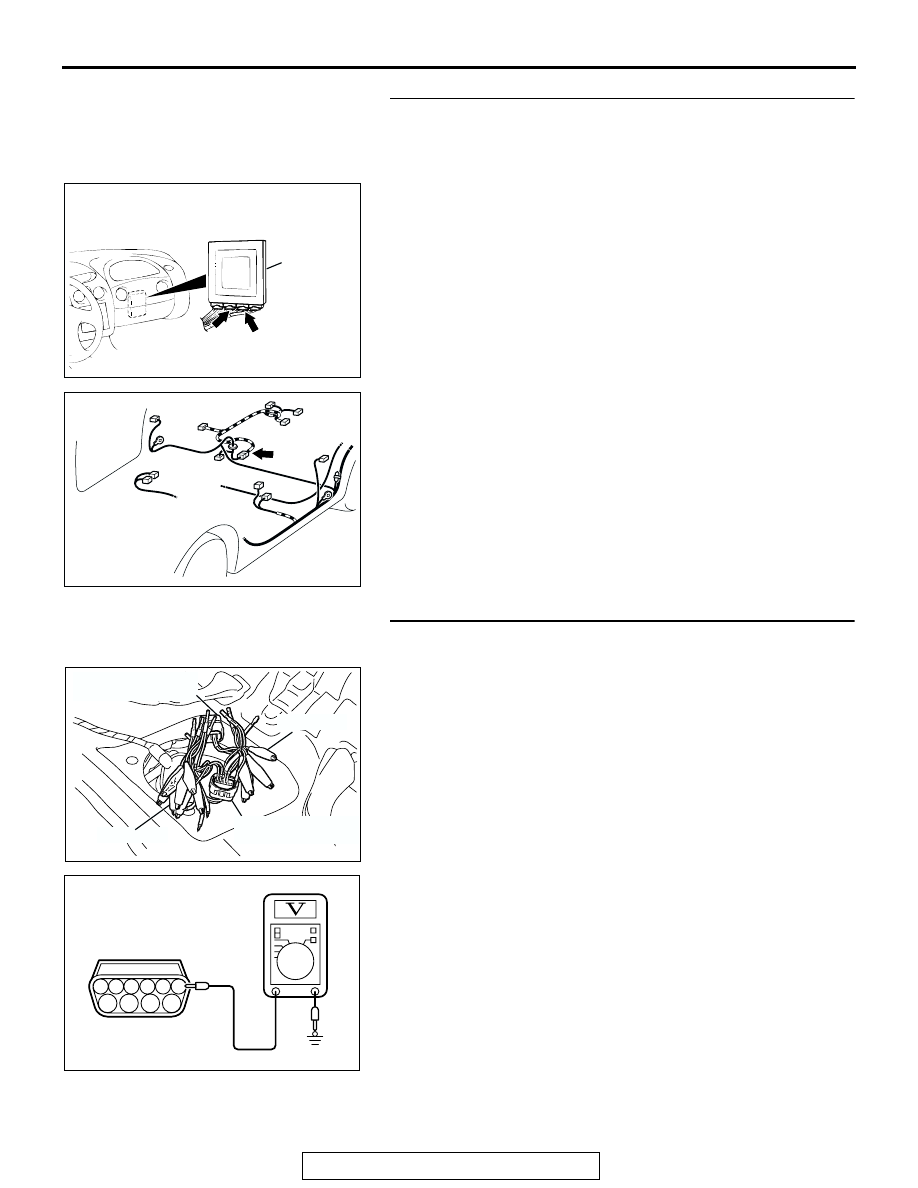

STEP 6. Check the 5-volt supply circuit voltage at
intermediate connector D-16.
(1) Use special tools (MB991658 and MB991709) to connect

terminals 5, 6 and 8 between connectors of the
intermediate connector D-16 respectively.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 8 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 11.
NO :  Remove the special tools and connect intermediate

connector D-16. Then go to Step 7 .

AC001689

CONNECTOR: C-62<M/T>, C-59 <A/T>

ECM <M/T>
OR
PCM <A/T>

C-62
<M/T>

C-59
<A/T>

AP

AC001787AD

CONNECTOR: D-16

AC002080

MB991709

MB991658

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-720

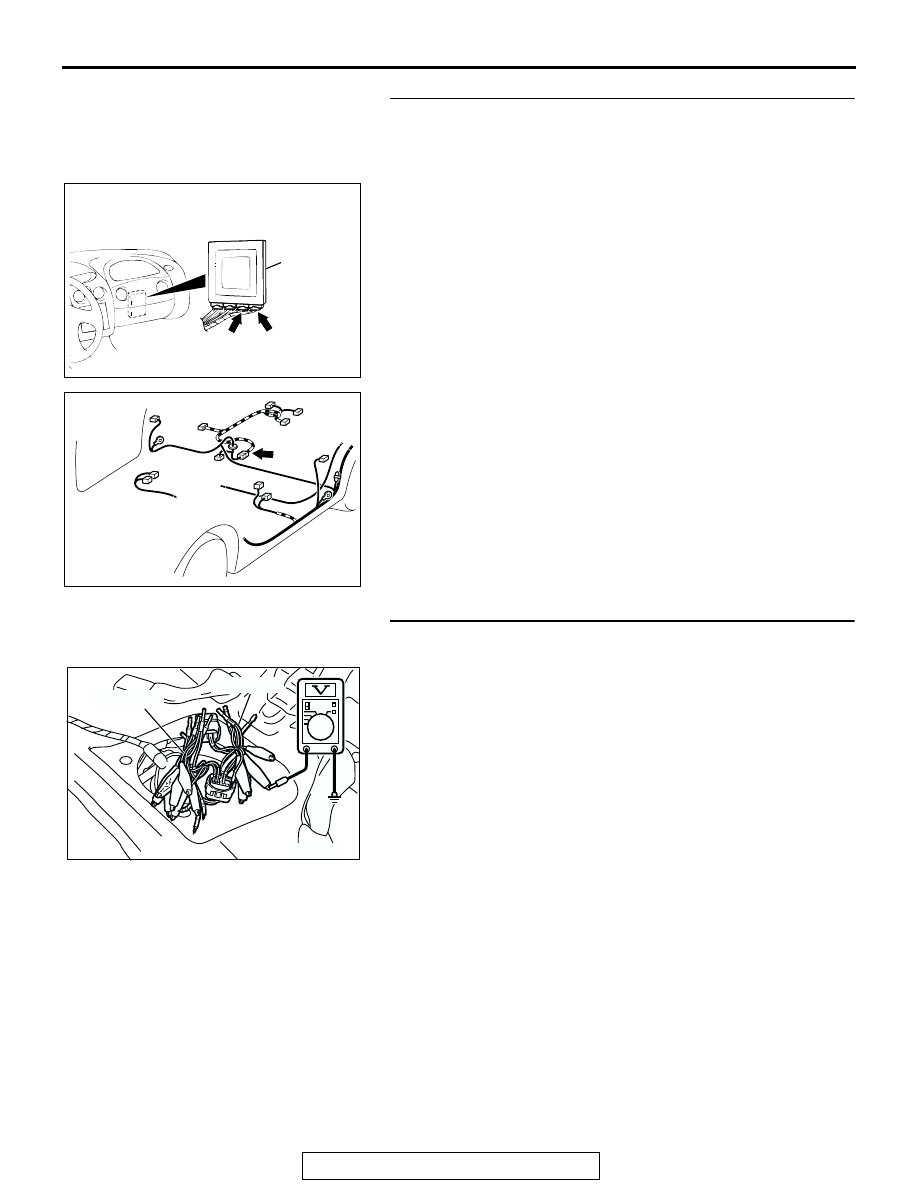

STEP 7. Check the 5-volt supply circuit voltage at ECM
connector C-58 <M/T> or PCM connector C-55 <A/T> by
backprobing.
(1) Do not disconnect ECM connector C-58 <M/T> or PCM

connector C-55 <A/T>.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 42 <M/T> or terminal

46 <A/T> and ground by backprobing.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 9.
NO :  Go to Step 8.

STEP 8. Check connector C-58 at ECM <M/T> or C-55 at
PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 21.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AC002083AC

HARNESS SIDE
CONNECTOR

<M/T> C-58

<A/T> C-55

AC001689

CONNECTOR: C-58 <M/T>, C-55 <A/T>

ECM <M/T>
OR
PCM <A/T>

C-58
<M/T>

C-55
<A/T>

AO

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-721

STEP 9. Check connectors C-28, C-90, D-16 at intermediate
connector for damage.
Q: Are the connectors in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AC001741 AJ

CONNECTOR: C-28

AC001991

CONNECTOR: C-90

CONNECTOR
BLOCK (LH)

AI

AC001787AD

CONNECTOR: D-16

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-722

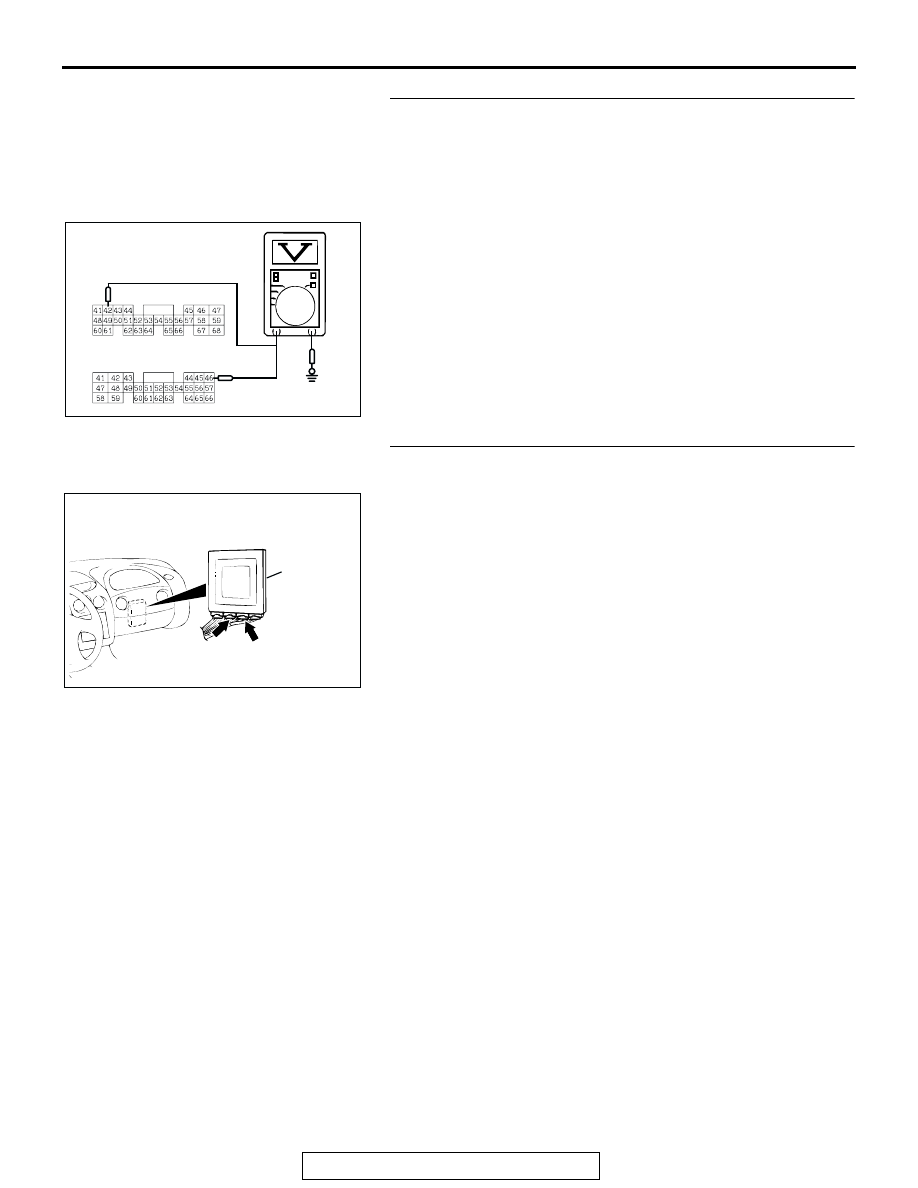

STEP 10. Check the harness wire between ECM connector
C-58 terminal 42 <M/T> or PCM connector C-55 terminal 46
<A/T> and intermediate connector D-16 terminal No.8 for
damage.
Q: Is the harness wire in good condition?

YES : Go to Step 22.
NO :  Repair it. Then go to 22.

STEP 11. Check the circuit voltage at intermediate
connector D-16.
(1) Use special tools (MB991658 and MB991709) to connect

terminals 5 and 8 between connectors of the intermediate
connector D-16 respectively.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage at the male side connector between

terminal 6 and ground.

• The voltage should be 0.5 volt or less.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Remove the special tools and connect intermediate

connector D-16.

Q: Is the voltage normal?

YES : Go to Step 12.
NO :  Go to Step 15.

AC001689

CONNECTOR: C-58 <M/T>, C-55 <A/T>

ECM <M/T>
OR
PCM <A/T>

C-58
<M/T>

C-55
<A/T>

AO

AC001787AD

CONNECTOR: D-16

AC106525

AB

MB991709

MB991658

INTERMEDIATE
CONNECTOR D-16

INTERMEDIATE
CONNECTOR D-16

AC106528

1

2 3 4 5 6

7

8

9

10

AB

INTERMEDIATE
CONNECTOR D-16
MALE SIDE
CONNECTOR
