MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-699

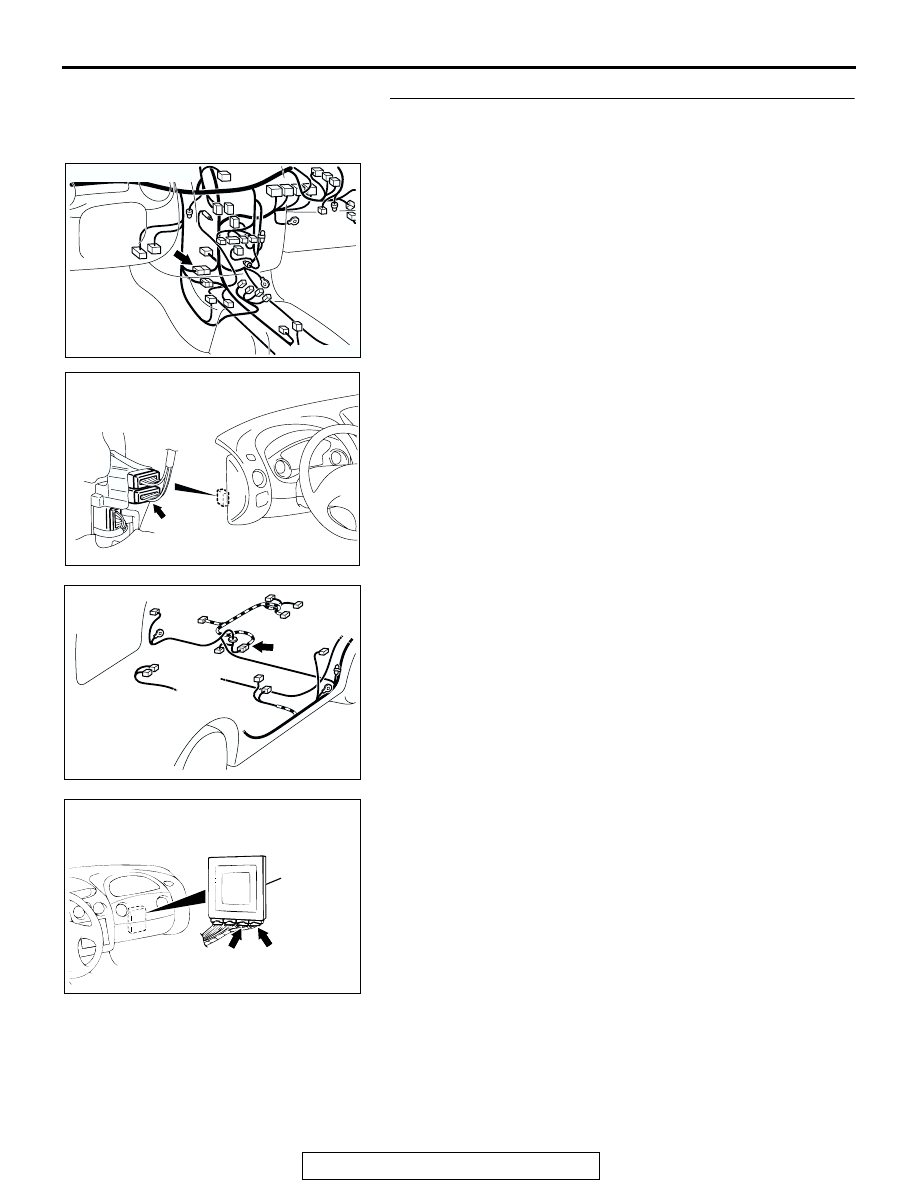

STEP 4. Check connectors C-28, C-90, D-16 at intermediate
connector and C-62 at ECM <M/T> or C-59 at PCM <A/T>
for damage.
Q: Are the connectors in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AC001741 AJ

CONNECTOR: C-28

AC001991

CONNECTOR: C-90

CONNECTOR
BLOCK (LH)

AI

AC001787AD

CONNECTOR: D-16

AC001689

CONNECTOR: C-62<M/T>, C-59 <A/T>

ECM <M/T>
OR
PCM <A/T>

C-62
<M/T>

C-59
<A/T>

AP

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-700

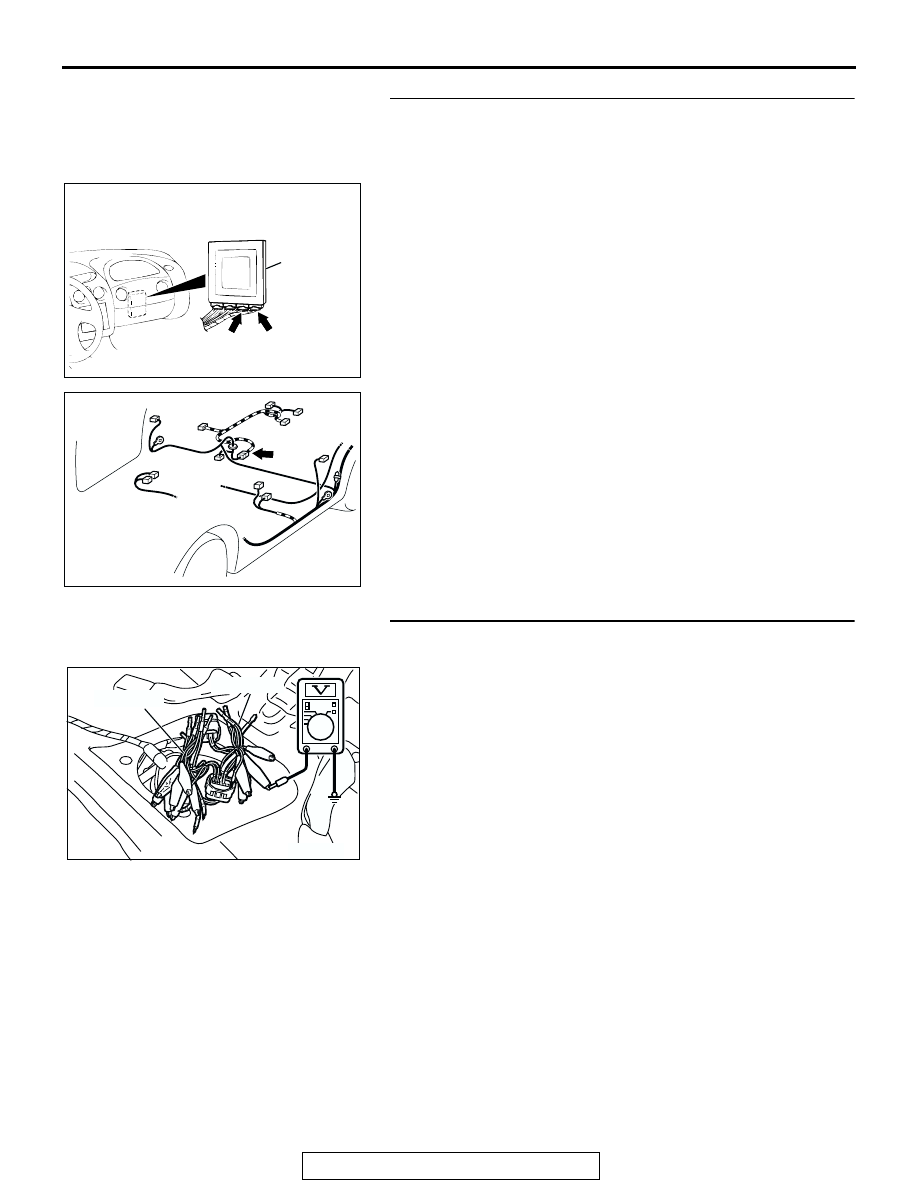

STEP 5. Check the harness wire between ECM connector
C-62 terminal 93 <M/T> or PCM connector C-59 terminal 92
<A/T> and intermediate connector D-16 terminal 5 for
damage.
Q: Is the harness wire in good condition?

YES : Go to Step 22.
NO :  Repair it. Then go to 22.

STEP 6. Check the 5-volt supply circuit voltage at
intermediate connector D-16.
(1) Use special tools (MB991658 and MB991709) to connect

terminals 5, 6 and 8 between connectors of the
intermediate connector D-16 respectively.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 8 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 11.
NO :  Remove the special tools and connect intermediate

connector D-16. Then go to Step 7.

AC001689

CONNECTOR: C-62<M/T>, C-59 <A/T>

ECM <M/T>
OR
PCM <A/T>

C-62
<M/T>

C-59
<A/T>

AP

AC001787AD

CONNECTOR: D-16

AC002080

MB991709

MB991658

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-701

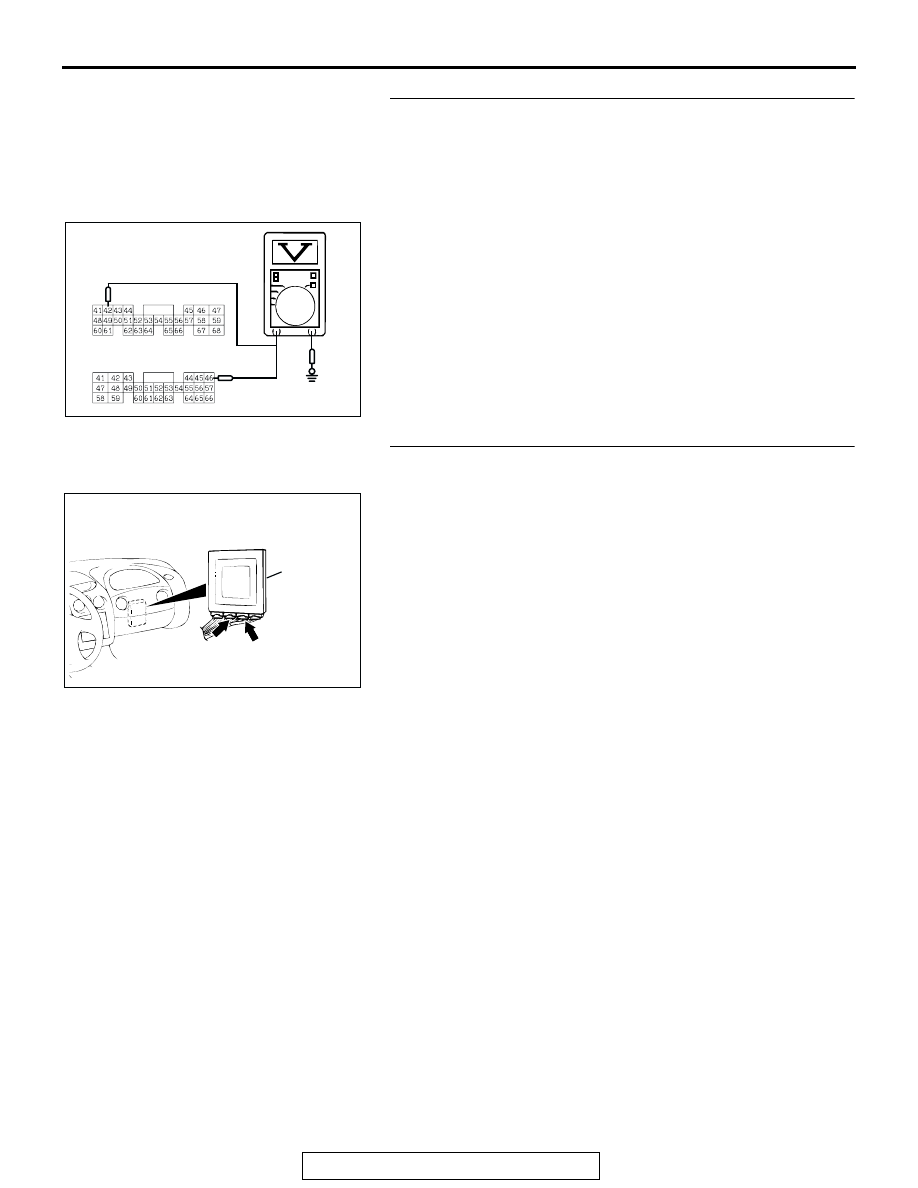

STEP 7. Check the 5-volt supply circuit voltage at ECM
connector C-58 <M/T> or PCM connector C-55 <A/T> by
backprobing.
(1) Do not disconnect ECM connector C-58 <M/T> or PCM

connector C-55 <A/T>.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 42 <M/T> or terminal

46 <A/T> and ground by backprobing.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 9.
NO :  Go to Step 8.

STEP 8. Check connector C-58 at ECM <M/T> or C-55 at
PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 21.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AC002083AC

HARNESS SIDE
CONNECTOR

<M/T> C-58

<A/T> C-55

AC001689

CONNECTOR: C-58 <M/T>, C-55 <A/T>

ECM <M/T>
OR
PCM <A/T>

C-58
<M/T>

C-55
<A/T>

AO

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-702

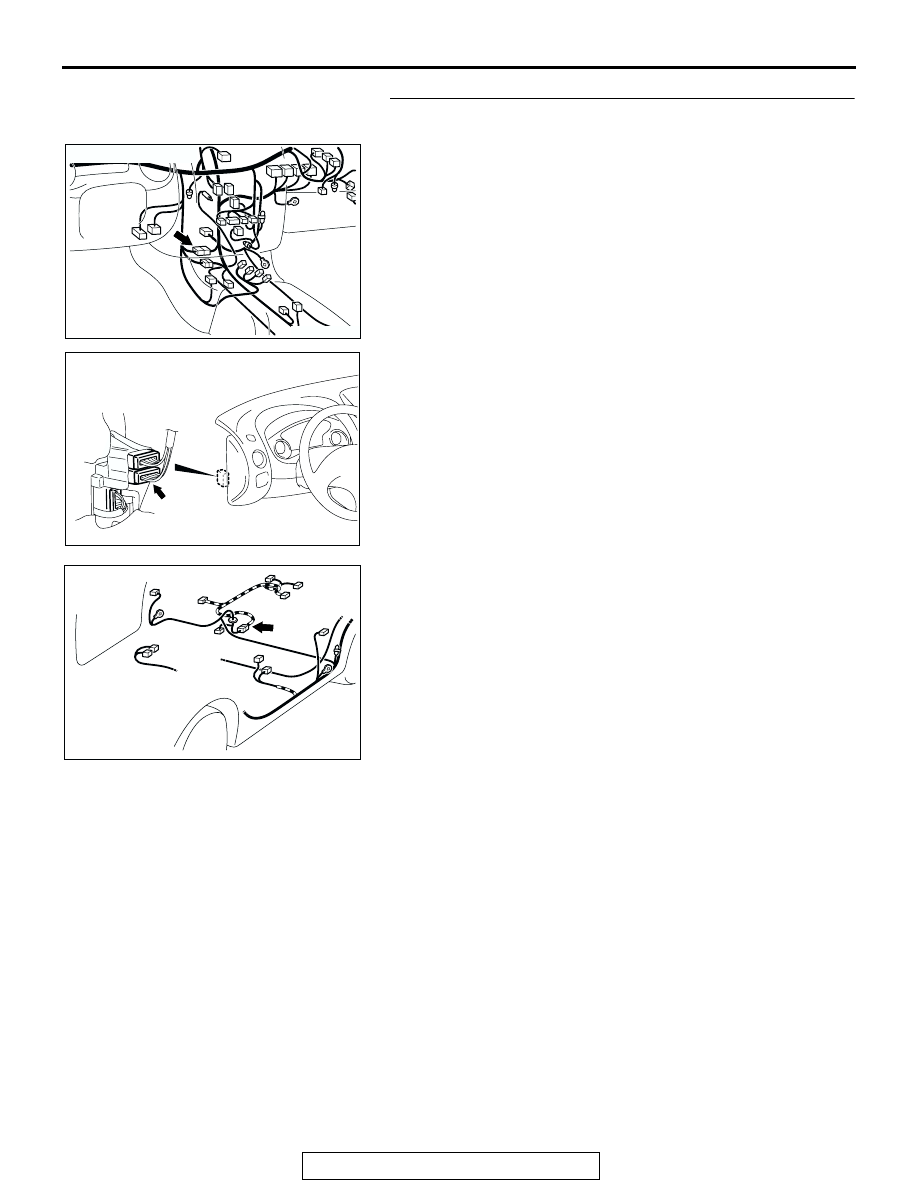

STEP 9. Check connectors C-28, C-90, D-16 at intermediate
connector for damage.
Q: Are the connectors in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AC001741 AJ

CONNECTOR: C-28

AC001991

CONNECTOR: C-90

CONNECTOR
BLOCK (LH)

AI

AC001787AD

CONNECTOR: D-16
