MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-671

STEP 11. Check for harness damage between evaporative
emission ventilation solenoid connector D-10 (terminal No.
1) and ECM connector C-51 (terminal No. 35) <M/T> or PCM
connector C-52 (terminal No. 35) <A/T>.

AK300452

1

2

CONNECTOR: D-10

AB

D-10 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300443

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

CONNECTOR: C-51 <M/T>

C-51 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300458

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

CONNECTOR: C-52 <A/T>

C-52 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-672

NOTE: Check harness after checking intermediate connectors
C-28, C-90 and D-16. If intermediate connectors are damaged,
repair or replace them. Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

. Then go to Step 12.

Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-7

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0446 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-673

DTC P0451: Evaporative Emission Control System Pressure Sensor Range/Performance

AC001944

CHECK VALVE A

CHECK
VALVE B

EVAPORATIVE
EMISSION CANISTER

FUEL TANK

EVAPORATIVE
EMISSION
VENTILATION
SOLENOID

EVAPORATIVE EMISSION
PURGE SOLENOID

INTAKE MANIFOLD

SYSTEM DIAGRAM <VEHICLES WITHOUT INTAKE MANIFOLD TUNING SYSTEM>

A

B

C

D

E

F

G

Q

R

I

H

K

J

L

N

O

M

P

AG

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

AC106496

CHECK VALVE A

CHECK
VALVE B

EVAPORATIVE
EMISSION CANISTER

FUEL TANK

EVAPORATIVE
EMISSION
VENTILATION
SOLENOID

EVAPORATIVE EMISSION
PURGE SOLENOID

INTAKE MANIFOLD

SYSTEM DIAGRAM <VEHICLES WITH INTAKE MANIFOLD TUNING SYSTEM>

B

C

E

F

G

Q

R

I

H

K

J

L

N

O

M

P

AE

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-674

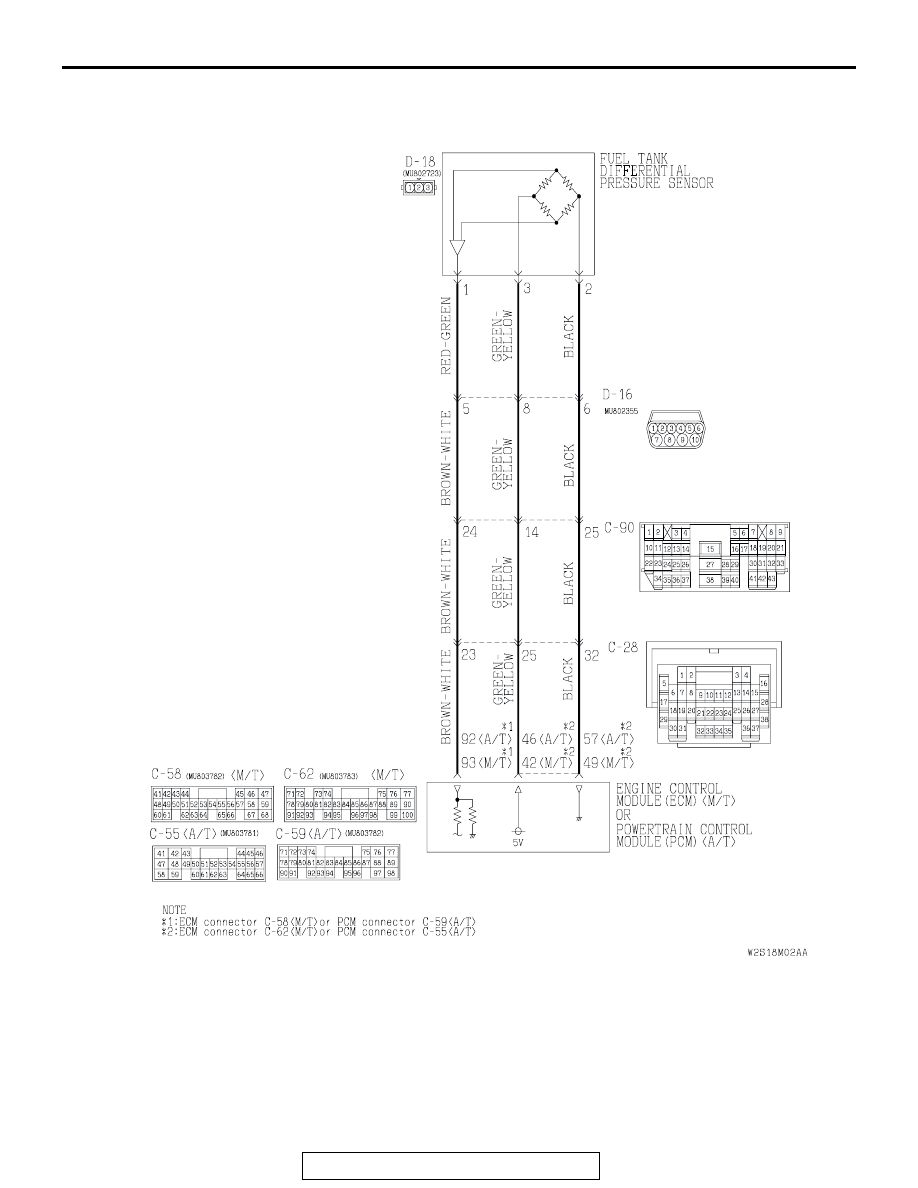

Fuel Tank Differential Pressure Sensor Circuit
