MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-535

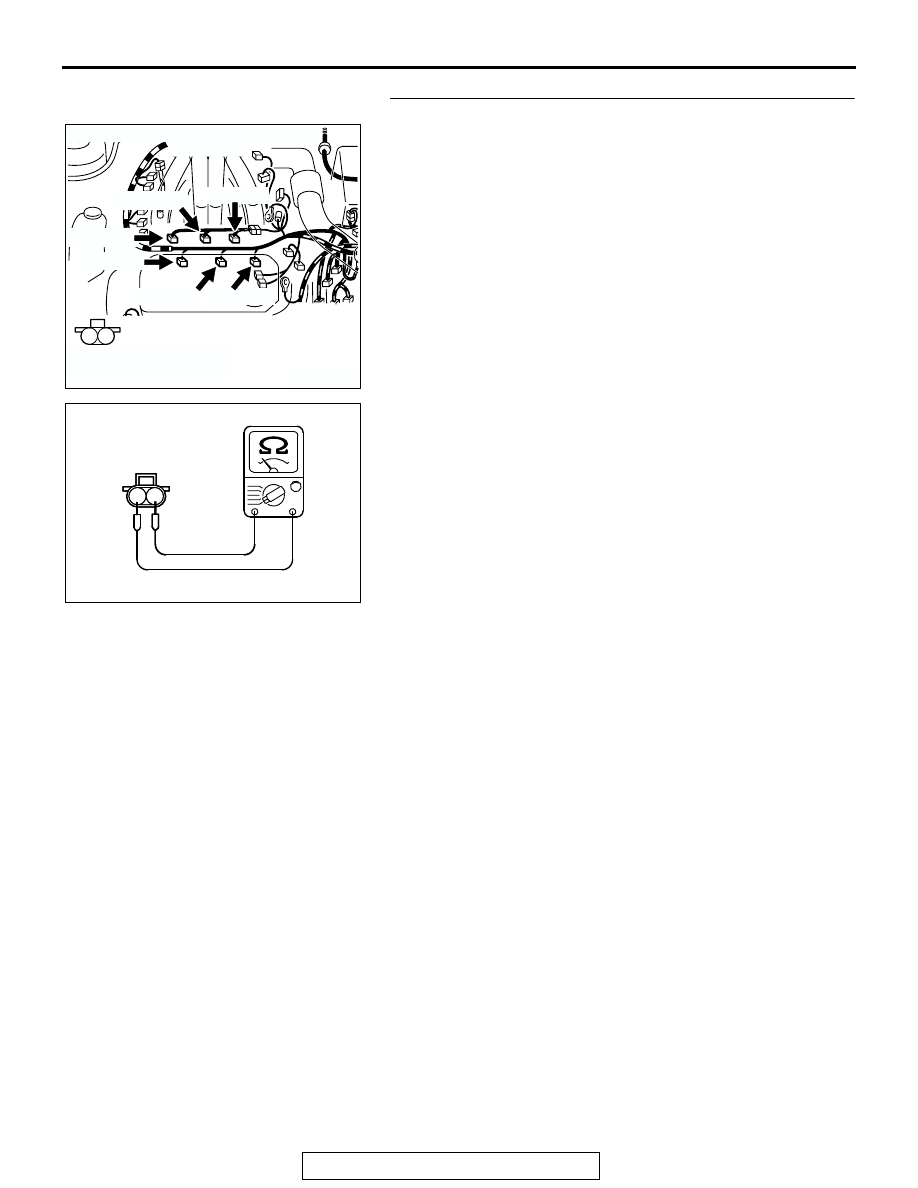

STEP 7. Check the injector.
(1) Disconnect the injector connector.

(2) Measure the resistance between each injector side

connector terminal No. 1 and No. 2.

Standard value: 13

− 16 ohms [at 20°C (68°F)]

Q: Is the resistance between 13 and 16 ohms?

YES : Go to Step 8.
NO :  Replace the faulty injector. Then go to Step 13.

AK300754

1

2

CONNECTORS: B-01, B-02, B-05, B-06,
                            B-25, B-26

AB

B-01 (GR)

B-05 (GR)

B-26 (GR)

B-02 (GR)

B-06 (GR)

B-25 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000241

INJECTOR SIDE
CONNECTOR

1 2

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-536

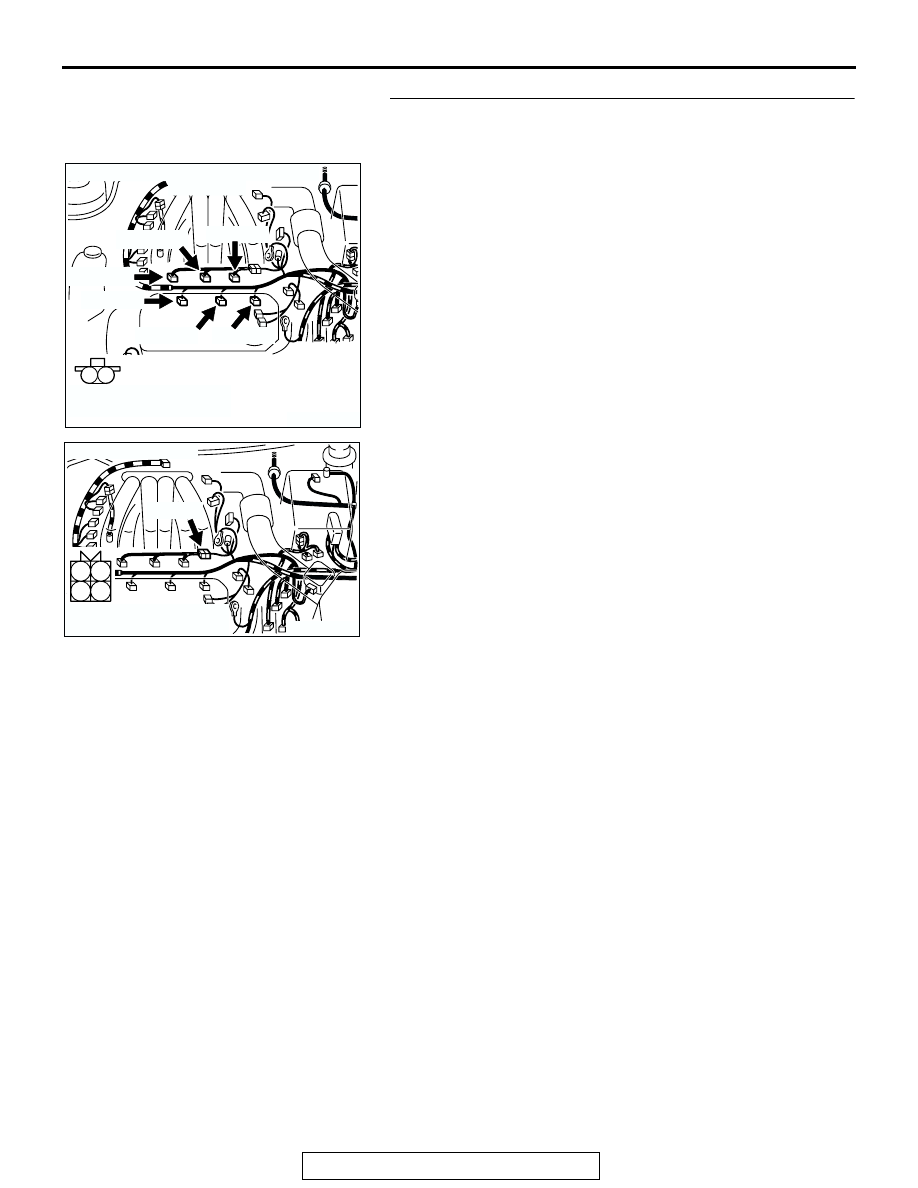

STEP 8. Check connector B-01, B-02, B-05, B-06, B-25,
B-26 at injector and connector B-48 at injector
intermediate connector for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace the faulty injector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Then go

to Step 13.

AK300754

1

2

CONNECTORS: B-01, B-02, B-05, B-06,
                            B-25, B-26

AB

B-01 (GR)

B-05 (GR)

B-26 (GR)

B-02 (GR)

B-06 (GR)

B-25 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300751

1

2

3

4

CONNECTOR: B-48

AB

B-48 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-537

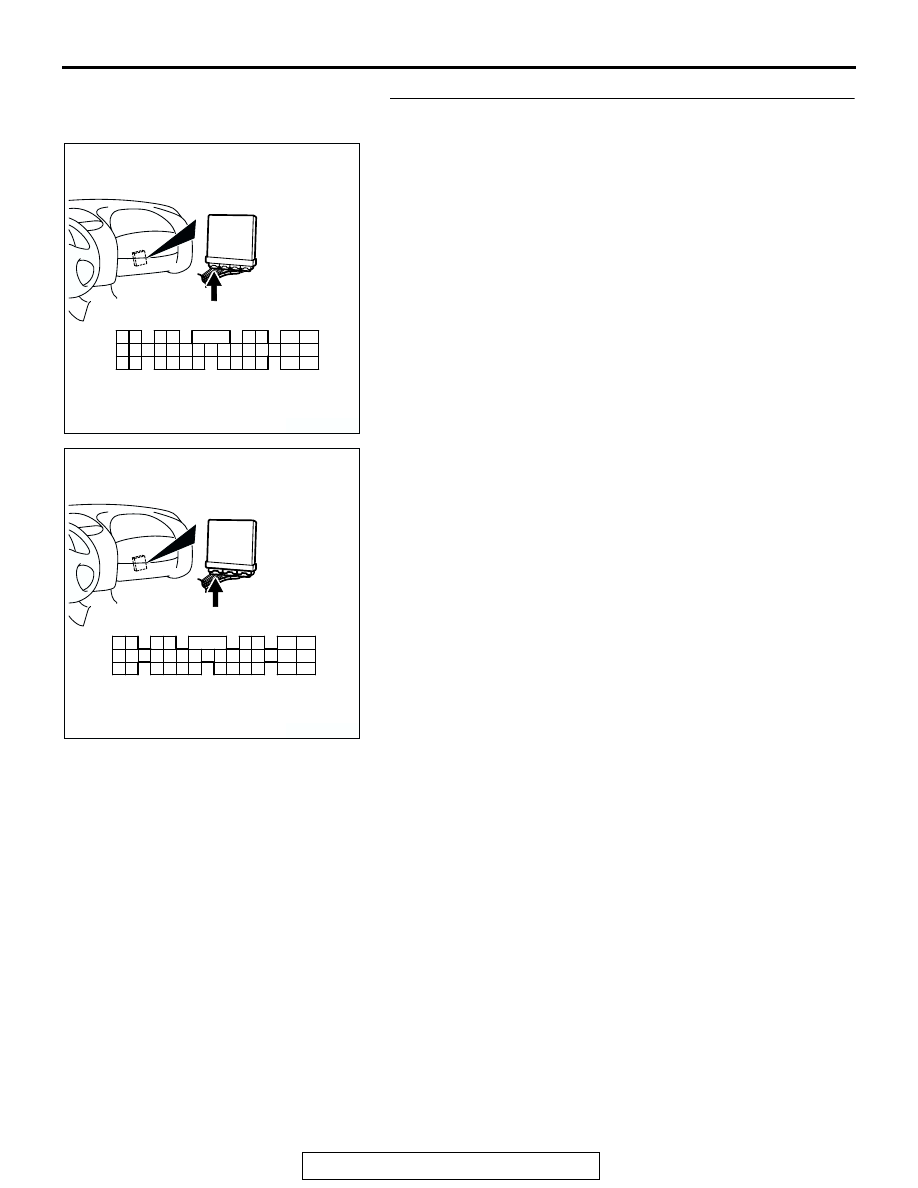

STEP 9. Check connector C-51 at ECM <M/T> or connector
C-52 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 13.

AK300458

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

CONNECTOR: C-52 <A/T>

C-52 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300443

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

CONNECTOR: C-51 <M/T>

C-51 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-538

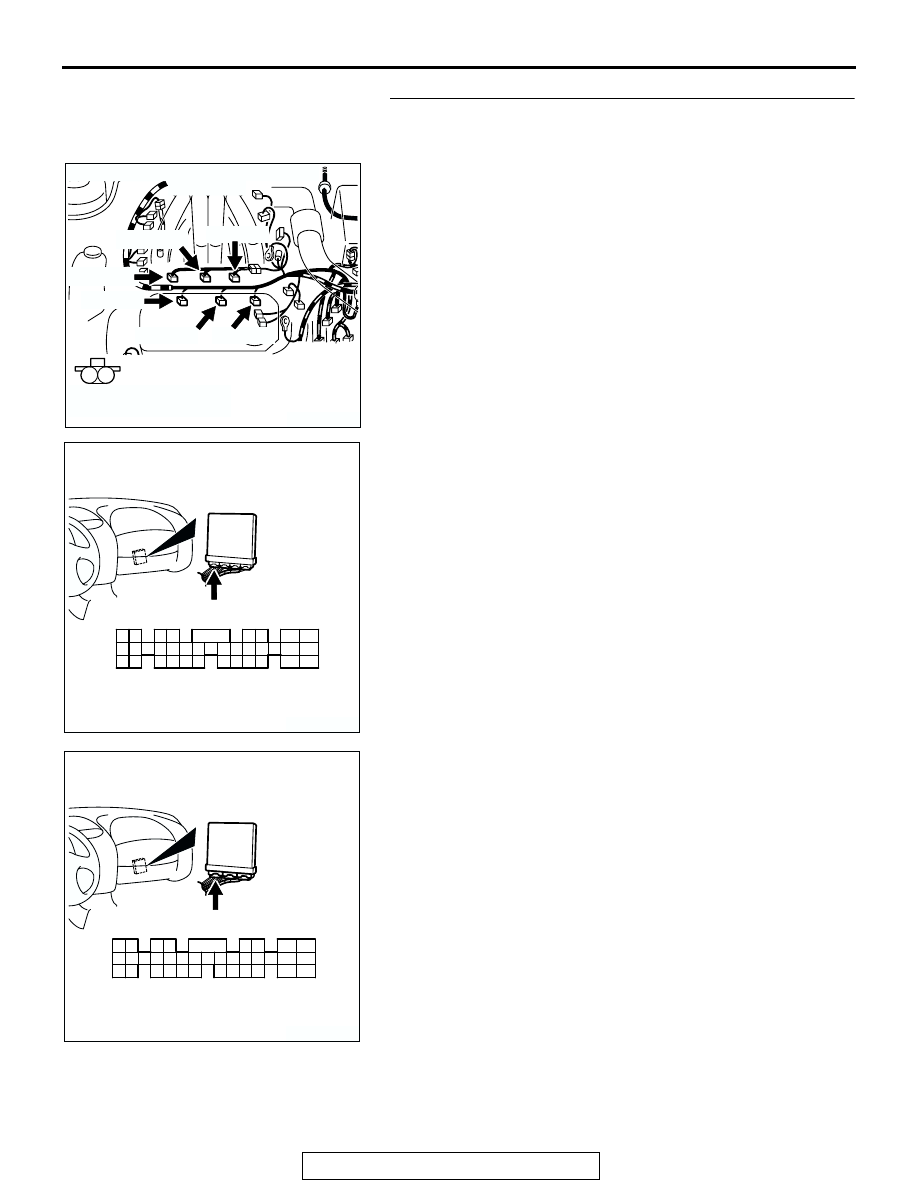

STEP 10. Check for harness damage between injector
connector and ECM connector <M/T> or PCM connector
<A/T>.

a. Check the harness wire between injector connector B-01

(terminal No. 2) and ECM connector C-51 (terminal No. 1)
<M/T> or PCM connector C-52 (terminal No. 1) <A/T> when
checking No. 1 cylinder.

b. Check the harness wire between injector connector B-02

(terminal No. 2) and ECM connector C-51 (terminal No. 9)
<M/T> or PCM connector C-52 (terminal No. 9) <A/T> when
checking No. 2 cylinder.

c. Check the harness wire between injector connector B-05

(terminal No. 2) and ECM connector C-51 (terminal No. 24)
<M/T> or PCM connector C-52 (terminal No. 24) <A/T>
when checking No. 3 cylinder.

d. Check the harness wire between injector connector B-06

(terminal No. 2) and ECM connector C-51 (terminal No. 2)
<M/T> or PCM connector C-52 (terminal No. 2) <A/T> when
checking No. 4 cylinder.

e. Check the harness wire between injector connector B-26

(terminal No. 2) and ECM connector C-51 (terminal No. 10)
<M/T> or PCM connector C-52 (terminal No. 10) <A/T>
when checking No. 5 cylinder.

f. Check the harness wire between injector connector B-25

(terminal No. 2) and ECM connector C-51 (terminal No. 25)
<M/T> or PCM connector C-52 (terminal No. 25) <A/T>
when checking No. 6 cylinder.

Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 13.
