MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-403

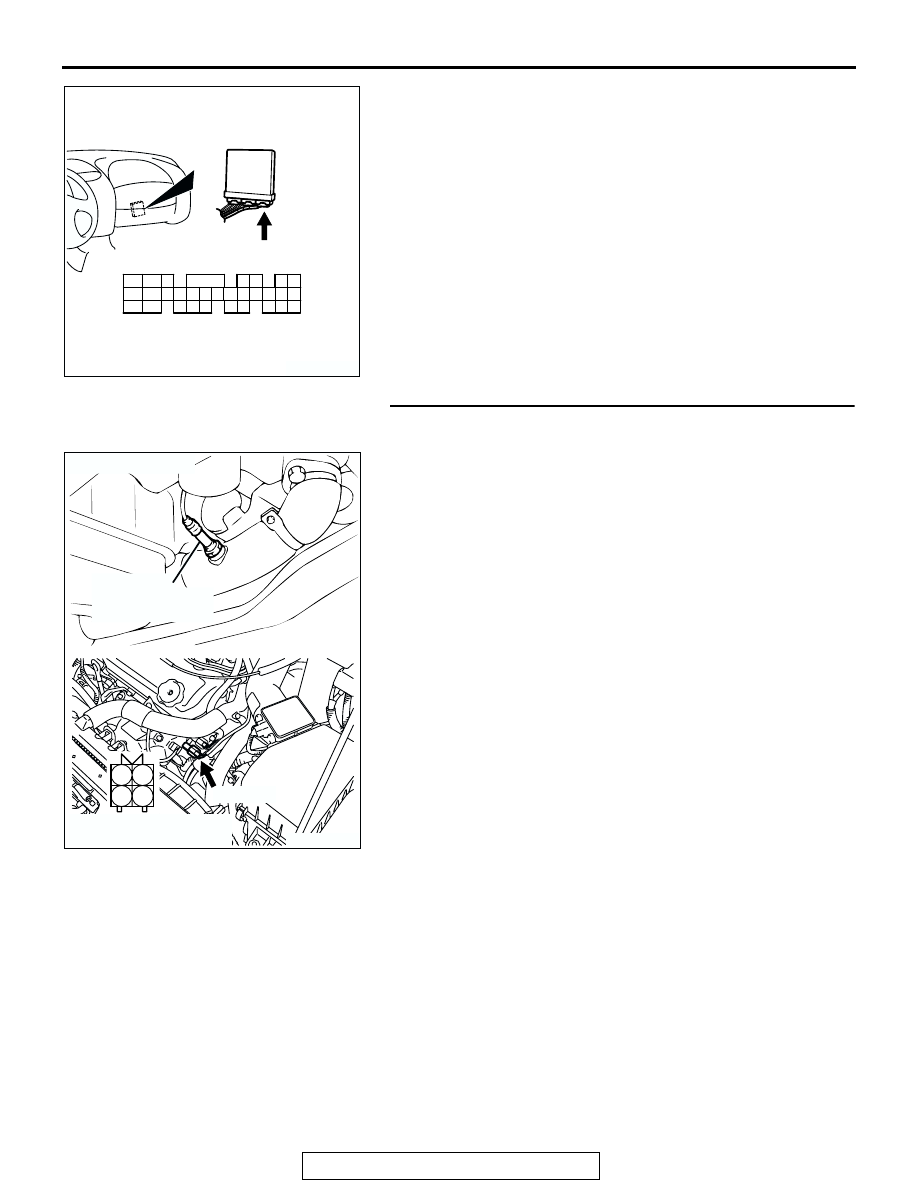

STEP 7. Check connector B-23 at left bank heated oxygen
sensor (rear) for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300410

1

2

3

4

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

CONNECTOR: B-23

AB

B-23 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-404

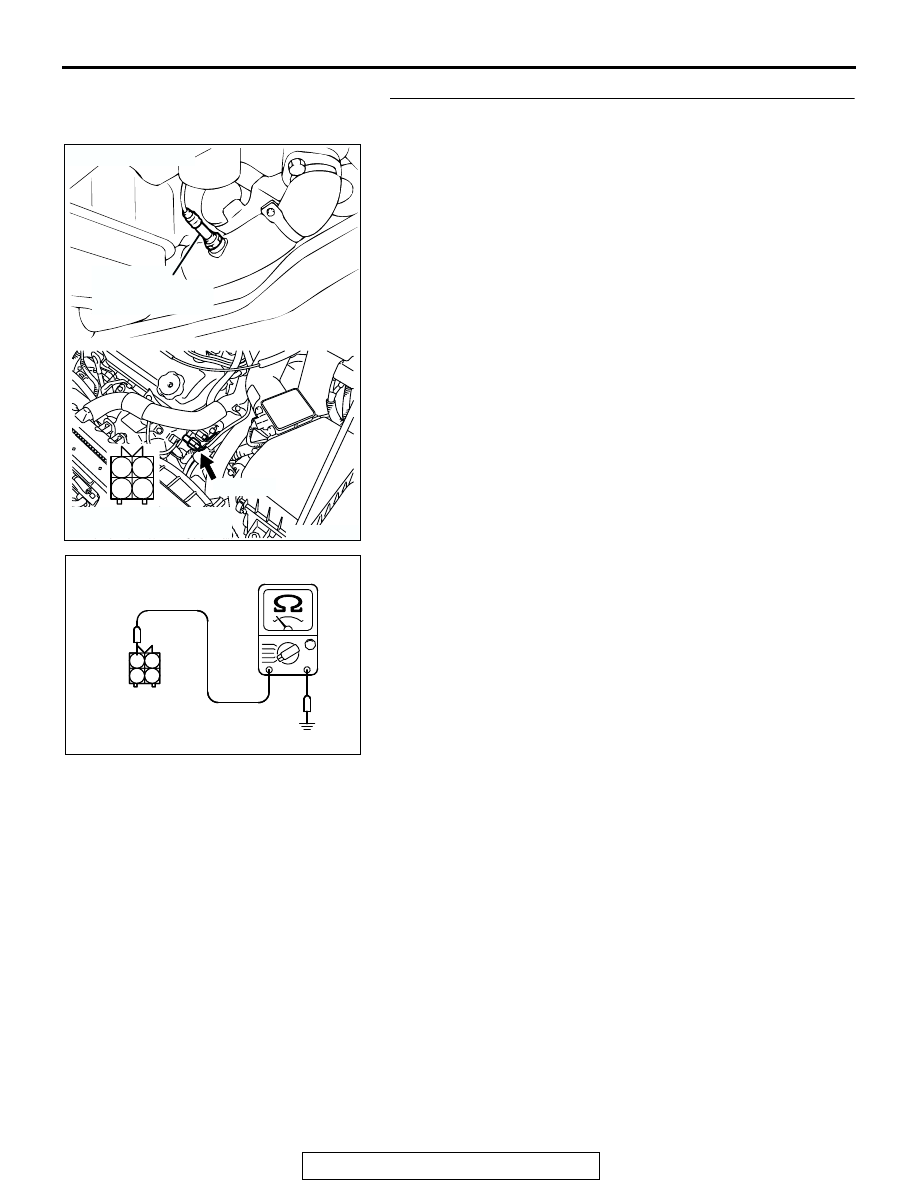

STEP 8. Check the continuity at left bank heated oxygen
sensor (rear) harness side connector B-23.
(1) Disconnect the connector B-23 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 11.
NO :  Go to Step 9.

AK300410

1

2

3

4

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

CONNECTOR: B-23

AB

B-23 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000243 AL

B-23 HERNESS
CONNECTOR:
COMPONENT SIDE

2 1

4 3

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-405

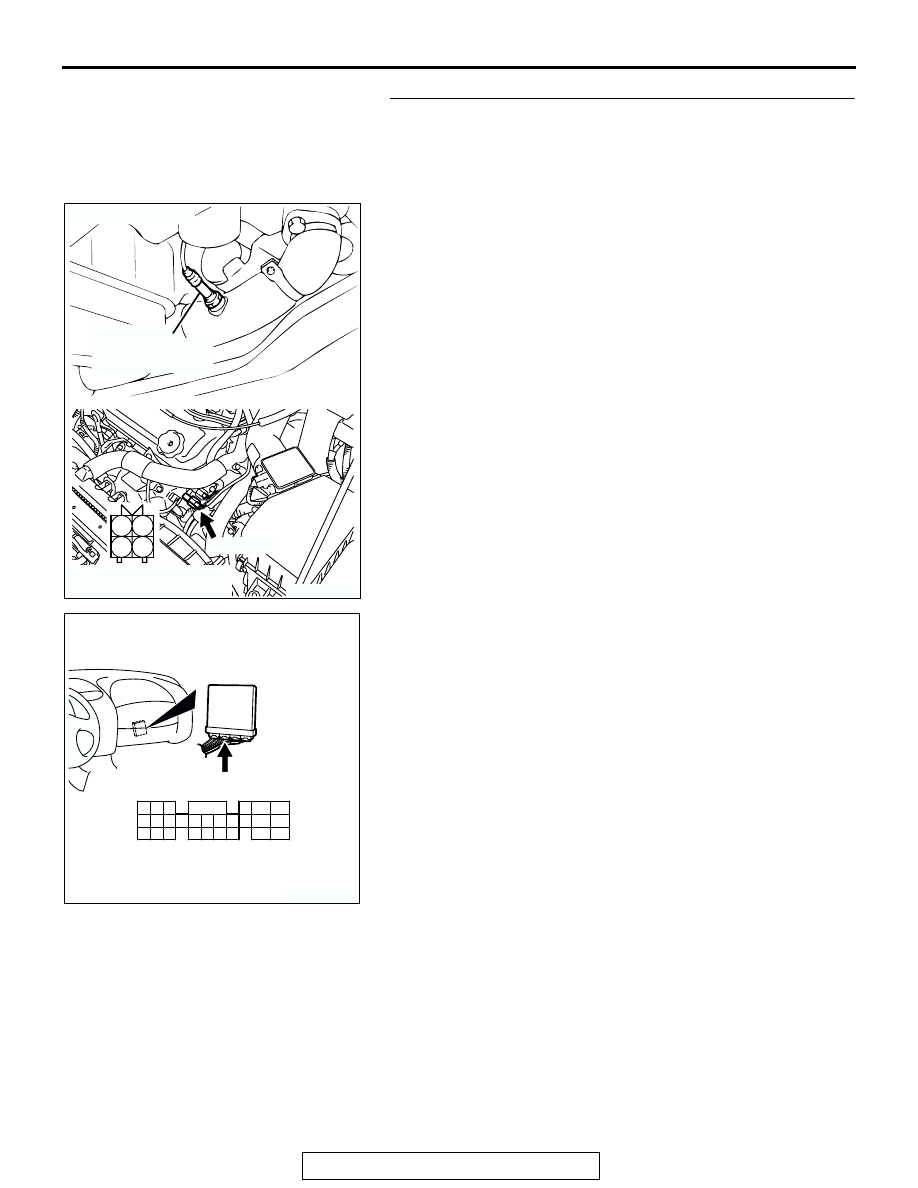

STEP 9. Check connector C-58 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-406

STEP 10. Check for open circuit and harness damage
between left bank heated oxygen sensor (rear) connector
B-23 (terminal No. 2) and ECM connector C-58 (terminal
No. 49) <M/T> or PCM connector C-55 (terminal No. 57)
<A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 15.
NO :  Repair it. Then go to Step 15.

AK300410

1

2

3

4

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

CONNECTOR: B-23

AB

B-23 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE
