MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-375

STEP 7. Check the left bank injector.

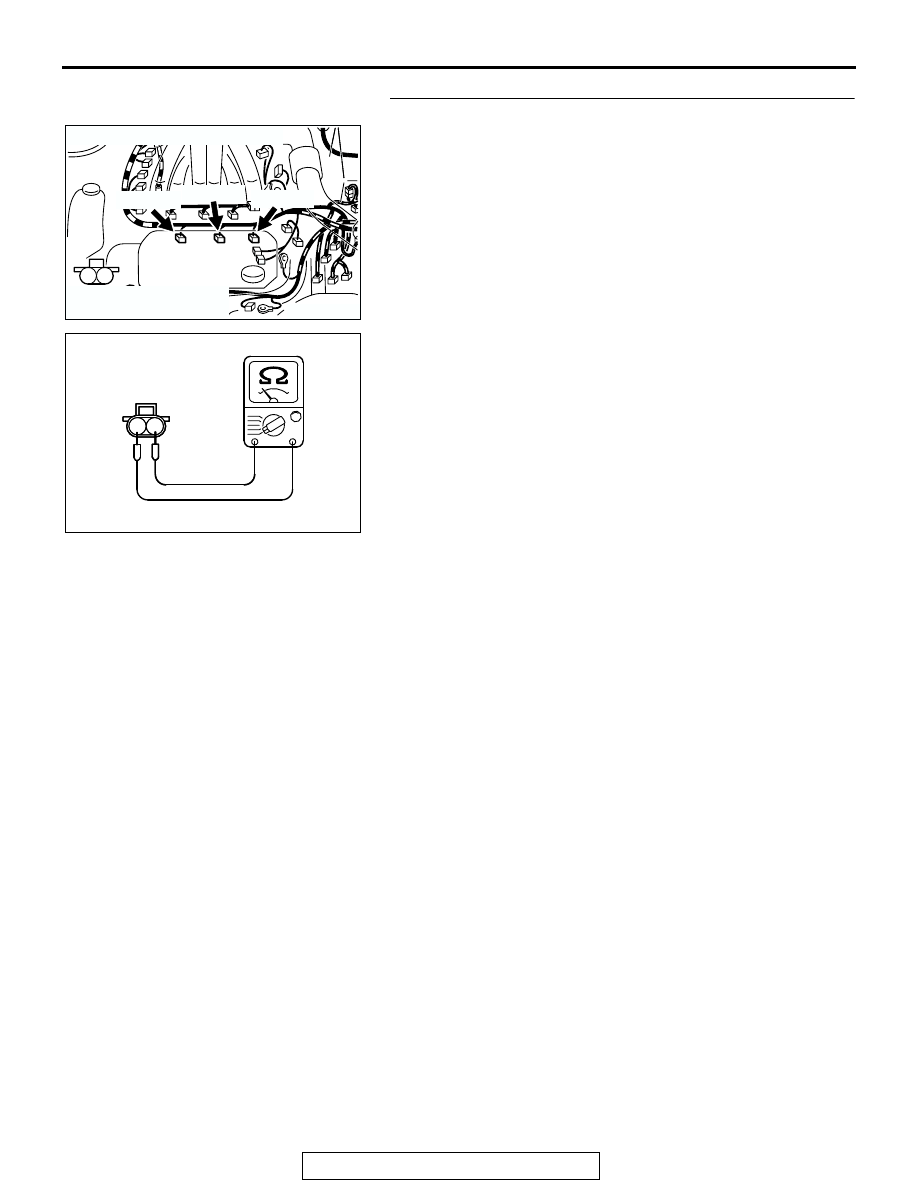

(1) Disconnect the left bank injector connector B-02, B-06,

B-25.

(2) Measure the resistance between each injector side

connector terminal No. 1 and No. 2.

Standard value: 13

− 16 ohms [at 20°C (68°F)]

Q: Is the resistance between 13 and 16 ohms?

YES : Go to Step 8.
NO :  Replace the faulty injector. Then go to Step 12.

AK300753

1

2

CONNECTORS: B-02, B-06, B-25

AB

B-02 (GR)

B-06 (GR) B-25 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000241

INJECTOR SIDE
CONNECTOR

1 2

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-376

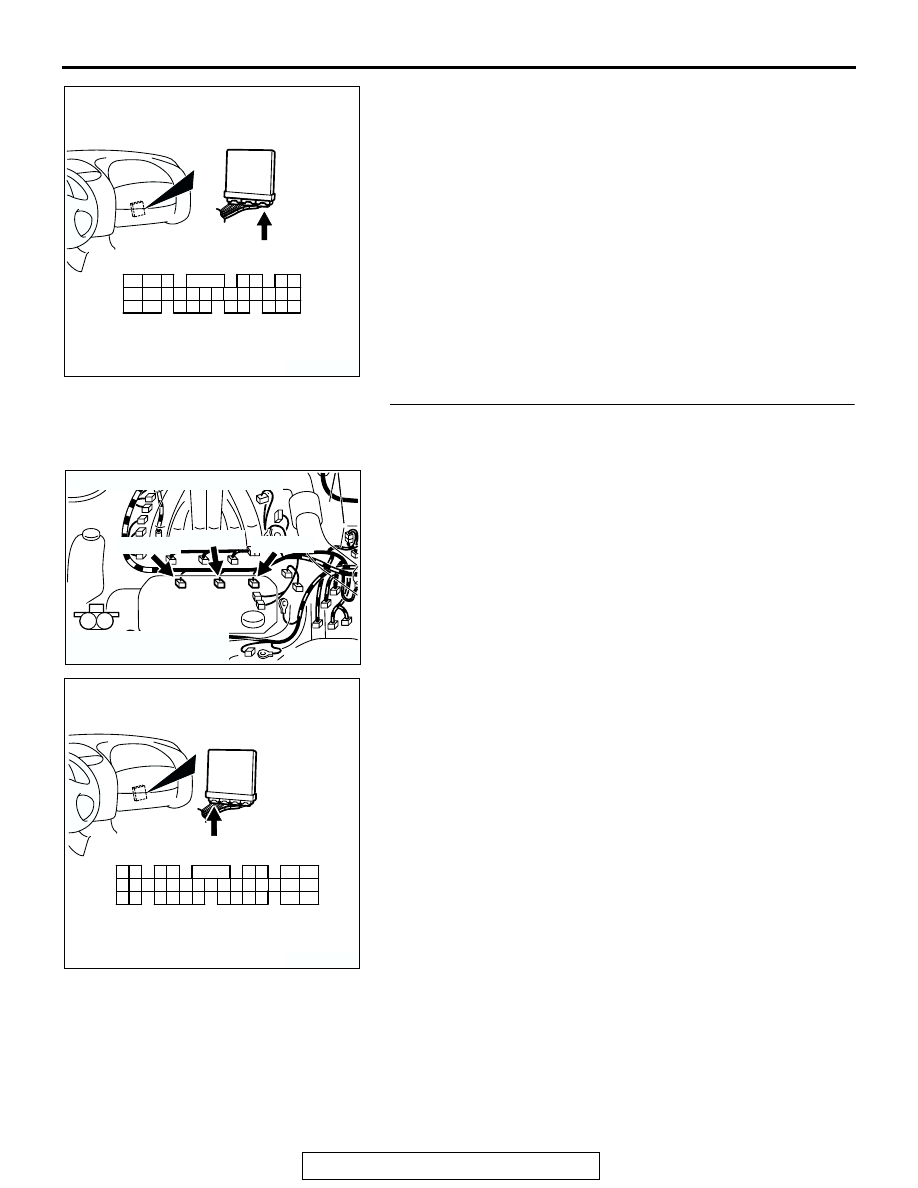

STEP 8. Check connector C-51, C-62 at ECM <M/T> or
connector C-59, C-52 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK300461

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTORS: C-52, C-59 <A/T>

C-52 (GR)

C-59 (GR)

AB

C-59 HARNESS CONNECTOR:
COMPONENT SIDE

C-52 HARNESS CONNECTOR:
COMPONENT SIDE

AK300441

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTORS: C-58, C-62 <M/T>

C-58 (GR)

C-62 (GR)

AB

C-62 HARNESS CONNECTOR:
COMPONENT SIDE

C-58 HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-377

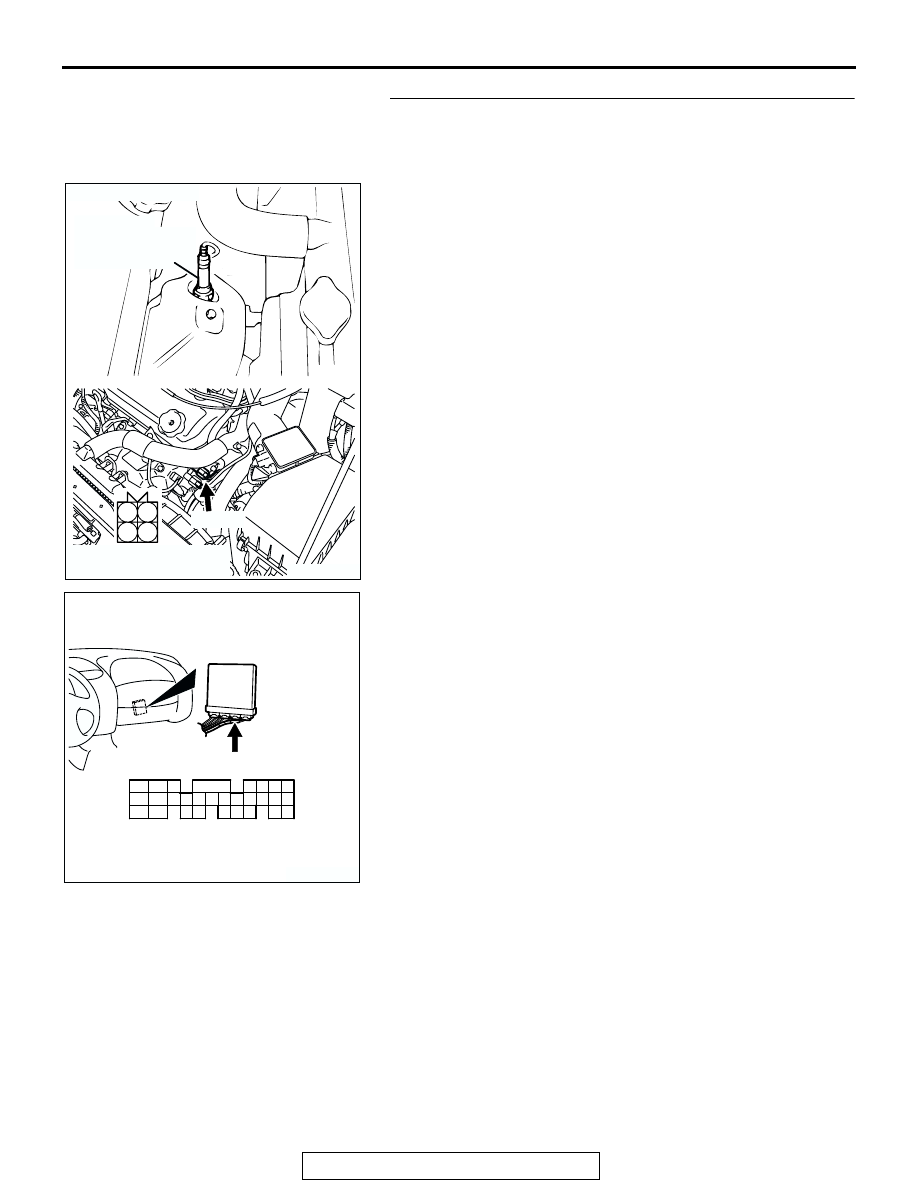

STEP 9. Check for harness damage between left bank
heated oxygen sensor (front) connector B-24 (terminal No.
4) and ECM connector C-62 (terminal No. 71) <M/T> or PCM
connector C-59 (terminal No. 71) <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair it. Then go to Step 12.

AK300424

1

2

3

4

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

CONNECTOR: B-24

AB

B-24 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300460

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTOR: C-59 <A/T>

C-59 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-378

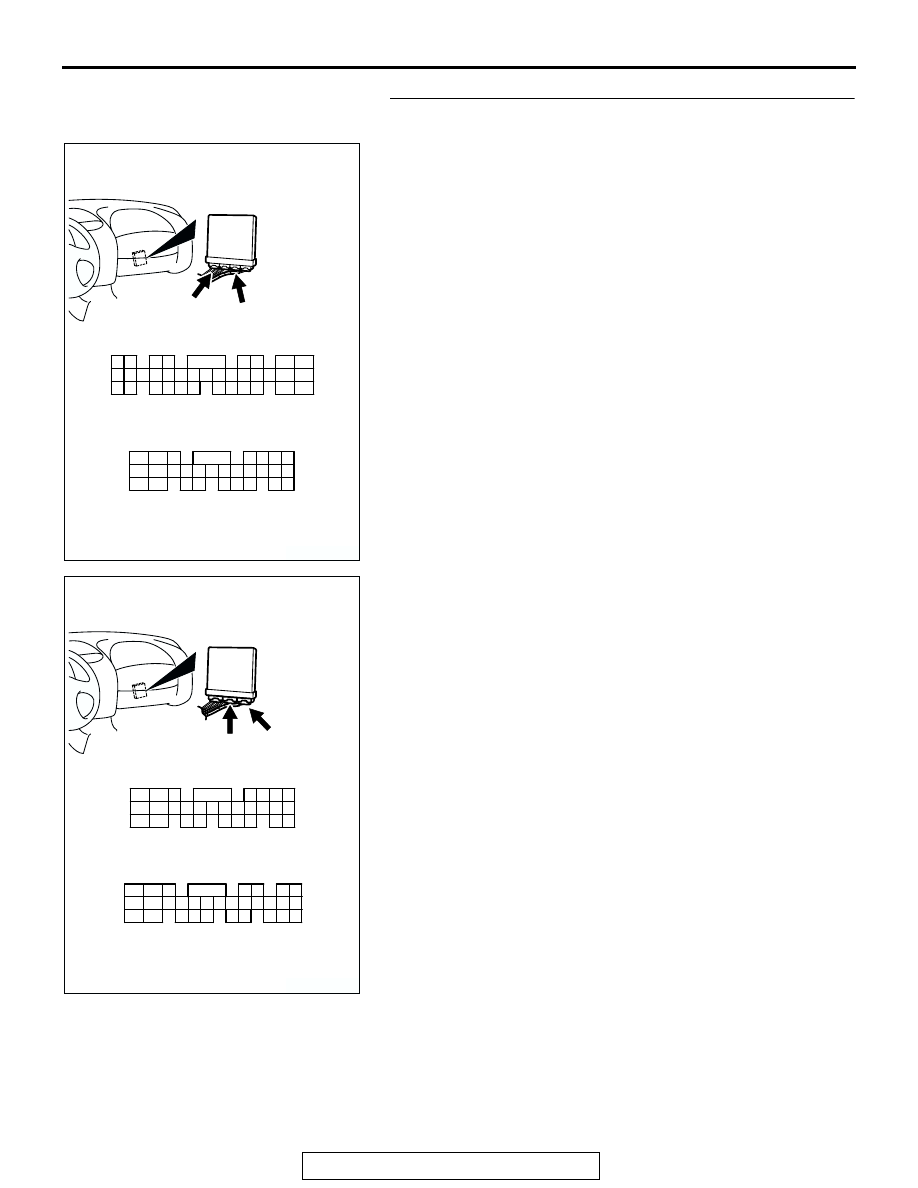

STEP 10. Check for harness damage between left bank
injector connector and ECM connector <M/T> or PCM
connector <A/T>.

a. Check the harness wire between injector connector B-02

(terminal No. 2) and ECM connector C-51 (terminal No. 9)
<M/T> or PCM connector C-52 (terminal No. 9) <A/T> when
checking No. 2 cylinder.

b. Check the harness wire between injector connector B-06

(terminal No. 2) and ECM connector C-51 (terminal No. 2)
<M/T> or PCM connector C-52 (terminal No. 2) <A/T> when
checking No. 4 cylinder.

c. Check the harness wire between injector connector B-25

(terminal No. 2) and ECM connector C-51 (terminal No. 25)
<M/T> or PCM connector C-52 (terminal No. 25) <A/T>
when checking No. 6 cylinder.

Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 12.

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300753

1

2

CONNECTORS: B-02, B-06, B-25

AB

B-02 (GR)

B-06 (GR) B-25 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300458

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

CONNECTOR: C-52 <A/T>

C-52 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE
