Mitsubishi Eclipse. Manual - part 414





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-199

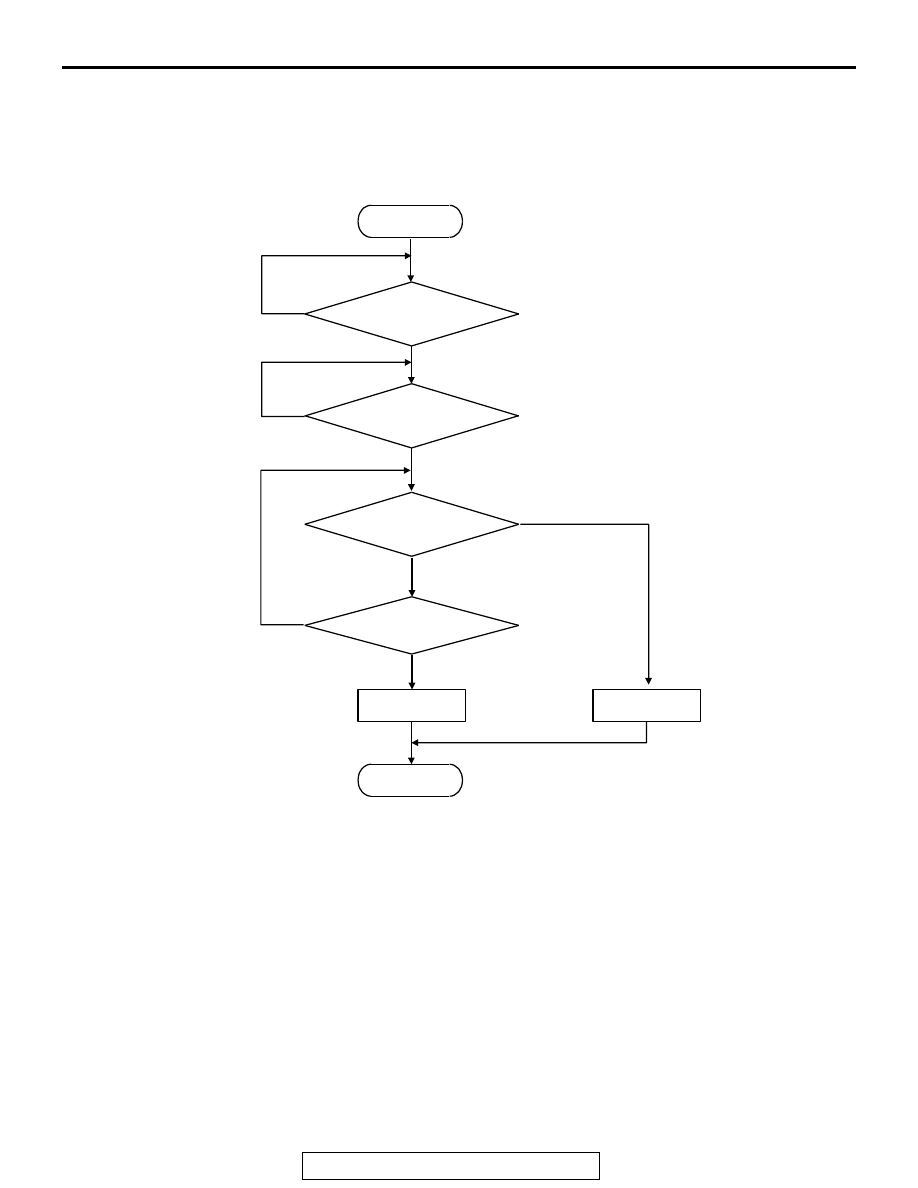

DTC SET CONDITIONS <Range/Performance problem-low (Time to reach closed loop temperature)>

Logic Flow Chart

.

Check Conditions, Judgement Criteria

• About 60 − 300 seconds have passed for the

engine coolant temperature to rise to about 7

°C

(45

°F) after starting sequence was completed.

• However, time is not counted when fuel is shut

off.

.

START

END

YES

NO

NO

YES

MALFUNCTION

GOOD

TIME HAVE PASSED

AFTER STARTING?*

ENGINE
COOLANT
TEMP.

TEMP. WHERE
CLOSED LOOP
STARTS

>

MONITORING

CONDITIONS?

NO

YES

*: SEE DTC SET CONDITIONS-SET CONDITIONS, JUDGMENT CRITERIA

AK301432

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-200

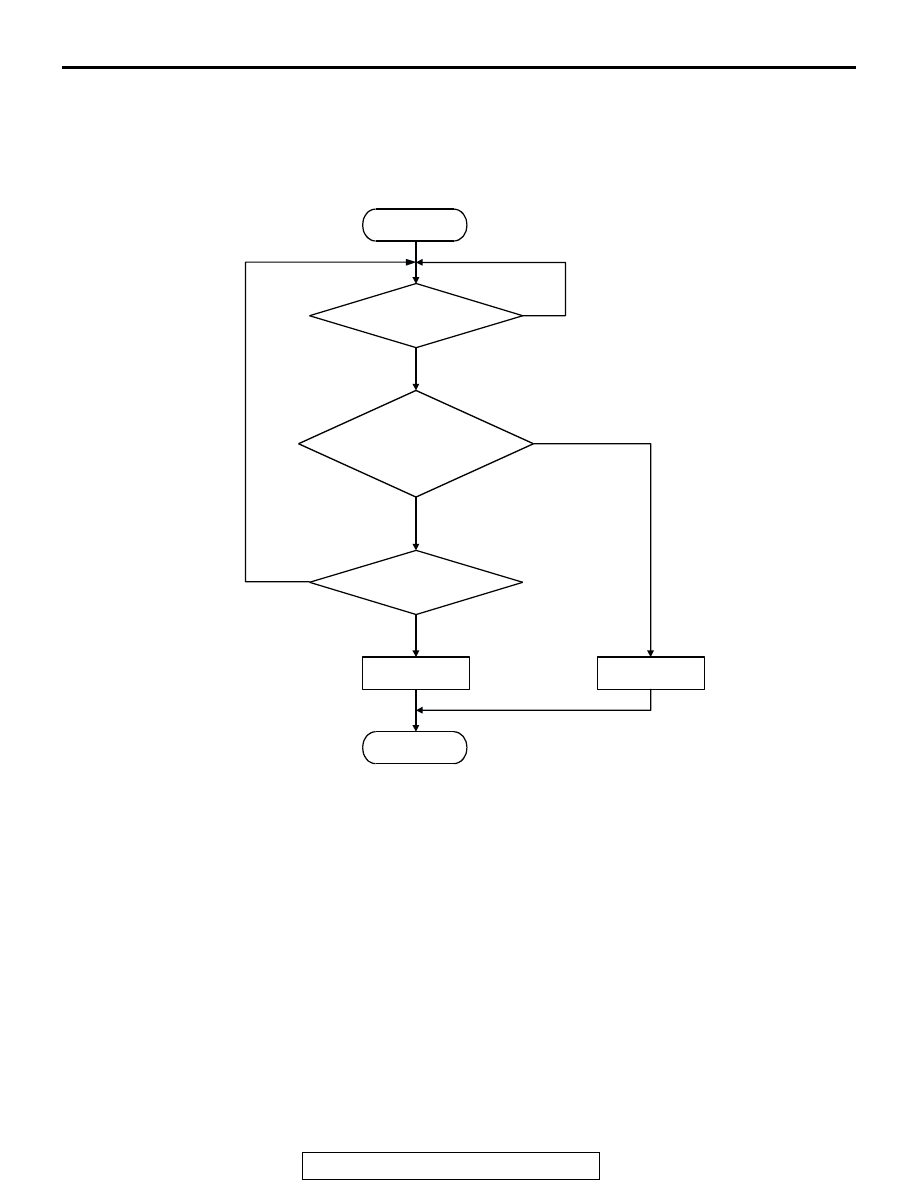

DTC SET CONDITIONS <Range/Performance problem-drift>

Logic Flow Chart

.

Check Conditions, Judgement Criteria

• Engine coolant temperature decreases from

higher than 40

°C (104°F) to lower than 40°C

(104

°F).

• Then the engine coolant temperature has contin-

ued to be 40

°C (104°F) or lower for 5 minutes.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to , Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13B-7

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Engine coolant temperature sensor failed.

• ECM failed. <M/T>

• PCM failed. <A/T>

• Harness damage in engine coolant temperature

sensor circuit.

• Connector damage.

START

END

NO

NO

YES

YES

MALFUNCTION

GOOD

UNDER 40˚C (107˚F)

300secs HAVE PASSED?

NO

YES

OVER 40˚C (107˚F)

YES

OVER 40˚C (107˚F)

NO

AK301435

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-201

DIAGNOSIS

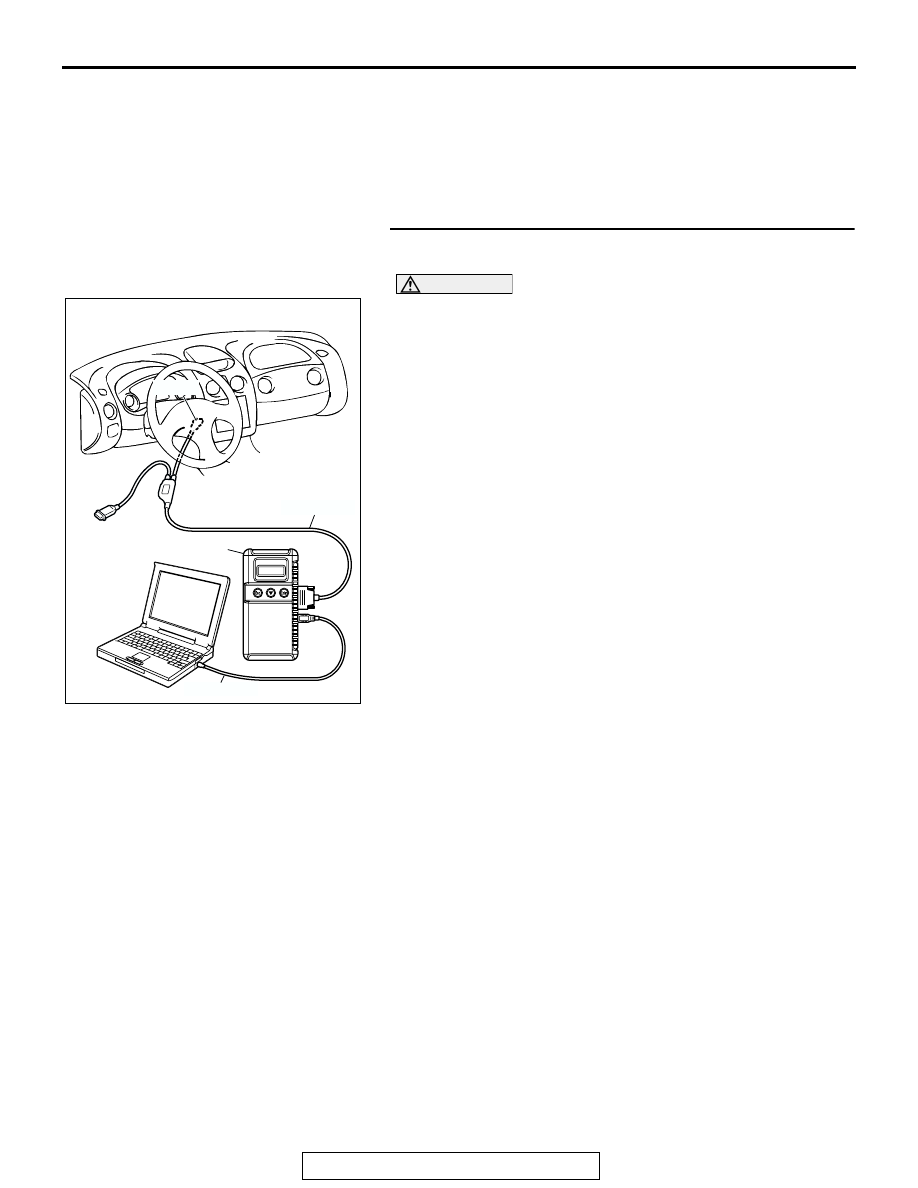

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

STEP 1. Using scan tool MB991958, check data list item 21:
Engine Coolant Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

21, Engine Coolant Temperature Sensor.

• The engine coolant temperature and temperature

shown with the scan tool should approximately match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-202

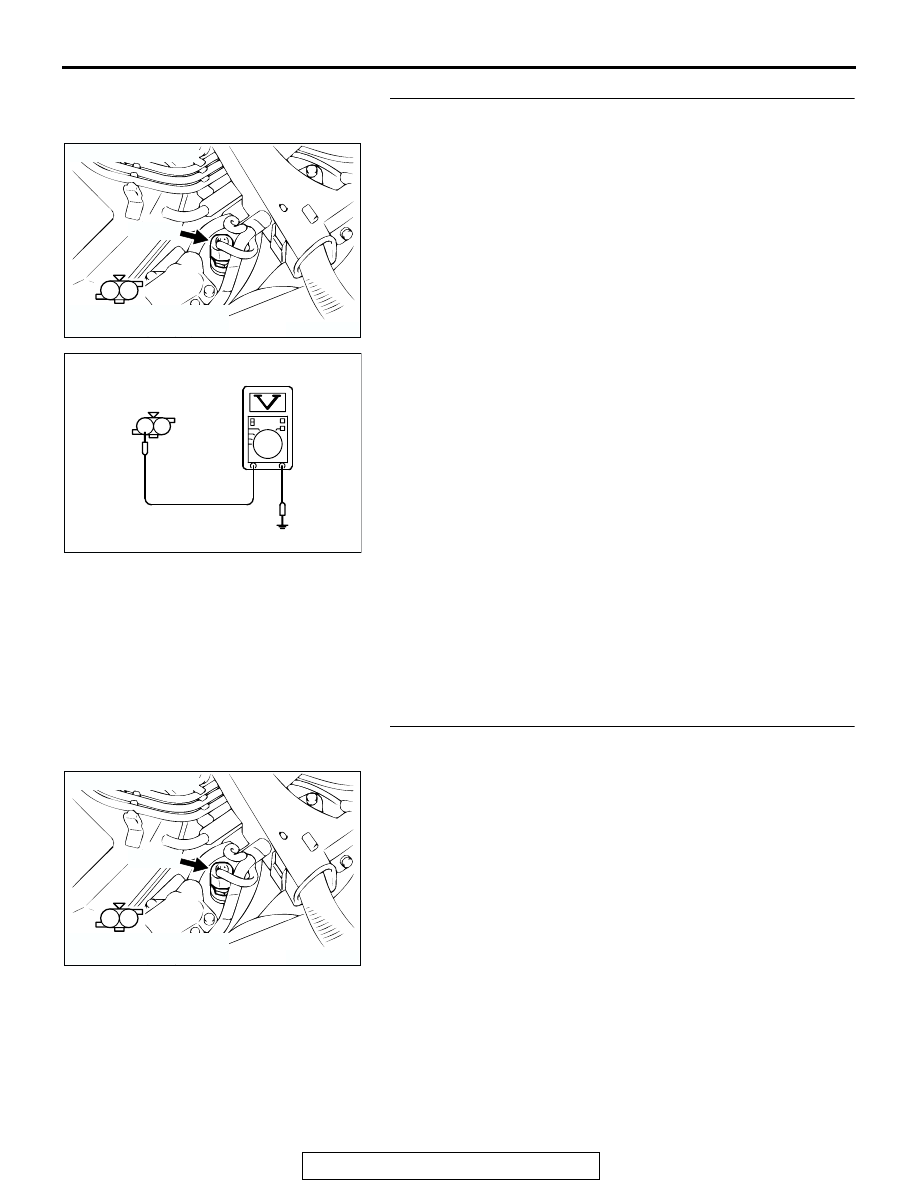

STEP 2. Check the sensor output voltage at engine coolant
temperature sensor connector B-11 by backprobing.
(1) Do not disconnect the connector B-11.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal and ground by

backprobing.

• When engine coolant temperature is −20°C (−4°F), volt-

age should be 3.9 and 4.5 volts.

• When engine coolant temperature is 0°C (32°F), voltage

should be 3.2 and 3.8 volts.

• When engine coolant temperature is 20°C (68°F), volt-

age should be 2.3 and 2.9 volts.

• When engine coolant temperature is 40°C (104°F), volt-

age should be 1.3 and 1.9 volts.

• When engine coolant temperature is 60°C (140°F), volt-

age should be 0.7 and 1.3 volts.

• When engine coolant temperature is 80°C (176°F), volt-

age should be 0.3 and 0.9 volt.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 3.
NO :  Go to Step 5.

STEP 3. Check connector B-11 at the engine coolant
temperature sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK300435

1

2

CONNECTOR: B-11

AB

B-11 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000233

B-11 HARNESS
CONNECTOR:
HARNESS SIDE

1 2

AI

AK300435

1

2

CONNECTOR: B-11

AB

B-11 (B)

HARNESS CONNECTOR:
COMPONENT SIDE
