MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-167

DTC SET CONDITIONS <Range/Performance problem-relation between main and sub>

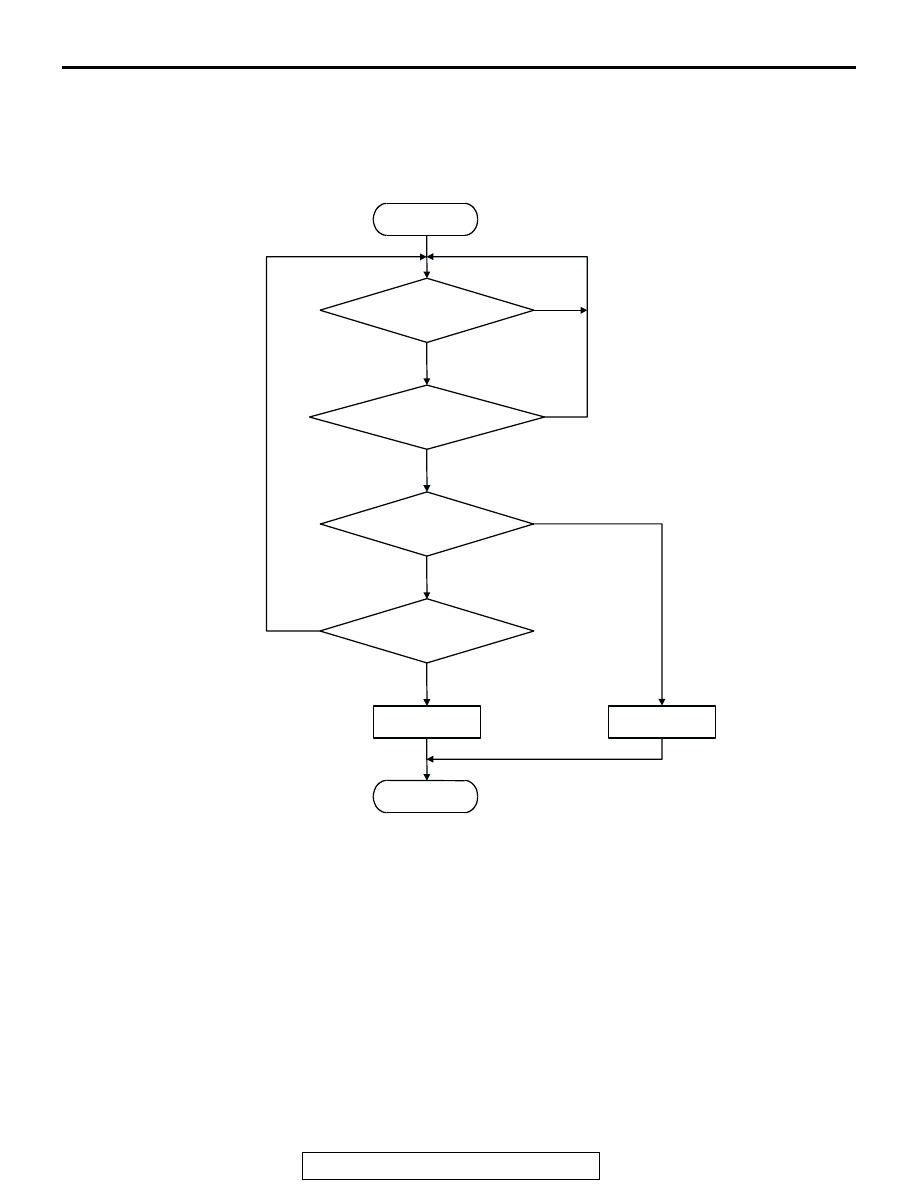

Logic Flow Chart

Check Conditions

• 2 seconds or more have passed since the staring

sequence was completed.

• Engine speed is lower than 3,000 r/min.

• Volumetric efficiency is lower than 30 percent.

Judgement Criteria

• TPS output voltage has continued to be 4.6 volts

or higher for 2 seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to , Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13B-7

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• TPS failed or maladjusted.

• Open TPS circuit harness damage, or connector

damage.

• ECM failed. <M/T>

• PCM failed. <A/T>

START

ENGINE SPEED < 3000rpm

LOAD VALUE < 30%

END

NO

NO

NO

NO

YES

YES

YES

YES

MALFUNCTION

GOOD

MONITORING
CONDITIONS

CONTINUOUS

FAILURE FOR 2 secs

OUTPUT VOLTAGE

> 4.6V

AK301428

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-168

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

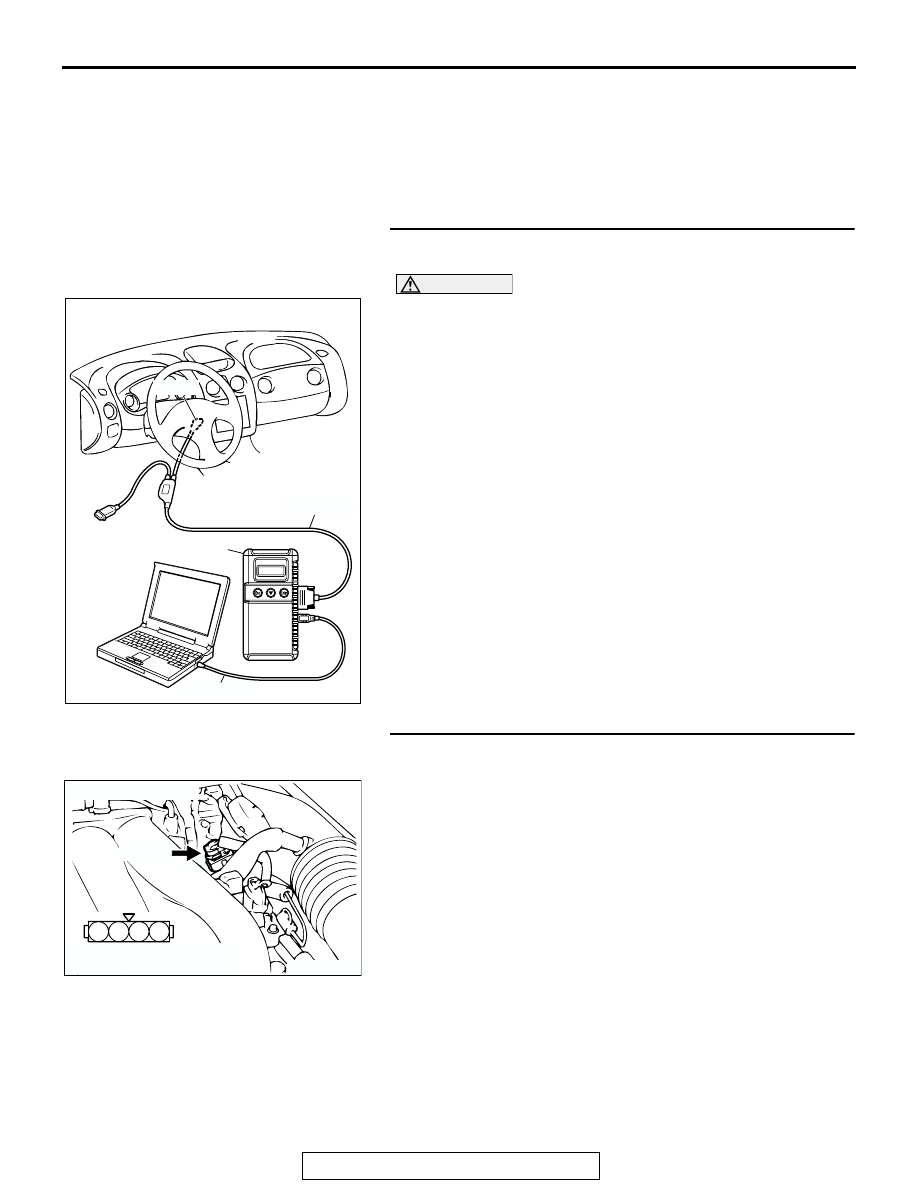

STEP 1. Using scan tool MB991958, check data list item 14:
Throttle Position Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

14, Throttle Position Sensor.

• With the throttle valve in the idle position, voltage should

be between 0.535 and 0.735 volt.

• With the throttle valve in the full-open position, voltage

should be between 4.5 and 5.5 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check connector B-07 at throttle position sensor
for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AK300434

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-169

STEP3. Check the throttle position sensor.
(1) Disconnect the connector B-07.

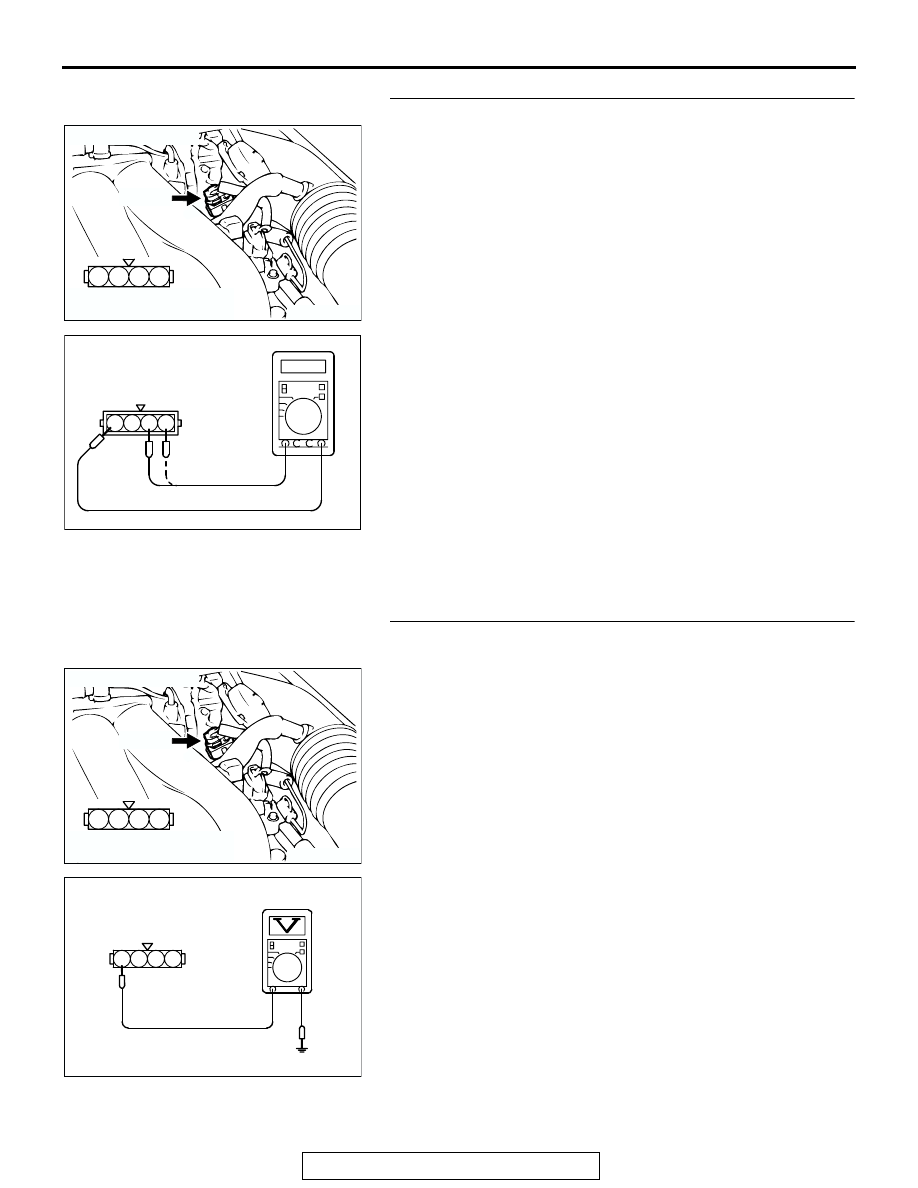

(2) Measure the resistance between throttle position sensor

side connector terminal No. 1 and No. 4.

Standard value: 3.5

− 6.5 kΩ

(3) Measure resistance between the throttle position sensor

side connector terminal No. 1 and No. 3.

(4) Move the throttle valve from the idle position to the full-open

position.

• Resistance should change smoothly in proportion to the

opening angle of the throttle valve.

Q: Is the resistance normal?

YES : Go to Step 4.
NO :  Replace the throttle position sensor. Refer to

P.13B-1117

, Throttle Body. Then go to Step 14.

STEP 4. Check the sensor supply voltage at throttle
position sensor harness side connector B-07.
(1) Disconnect the connector B-07 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 4 and ground.

• Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 7.
NO :  Go to Step 5.

AK300434

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AKX01413

THROTTLE POSITION
SENSOR SIDE CONNECTOR

1 2 3 4

AB

AK300434

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000236 AG

B-07 HERNESS
CONNECTOR:
COMPONENT SIDE

4 3 2 1

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-170

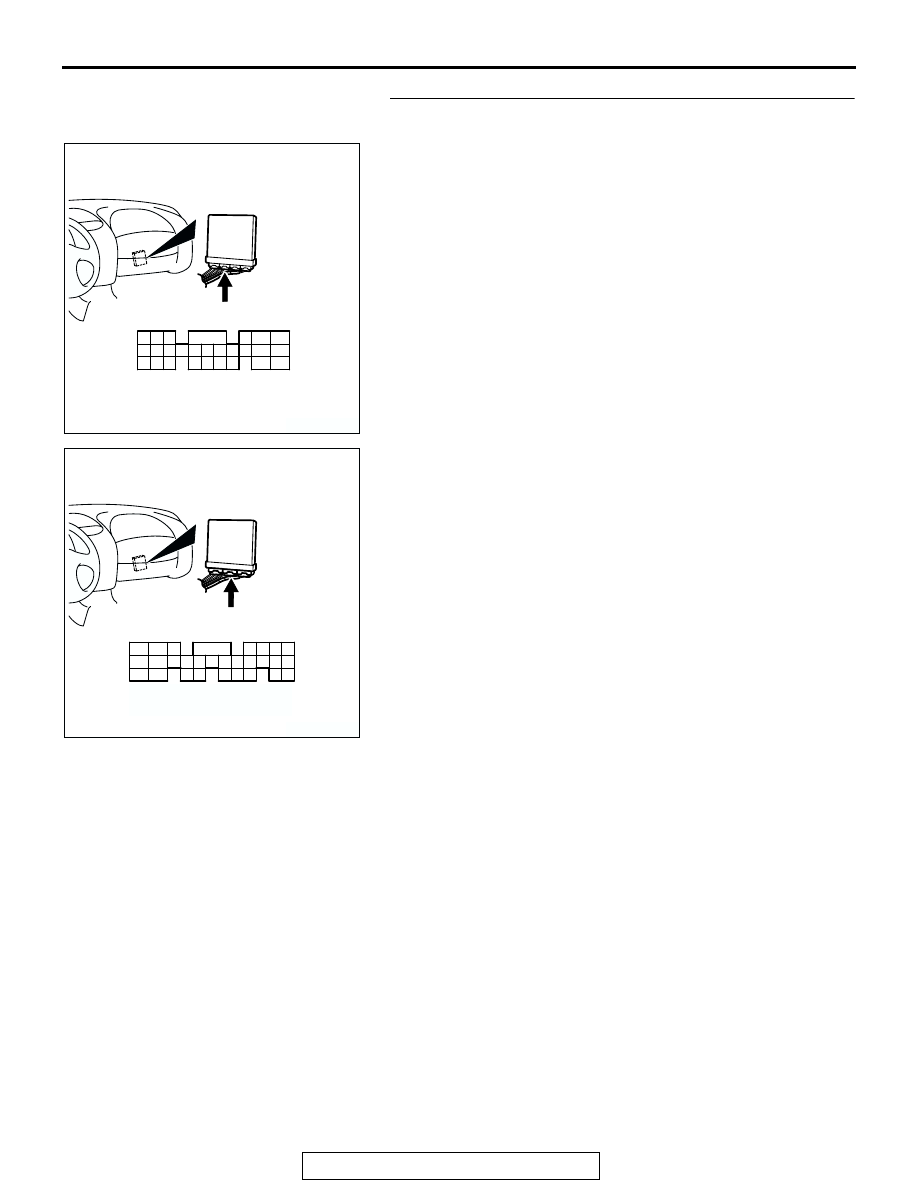

STEP 5. Check connector C-58 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE
