MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-485

STEP 12. Check the check valve A.
(1) Only when you blow the check valve from the direction

shown, it should pass air.

(2) When you blow the check valve, air should leak from the

check valve body.

Q: Is the check valve A in good condition?

YES : Go to Step 13.
NO :  Replace the check valve A, reinstall the fuel tank and

fuel filler neck assembly. (Refer to GROUP 13C, Fuel
Tank

P.13C-13

.) Then go to Step 18.

STEP 13. Check the check valve B.
(1) When you blow the check valve from the arrow direction

shown above, it should pass more air.

(2) When you blow the check valve from the arrow direction

shown below, it should pass less air.

(3) When you blow the check valve, on air should leak from the

check valve body.

Q: Is the check valve B in good condition?

YES : Go to Step 14.
NO :  Replace the check valve B, reinstall the fuel tank and

fuel filler neck assembly. (Refer to GROUP 13C, Fuel
Tank

P.13C-13

.) Then go to Step 18.

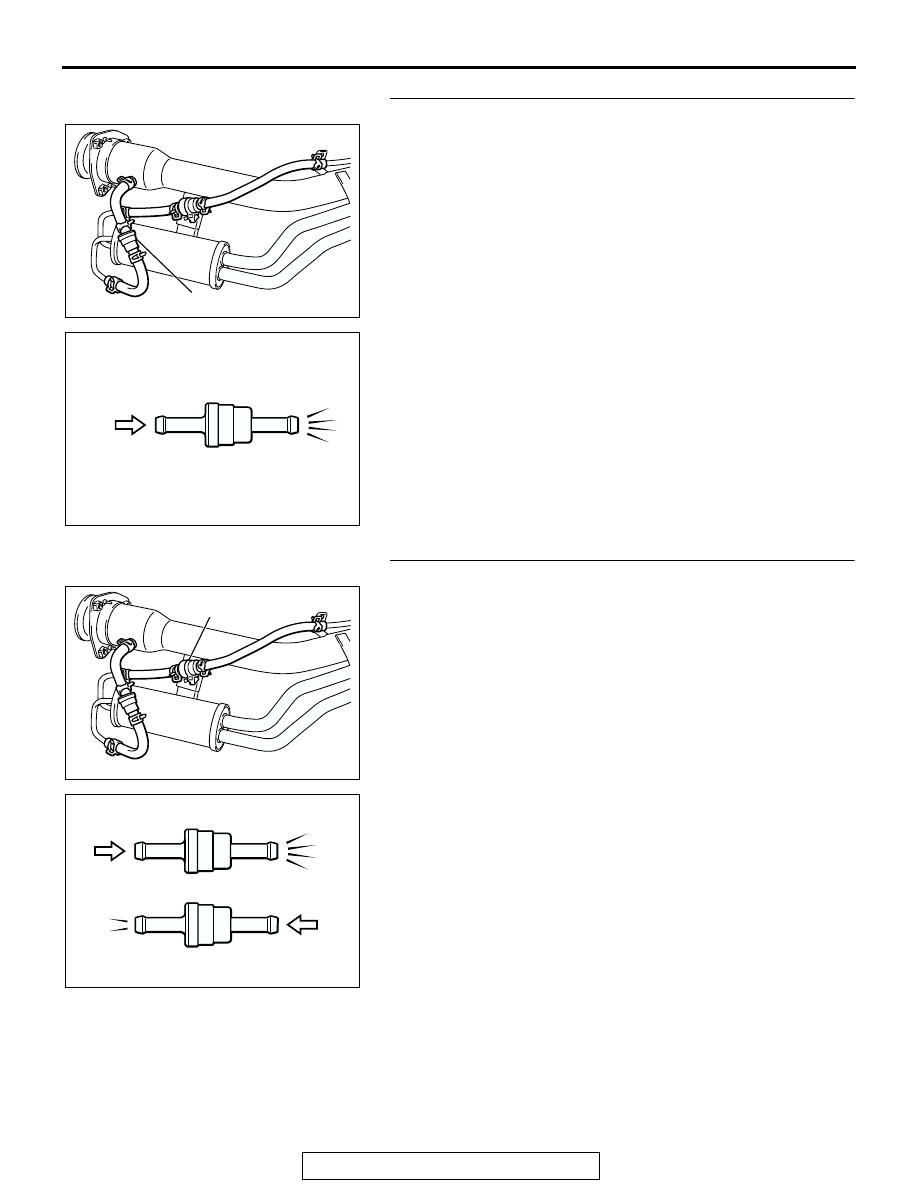

AC002039

CHECK VALVE A

AE

AC002076 AB

CHECK VALVE A

AC002039

CHECK VALVE B

AF

AC002078

CHECK VALVE B

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-486

STEP 14. Check for leaks in the evaporator line hose N.
(1) The leakage test with a hand vacuum pump on each hose

from hose N.

Q: Is the hose in good condition?

YES : Go to Step 15.
NO :  Replace the hose, reinstall the fuel tank and fuel filler

neck assembly. (Refer to GROUP 13C, Fuel Tank

P.13C-13

.) Then go to Step 18.

STEP 15. Visually check for cracks in the fuel filler neck
assembly.

Visually check for cracks in the fuel filler neck assembly.

Q: Is the fuel filler neck assembly in good condition?

YES : Go to Step 16.
NO :  Replace the fuel filler neck assembly, reinstall the fuel

tank and fuel filler neck assembly. (Refer to GROUP
13C, Fuel Tank

P.13C-13

.) Then go to Step 18.

STEP 16. Check for leaks in the fuel tank.
(1) Visually check for cracks and leaks, etc.

NOTE: Carefully check the fuel pump assembly and the
inner pressure sensor installation section in the fuel tank.

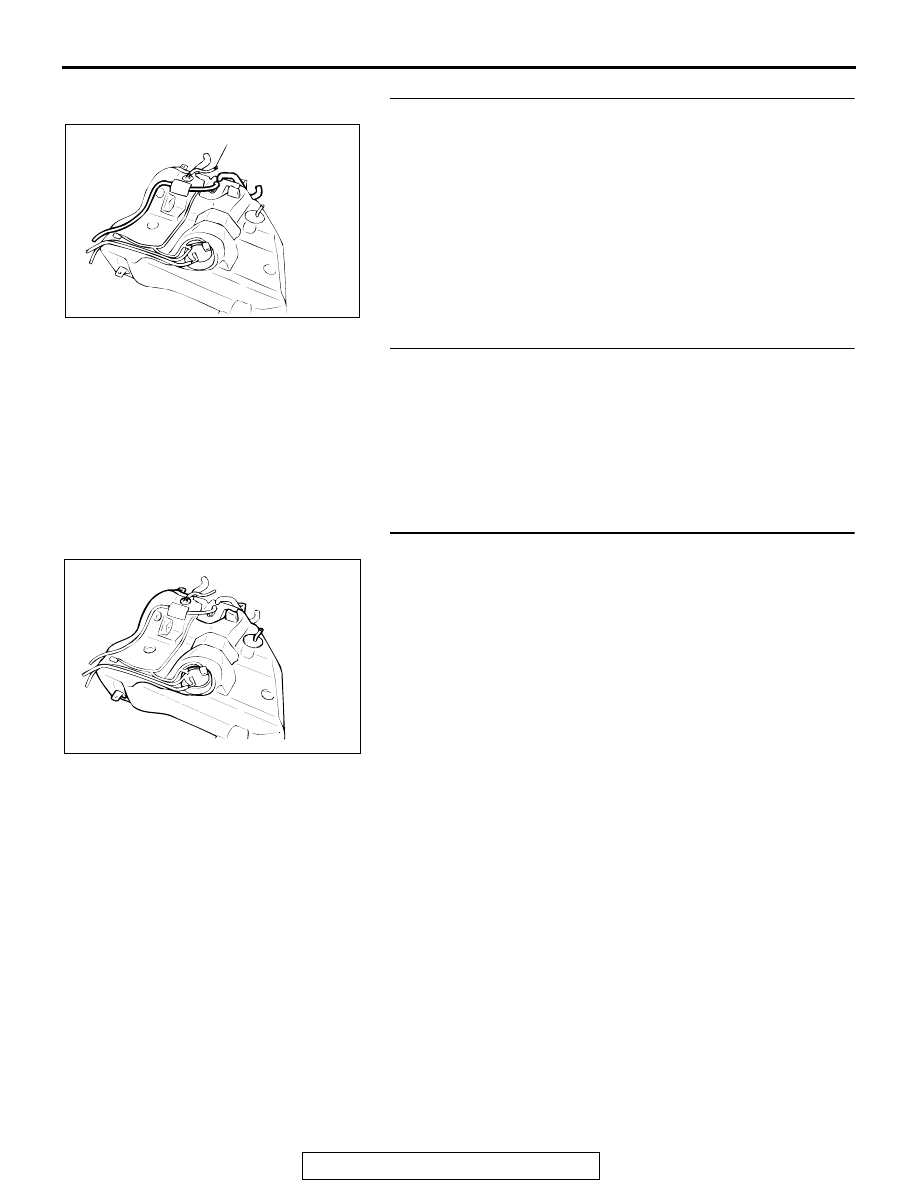

AC000195

HOSE N

AD

AC000196

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-487

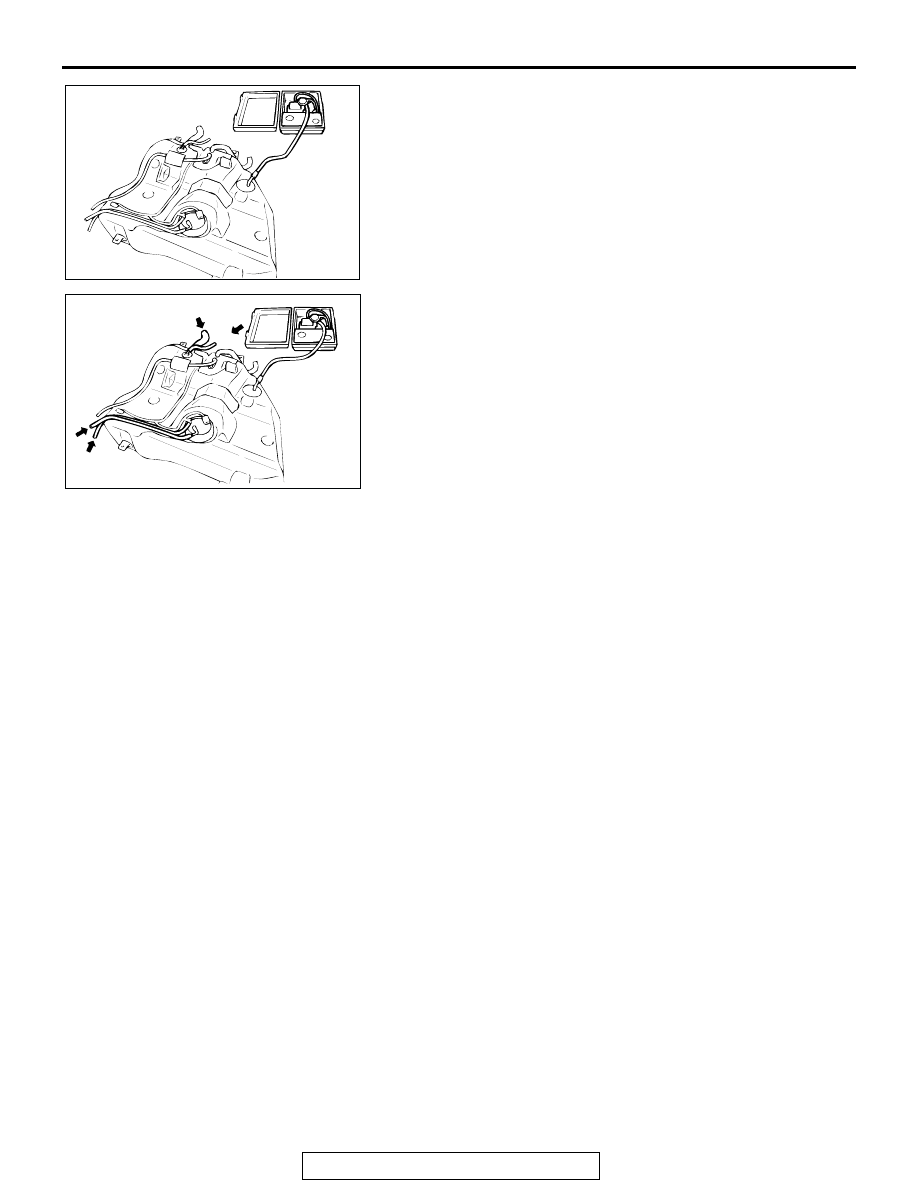

(2) Connect an evaporative emission system pressure pump to

the leveling valve nipple.

(3) Plug the filler hose, feed pipe, return pipe and rollover valve

nipple connected to the fuel tank.
NOTE: If these items are not securely plugged here, the
fuel could leak in the next step.

(4) Apply pressure with the evaporative emission system

pressure pump.

(5) In the pressurized state, check for the leak by applying soap

water, etc. to each section.

Q: Is the fuel tank in good condition?

YES : Go to Step 17.
NO :  Replace the fuel tank, reinstall the fuel tank and fuel

filler neck assembly. (Refer to GROUP 13C, Fuel
Tank

P.13C-13

.) Then go to Step 18.

AC000197

AC000198

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-488

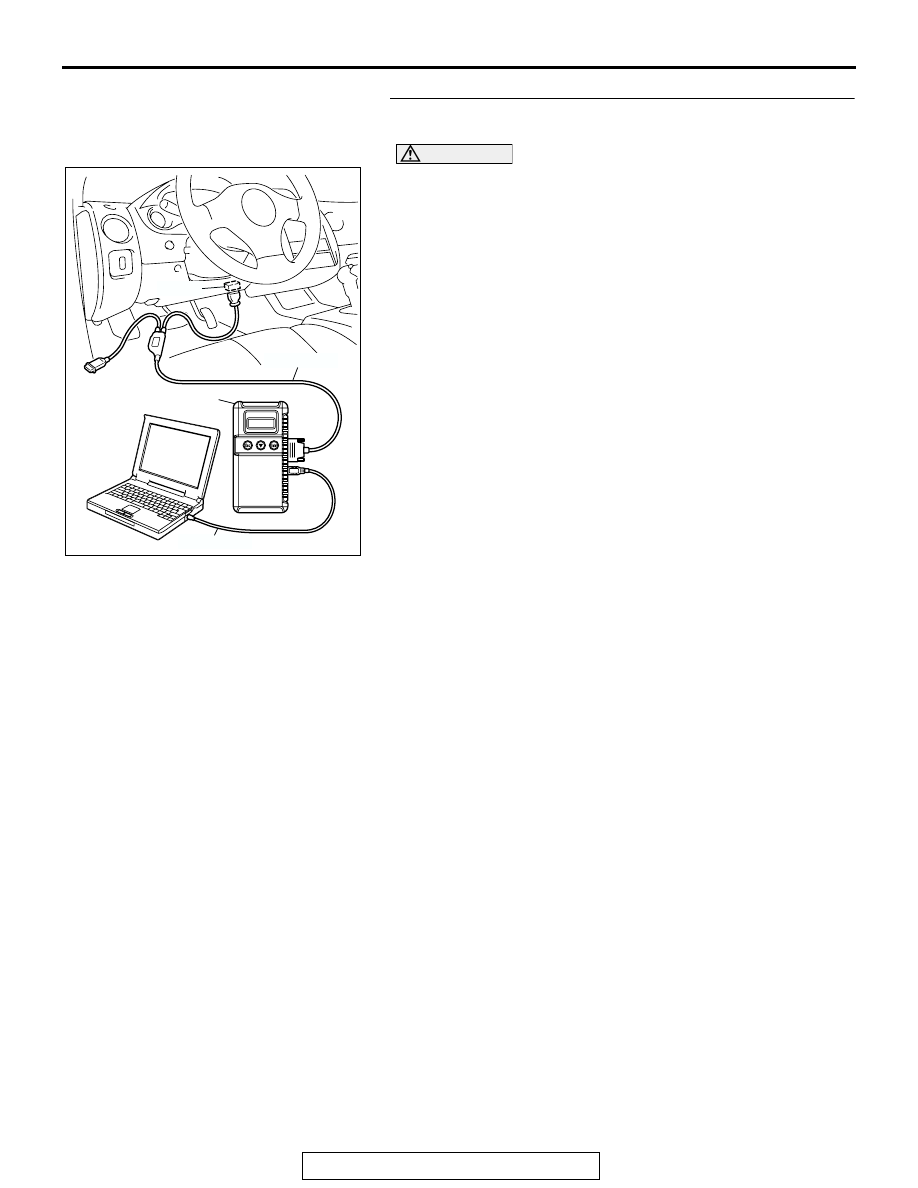

STEP 17. Using scan tool MB991958, check evaporative
emission system monitor test.

CAUTION

• To prevent damage to scan tool MB991958, always turn

the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

• With this monitor, the ECM <M/T> or PCM <A/T> auto-

matically increases the engine speed to 1,600 r/min or
more. Check that the transaxle is set to "neutral" <M/T>
or "P" <A/T> position.

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTCs using scan tool MB991958.
(4) Check that the fuel cap is securely closed. (Tighten until

three clicks are heard.)

(5) Start the engine.
(6) Select "System Test," and press the "YES" key.
(7) Select "Evap Leak Mon," and press the "YES" key.
(8) During the monitor, keep the accelerator pedal at the idling

position.
NOTE: If the engine speed does not reach 2,000 r/min dur-
ing the monitor test, adjustment of the Speed Adjusting
Screw may be needed. Refer to

P.13A-928

. And adjust to

the standard value.

(9) Keep the engine speed and engine load within the specified

range. When the monitor test starts, the "In Progress" item
on the scan tool MB991958 will change from "NO" to "YES."

(10)Turn the ignition switch to the "LOCK" (OFF) position. Then

disconnect scan tool MB991958.

Q: What is displayed on scan tool MB991958?

"Evap Leak Mon. Completed. Test Passed" : The

evaporative emission system is working properly at
this time. Then go to Step 18.

"Evap Leak Mon. Completed. Test Failed and DTCs Set"
:

Replace the ECM <M/T> or PCM <A/T>. Then go to
Step 18.

"Evap Lead Mon. discontinued. Retest again from the
first" : The monitor was discontinued for a certain reason

(vehicle speed input from ECM <M/T> or PCM <A/T>,
engine speed and engine load deviating from
specified range). Turn the ignition switch to the
"LOCK" (OFF) position once, and recheck
evaporative emission system monitor test.

AC303127
