MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-357

DTC P0182: Fuel Tank Temperature Sensor Circuit Low Input

5 V

ENGINE CONTROL
MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL
MODULE (PCM) <A/T>

FUEL TEMPERATURE SENSOR
(INTEGRATED IN FUEL PUMP MODULE)

82

78

81

80

89 90 91 92

79

87

71

74

73

72

76

75

77

85

88

83 84

86

 C-60 <M/T>
(MU803772)

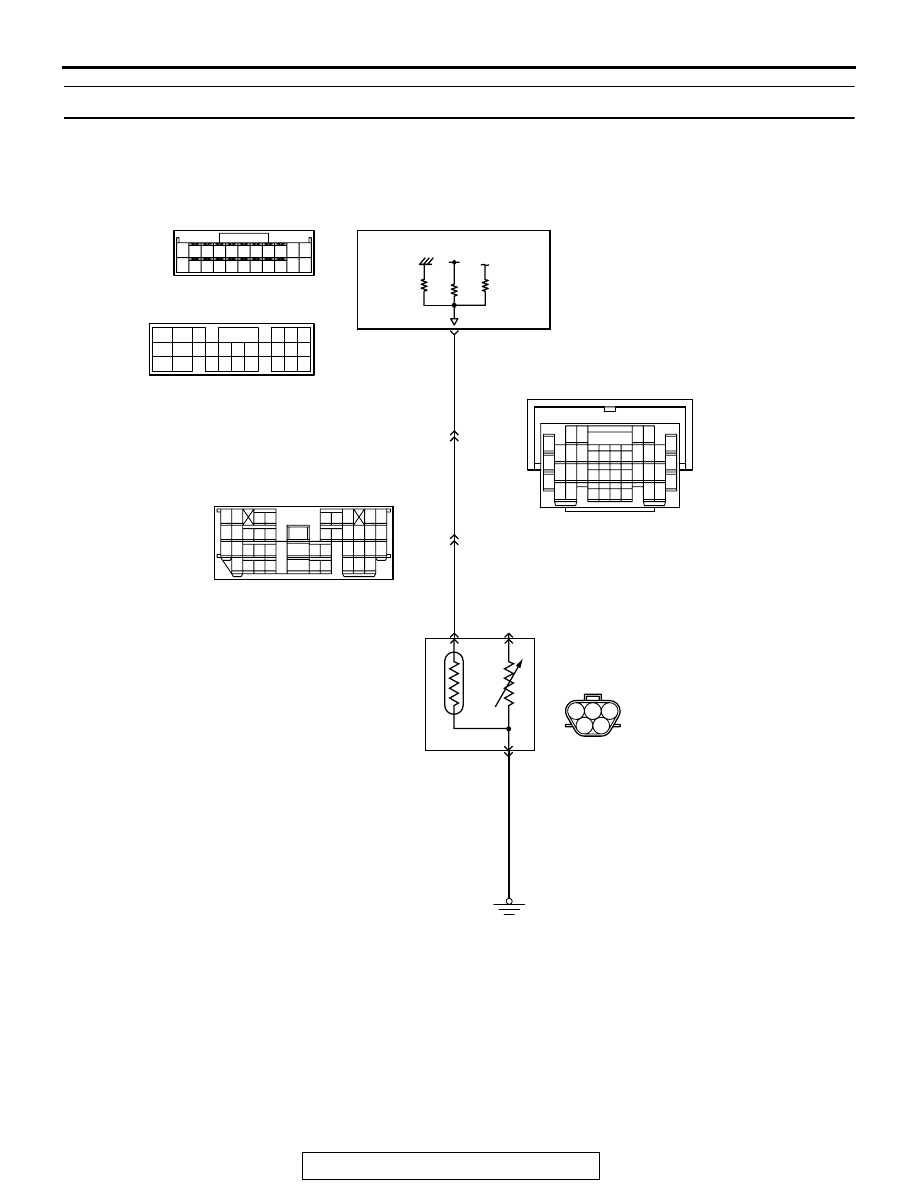

Fuel Temperature Sensor Circuit

12

3

1

37

BLA

C

K

GRA

Y

-GREEN

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

 C-54 <A/T>

(MU803781)

AK101534

77 <M/T>
51 <A/T>

4

17

1

12 13 14

18

30

41

34

3

16

10

6 7

19

31

42

20

32

43

21

33

25

24

26

36

35

37

29

28

15

27

38

8 9

39 40

11

2

22

5

23

C-90

C-28

7 8

5

3 4

35

34

10 11 12

2122 23 24

13 14 15

25 26 27

16

28

17

18 19 20

29

30 31

32 33

36 37

38

9

1 2

6

1 2 3

4 5

      D-17
(MU802058)

GRA

Y

-GREEN

GRA

Y

-GREEN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-358

.

CIRCUIT OPERATION

• 5-volt voltage is applied to the fuel tank tempera-

ture sensor output terminal (terminal No. 3) from
the ECM (terminal No. 77) <M/T> or PCM (termi-
nal No. 51) <A/T> via the resistor in the ECM
<M/T> or PCM <A/T>.

• The fuel tank temperature sensor output voltage

increases when the resistance increases and
decreases when the resistance decreases. The
ground terminal (terminal No. 1) is grounded to
the vehicle body.

.

TECHNICAL DESCRIPTION

• The fuel tank temperature sensor converts the

fuel tank temperature to a voltage.

• The ECM <M/T> or PCM<A/T> detects the fuel

tank temperature in the fuel tank with this output
voltage.

.

DESCRIPTIONS OF MONITOR METHODS
Fuel tank temperature sensor output voltage is out of

specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Engine coolant temperature sensor

• Intake air temperature sensor

.

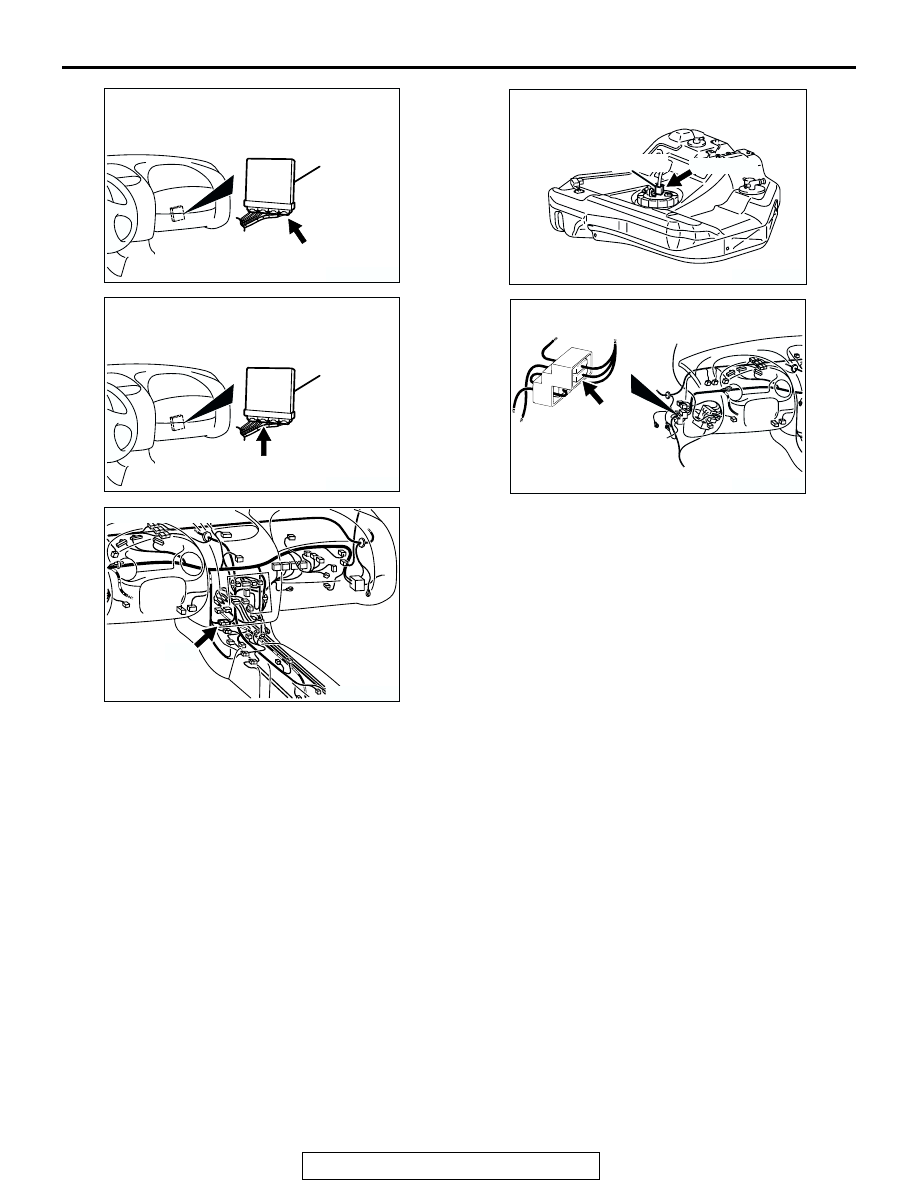

AK300060

ECM

CONNECTOR: C-60 <M/T>

AE

C-60 (G)

AK300060AB

C-54 (GR)

PCM

CONNECTOR: C-54 <A/T>

AK300119

CONNECTOR: C-28

AB

C-28

AK300120AB

D-17 (GR)

CONNECTOR: D-17

FUEL TEMPERATURE
SENSOR
(INTEGRATED IN
 FUEL PUMP MODULE)

AK300118

CONNECTOR: C-90

AB

C-90

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-359

DTC SET CONDITIONS

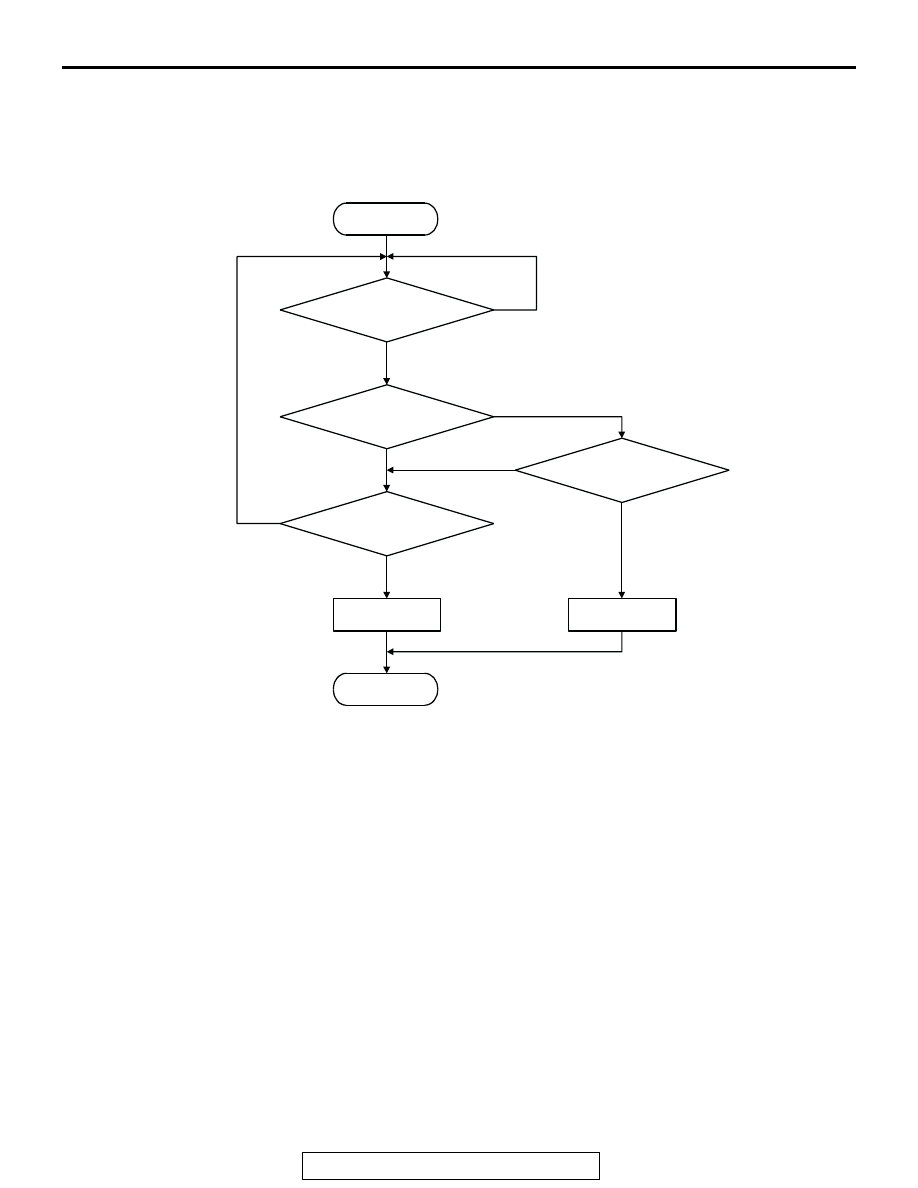

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the start-

ing sequence was completed.

Judgement Criteria

• Fuel tank temperature sensor output voltage has

continued to be 0.1 volt or lower for 2 seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13A-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Fuel tank temperature sensor failed.

• Shorted fuel tank temperature sensor circuit, or

connector damage.

• ECM failed. <M/T>

• PCM failed. <A/T>

DIAGNOSIS

Required Special Tools:

• MB991958 (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

START

MONITORING

CONDITIONS

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

OUTPUT VOLTAGE

< 0.1V

CONTINUOUS

FAILURE FOR 2secs

OUTPUT VOLTAGE

> 4.6V

NO

YES

AK301445

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-360

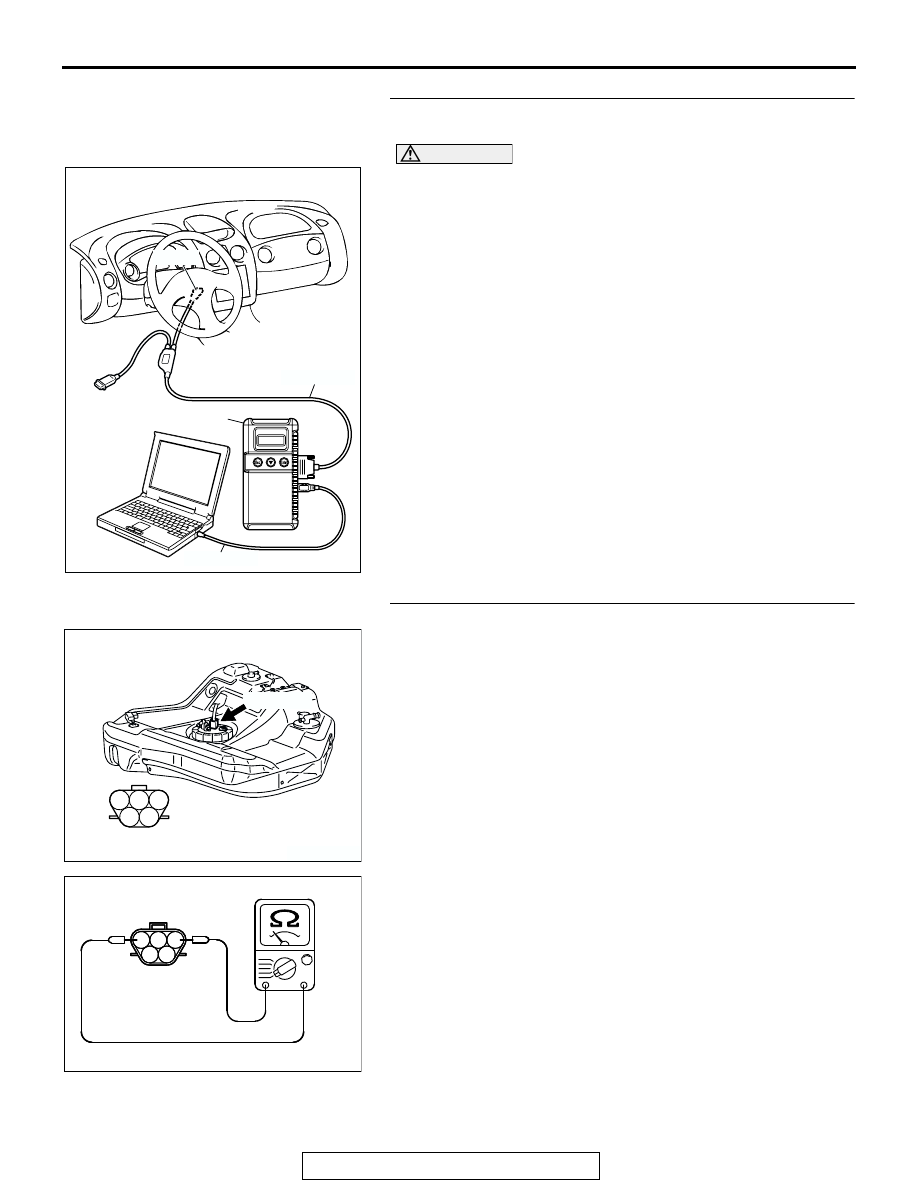

STEP 1. Using scan tool MB991958, check data list item
4A: Fuel Tank Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

4A, Fuel Tank Temperature Sensor.

• With the engine cool, the Fuel Tank Temperature should

be approximately the same as ambient air temperature.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check the fuel tank temperature sensor.
(1) Disconnect the fuel tank temperature sensor connector

D-17

(2) Measure the resistance between terminal No. 1 and No. 3

of the fuel tank temperature sensor.

Standard value:

0.5

− 12.0 kΩ

Q: Is the resistance between 0.5 and 12.0 k

Ω?

YES : Go to Step 3.
NO :  Replace the fuel tank temperature sensor. Then go to

Step 5.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AK300453

1

2

3

4

5

D-17 (GR)

AB

CONNECTOR: D-17

HARNESS CONNECTOR:
COMPONENT SIDE

AK101374

1 2 3

4 5

AB

1 2 3

4 5

FUEL TEMPERATURE SENSOR
SIDE CONNECTOR
