MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-185

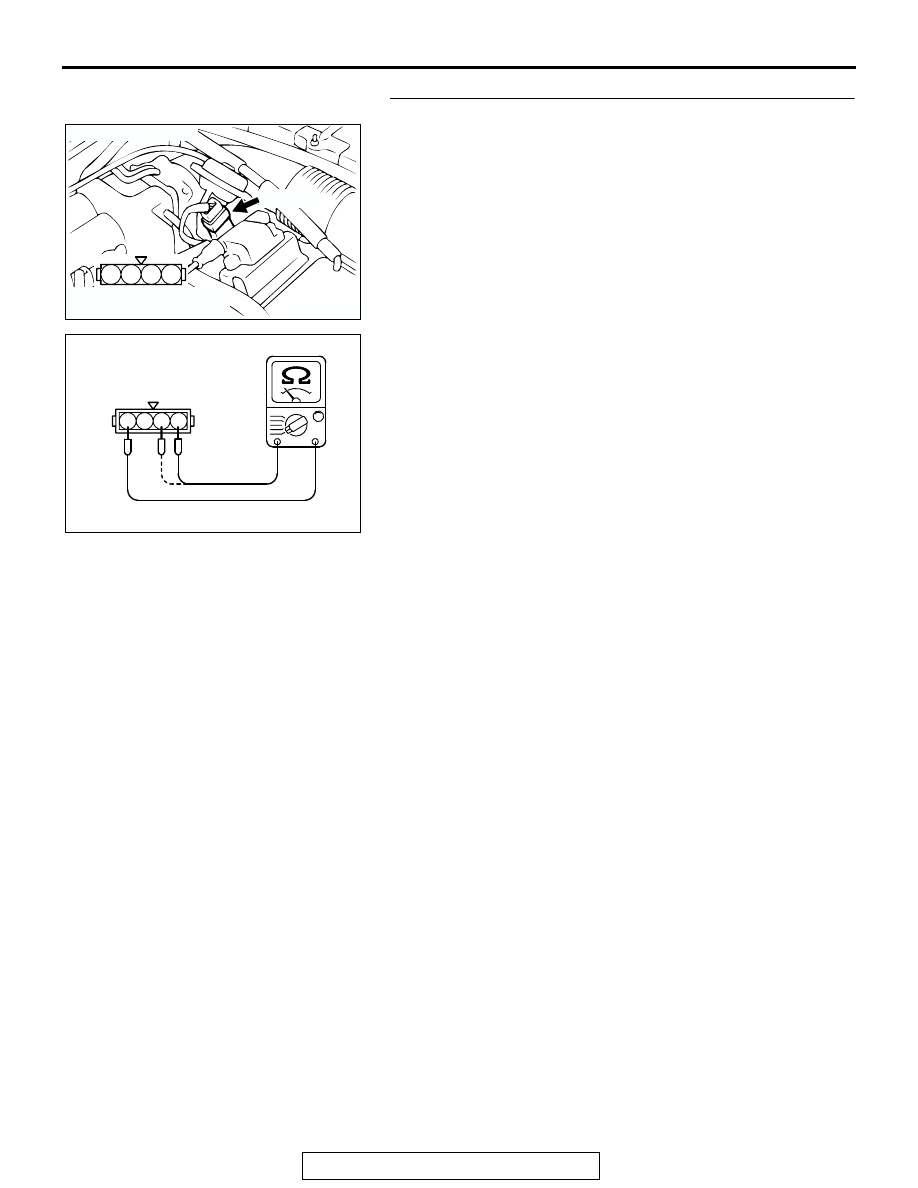

STEP 6. Check the throttle position sensor.
(1) Disconnect the connector B-07.

(2) Measure the resistance between throttle position sensor

side connector terminal No. 1 and No. 4.

Standard value: 3.5

− 6.5 kΩ

(3) Measure resistance between the throttle position sensor

side connector terminal No. 1 and No. 3.

(4) Move the throttle valve from the idle position to the full-open

position.

• Resistance should change smoothly in proportion to the

opening angle of the throttle valve.

Q: Is the resistance normal?

YES : Go to Step 7.
NO :  Replace the throttle position sensor. Refer to

P.13A-946

, Throttle Body. Then go to Step 11.

AK300402

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000320

1 2 3 4

THROTTLE POSITION
SENSOR SIDE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-186

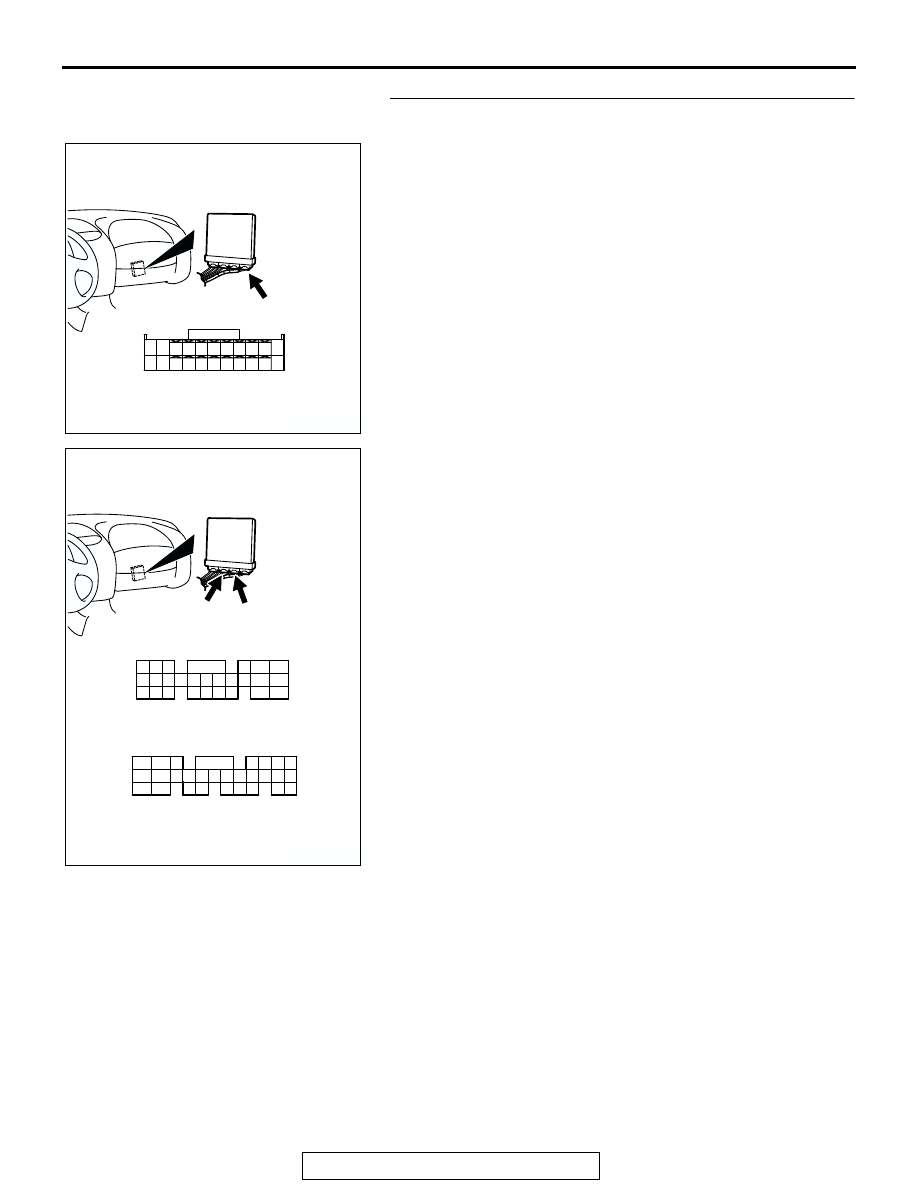

STEP 7. Check connector C-60 at ECM <M/T> or connector
C-54, C-57 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AK300415

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

CONNECTOR: C-60 <M/T>

AB

C-60 (G)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300418

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTORS: C-54, C-57 <A/T>

C-57 (GR)

C-54 (GR)

AB

C-57 HARNESS CONNECTOR:
COMPONENT SIDE

C-54 HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-187

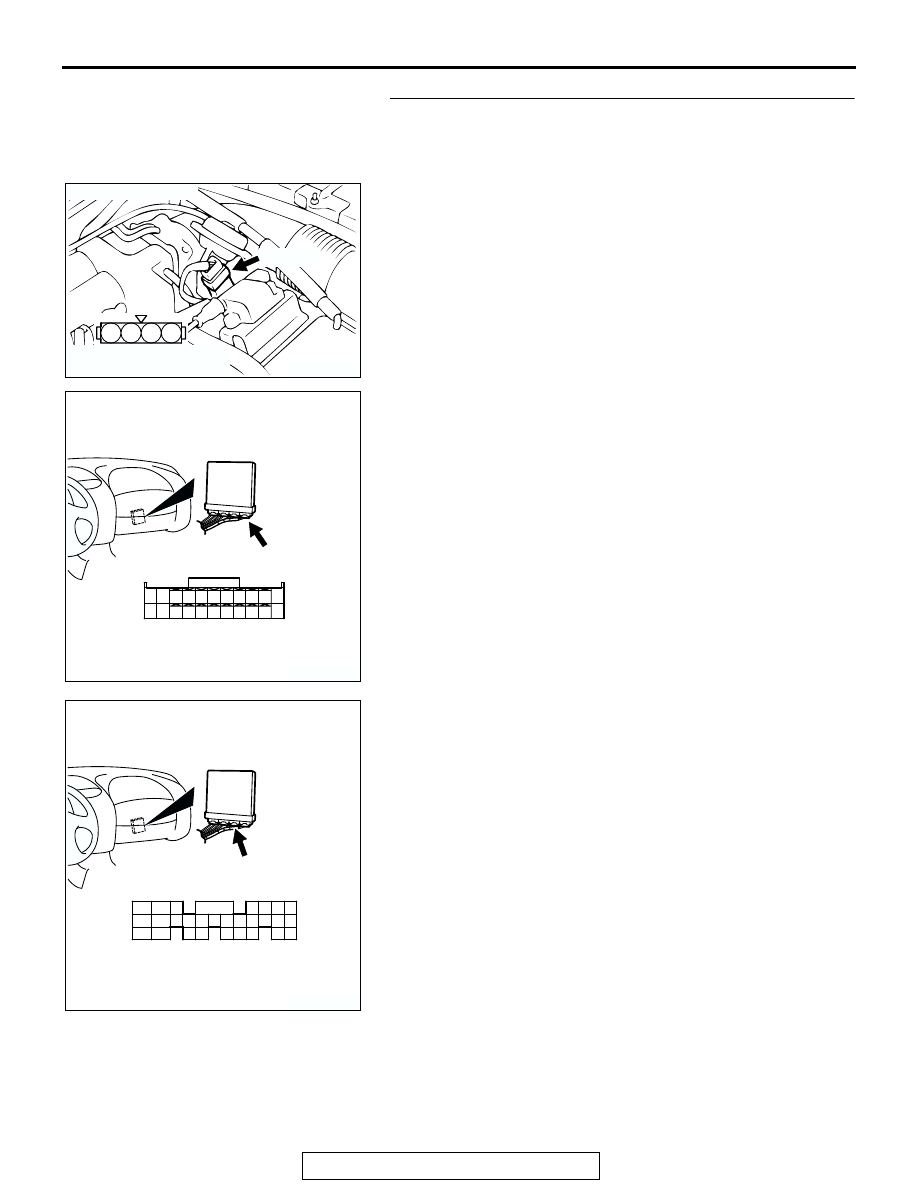

STEP 8. Check for open circuit and short circuit to ground
between throttle position sensor connector B-07 (terminal
No. 1) and ECM connector C-60 (terminal No. 84) <M/T> or
PCM connector C-57 (terminal No. 78) <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 11.

AK300402

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300415

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

CONNECTOR: C-60 <M/T>

AB

C-60 (G)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300735

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTOR: C-57 <A/T>

C-57 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-188

STEP 9. Check for short circuit to ground between throttle
position sensor connector and auto-cruise control-ECU.
Refer to GROUP 17, Auto Cruise Control System

− Diagnostic

Trouble Code Chart

P.17-12

.

Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair it. Then go to Step 11.

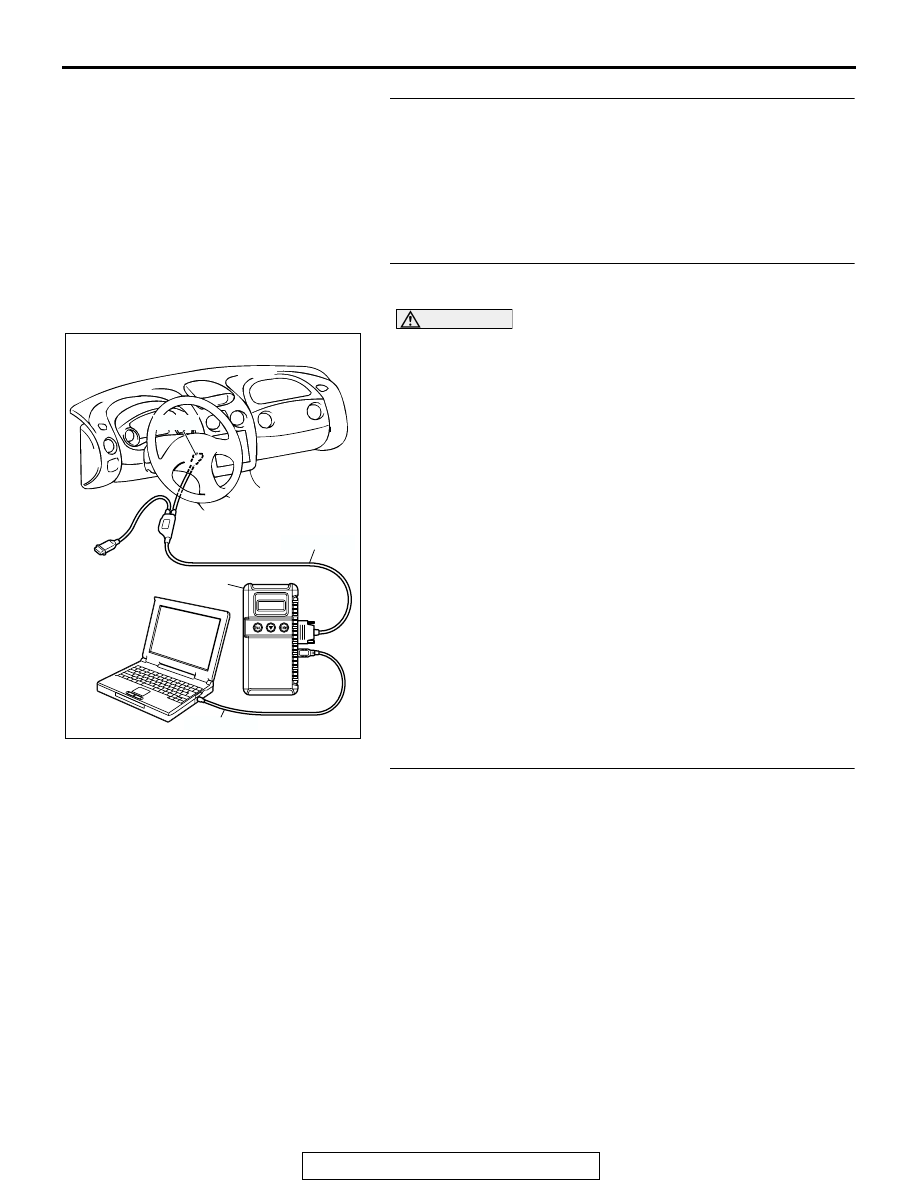

STEP 10. Using scan tool MB991958, check data list item
14: Throttle Position Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

14, Throttle Position Sensor.

• With the throttle valve in the idle position, voltage should

be between 0.535 and 0.735 volt.

• With the throttle valve in the full-open position, voltage

should be between 4.5 and 5.5 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Replace the ECM or PCM. Then go to Step 11.

STEP 11. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0122 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824
