MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-149

STEP 4. Check connector C-60 at ECM <M/T> or connector
C-54 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

AK300415

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

CONNECTOR: C-60 <M/T>

AB

C-60 (G)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300412

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

C-54 (GR)

CONNECTOR: C-54 <A/T>

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-150

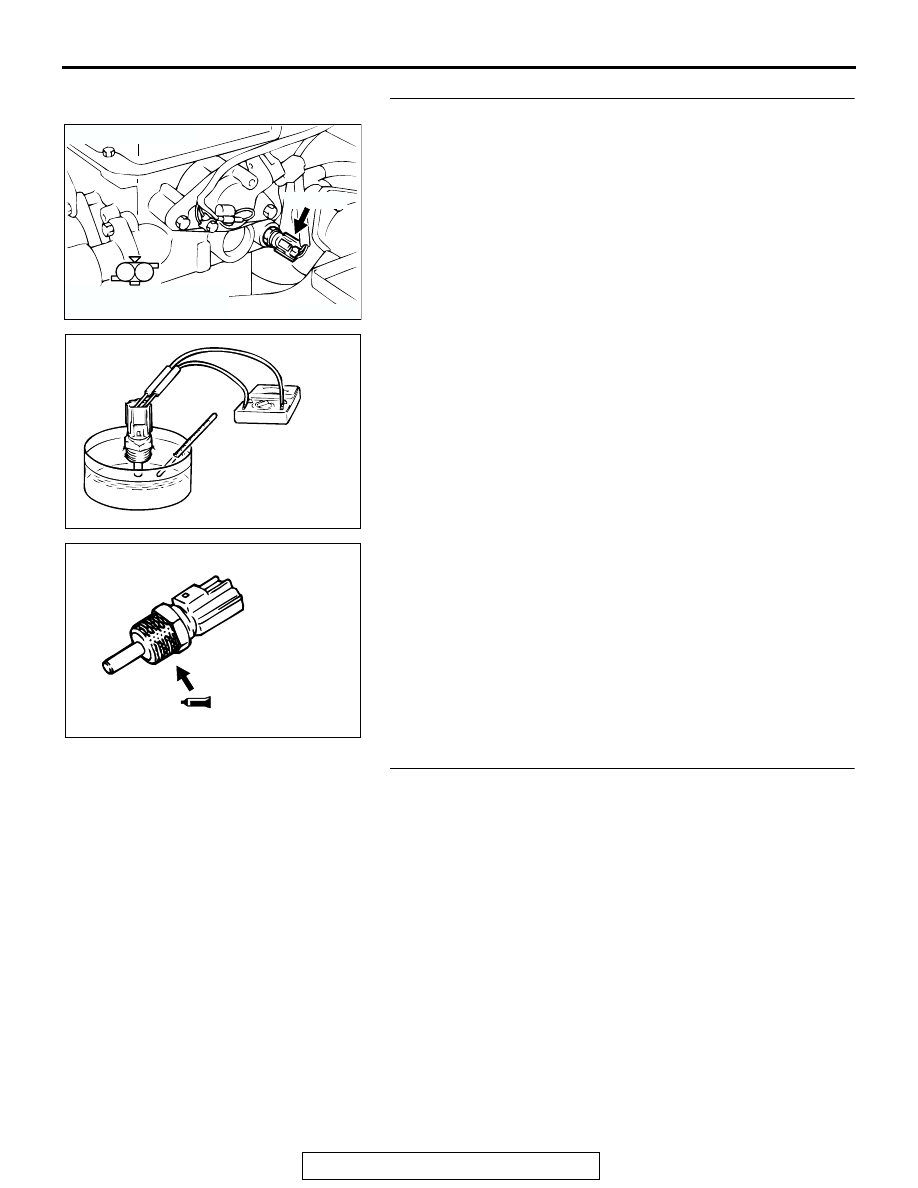

STEP 5. Check the engine coolant temperature sensor.
(1) Disconnect the engine coolant temperature sensor

connector B-11.

(2) Remove the engine coolant temperature sensor.

(3) With the temperature sensing portion of engine coolant

temperature sensor immersed in hot water, check
resistance.

Standard value:

14

− 17 kΩ [at −20°C (−4°F)]

5.1

− 6.5 kΩ [at 0°C (32°F)]

2.1

− 2.7 kΩ [at 20°C (68°F)]

0.9

− 1.3 kΩ [at 40°C (104°F)]

0.48

− 0.68 kΩ [at 60°C (140°F)]

0.26

− 0.36 kΩ [at 80°C (176°F)]

(4) Apply 3M

 AAD part number 8731 or equivalent on the

screw section of the engine coolant temperature sensor.

(5) Install the engine coolant temperature sensor, and tighten

to the specified torque.

Tightening torque: 29

± 10 N⋅m (22 ± 7 ft-lb)

Q: Is the resistance at the standard value?

YES : Replace the ECU or PCM. Then go to Step 6.
NO :  Replace the engine coolant temperature sensor. Then

go to Step 6.

STEP 6. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0117 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK300404

1

2

CONNECTOR: B-11

AB

B-11 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AKX01622

AKX01623 AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-151

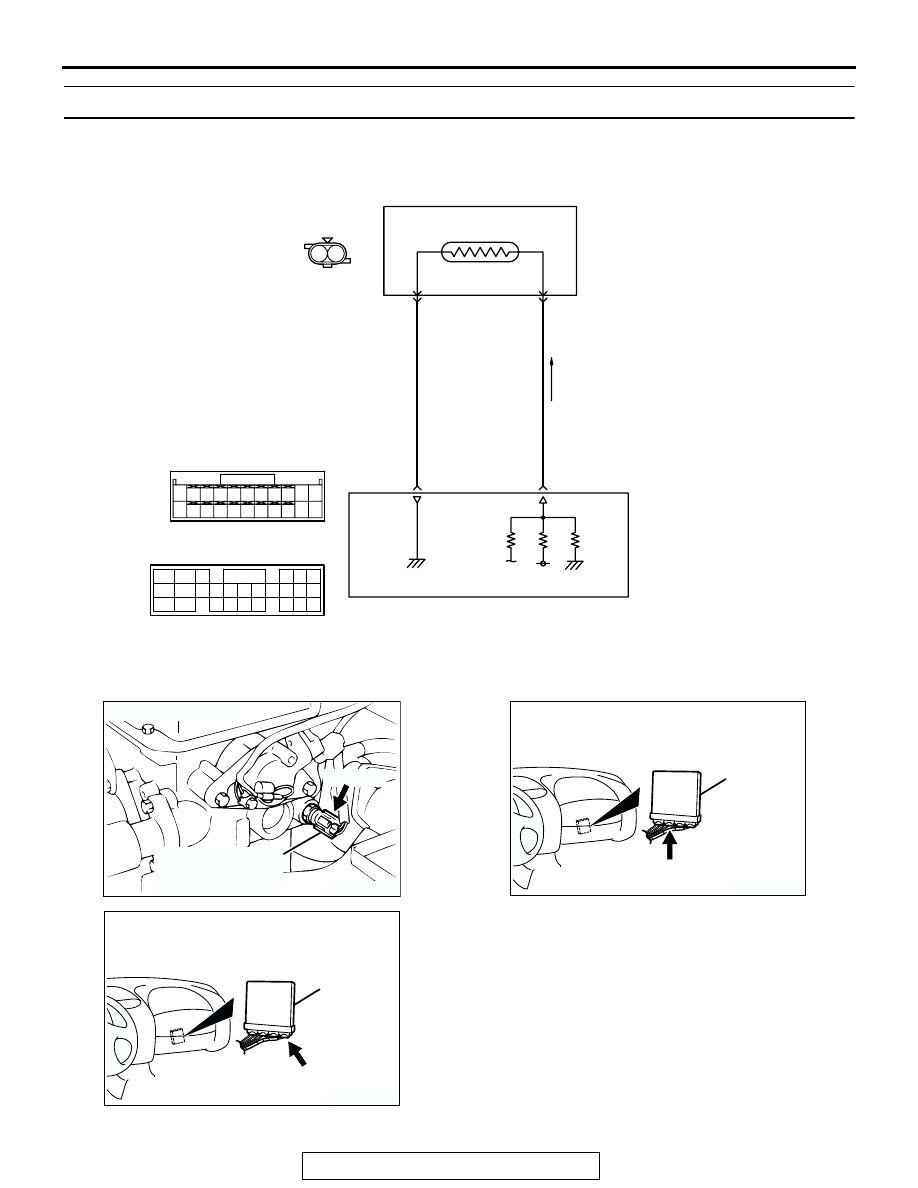

DTC P0118: Engine Coolant Temperature Circuit High Input

.

AK000655

1 2

BL

ACK

YELL

OW

-GREEN

92 <M/T>
57 <A/T>

83 <M/T>
44 <A/T>

C-60 <M/T>
(MU803772)

C-54 <A/T>
(MU803781)

ENGINE CONTROL
MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL
MODULE (PCM) <A/T>

ENGINE COOLANT
TEMPERATURE SENSOR

        B-11
 (MU802406)

2

1

5V

82

78

81

80

89 90 91 92

79

87

71

74

73

72

76

75

77

85

88

83 84

86

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 6162 63

64 65 66

47

41

Engine Coolant Temperature Sensor Circuit

AK300052

ENGINE COOLANT
TEMPERATURE
SENSOR

CONNECTOR: B-11

AB

B-11 (B)

AK300060

ECM

CONNECTOR: C-60 <M/T>

AE

C-60 (G)

AK300060AB

C-54 (GR)

PCM

CONNECTOR: C-54 <A/T>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-152

CIRCUIT OPERATION

• 5-volt voltage is applied to the engine coolant

temperature sensor output terminal (terminal No.
1) from the ECM (terminal No. 83) <M/T> or PCM
(terminal No. 44) <A/T> via the resistor in the
ECM <M/T> or PCM <A/T>. The ground terminal
(terminal No. 2) is grounded with ECM (terminal
No. 92) <M/T> or (terminal No. 57) <A/T>.

• The engine coolant temperature sensor is a neg-

ative temperature coefficient type of resistor. It
has the characteristic that when the engine cool-
ant temperature rises the resistor decreases.

• The engine coolant temperature sensor output

voltage increases when the resistor increases
and decreases when the resistor decreases.

.

TECHNICAL DESCRIPTION

• The engine coolant temperature sensor converts

the engine coolant temperature to a voltage and
output it.

• The ECM <M/T> or PCM <A/T> checks whether

this voltage is within a specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Engine coolant temperature sensor output voltage is

out of specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.
