ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-17

Required Special Tools:

• MB991453: Engine Hanger Assembly
• MZ203827: Engine Lifter
• MB991454: Engine hanger balancer (MB991453, part of the engine hanger attachment set)
• MB991895: Engine Hanger
• MB991928: Engine Hanger

AC005055

25

N

26

4.9 ± 1.0 N·m
44 ± 8 in-lb

27

28

29

30

31

32

33

42 ± 7 N·m
31 ± 5 ft-lb

ENGINE OIL

FUEL RAIL

O-RING

25

34

36

36

35

37

35 ± 6 N·m
26 ± 4 ft-lb

86 ± 12 N·m
64 ± 8 ft-lb

81 ± 12 N·m*
60 ± 9 ft-lb*

AC

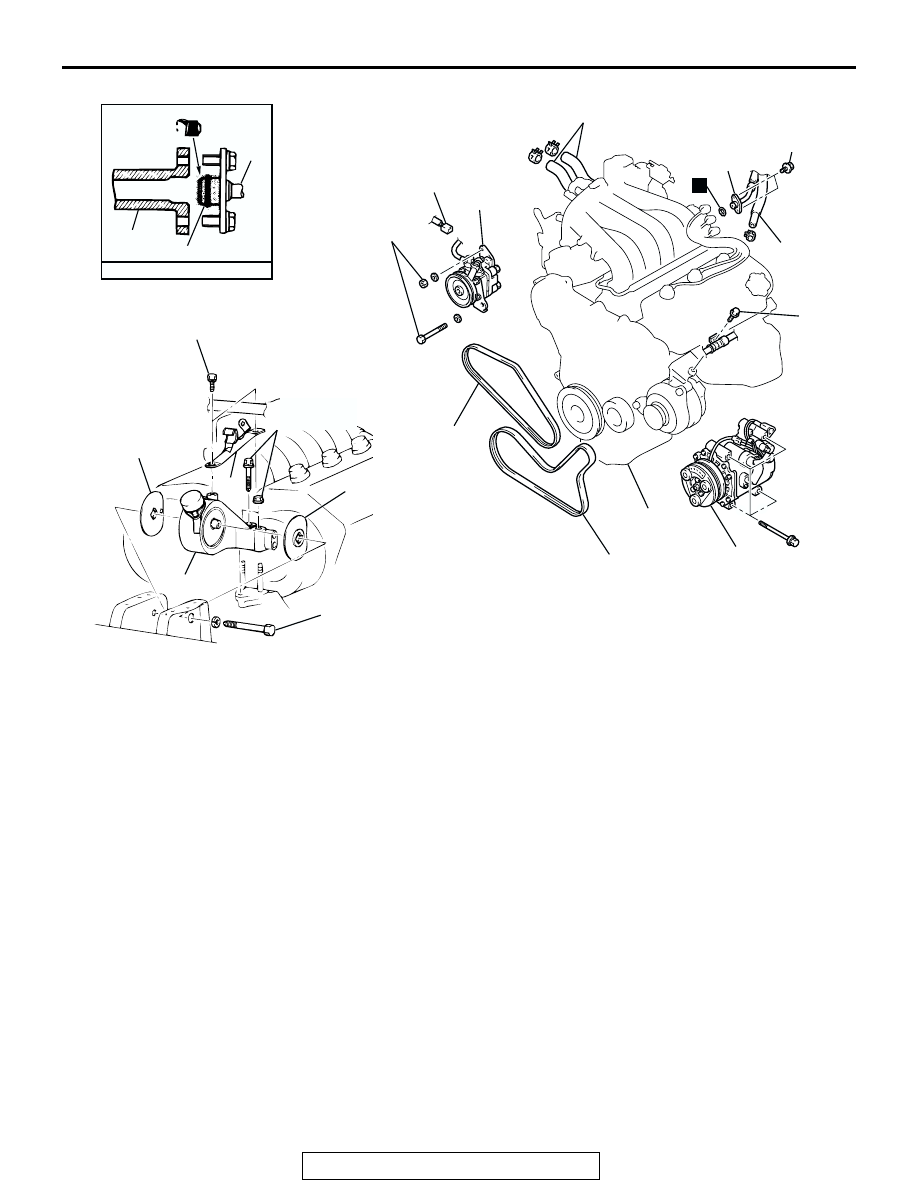

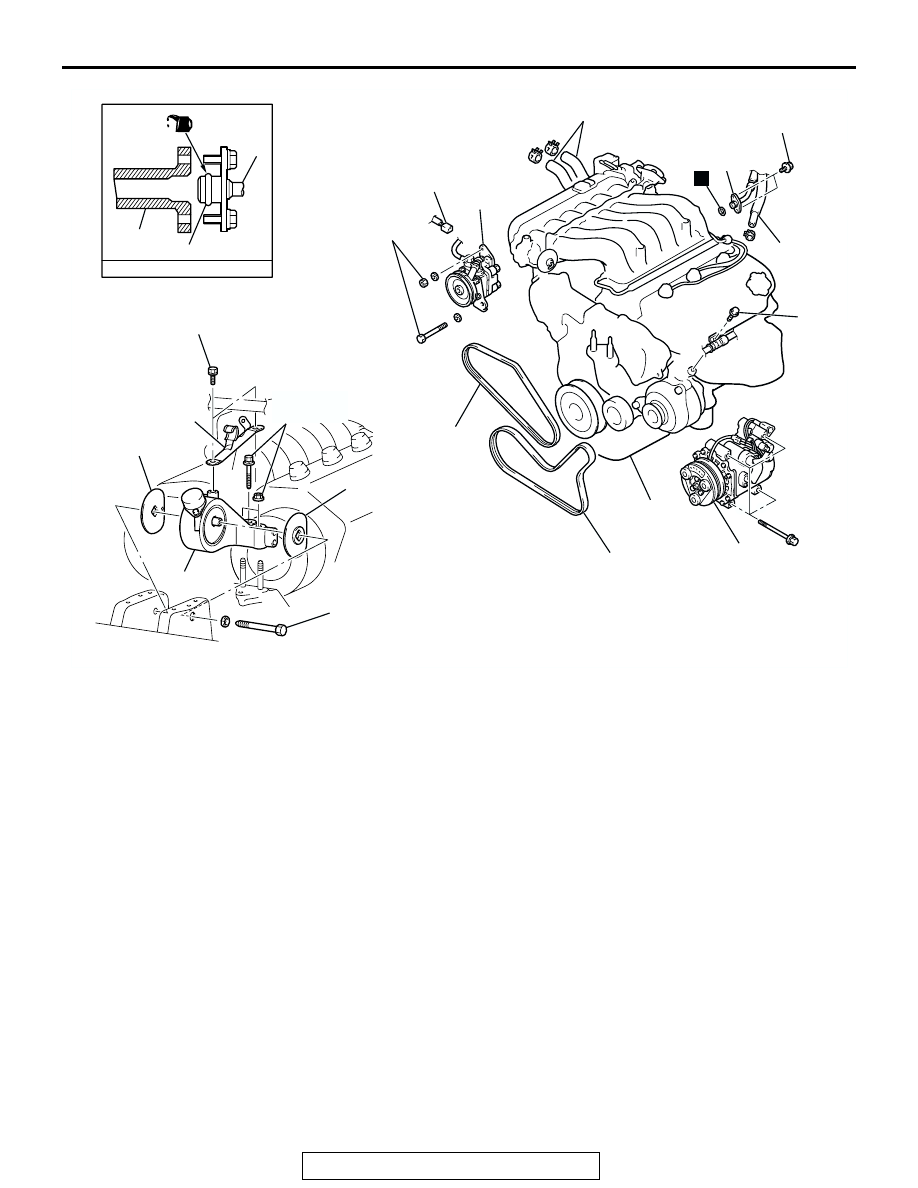

>>D<< 25. FUEL HIGH-PRESSURE HOSE

CONNECTION

26. FUEL RETURN HOSE

CONNECTION

27. HEATER HOSE CONNECTION
28. SUCTION HOSE CONNECTION
29. DRIVE BELT (GENERATOR AND

A/C COMPRESSOR)

30. DRIVE BELT (POWER STEERING

OIL PUMP)

<<A>>

31. A/C COMPRESSOR
32. POWER STEERING PRESSURE

SWITCH CONNECTOR

<<B>>

33. POWER STEERING OIL PUMP
34. ENGINE MOUNT STAY

<<C>>

• TRANSAXLE ASSEMBLY

<<D>> >>C<<

35. ENGINE MOUNT BRACKET

>>B<<

36. ENGINE MOUNT STOPPER

<<E>> >>A<<

37. ENGINE ASSEMBLY

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-18

<VEHICLE WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM>

CAUTION

*: Indicates parts which should be temporarily tightened, and then fully tightened after placing the
vehicle horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation
• Hood Removal (Refer to GROUP 42, Hood

P.42-7

.)

• Fuel Line Pressure Reduction [Refer to GROUP 13B,

On-vehicle Service

− Fuel Pump Relay Disconnection

(How to Reduce Pressurized Fuel Lines)

P.13B-1109

.]

• Engine Coolant Draining [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-58

.]

• Strut Tower Bar Removal (Refer to GROUP 42, Strut

Tower Bar

P.42-11

.)

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-6

.)

• Reserve Tank and Radiator Removal (Refer to GROUP

14, Radiator

P.14-21

.)

• Front Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-24

.)

Post-installation Operation
• Front Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-24

.)

• Reserve Tank and Radiator Installation (Refer to GROUP

14, Radiator

P.14-21

.)

• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-6

.)

• Strut Tower Bar Installation (Refer to GROUP 42, Strut

Tower Bar

P.42-11

.)

• Drive Belt Tension Adjustment [Refer to GROUP 00 Main-

tenance Service

− Drive Belts (Check Condition)

P.00-46

.]

• Engine Coolant Refilling [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-58

.]

• Accelerator Cable Adjustment (Refer to GROUP 17,

On-vehicle Service

− Accelerator Cable Check and

Adjustment

P.17-4

.)

• Hood Installation (Refer to GROUP 42, Hood

P.42-7

.)

AC106161AB

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

9

10

11

12

13

14

23

24

1

2

3

23

4

5

6

7

8

5.0 ± 1.0 N·m
44 ± 9 in-lb

15

16

17

5.0 ± 1.0 N·m
44 ± 9 in-lb

19

20

22

18

21

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-19

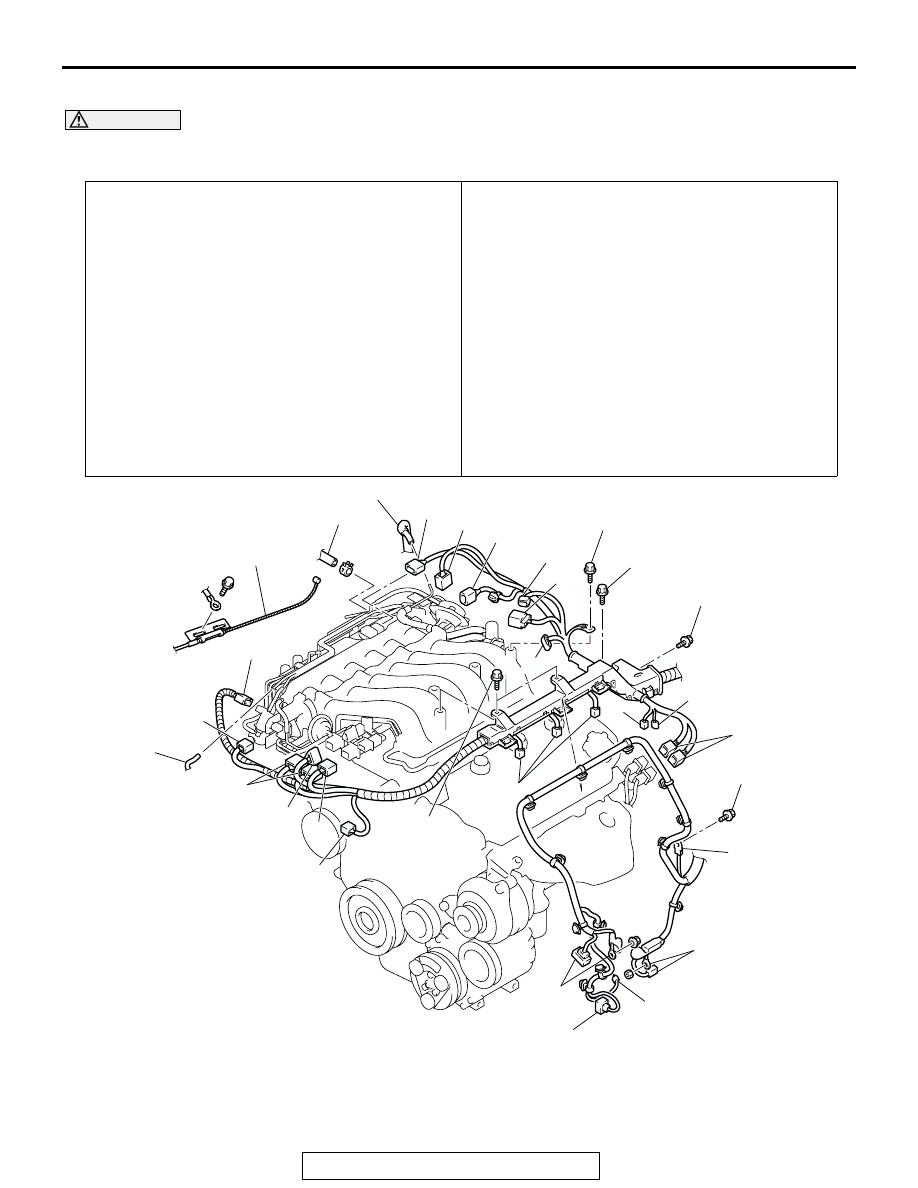

REMOVAL STEPS

1.

ACCELERATOR CABLE
CONNECTION

2.

EGR VACUUM REGULATOR
SOLENOID VALVE
CONNECTOR

3.

VARIABLE INDUCTION
SOLENOID VALVE
CONNECTOR

4.

RIGHT BANK HEATED OXYGEN
SENSOR CONNECTOR

5.

CRANKSHAFT POSITION
SENSOR CONNECTOR

6.

KNOCK SENSOR CONNECTOR

7.

CONTROL WIRING HARNESS
AND POWER STEERING
WIRING HARNESS
COMBINATION CONNECTOR

8.

INJECTOR CONNECTOR

9.

DISTRIBUTOR CONNECTOR

10. CONTROL WIRING HARNESS

AND INJECTOR WIRING
HARNESS COMBINATION
CONNECTOR

11. PURGE SOLENOID VALUE

CONNECTOR

12. IDLE AIR CONTROL MOTOR

CONNECTOR

13. THROTTLE POSITION SENSOR

CONNECTOR

14. MANIFOLD ABSOLUTE

PRESSURE SENSOR
CONNECTOR

15. ENGINE COOLANT

TEMPERATURE GAUGE UNIT
CONNECTOR

16. ENGINE COOLANT

TEMPERATURE SENSOR
CONNECTOR

17. LEFT BANK HEATED OXYGEN

SENSOR CONNECTOR

18. STARTER CONNECTOR
19. GROUND WIRE CONNECTION
20. GENERATOR CONNECTION
21. ENGINE OIL PRESSURE

SWITCH CONNECTOR

22. A/C COMPRESSOR

CONNECTOR

23. VACUUM HOSE CONNECTION
24. BRAKE BOOSTER VACUUM

HOSE CONNECTION

REMOVAL STEPS (Continued)

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-20

Required Special Tools:

• MB991453: Engine Hanger Assembly
• MZ203827: Engine Lifter
• MB991454: Engine hanger balancer (MB991453, part of the engine hanger attachment set)
• MB991895: Engine Hanger
• MB991928: Engine Hanger

AC106162

25

N

26

4.9 ± 1.0 N·m
44 ± 8 in-lb

27

28

29

30

31

32

33

42 ± 7 N·m
31 ± 5 ft-lb

ENGINE OIL

FUEL RAIL

O-RING

25

34

36

36

35

37

35 ± 6 N·m
26 ± 4 ft-lb

86 ± 12 N·m
64 ± 8 ft-lb

81 ± 12 N·m*
60 ± 9 ft-lb*

AB

>>D<< 25. FUEL HIGH-PRESSURE HOSE

CONNECTION

26. FUEL RETURN HOSE

CONNECTION

27. HEATER HOSE CONNECTION
28. SUCTION HOSE CONNECTION
29. DRIVE BELT (GENERATOR AND

A/C COMPRESSOR)

30. DRIVE BELT (POWER STEERING

OIL PUMP)

<<A>>

31. A/C COMPRESSOR
32. POWER STEERING PRESSURE

SWITCH CONNECTOR

<<B>>

33. POWER STEERING OIL PUMP
34. ENGINE MOUNT STAY

<<C>>

• TRANSAXLE ASSEMBLY

<<D>> >>C<<

35. ENGINE MOUNT BRACKET

>>B<<

36. ENGINE MOUNT STOPPER

<<E>> >>A<<

37. ENGINE ASSEMBLY
