Mitsubishi Eclipse. Manual - part 95

DASH PANEL

TSB Revision

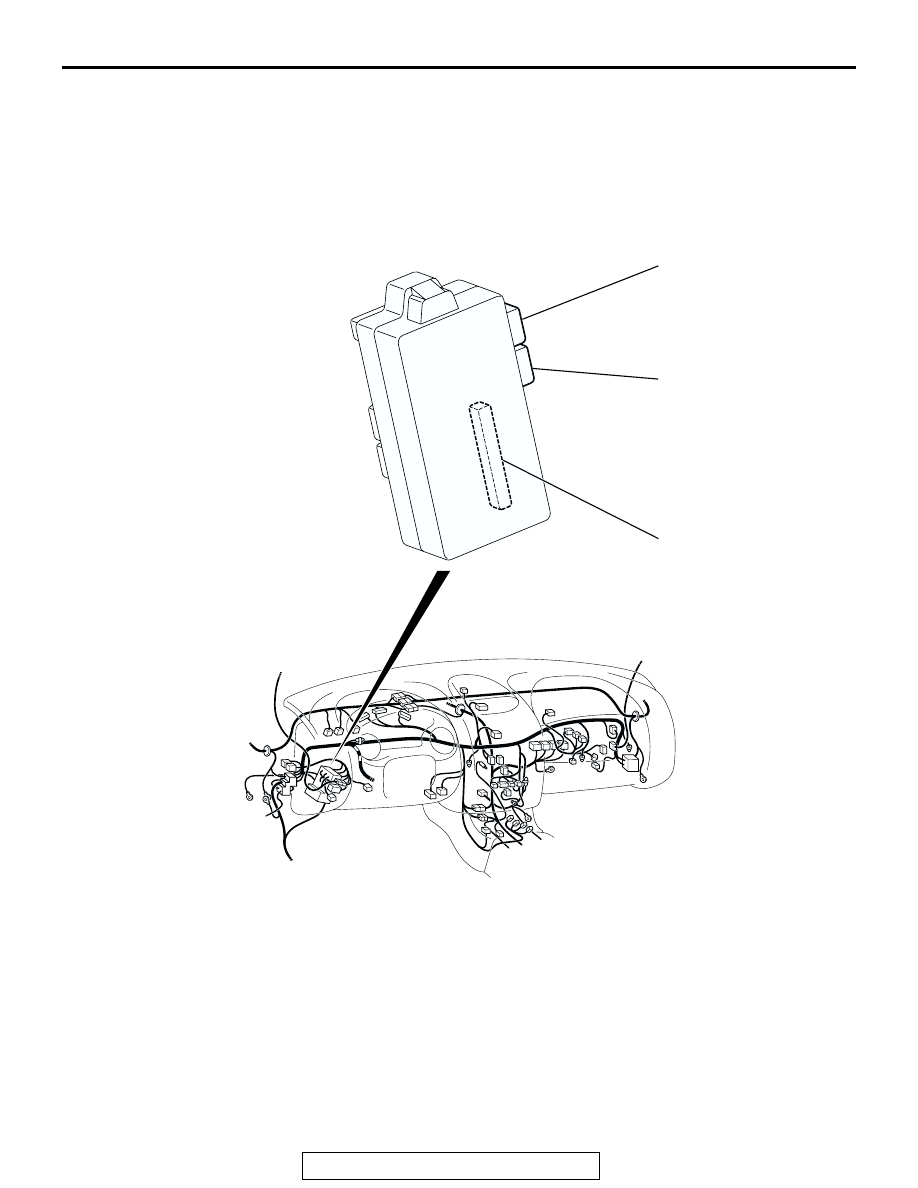

CONFIGURATION DIAGRAMS

80A-27

AC106140 AB

C-117

C-118

C-119

JUNCTION BLOCK
(REAR VIEW)

C-111 (6)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-112 (14)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-113 (1-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-114 (5)

DEFOGGER RELAY

C-115 (5)

BLOWER RELAY

C-116 (5)

POWER WINDOW RELAY

C-117 (24)

ETACS-ECU

C-118 (24-GR) ETACS-ECU
C-119 (20)

ETACS-ECU

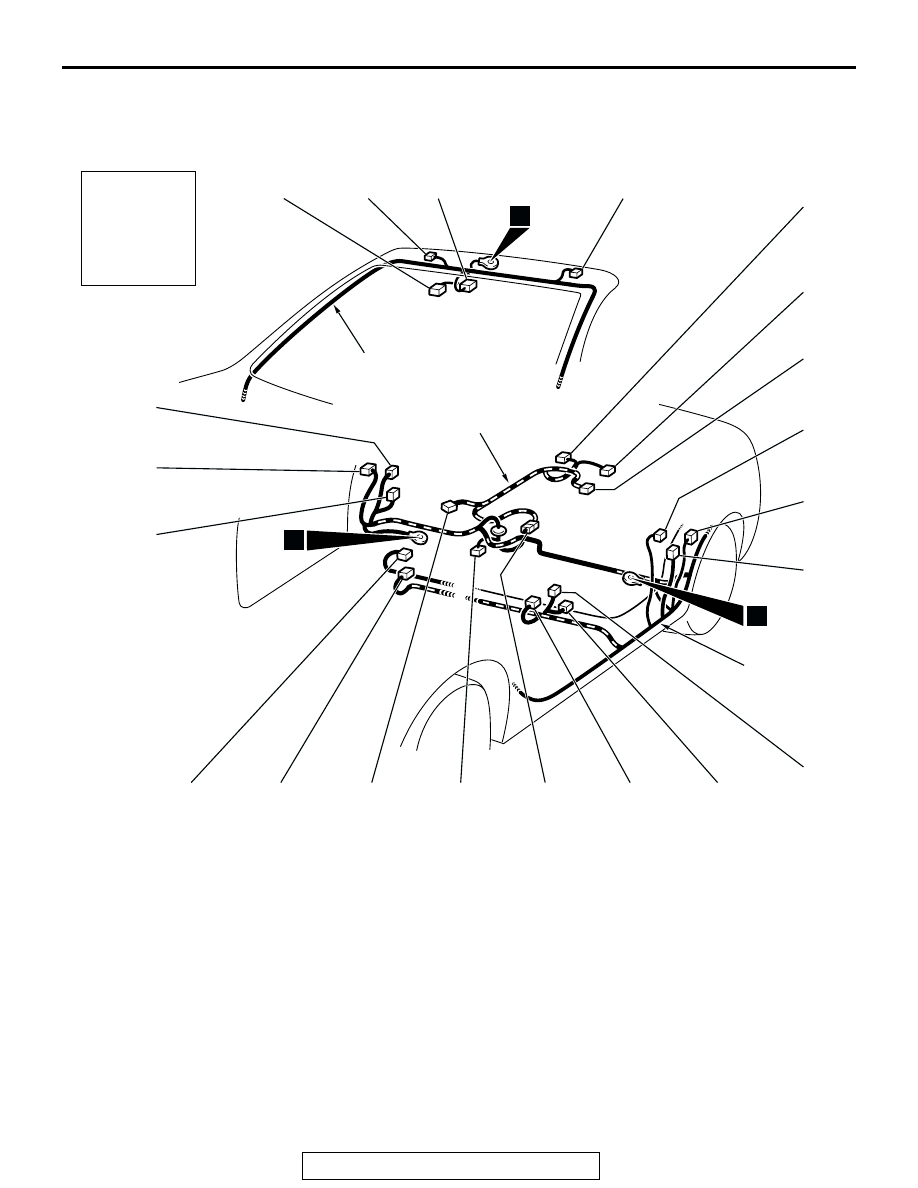

FLOOR AND ROOF <ECLIPSE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-28

FLOOR AND ROOF <ECLIPSE>

M1801000900480

AC302551

Connector
symbol

D

AB

D-23

D-03 D-04
D-25

D-05

D-06

D-08

D-09

D-10

D-11

D-12

D-13

D-14

D-15

D-16

D-17

D-18

D-19

D-20

D-02

D-01

17

D-24

D-07

6

7

FUEL
WIRING
HARNESS

ROOF
WIRING
HARNESS

FLOOR
WIRING
HARNESS

D-01

(3)

DOOR SWITCH (RH)

D-02

(2)

SIDE IMPACT SENSOR (RH) <WITH
SIDE AIR BAG>

D-03

(7-B)

DOME LIGHT ASSEMBLY <WITH
SUNROOF, WITHOUT VANITY
MIRROR LIGHT>

D-04

(3)

DOME LIGHT ASSEMBLY
<WITHOUT SUNROOF>

D-05

(6-B)

SUNROOF SWITCH

D-06

(10)

SUNROOF MOTOR ASSEMBLY

D-07

(2)

VANITY MIRROR LIGHT (LH)

D-08

(2-GR)

WHEEL SPEED SENSOR (REAR:
RH) <ABS>

D-09

(2-B)

WHEEL SPEED SENSOR (REAR:
LH) <ABS>

D-10

(2-B)

EVAPORATIVE EMISSION
VENTILATION SOLENOID

D-11

(3)

DOOR SWITCH (LH)

D-12

(2)

SIDE IMPACT SENSOR (LH) <WITH
SIDE AIR BAG>

D-13

(2)

SEAT BELT SWITCH

D-14

(2)

POWER SEAT ASSEMBLY

D-15

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(LH)

D-16

(10-B)

FLOOR WIRING HARNESS AND
FUEL WIRING HARNESS
COMBINATION

D-17

(5-GR)

FUEL PUMP MODULE

D-18

(3-B)

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

D-19

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(RH)

D-20

(18)

AMPLIFIER <7-SPEAKER SYSTEM>

D-23

(5-B)

COMPASS SENSOR <MULTI
CENTER DISPLAY>

D-24

(2)

VANITY MIRROR LIGHT (RH)

D-25

(7-B)

DOME LIGHT ASSEMBLY <WITH
SUNROOF AND VANITY MIRROR
LIGHT>

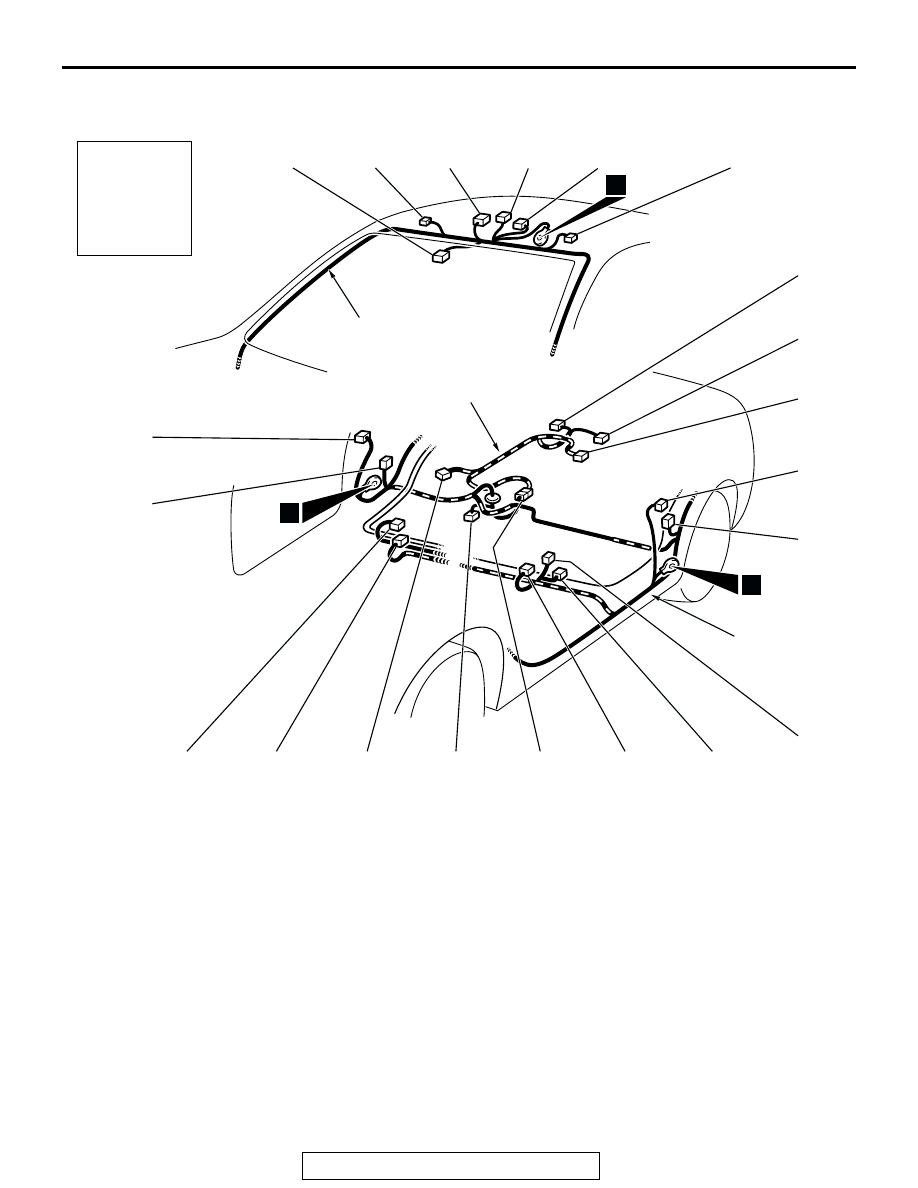

FLOOR AND WINDSHIELD APERTURE <ECLIPSE SPYDER>

TSB Revision

CONFIGURATION DIAGRAMS

80A-29

FLOOR AND WINDSHIELD APERTURE

<ECLIPSE SPYDER>

M1801000900491

AC302552

Connector
symbol

D

AB

D-23

D-03

D-07

D-08

D-09

D-10

D-22

D-12

D-13

D-14

D-15

D-16

D-17

D-18

D-19

D-20

D-02

D-01

D-11

D-21

17

D-24

6

7

FUEL
WIRING
HARNESS

ROOF
WIRING
HARNESS

FLOOR
WIRING
HARNESS

D-01

(3)

DOOR SWITCH (RH)

D-02

(2)

SIDE IMPACT SENSOR (RH) <WITH
SIDE AIR BAG>

D-03

(7-B)

DOME LIGHT ASSEMBLY

D-07

(2)

VANITY MIRROR LIGHT (LH)

D-08

(2-GR)

WHEEL SPEED SENSOR (REAR:
RH) <ABS>

D-09

(2-B)

WHEEL SPEED SENSOR (REAR:
LH) <ABS>

D-10

(2-B)

EVAPORATIVE EMISSION
VENTILATION SOLENOID

D-11

(3)

DOOR SWITCH (LH)

D-12

(2)

SIDE IMPACT SENSOR (LH) <WITH
SIDE AIR BAG>

D-13

(2)

SEAT BELT SWITCH

D-14

(2)

POWER SEAT ASSEMBLY

D-15

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(LH)

D-16

(10-B)

FLOOR WIRING HARNESS AND
FUEL WIRING HARNESS
COMBINATION

D-17

(5-GR)

FUEL PUMP MODULE

D-18

(3-B)

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

D-19

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(RH)

D-20

(18)

AMPLIFIER <7-SPEAKER SYSTEM>

D-21

(2-B)

REAR SPEAKER (RH)

D-22

(2-B)

REAR SPEAKER (LH)

D-23

(5-B)

COMPASS SENSOR <MULTI
CENTER DISPLAY>

D-24

(2)

VANITY MIRROR LIGHT (RH)

DOOR

TSB Revision

CONFIGURATION DIAGRAMS

80A-30

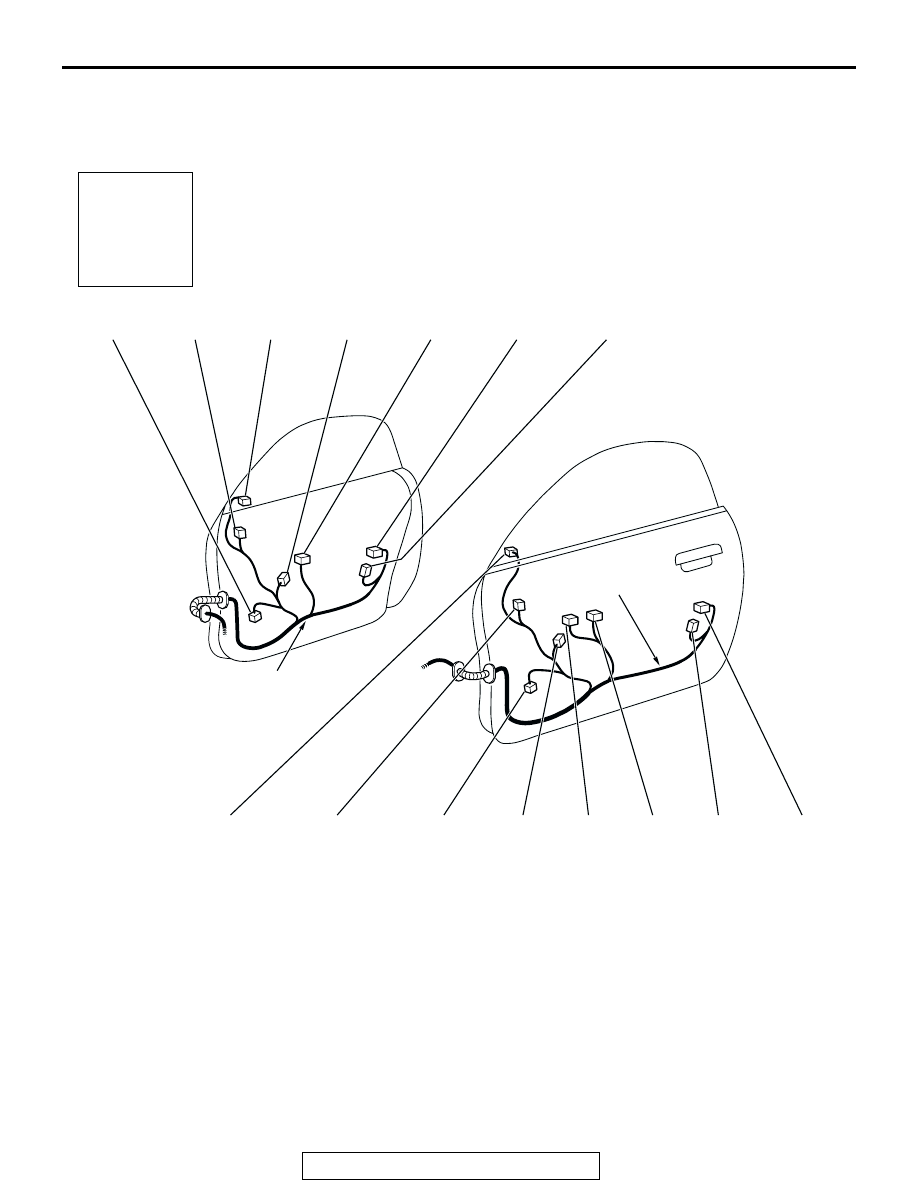

DOOR

M1801001400295

AC106120

Connector
symbol

E

AB

E-01

E-02

E-03

E-04

E-05

E-06

E-07

E-08

E-09

E-10

E-11

E-12

E-13

E-14

DOOR WIRING
HARNESS (LH)

DOOR WIRING
HARNESS (RH)

E-15

E-01

(2)

DOOR SPEAKER (RH)

E-02

(5)

REMOTE CONTROLLED MIRROR
(RH)

E-03

(2)

TWEETER (RH) <6, 7-SPEAKER
SYSTEM>

E-04

(2)

POWER WINDOW MOTOR (RH)

E-05

(8)

POWER WINDOW SUB SWITCH

E-06

(3-B)

DOOR LOCK KEY CYLINDER
SWITCH (RH) <WITHOUT KEYLESS
ENTRY SYSTEM>

E-07

(6-B)

DOOR LOCK ACTUATOR (RH)

E-08

(2)

TWEETER (LH) <6, 7-SPEAKER
SYSTEM>

E-09

(5)

REMOTE CONTROLLED MIRROR
(LH)

E-10

(2)

DOOR SPEAKER (LH)

E-11

(2)

POWER WINDOW MOTOR (LH)

E-12

(10)

POWER WINDOW MAIN SWITCH

E-13

(6-B)

DOOR LOCK ACTUATOR (LH)

E-14

(3-B)

DOOR LOCK KEY CYLINDER
SWITCH (LH)

E-15

(9)

REMOTE CONTROLLED MIRROR
SWITCH <ECLIPSE>
