Mitsubishi Canter (FE, FG). Manual - part 68

9 Technical  data

9.16 Electrical wiring diagram

272

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

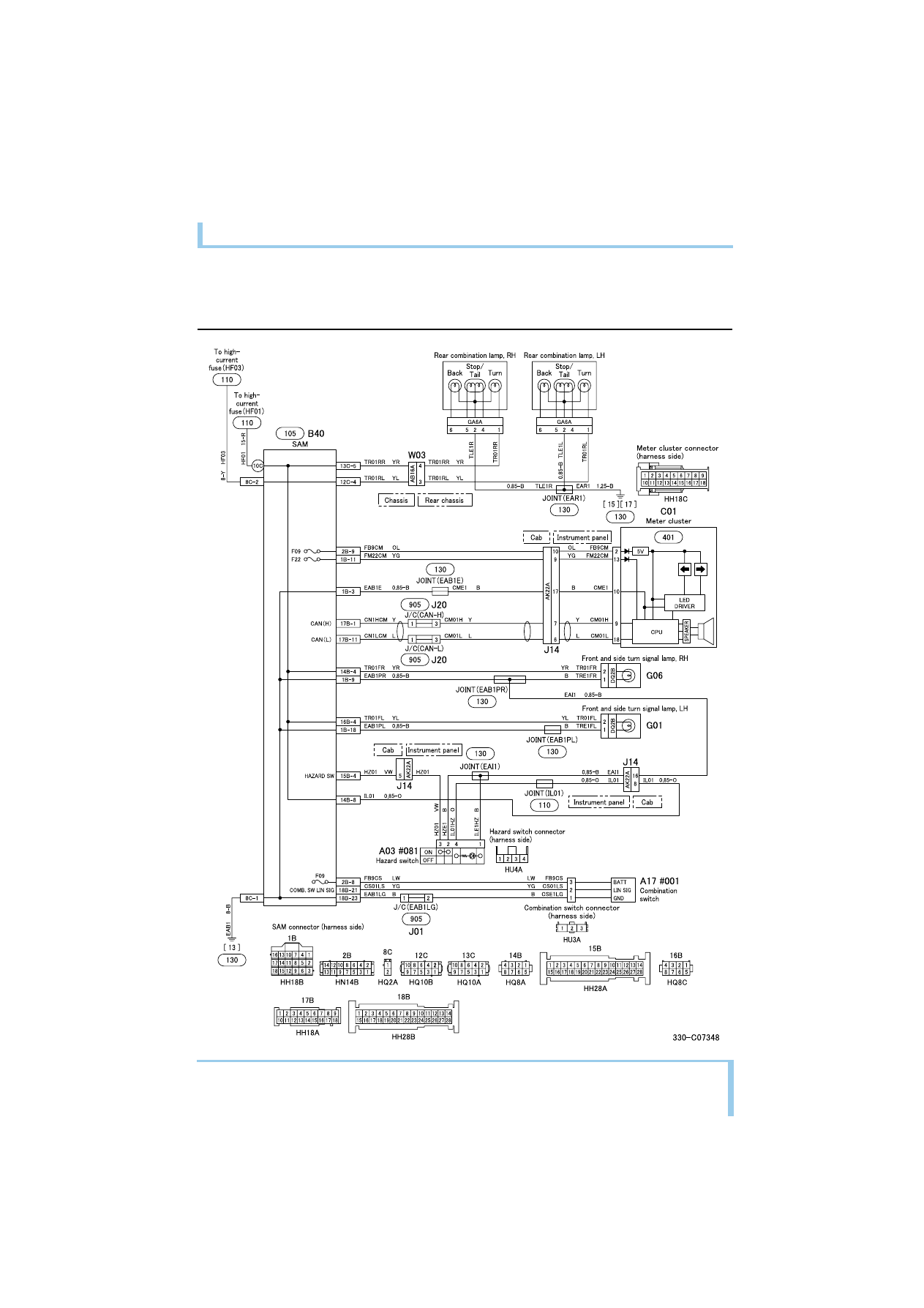

TURN SIGNAL AND HAZARD LAMP CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

273

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

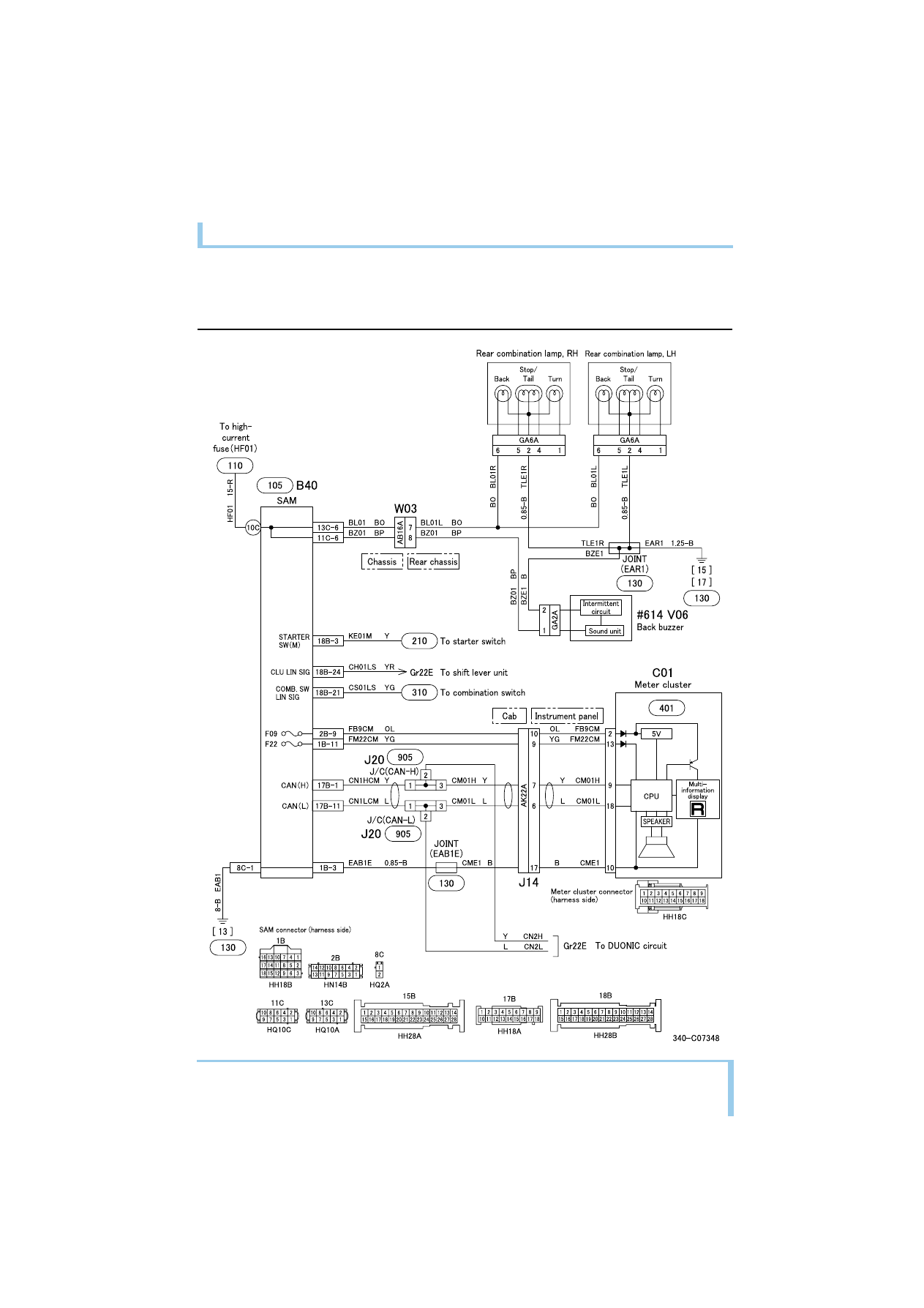

BACKUP LAMP CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

274

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

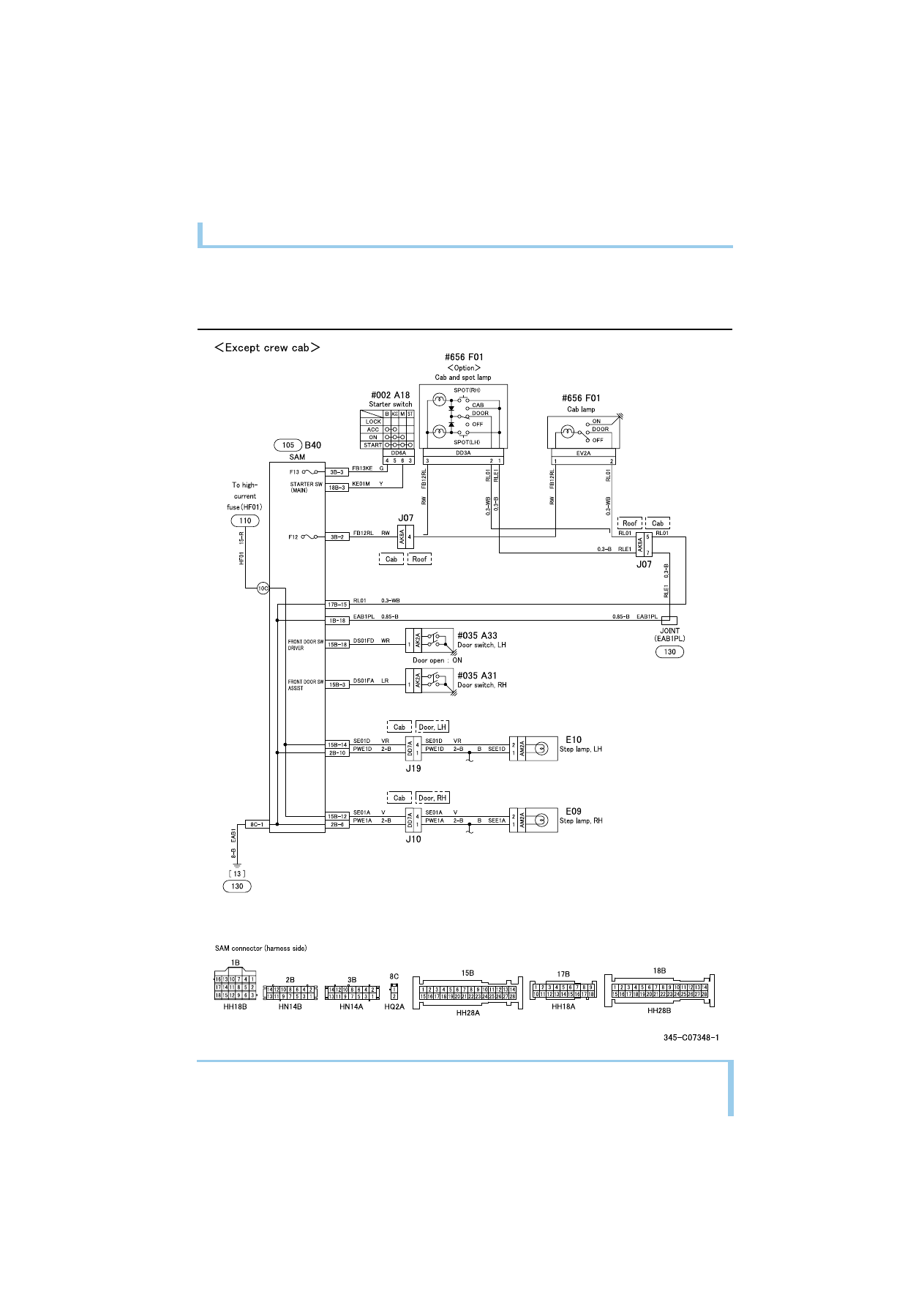

CAB LAMP CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

275

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

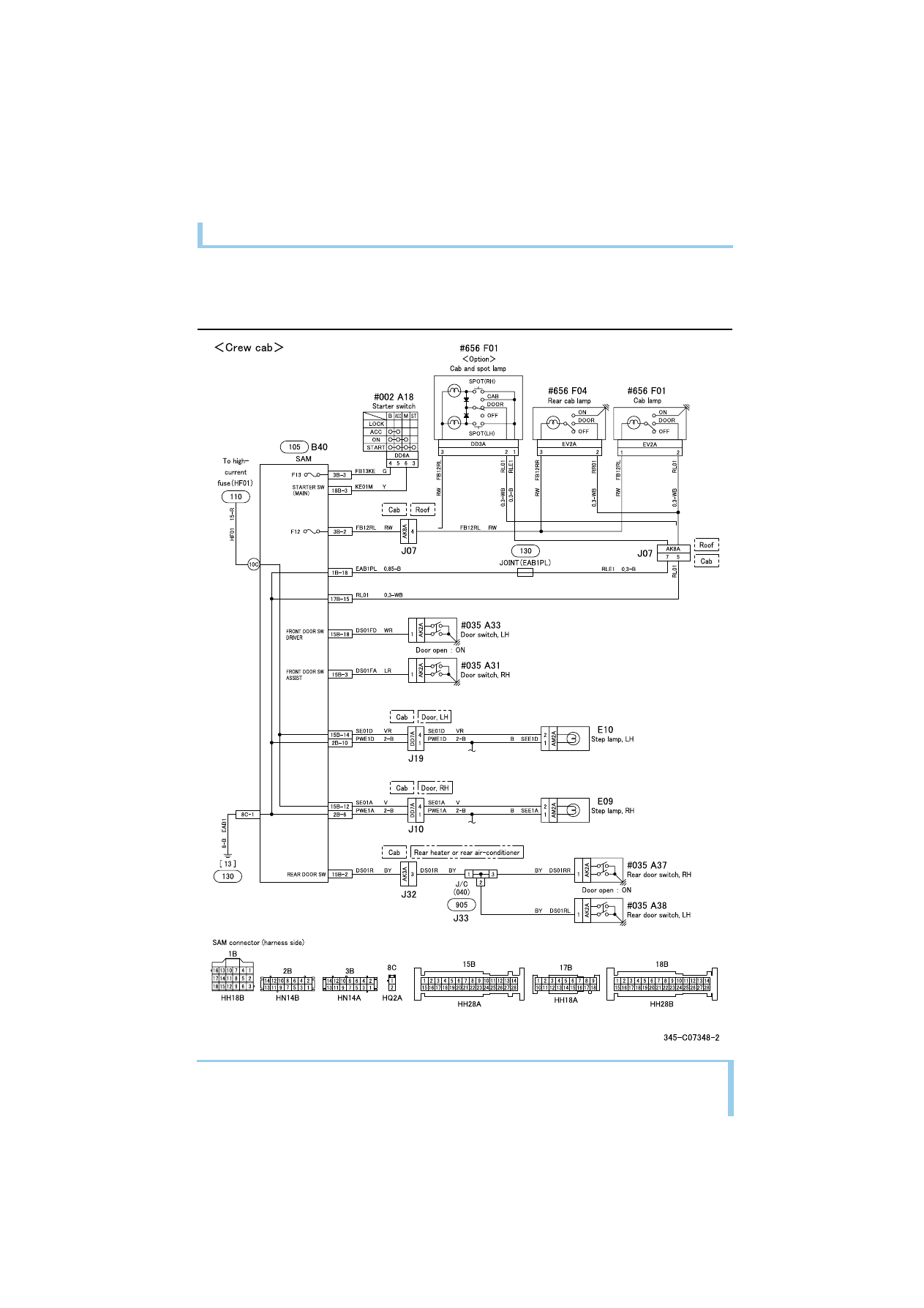

CAB LAMP CIRCUIT
