TROUBLESHOOTING
ANTI-SKID BRAKING SYSTEM (ABS)
35B-11
STEP 2. Check whether the diagnosis code is
reset.
CAUTION
Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the diagnosis code.
(3) Turn the ignition switch to the "LOCK" (OFF)
position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the diagnosis code is set.
(6) Turn the ignition switch to the "LOCK" (OFF)
position.
Q: Is code No.C1200, C1205, C1210 or C1215 set?
YES :
Go to Step 3.
NO :
The procedure is complete.
STEP 3. MUT-III data list
CAUTION
Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.

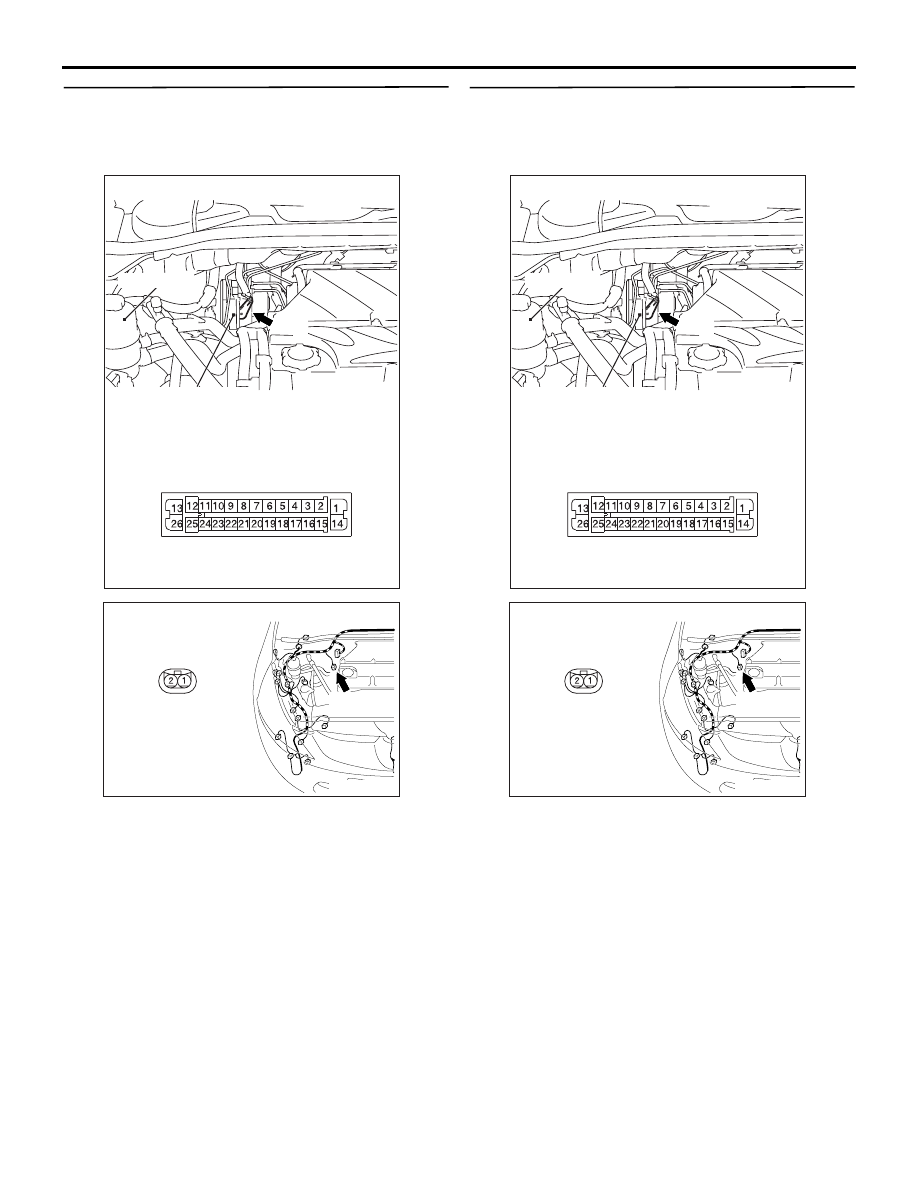

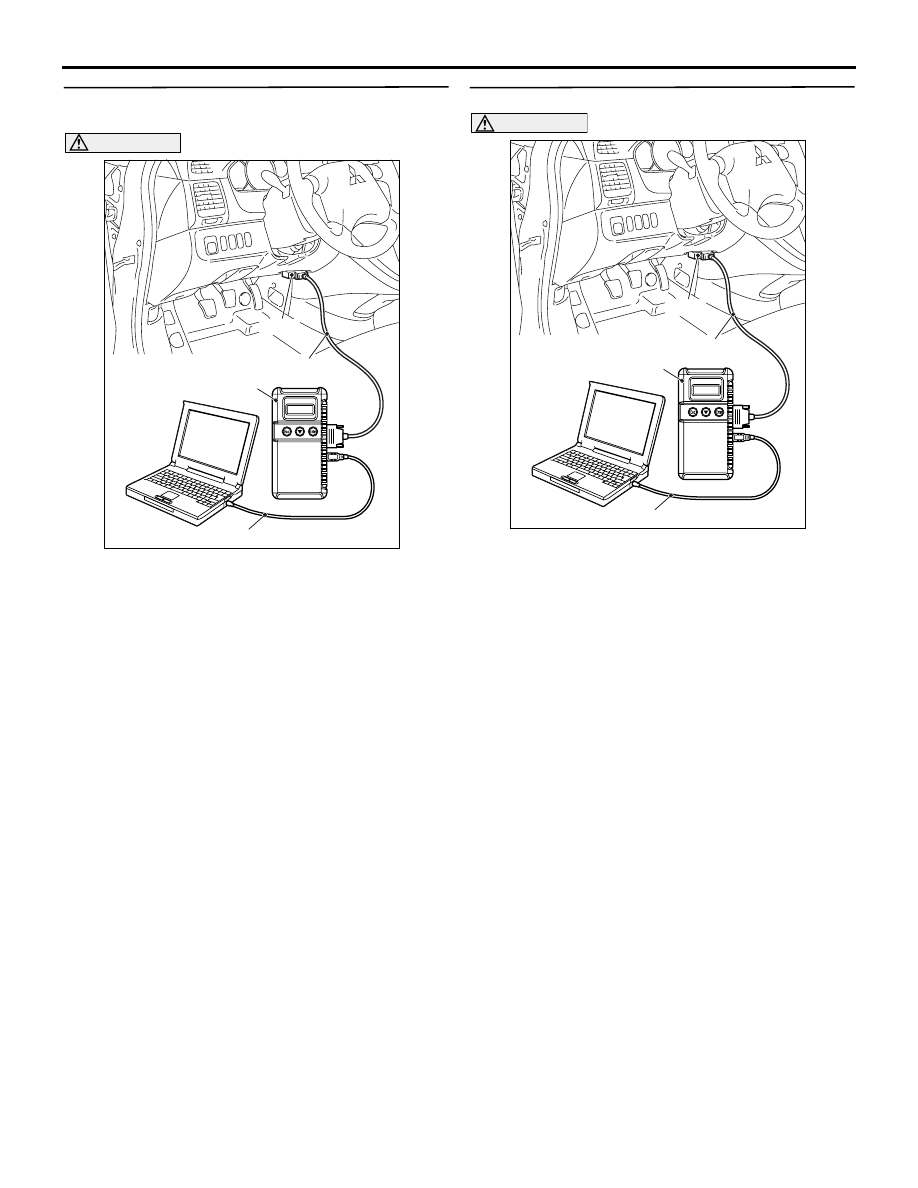

(1) Connect MUT-III to the 16-pin diagnosis
connector.
(2) Start the engine.
(3) Set MUT-III to the data reading mode, and check
the data list items by driving the vehicle.
• Item 01 (Code No.C1200 is set): Front right
wheel speed sensor
• Item 02 (Code No.C1205 is set): Front left
wheel speed sensor
• Item 03 (Code No.C1210 is set): Rear right
wheel speed sensor
• Item 04 (Code No.C1215 is set): Rear left
wheel speed sensor
(4) Turn the ignition switch to the "LOCK" (OFF)
position.
Q: Does the speedometer indication match the MUT-III
indication?
YES :
It can be assumed that this malfunction is
intermittent. Refer to GROUP 00, How to
Use Troubleshooting/Inspection Service
Points
− How to Cope with Intermittent
Malfunction
.
NO :

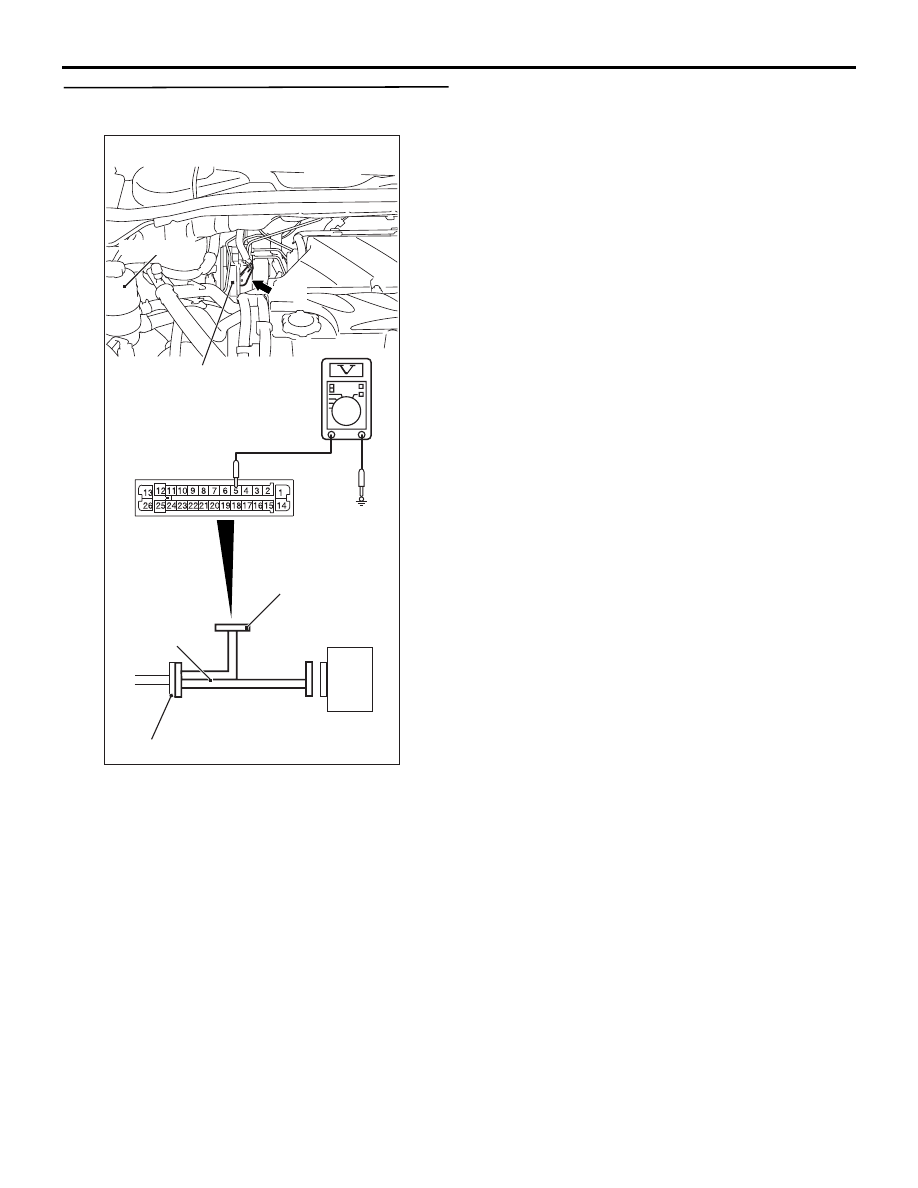

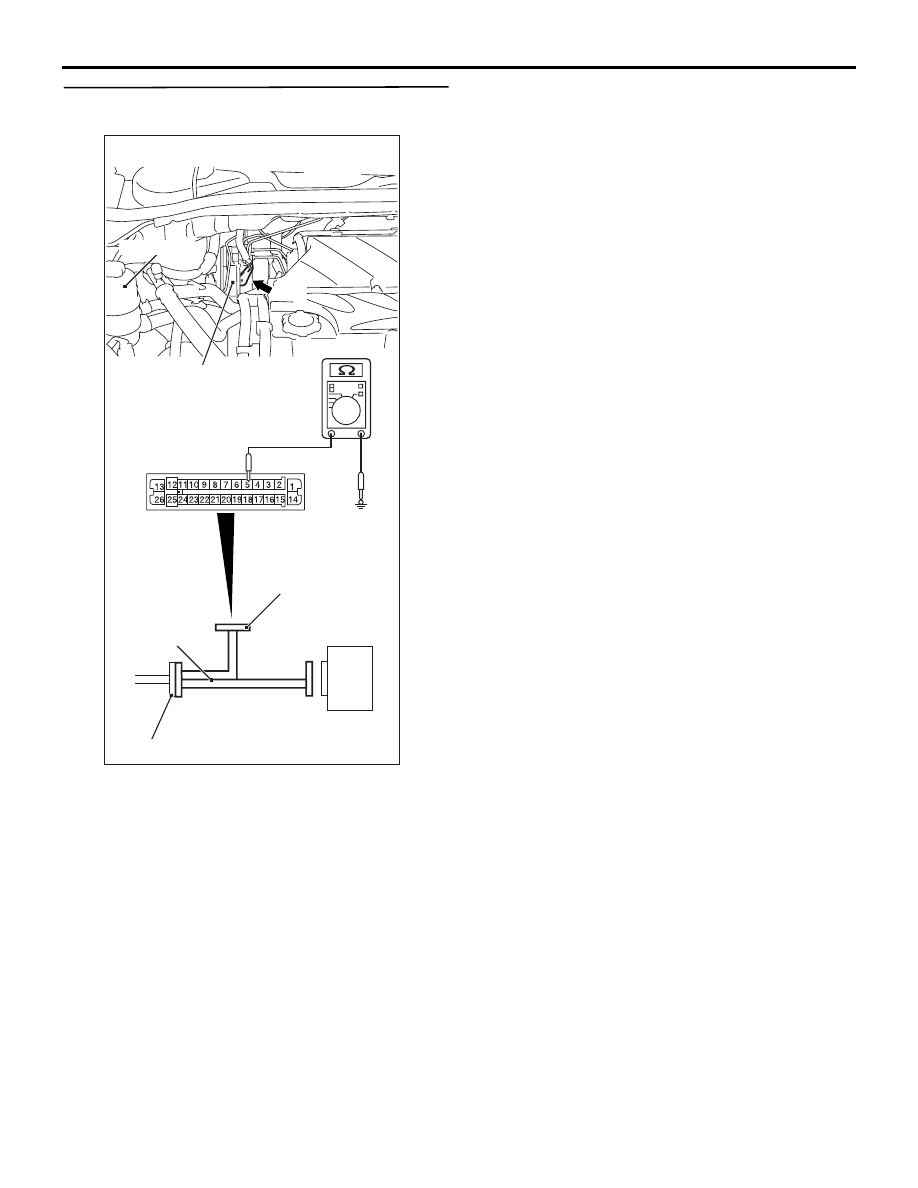

Go to Step 4.
