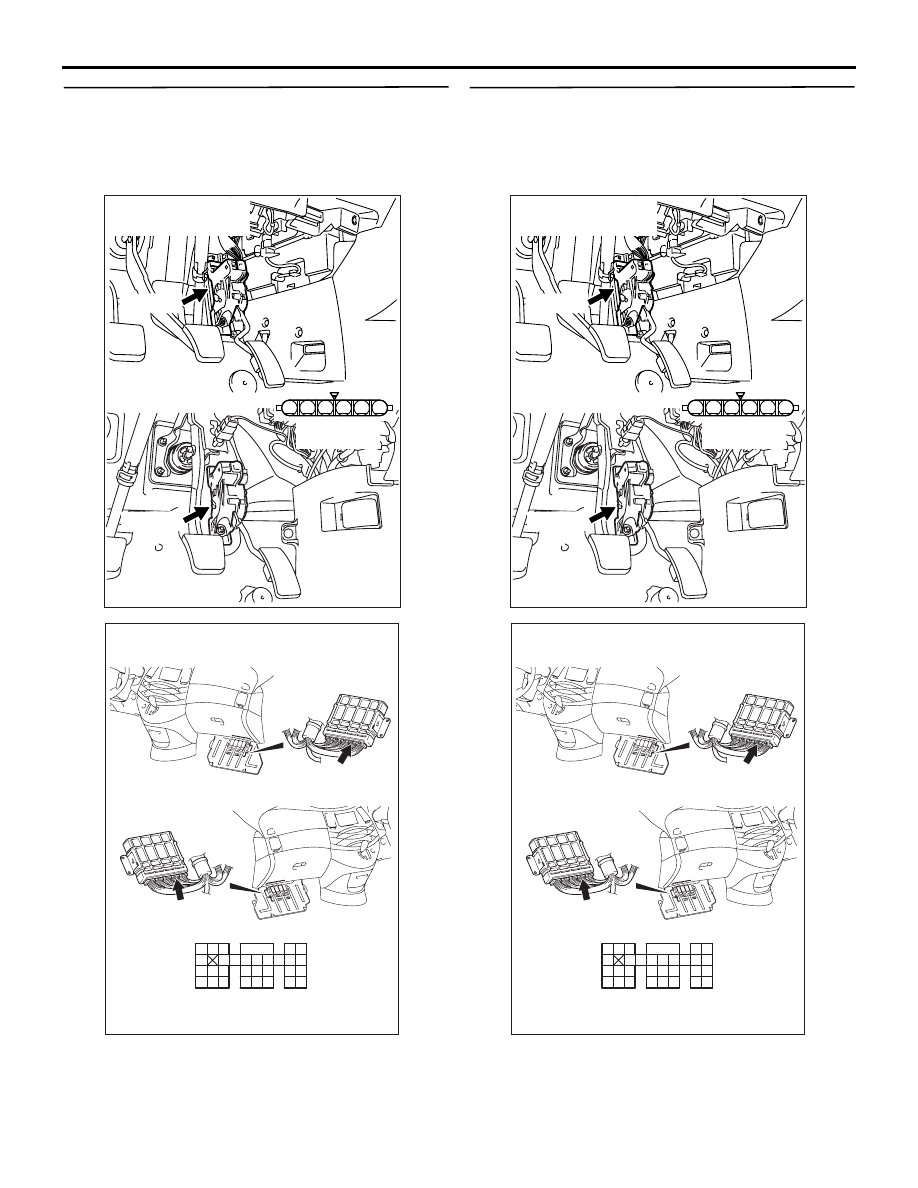

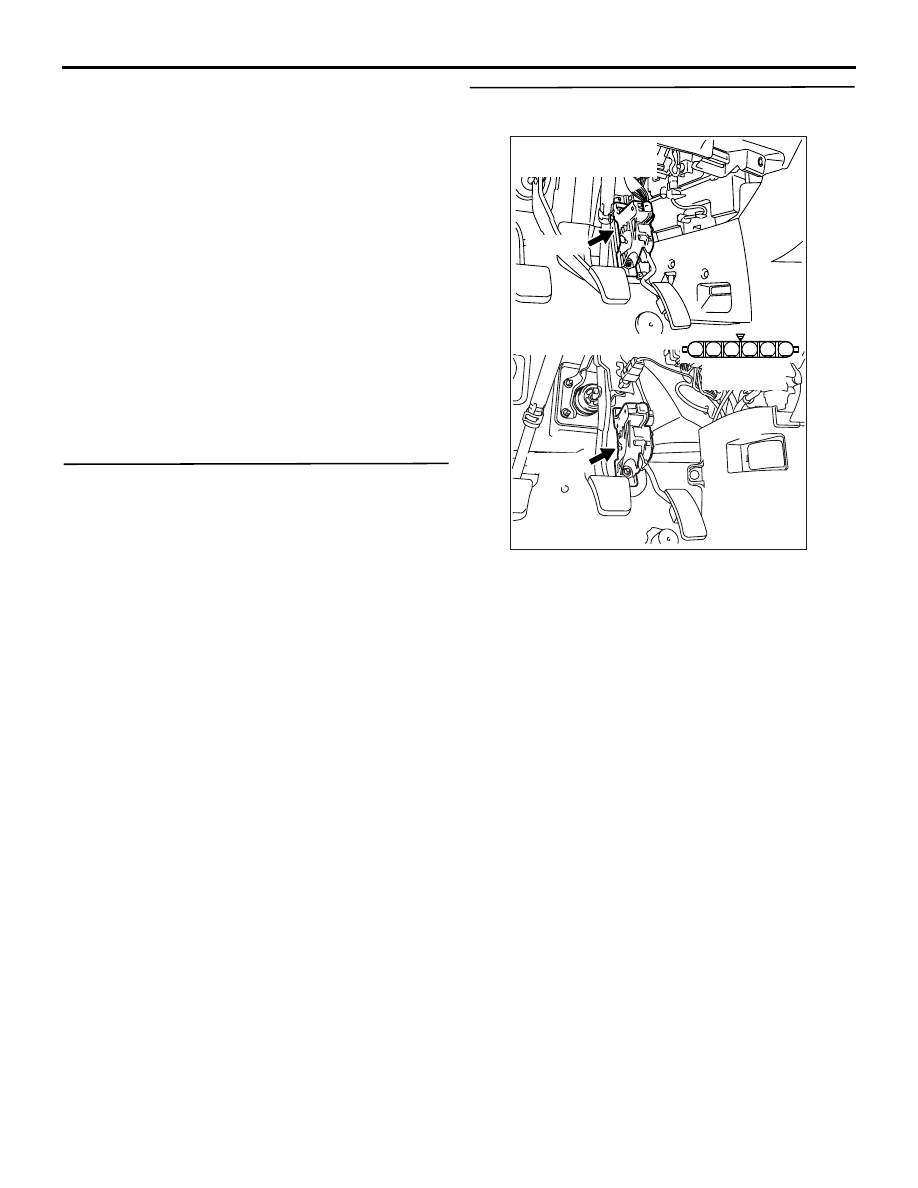

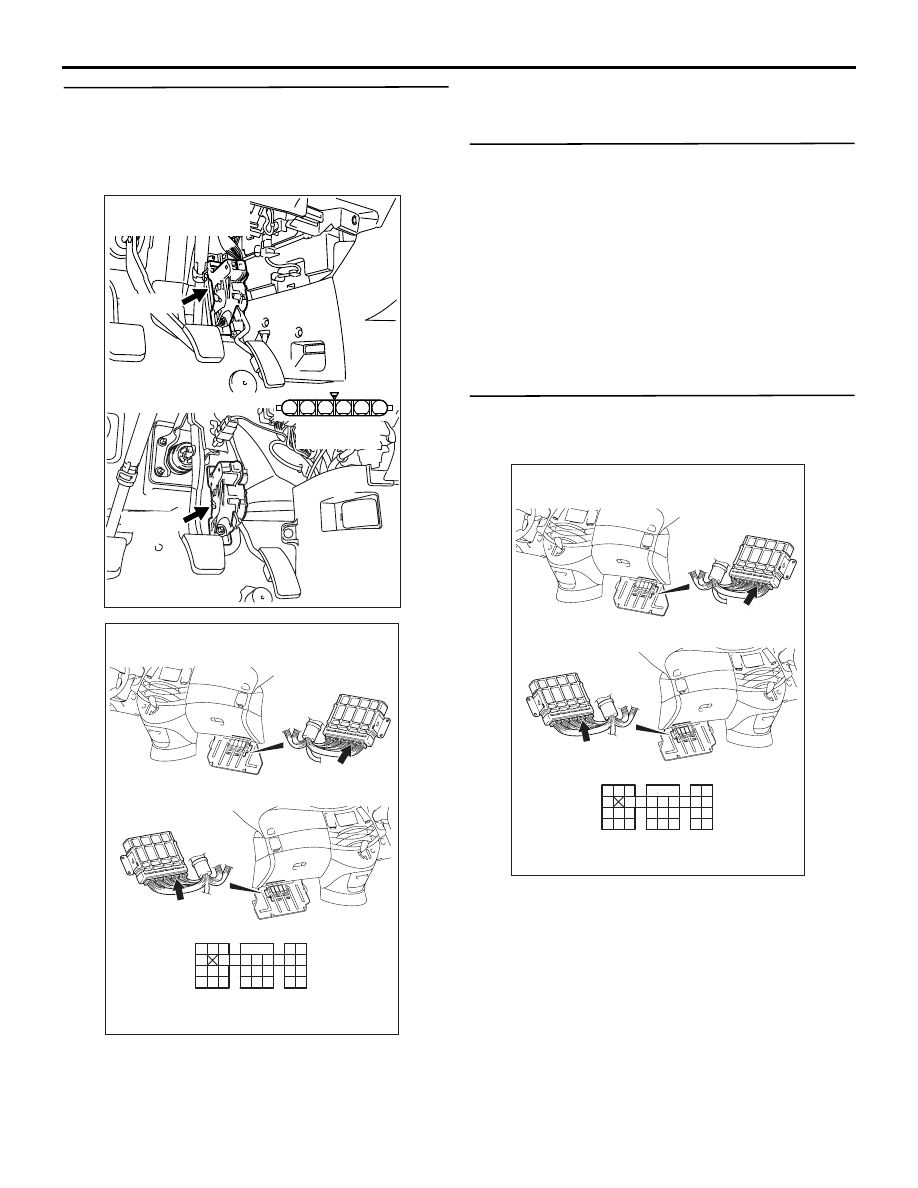

TROUBLESHOOTING MULTIPORT FUEL INJECTION (MPI) 13A-259 STEP 5. Check harness between C-102 (terminal • Check power supply line for open/short circuit. Q: Is the check result normal? YES : Go to Step 6 . NO : Repair. STEP 6. MUT-III data list • Refer to Data List Reference Table a. Item 77: Accelerator pedal position sensor (sub) Q: Is the check result normal? YES : Intermittent malfunction (Refer to GROUP 00 − How to Use Troubleshooting/Inspection Service Points ). NO : Replace engine-ECU <M/T> or STEP 7. Connector check: C-113 engine-ECU Q: Is the check result normal? YES : Go to Step 8 . NO : Repair or replace. AK305627 1 6 5 4 3 2 Connector: C-102 AB C-102 (B) Harness side C-102 (B) <L.H. drive vehicles> <R.H. drive vehicles> AK305616AB Connector: C-113 <L.H. drive vehicles> <R.H. drive vehicles> C-113 (GR) C-113 (GR) 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 Harness side connector AK305616AB Connector: C-113 <L.H. drive vehicles> <R.H. drive vehicles> C-113 (GR) C-113 (GR) 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 Harness side connector |
