TROUBLESHOOTING
MULTIPORT FUEL INJECTION (MPI)
13A-227

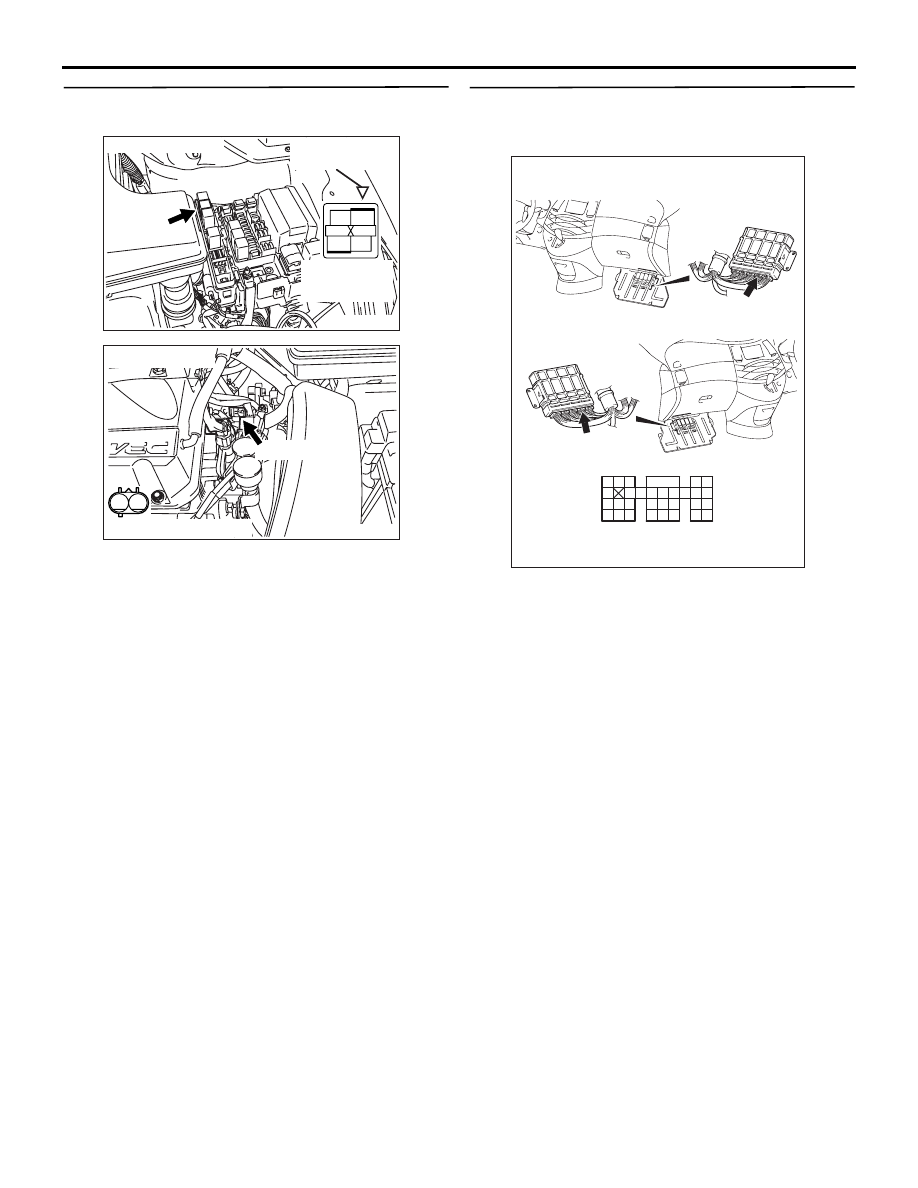

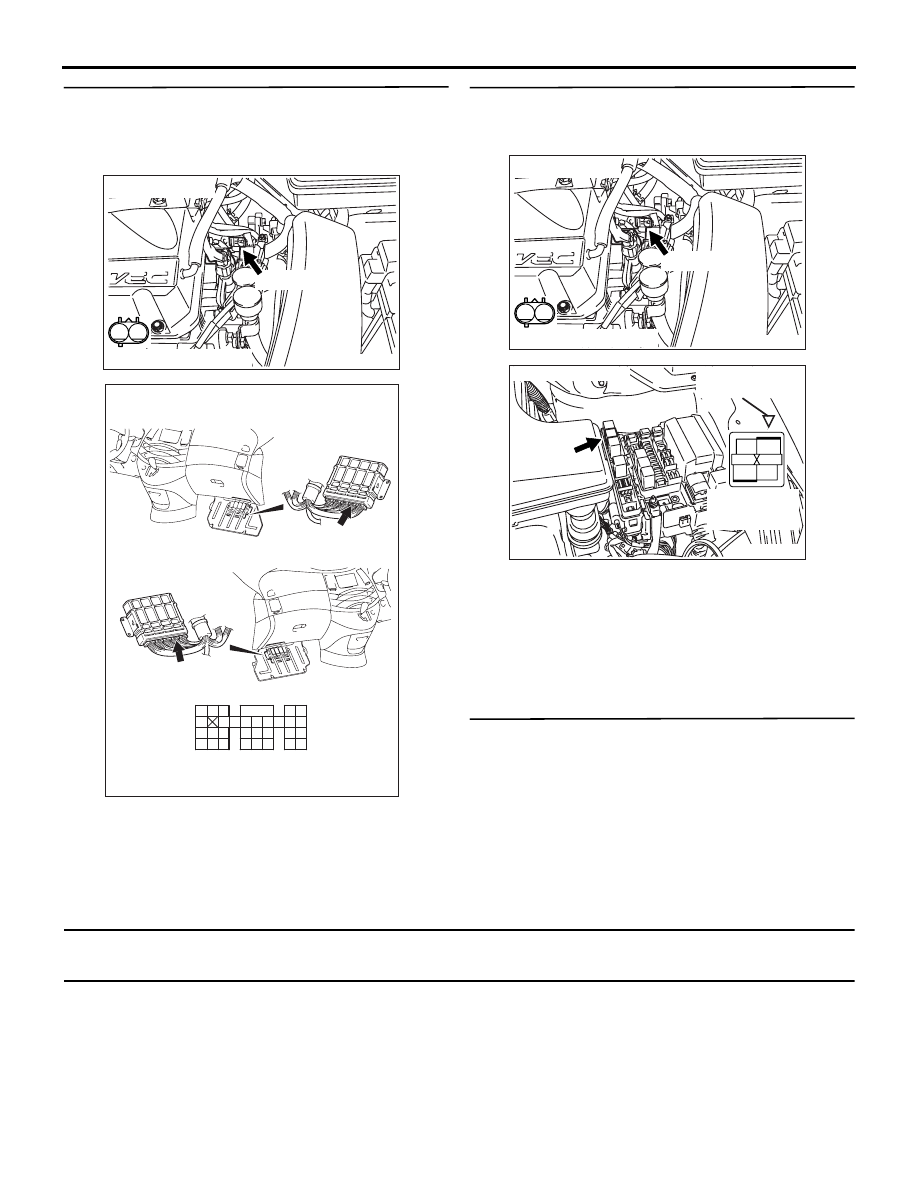

STEP 4. Connector check: B-15X engine control
relay connector
Q: Is the check result normal?
YES :
Check intermediate connector C-116, and
repair if necessary. If intermediate
connector is normal, check and repair
harness between B-07 (terminal No. 1) oil
control valve connector and B-15X (terminal
No. 1) engine control relay connector.
• Check power line for open/short
circuit.
NO :
Repair or replace.

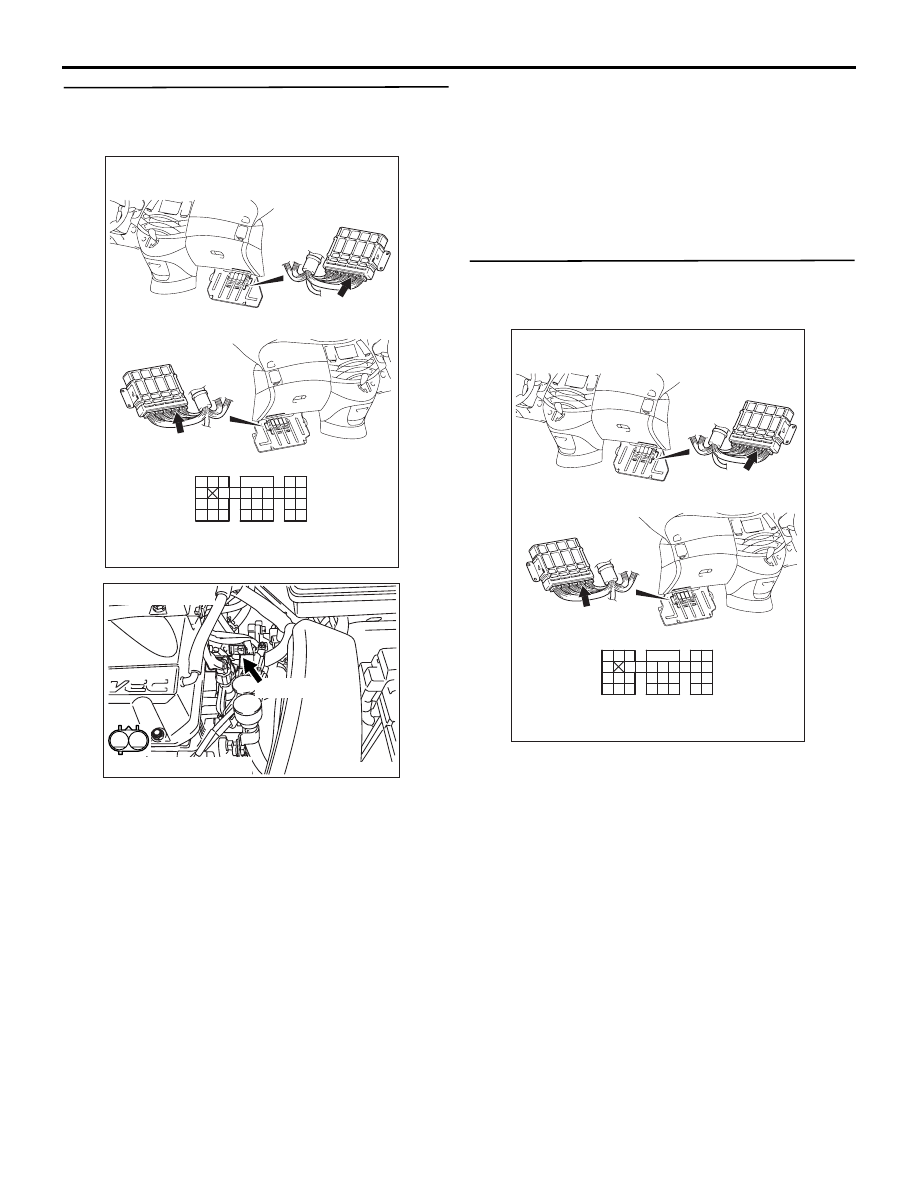

STEP 5. Perform voltage measurement at C-113
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.
• Disconnect connector, and measure at harness
side.
• Ignition switch: ON
• Voltage between terminal No. 95 and earth.
OK: System voltage
Q: Is the check result normal?
YES :
Go to Step 7 .
NO :
Go to Step 6 .
AK300967
2
1
3
4
AC
Harness side
connector
B-15X
Connector: B-15X
Relay box’s
triangle marks
AK300966
1
2
AC
B-07 (B)
Connector: B-07
Harness side connector
AK305616AB
Connector: C-113
<L.H. drive vehicles>
<R.H. drive vehicles>
C-113 (GR)
C-113 (GR)
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
Harness side connector
