TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-59

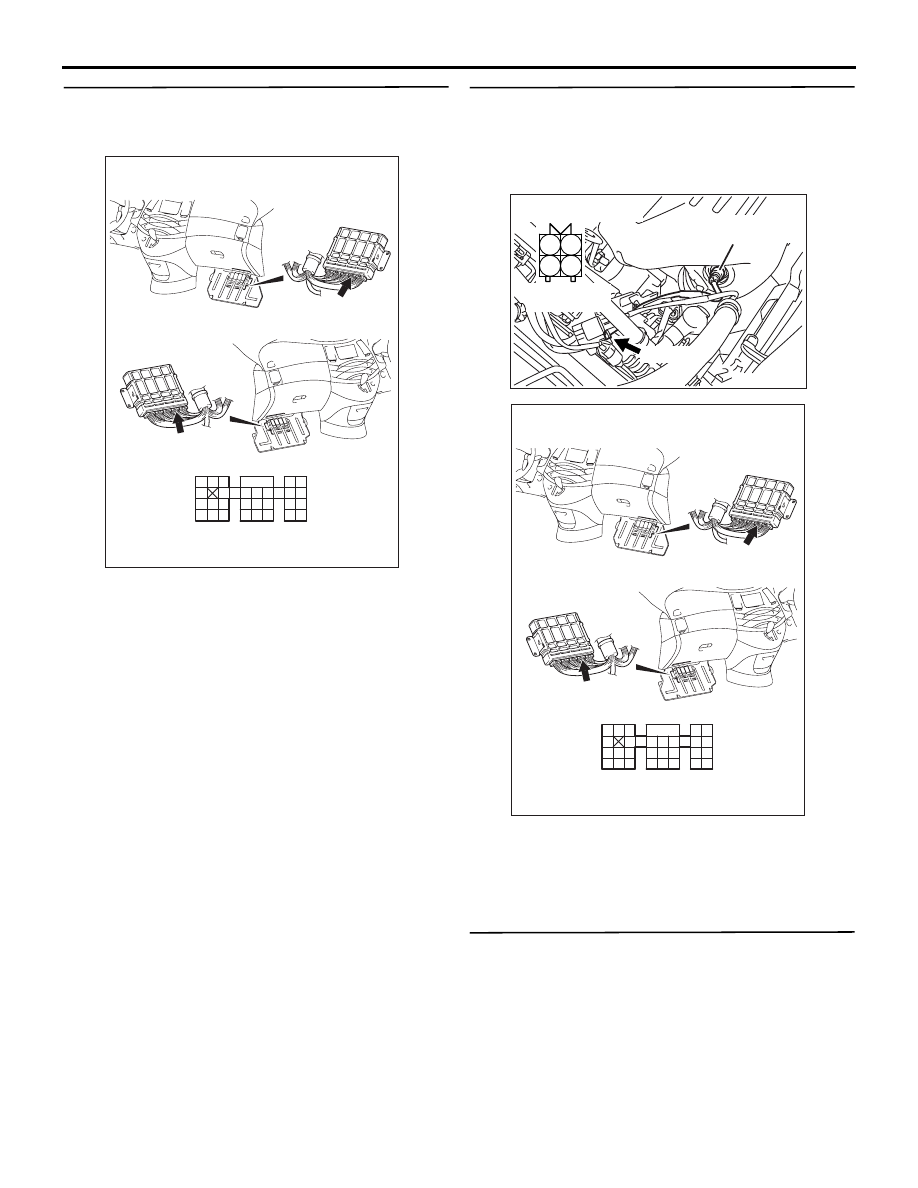

STEP 4. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace.

STEP 5. Check harness between B-22 (terminal
No. 2) cylinder 1, 4 oxygen sensor (front)
connector and C-113 (terminal No. 96)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair.

STEP 6. MUT-III data list

• Refer to Data List Reference Table

P.13A-363

.

a. Item 11: Cylinder 1, 4 oxygen sensor (front)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Replace engine-ECU <M/T> or
engine-A/T-ECU <A/T>.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300973

1

2

3

4

AB

ƒn![ƒlƒX‘¤

ƒRƒlƒNƒ^![

B-24 (

"•)

ƒRƒlƒNƒ^![

ƒRƒlƒNƒ^![: B-24

Harness side
connector

B-22 (GR)

Connector: B-22

Cylinder 1, 4 oxygen
sensor (front)

AC

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-60

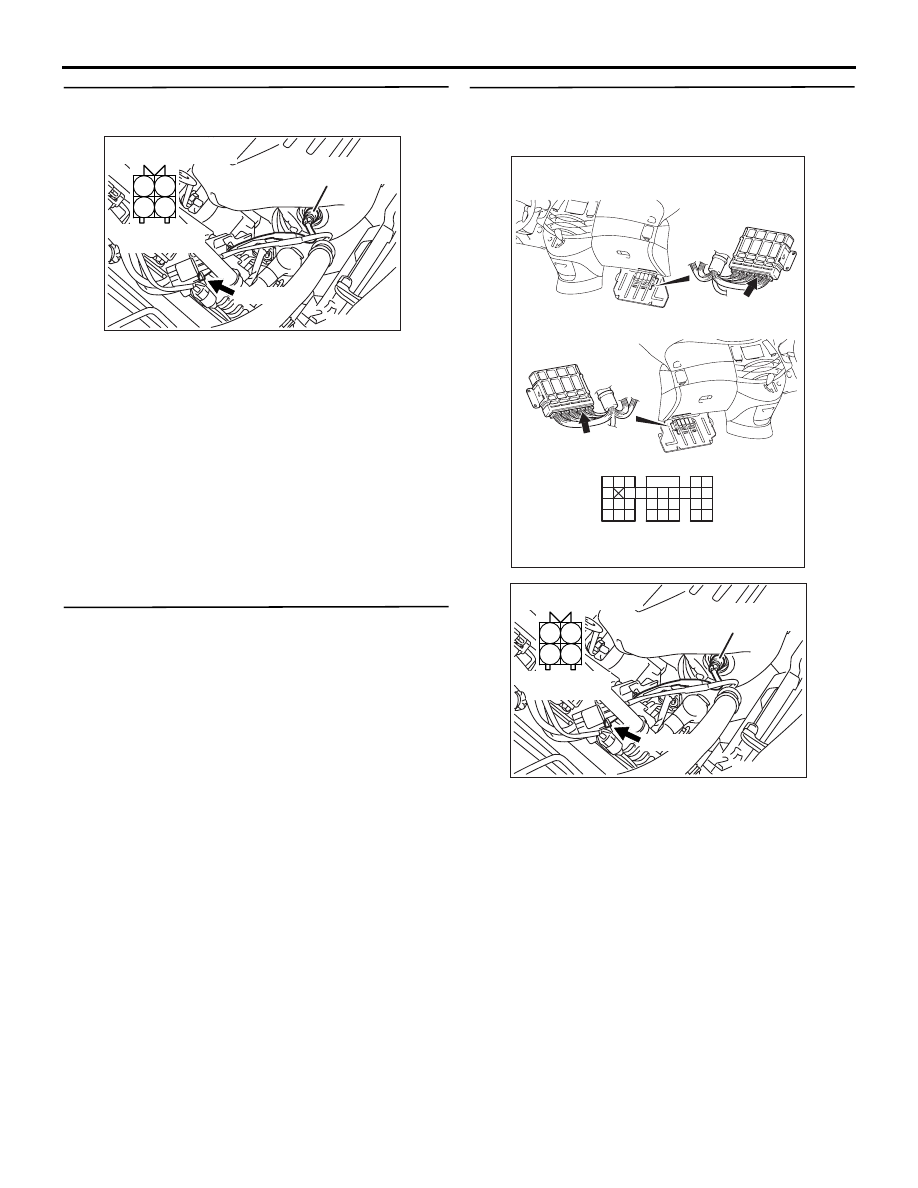

STEP 7. Perform voltage measurement at B-22
cylinder 1, 4 oxygen sensor (front) connector.

• Use special tool test harness (MB991316) to

connect connector, and measure at pick-up
harness.

• Engine: After warm-up

• Transmission: Neutral <M/T> or P range <A/T>.

• Voltage between terminal No. 4 and earth.

OK:

When the engine is 2,500 r/min, the output

voltage should repeat 0 to 0.8 V alternately.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 8 .

STEP 8. Check cylinder 1, 4 oxygen sensor
(front) itself.

• Check cylinder 1, 4 oxygen sensor (front) itself

(Refer to

P.13A-391

).

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Replace cylinder 1, 4 oxygen sensor (front).

STEP 9. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Check and repair harness between B-22

(terminal No. 4) Cylinder 1, 4 oxygen sensor
(front) connector and C-113 (terminal No.
109) engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

• Check output line for damage.

NO :

Repair or replace.

AK300973

1

2

3

4

AB

ƒn![ƒlƒX‘¤

ƒRƒlƒNƒ^![

B-24 (

"•)

ƒRƒlƒNƒ^![

ƒRƒlƒNƒ^![: B-24

Harness side
connector

B-22 (GR)

Connector: B-22

Cylinder 1, 4 oxygen
sensor (front)

AC

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300973

1

2

3

4

AB

ƒn![ƒlƒX‘¤

ƒRƒlƒNƒ^![

B-24 (

"•)

ƒRƒlƒNƒ^![

ƒRƒlƒNƒ^![: B-24

Harness side
connector

B-22 (GR)

Connector: B-22

Cylinder 1, 4 oxygen
sensor (front)

AC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-61

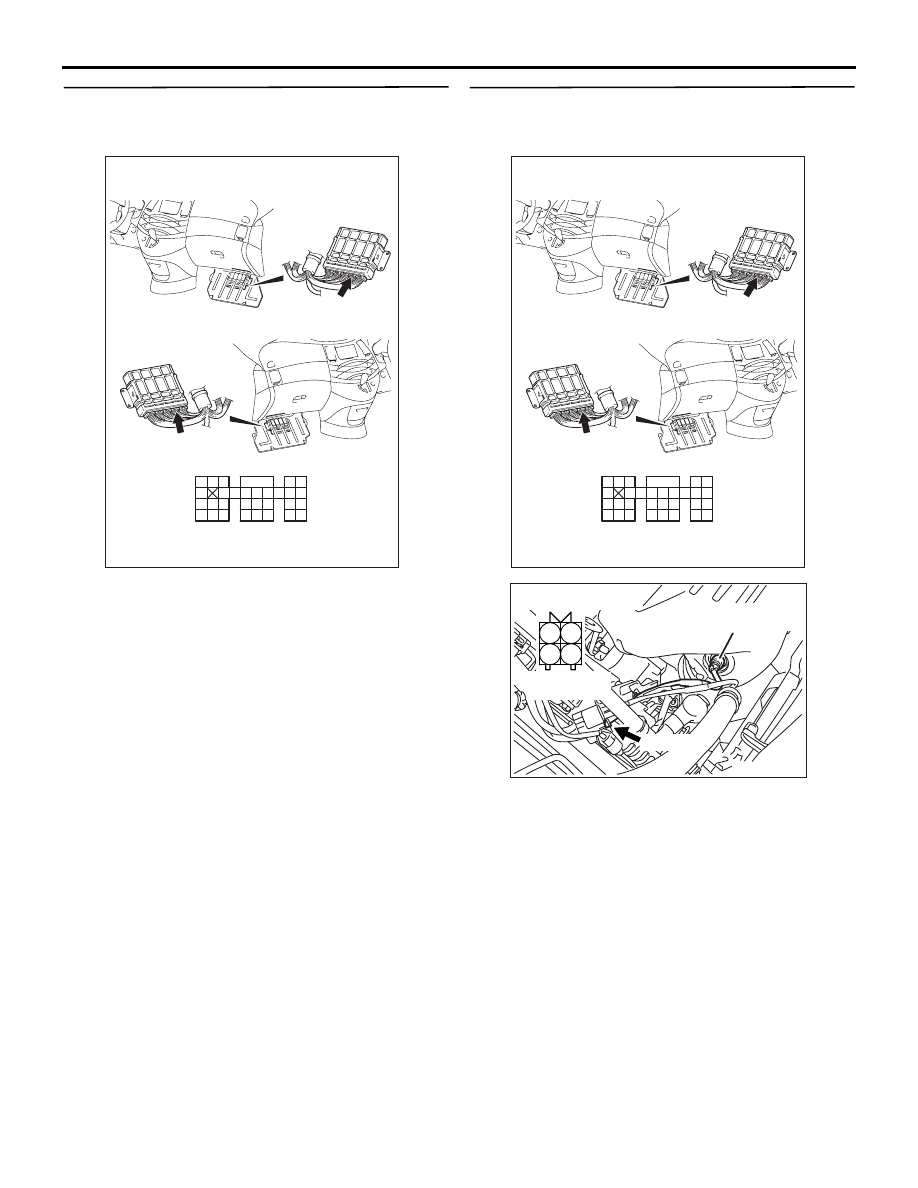

STEP 10. Perform voltage measurement at C-113
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Measure engine-ECU <M/T> or engine-A/T-ECU

<A/T> terminal voltage.

• Transmission: Neutral <M/T> or P range <A/T>

• Engine: After warm-up

• Voltage between terminal No. 109 and earth.

OK:

When the engine is 2,500 r/min, the output

voltage should repeat 0 to 0.8 V alternately.

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Go to Step 11 .

STEP 11. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Check and repair harness between B-22

(terminal No. 4) oxygen sensor (front)
connector and C-113 (terminal No. 109)
engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

• Check output line for open circuit.

NO :

Repair or replace.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300973

1

2

3

4

AB

ƒn![ƒlƒX‘¤

ƒRƒlƒNƒ^![

B-24 (

"•)

ƒRƒlƒNƒ^![

ƒRƒlƒNƒ^![: B-24

Harness side
connector

B-22 (GR)

Connector: B-22

Cylinder 1, 4 oxygen
sensor (front)

AC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-62

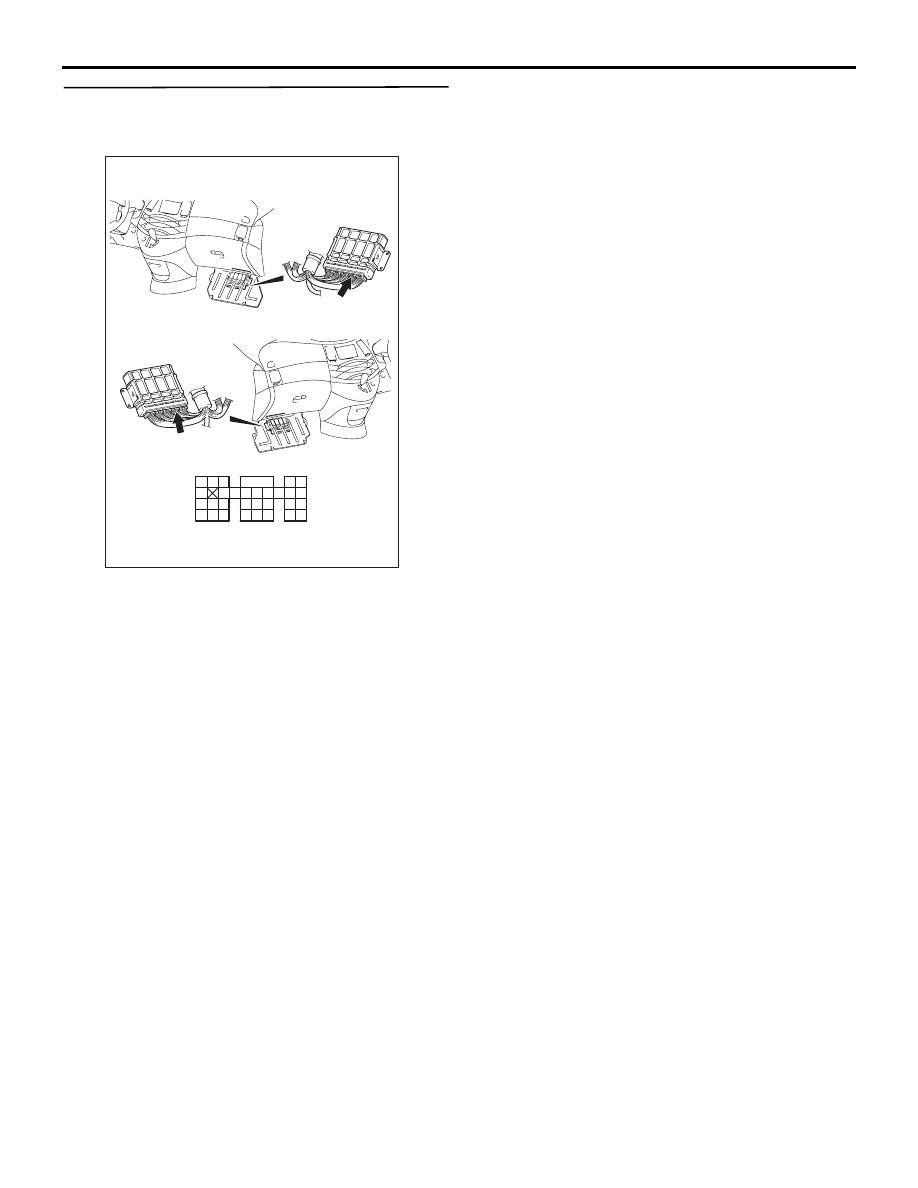

STEP 12. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector
