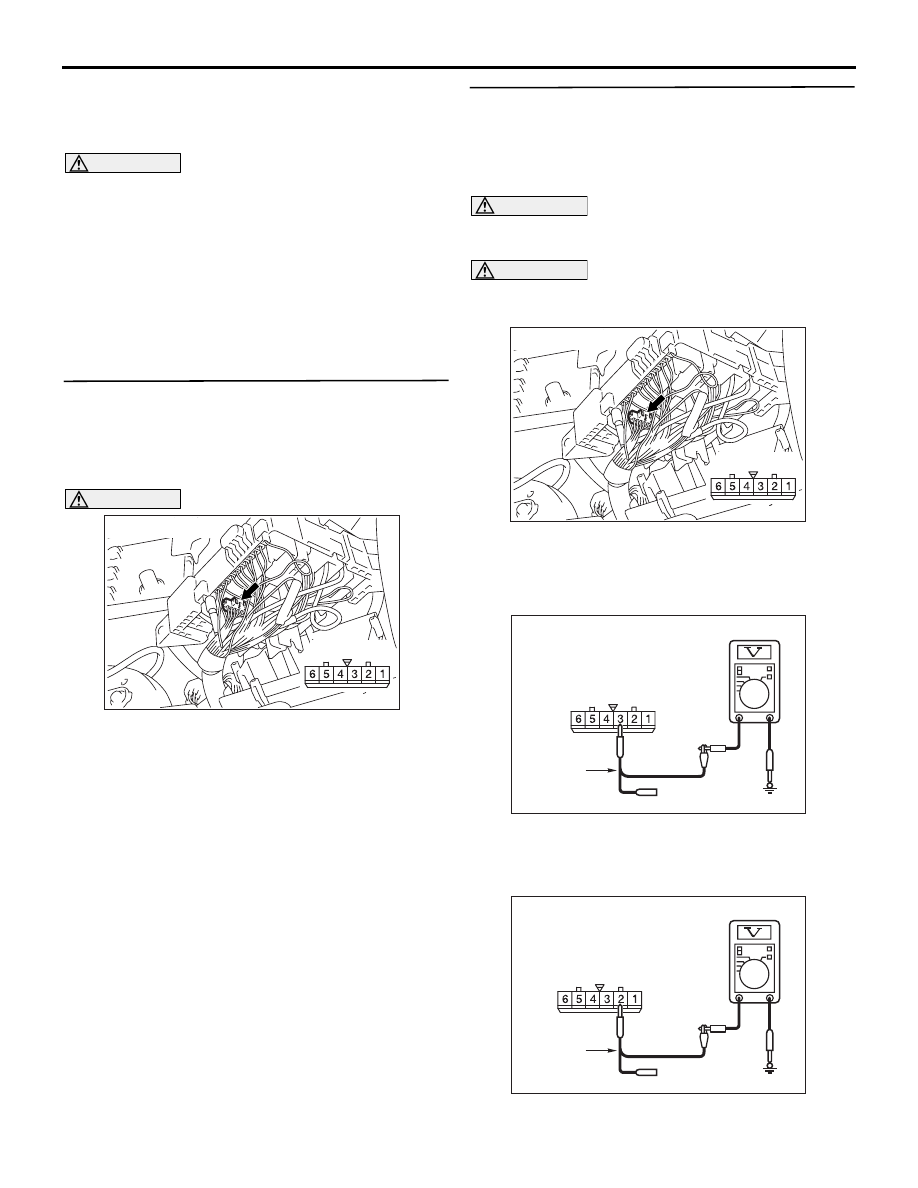

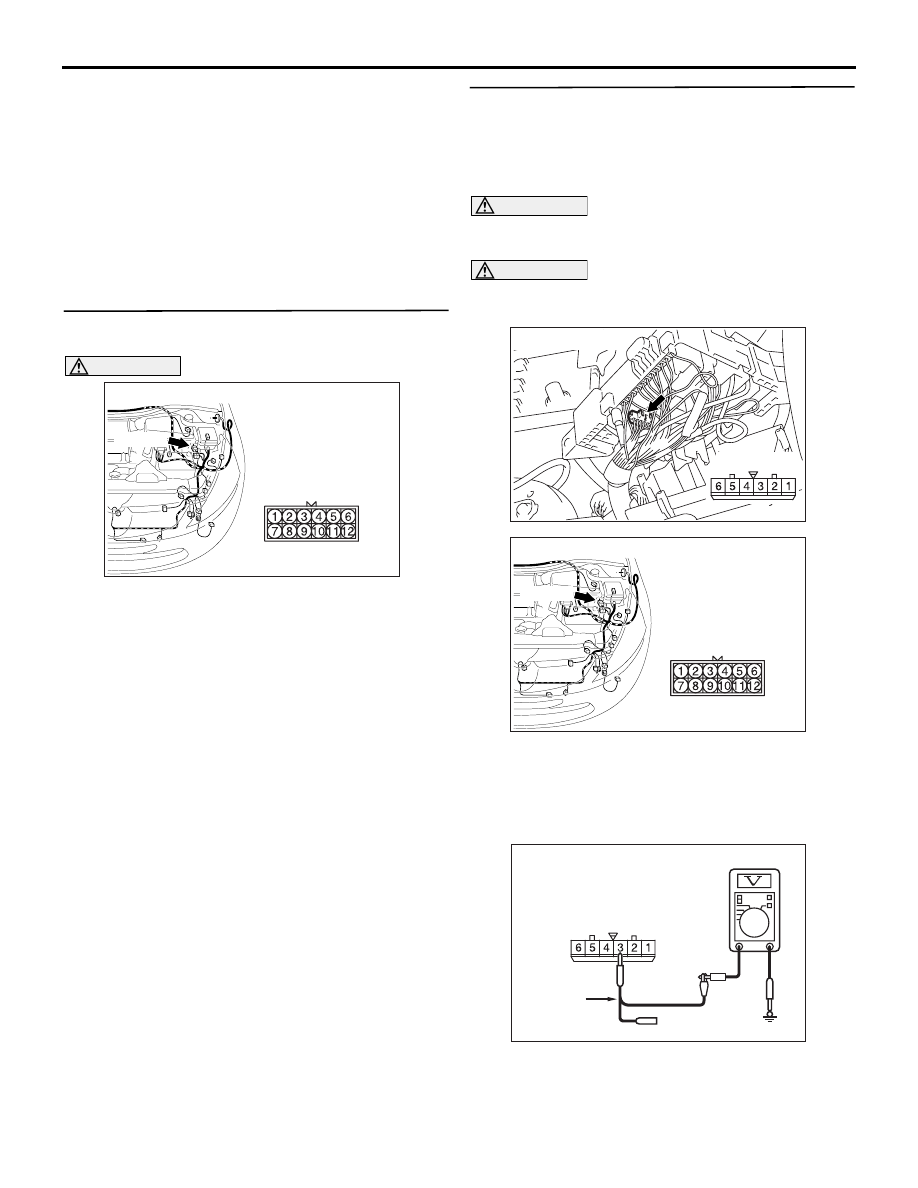

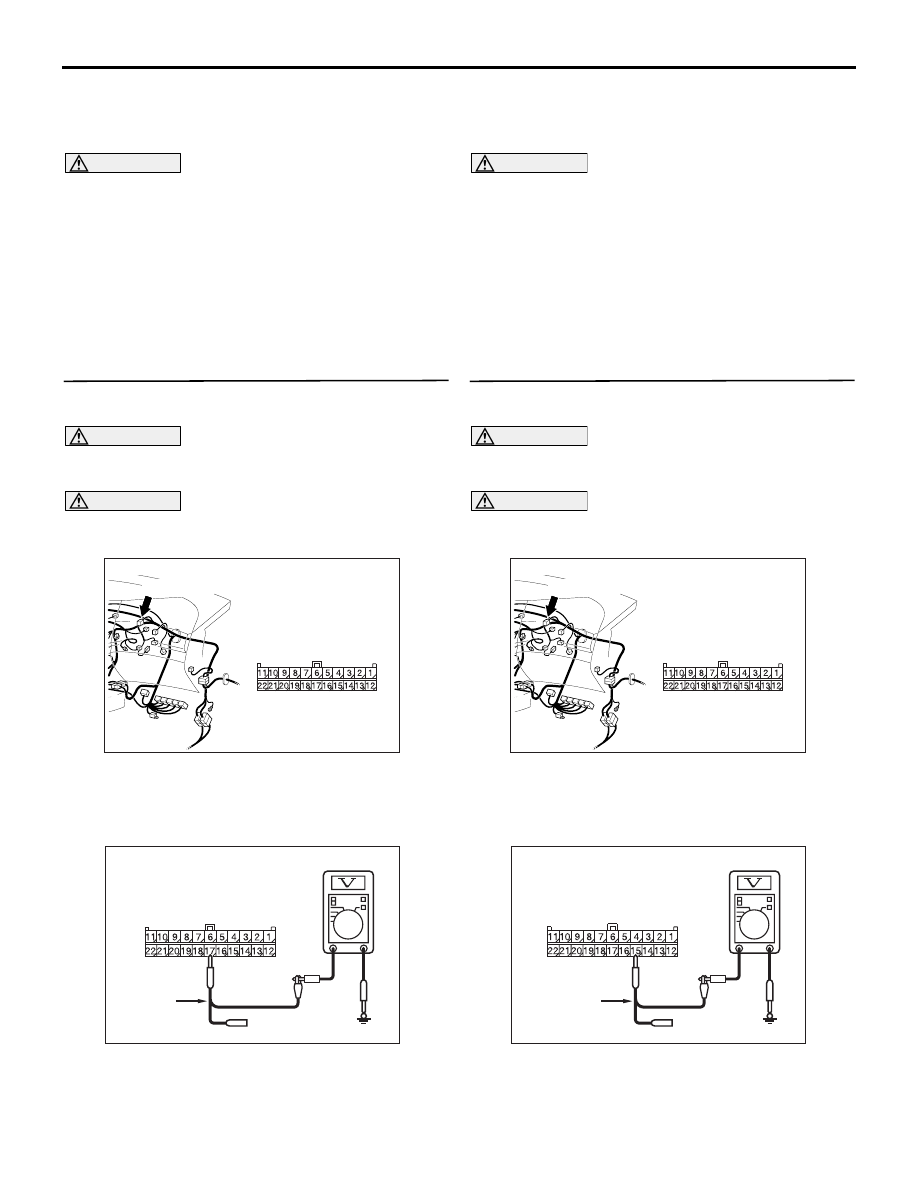

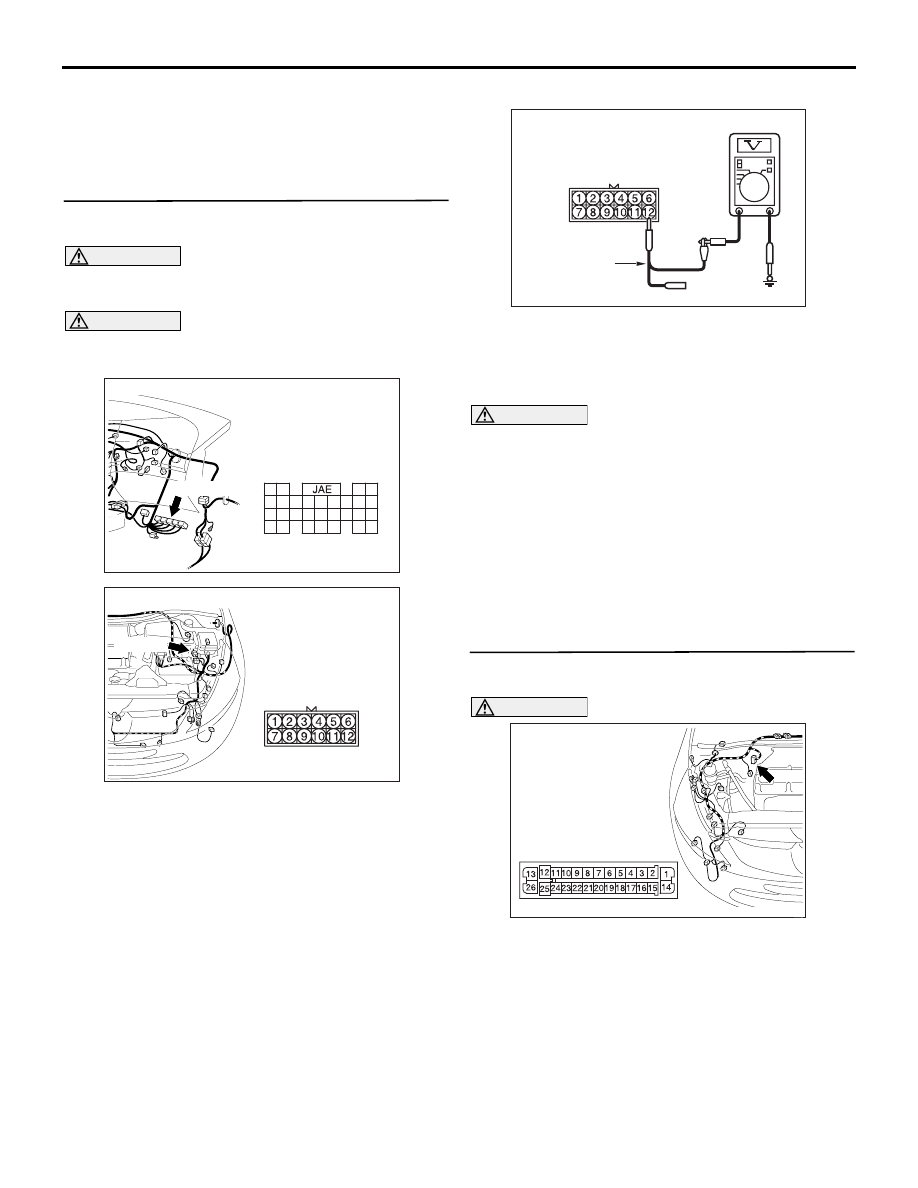

DIAGNOSIS CONTROLLER AREA NETWORK (CAN) 54D-58 terminal No.12 and body earth OK: Less than 1.0 V (4) Disconnect the negative battery terminal. CAUTION Strictly observe the specified wiring harness Q: Is the check result normal? YES : <less than 1.0 V> Follow diagnostic item 17 "Diagnose CAN bus lines thoroughly." Refer NO : <1.0 V or more> Repair the wiring harness STEP 18. Voltage measurement at C-09 joint CAUTION A digital multimeter should be used. For details CAUTION The test wiring harness should be used. For (1) Disconnect the connector, and measure at the wiring harness side. (2) Connect the negative battery terminal, and turn the ignition switch to the ON position. (3) Voltage between C-09 joint connector (CAN2) terminal No.17 and body earth OK: Less than 1.0 V (4) Disconnect the negative battery terminal. CAUTION Strictly observe the specified wiring harness Q: Is the check result normal? YES : <less than 1.0 V> Follow diagnostic item 17 "Diagnose CAN bus lines thoroughly." Refer . NO : <1.0 V or more> Repair the wiring harness STEP 19. Voltage measurement at C-09 joint CAUTION A digital multimeter should be used. For details . CAUTION The test wiring harness should be used. For (1) Disconnect the connector, and measure at the wiring harness side. (2) Connect the negative battery terminal, and turn the ignition switch to the ON position. (3) Voltage between C-09 joint connector (CAN2) AC310615 AU Harness side Connector: C-09 <LHD> C-09 (GR) AC209365JV Harness side: C-09 Test AC310615 AU Harness side Connector: C-09 <LHD> C-09 (GR) AC209365JX Harness side: C-09 Test |
