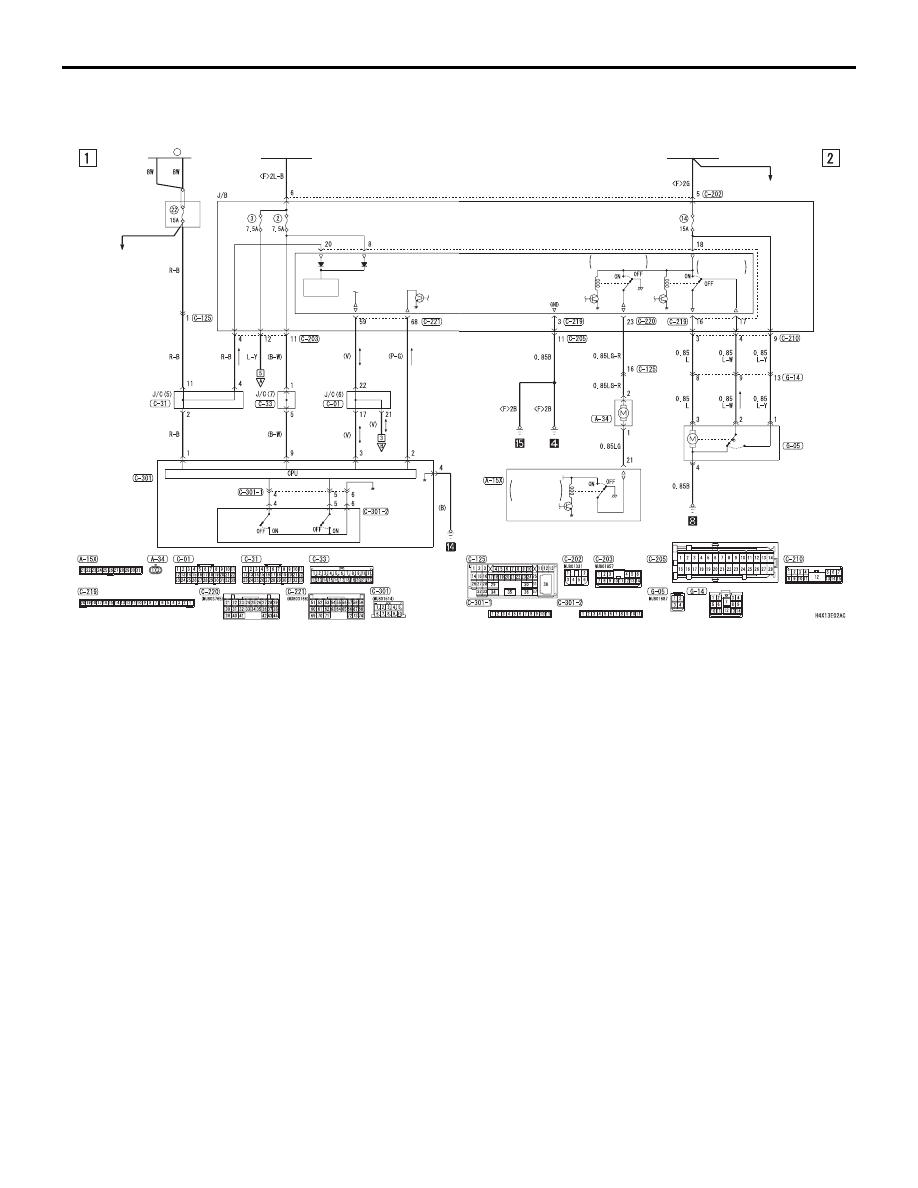

REAR WIPER AND WASHER <RHD>

CIRCUIT DIAGRAMS

90-149

REAR WIPER AND WASHER <RHD>

M1901006200798

ETACS-ECU

IGNITION
SWITCH (ACC)

REAR WASHER
RELAY

REAR WIPER
RELAY

REAR
WIPER MOTOR

WASHER
MOTOR

WINDSHIELD
WASHER
RELAY

FRONT-ECU

REFER TO
POWER DISTRIBUTION
SYSTEM

26

FUSIBLE
LINK

POWER
SOURCE

COLUMN
SWITCH

IGNITION
SWITCH (IG1)

J/B SIDE

RELAY
BOX

·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP WASHER
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·WINDSHIELD
 WIPER AND WASHER

REAR
WIPER
SWITCH

REAR
WASHER
SWITCH

UPPER
SIDE

UPPER
SIDE

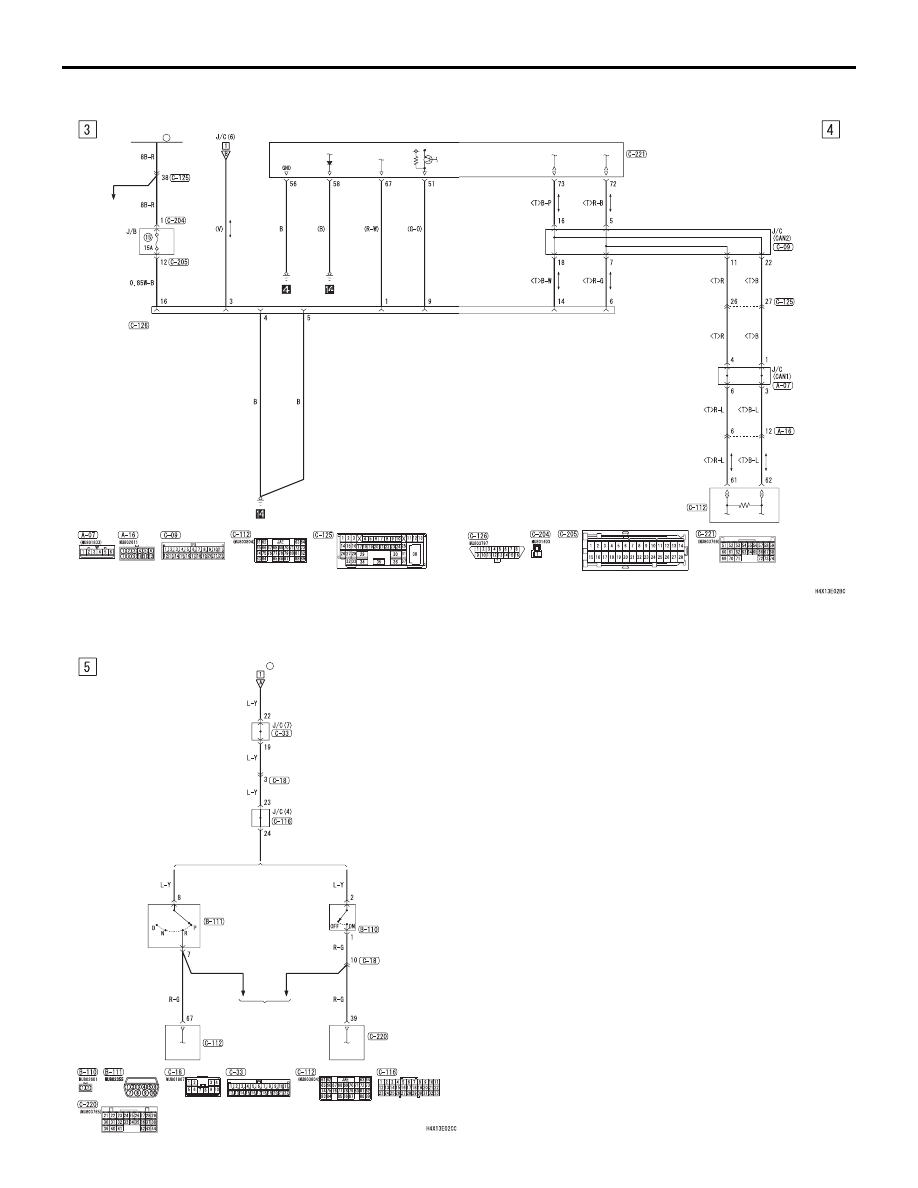

REAR WIPER AND WASHER <RHD>

CIRCUIT DIAGRAMS

90-150

REAR WIPER AND WASHER <RHD> (CONTINUED)

REAR WIPER AND WASHER <RHD> (CONTINUED)

FUSIBLE
LINK

30

DIAGNOSIS
CONNECTOR

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ENGINE-A/T-
ECU <A/T>

FRONT
SIDE

INHIBITOR
SWITCH

BACK-UP
LAMP
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

·BACK-UP LAMP
·SPARE
 CONNECTOR
 (FOR NAVIGATION
 SYSTEM)

ENGINE-
A/T-ECU

ETACS-ECU

(FUSE     )

3

J/B

<A/T>

<M/T>

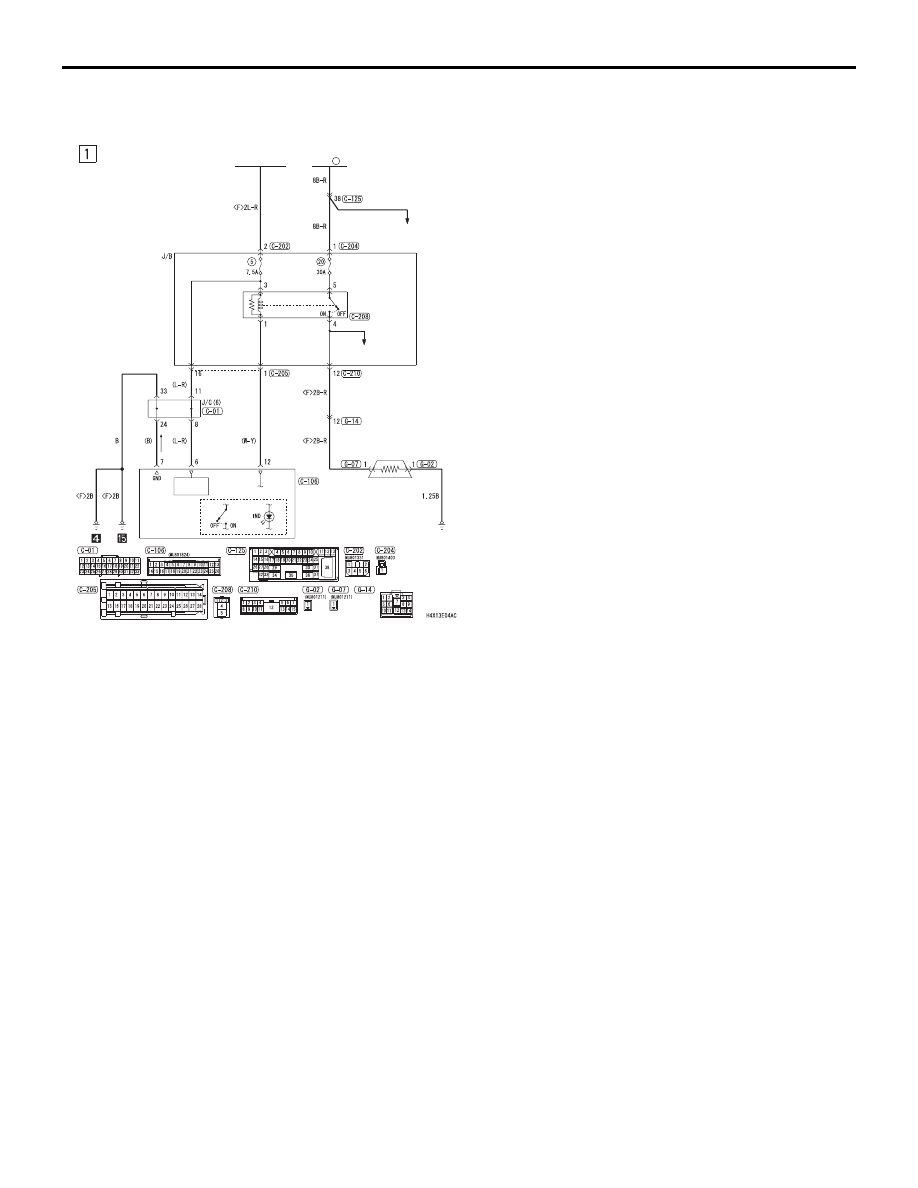

REAR WINDOW DEFOGGER <LHD>

CIRCUIT DIAGRAMS

90-151

REAR WINDOW DEFOGGER <LHD>

M1901006400576

30

FUSIBLE
LINK

IGNITION
SWITCH (IG2)

REAR WINDOW
DEFOGGER
RELAY

REAR WINDOW
DEFOGGER

REAR
WINDOW
DEFOGGER
SWITCH

A/C-ECU

POWER
SOURCE

·SINGLE AUTOMATIC
 AIR CONDITIONER

·DUAL AUTOMATIC
 AIR CONDITIONER

HEATED DOOR
MIRROR

REAR WINDOW DEFOGGER <RHD>

CIRCUIT DIAGRAMS

90-152

REAR WINDOW DEFOGGER <RHD>

M1901006400587

30

FUSIBLE
LINK

IGNITION
SWITCH (IG2)

REAR WINDOW
DEFOGGER
RELAY

REAR WINDOW
DEFOGGER

REAR WINDOW
DEFOGGER
SWITCH

A/C-ECU

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

POWER
SOURCE

HEATED DOOR
MIRROR
