HOW TO USE THIS MANUAL

GENERAL

00-2

HOW TO USE THIS MANUAL

M1001000100682

SCOPE OF MAINTENANCE, REPAIR AND
SERVICING EXPLANATIONS

This manual provides explanations, etc. concerning
procedures for the inspection, maintenance, repair
and servicing of the subject model. Note, however,
that for engine and transmission-related component
parts, this manual covers only on-vehicle
inspections, adjustments, and the removal and
installation procedures for major components. For
detailed information concerning the inspection,
checking, adjustment, disassembly and reassembly
of the engine, transmission and major components
after they have been removed from the vehicle,
please refer to separate manuals covering the
engine and the transmission.

ON-VEHICLE SERVICE

"On-vehicle Service" is procedures for performing
inspections and adjustments of particularly important
locations with regard to the construction and for
maintenance and servicing, but other inspection (for
looseness, play, cracking, damage, etc.) must also
be performed.

INSPECTION

Under this title are presented inspection and
checking procedures to be performed by using
special tools and measuring instruments and by
feeling, but, for actual maintenance and servicing
procedures, visual inspections should always be
performed as well.

DEFINITION OF TERMS
STANDARD VALUE

Indicates the value used as the standard for judging
the quality of a part or assembly on inspection or the
value to which the part or assembly is corrected and
adjusted. It is given by tolerance.

LIMIT

Shows the standard for judging the quality of a part
or assembly on inspection and means the maximum
or minimum value within which the part or assembly
must be kept functionally or in strength. It is a value
established outside the range of standard value.

REFERENCE VALUE

Indicates the adjustment value prior to starting the
work (presented in order to facilitate assembly and
adjustment procedures, and so they can be
completed in a shorter time).

DANGER, WARNING, AND CAUTION

DANGER, WARNING, and CAUTION call special
attention to a necessary action or to an action that
must be avoided. The differences among DANGER,
WARNING, and CAUTION are as follows:

• If a DANGER is not followed, the result is severe

bodily harm or even death.

• If a WARNING is not followed, the result could be

bodily injury.

• If a CAUTION is not followed, the result could be

damage to the vehicle, vehicle components or
service equipment.

INDICATION OF TIGHTENING TORQUE

Tightening torques (units: N

⋅m) are set to take into

account the central value and the allowable
tolerance. The central value is the target value, and
the allowable tolerance provides the checking range
for tightening torques. If bolts and nuts are not
provided with tightening torques, refer to

P.00-30

.

MODEL INDICATIONS

The following abbreviations are used in this manual
for identification of model types.
2400:Indicates an engine with the 2,378mL <4G69>

petrol engine.

MPI:Indicates the multipoint injection.
SOHC:Indicates an engine with the single overhead

camshaft.

MIVEC:Indicates the mitsubishi innovative valve

timing and lift electronic control system

M/T:Indicates the manual transmission.
A/T:Indicates the automatic transmission.
A/C:Indicates the air conditioner.

HOW TO USE THIS MANUAL

GENERAL

00-3

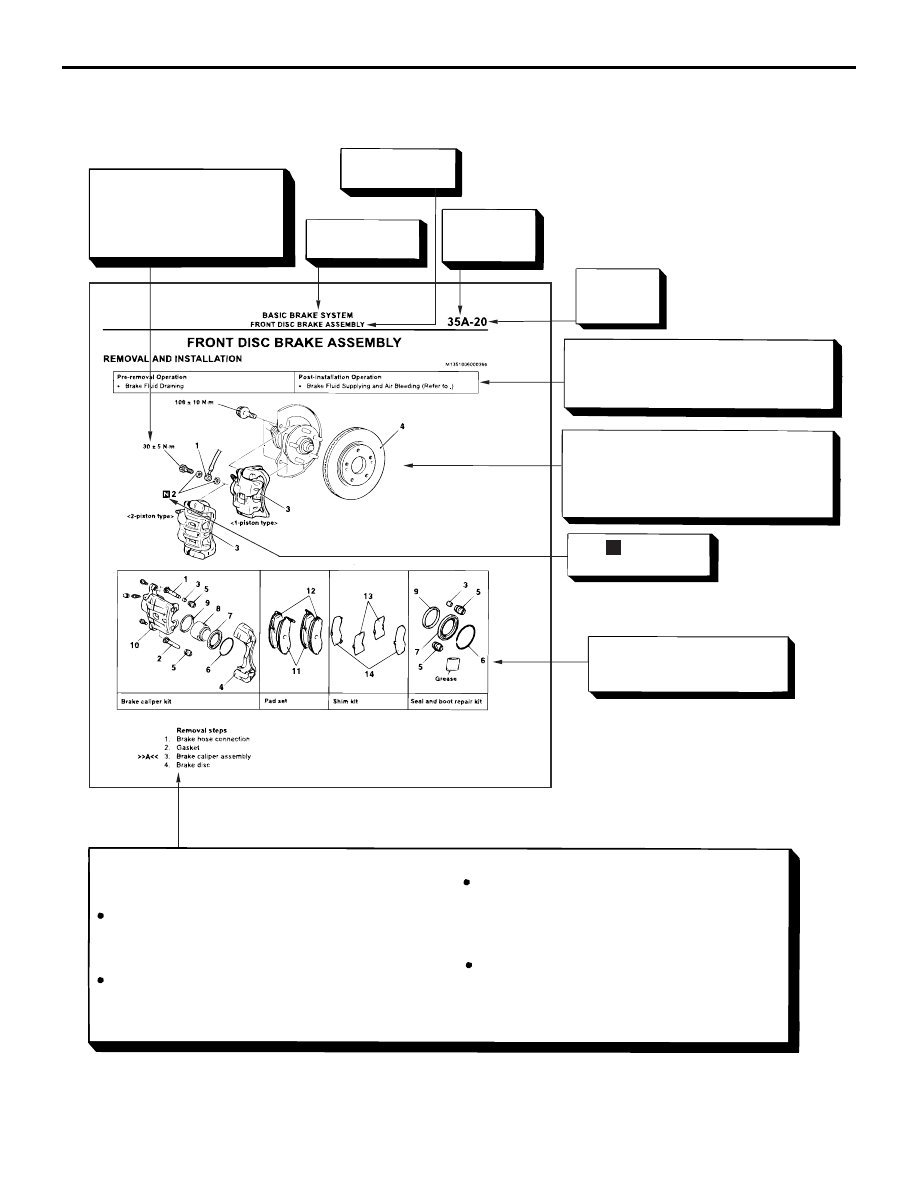

EXPLANATION OF MANUAL CONTENTS

AC311238

N

Denotes tightening torque.
For bolts and nuts which do
not have a tightening torque
listed, refer to the "Standard
Parts tightening-torque Table"

Indicates the
group title.

Indicates the
section title.

Indicates
the group
number.

Indicates
the page
number.

Indicates procedures to be performed be-
fore the work in that section is started, and
procedures to be performed after the work
in that section is finished.

Component diagram
A diagram of the component parts is pro-
vided near the front of each section in order
to give the reader a better understanding of
the installed condition of component parts.

Mark     denotes non-
reusable part.

Repair kit or parts sets are
shown. (Only very frequently
used parts are shown.)

Removal steps :
        The part designation number corresponds to
        the number in the illustration to indicate remov-
        al steps.

 Disassembly steps :
        The part designation number corresponds to
        the number in the illustration to indicate disas-
        sembly steps.

Installation steps :
        Specified in case installation is impossible in
        reverse order of removal steps. Omitted if
        installation is possible in reverse order of re-
        moval steps.

Reassembly steps :
        Specified in case installation is impossible in
        reverse order of removal steps. Omitted if
        reassembly is possible in reverse order of dis-
        assembly steps.

Maintenance and servicing procedures

The numbers provided within the diagram indicate the
sequence for maintenance and servicing procedures.

AB

HOW TO USE THIS MANUAL

GENERAL

00-4

AC311239

35A-21

Classifications of major maintenance / service points

When there are major points relative to maintenance and servicing procedures (such as essential maintenance
and service points, maintenance and service standard values, information regarding the use of special tools, etc.).
These are arranged together as major maintenance and service points and explained in detail.

<<A>> : Indicates that there are essential points for removal or disassembly.
>>A<< : Indicates that there are essential points for installation or reassembly.

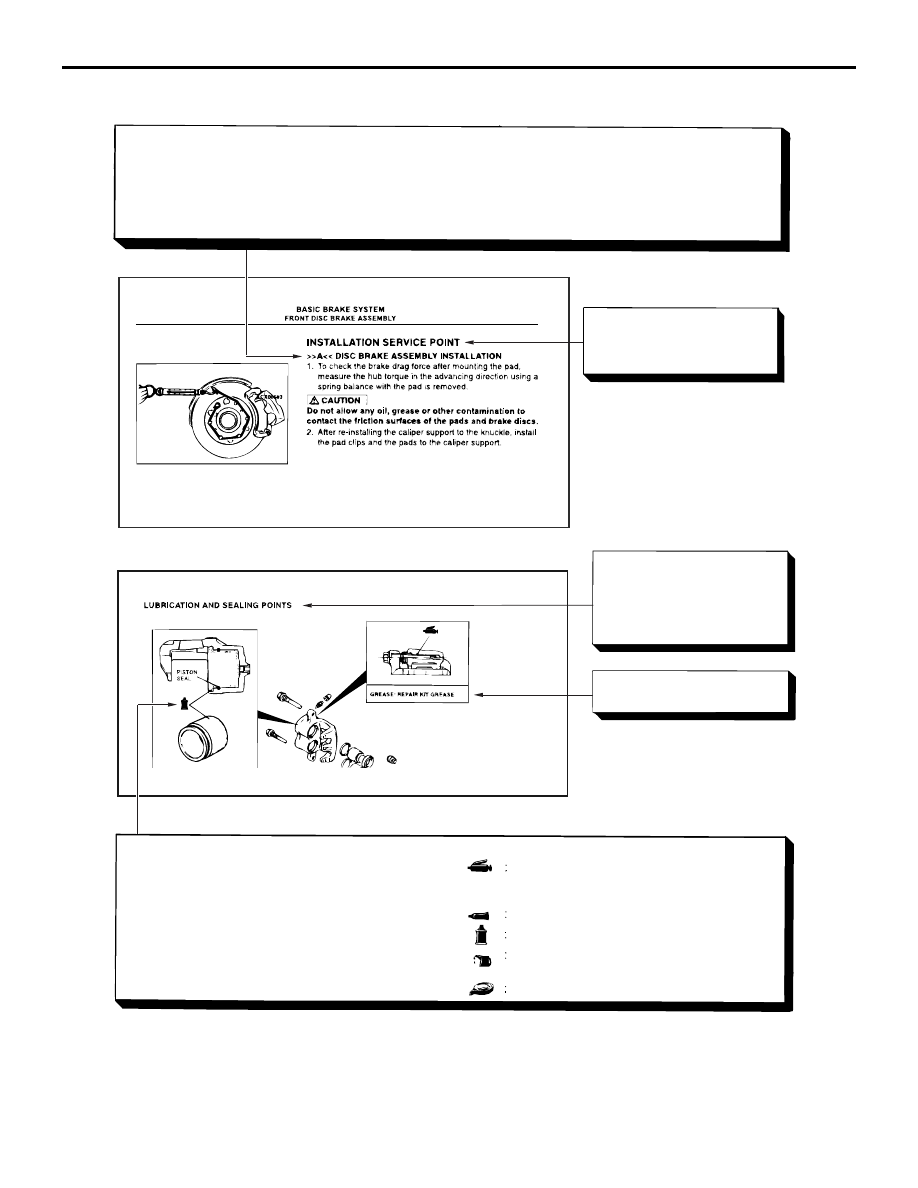

Operating procedures,
cautions, etc. on removal,
installation, disassembly and
reassembly are described

The title of the page
(following the page on which
the diagram of component
parts is presented) indicating
the locations of lubrication and
sealing procedures.

Indicates (by symbols) where
lubrication is necessary.

Symbols for lubrication, sealants and adhesives

Symbols are used to show the locations for lubrication
and for application of sealants and adhesives.
These symbols are included in the diagram of compo-
nent parts or on the page following the component
parts page. The symbols do not always have accomp-
anying text to support that symbol.

Adhesive tape or butyl rubber tape

Grease
  (Multi-purpose grease unless there is a
  brand or type specified)

Sealant or adhesive
Brake fluid or automatic transmission fluid

Engine oil, gear oil or air conditioning com-
pressor oil

AB

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-5

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE

POINTS

M1001000200593

CONTENTS OF TROUBLESHOOTING

CAUTION

During diagnosis, a diagnosis code code
associated with other system may be set when
the ignition switch is turned on with connector(s)
disconnected. On completion, confirm all
systems for diagnosis code(s). If diagnosis
code(s) are set, erase them all.
Troubleshooting of electronic control systems for
which the MUT-III can be used follows the basic
outline described below. Even in systems for which
the MUT-III cannot be used, some of these systems
still follow this outline.

1. STANDARD FLOW OF DIAGNOSIS TROUBLESHOOTING

Troubleshooting sections are based on the diagnostic flow as below. If the diagnostic flow is different from
that given below, or if additional explanation is required, the details of such differences or additions will also
be listed.

Diagnosis method

• *

1

: For how to diagnose CAN bus lines, refer to GROUP 54

P.54D-9

.

AC311722

Gathering information
from the customer.

Check trouble symptom.

Reoccurs

Does not reoccur

CAN bus diagnosis chart*

  CAN bus diagnosis*

Read the diagnosis code.

Read the diagnosis code.

After taking note of the
malfunction code, erase the
diagnosis code memory.

Recheck trouble symptom.

Read the diagnosis codes.

How to treat past
trouble*

Refer to the INSPECTION CHART
FOR DIAGNOSIS CODES
(Refer to applicable group).

How to treat past
trouble*

Refer to the INSPECTION CHART
FOR TROUBLE SYMPTOMS
(Refer to applicable group).

INTERMITTENT MALFUNCTIONS

*

Diagnosis code
displayed.
(Current trouble)*

Diagnosis code
displayed.
(Current trouble)*

No diagnosis
code.

No diagnosis
code.

Diagnosis code
displayed.
(Past trouble)*

Diagnosis code
displayed.
(Past trouble)*

No diagnosis code
or communication
with MUT-III not
possible

Diagnosis code
displayed.

OK

NG

2

1

3

3

3

3

4

4

5
