INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-458

DIAGNOSIS PROCEDURE

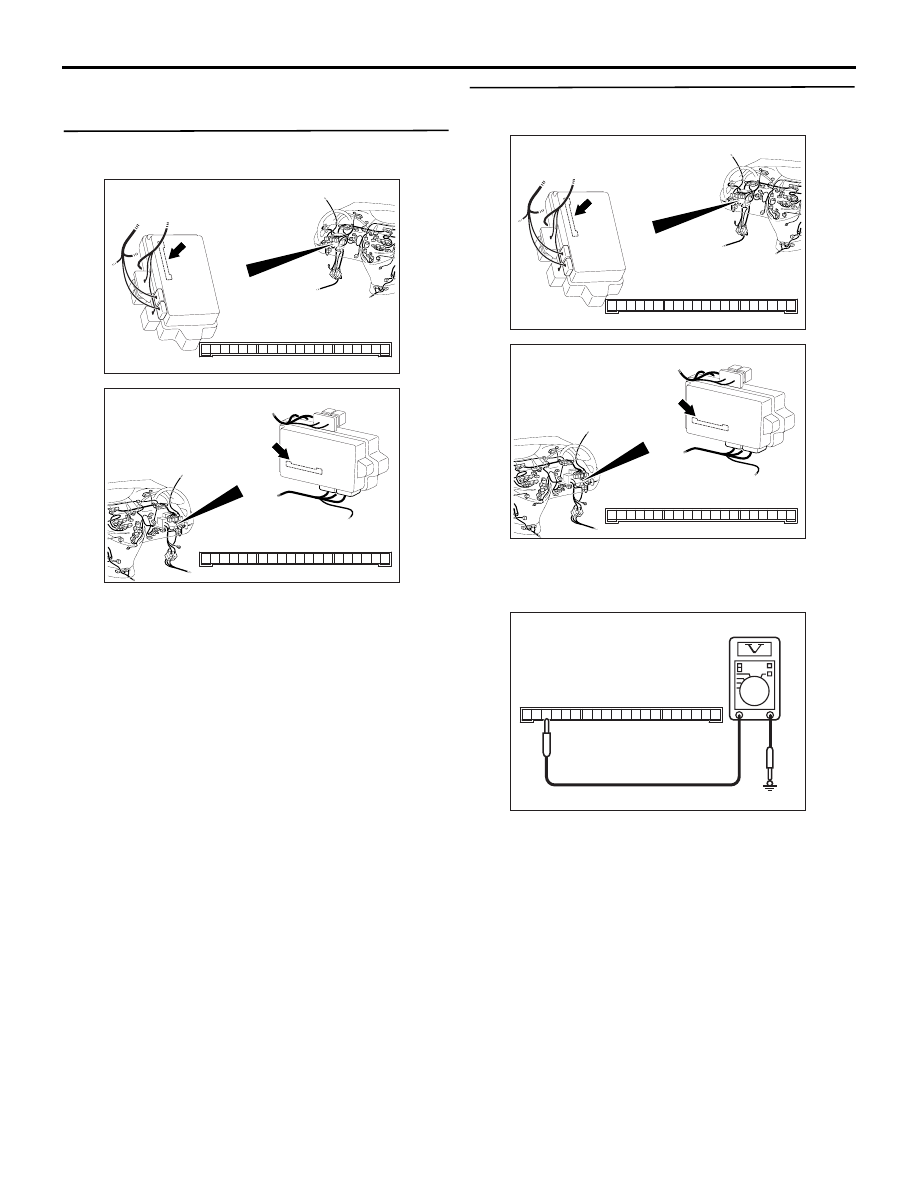

Step 1. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Voltage measurement at the C-219
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Ignition switch: ACC position

(3) Voltage between C-219 ETACS-ECU connector

terminal No.18 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

AC312037

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC312047

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC312037

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC312047

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC312731AB

Connector C-219
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-459

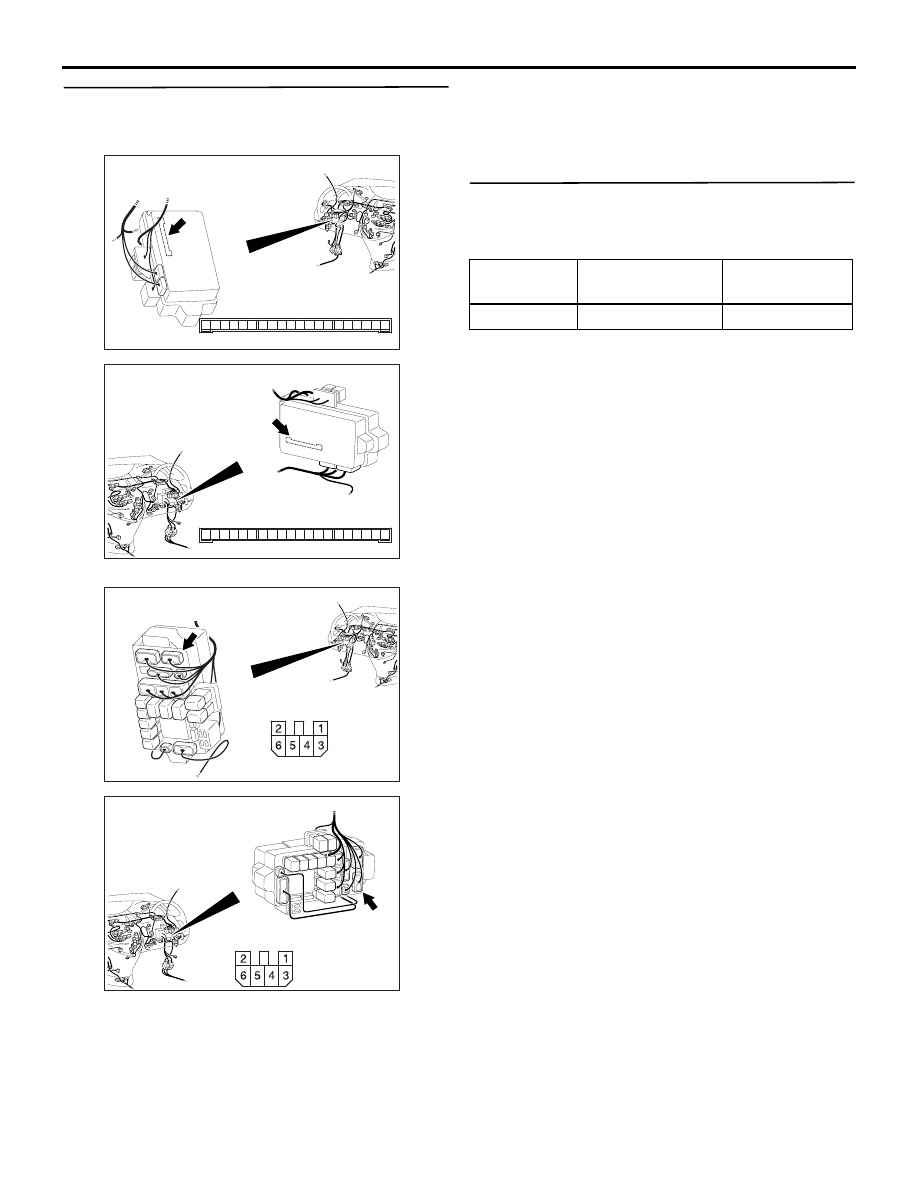

Step 3. Check the wiring harness between C-219
ETACS-ECU connector terminal No.18 and the
ignition switch (ACC).

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 4. SWS monitor data list.
<Selected item> ETACS ECU

• Ignition switch: OFF (LOCK) → ACC

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC312037

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC312047

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC312035AB

Connector: C-202

Harness side

<LHD>

Junction block (Front view)

AC312045

AB

Connector: C-202

Junction block (Front view)

Harness side

<RHD>

Item No.

Item name

Normal
condition

Item 31

IG SW(ACC)

OFF

→ ON

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-460

Inspection Procedure Q-2: The ignition switch (IG1) signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the ignition switch (IG1) is used to
operate the functions below. If the signal is abnormal,
these functions will not work normally.

• Lamp reminder function

• Door-ajar warning buzzer

• Turn-signal lamp operation sound

• Power window

• Ignition key cylinder illumination lamp

• Seat belt indicator lamp

• Headlamp and tail lamp

• Headlamp automatic-shutdown function

• Rear fog lamp

• Turn signal lamp

• Interior lamps

POSSIBLE CAUSES

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

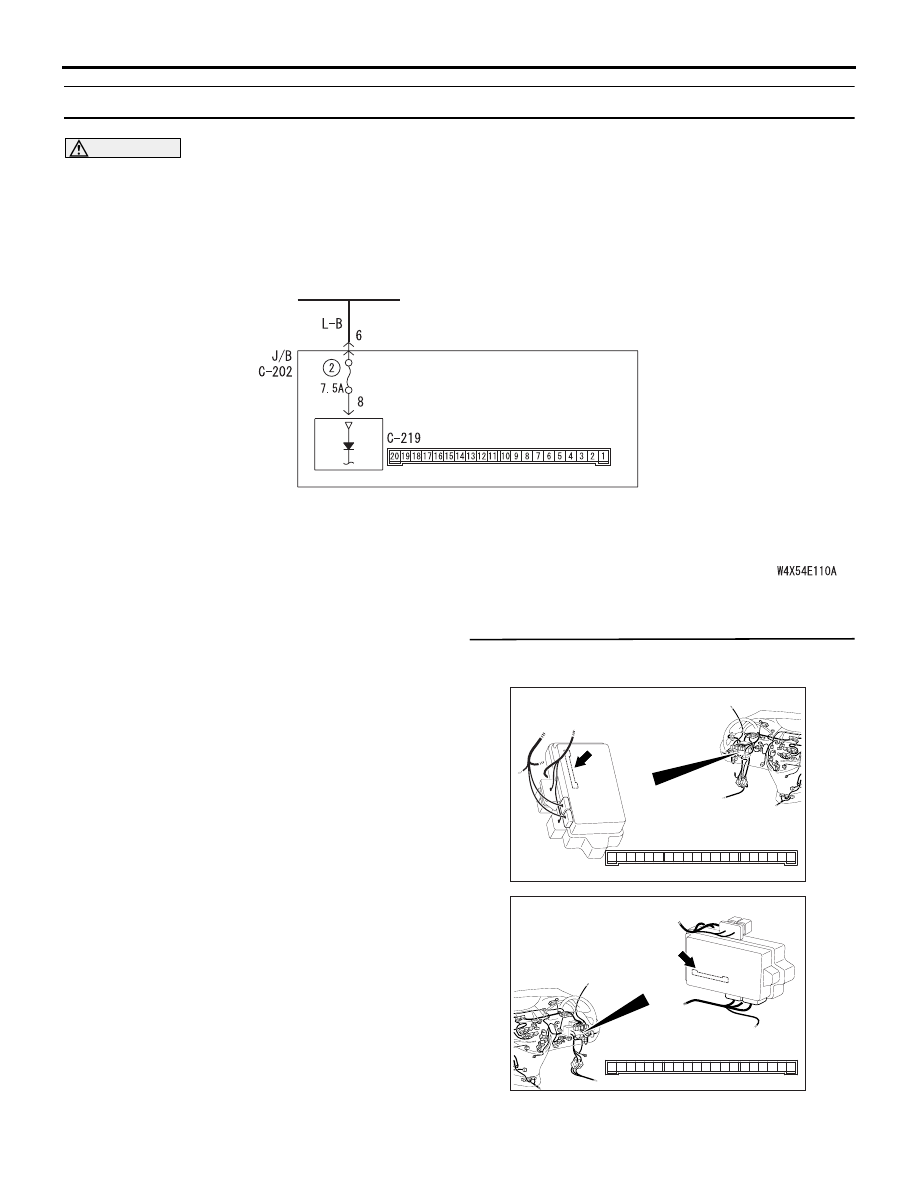

Ignition Switch (IG1) Input Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

IGNITION
SWITCH (IG1)

J/B SIDE

AC312037

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC312047

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-461

YES :

Go to Step 2.

NO :

Repair the defective connector.

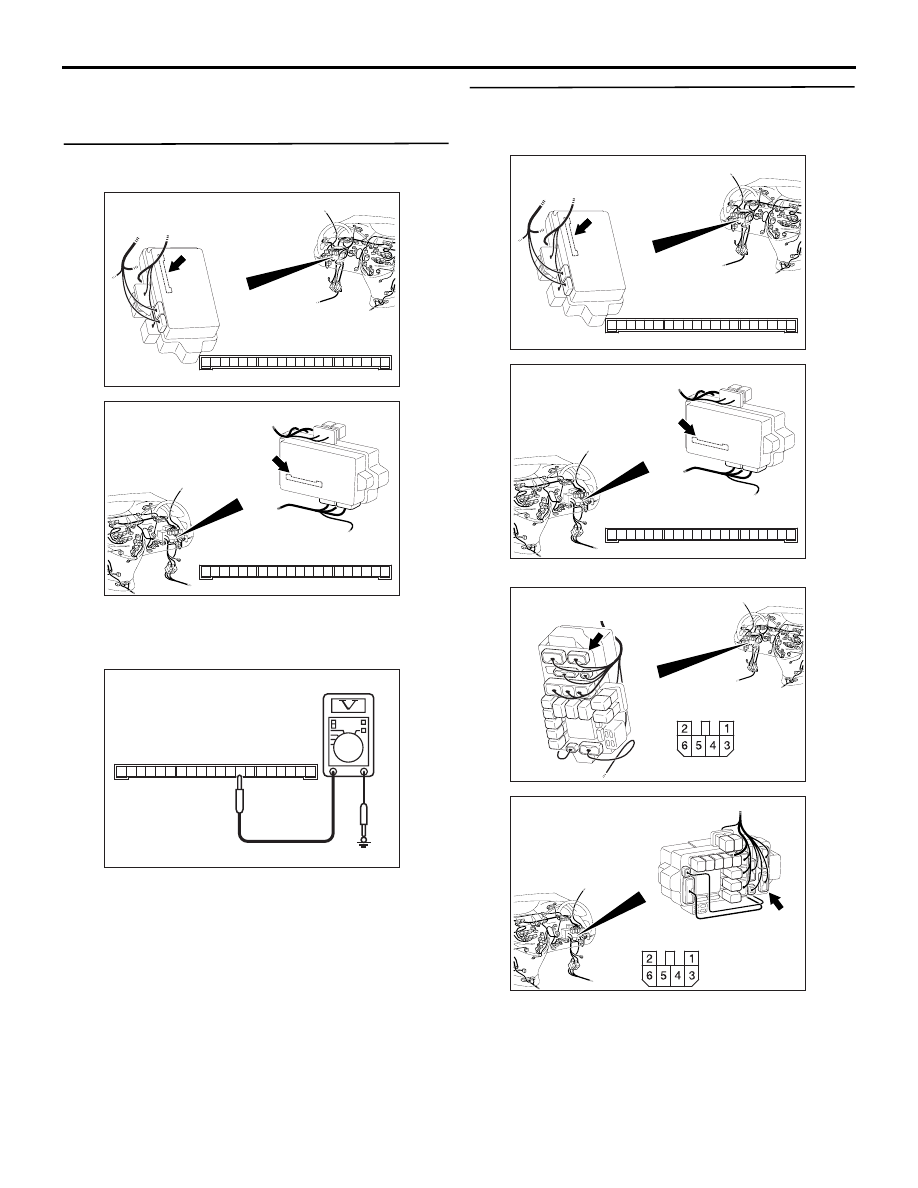

Step 2. Voltage measurement at the C-219
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Ignition switch: ON position

(3) Voltage between C-219 ETACS-ECU connector

terminal No.8 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

Step 3. Check the wiring harness between C-219
ETACS-ECU connector terminal No.8 and the
ignition switch (IG1).

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

AC312037

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC312047

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC312731AC

Connector C-219
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

AC312037

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC312047

Connector: C-219

Junction block (Rear view)

Junction block side

AB

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC312035AB

Connector: C-202

Harness side

<LHD>

Junction block (Front view)

AC312045

AB

Connector: C-202

Junction block (Front view)

Harness side

<RHD>
