SYMPTOM PROCEDURES
SMART WIRING SYSTEM (SWS) USING SWS MONITOR
54C-338
Step 13. Check the bulb(s) of the turn-signal
lamps.
Check the bulb(s) of the defective lamp.
Q: Is the check result normal?
YES :
Go to Step 14.
NO :
Replace the bulb(s) of the defective lamp.
Step 14. Resistance measurement at the G-09
rear turn-signal lamp (RH) or G-25 rear
turn-signal lamp (LH) connector.
(1) Disconnect the connector, and measure at the
wiring harness side.
(2) Resistance measurement between the defective
lamp connector terminal and body earth.
• Resistance between G-09 rear turn-signal
lamp (RH) connector terminal No.2 and body
earth
• Resistance between G-25 rear turn-signal
lamp (LH) connector terminal No.2 and body
earth
OK: 2
Ω or less
Q: Is the check result normal?
YES :
Go to Step 23.
NO :
Go to Step 15.
Step 15. Check the wiring harness from G-09 rear
turn-signal lamp (RH) or G-25 rear turn-signal
lamp (LH) connector terminal No.2 and body
earth.
• Check the earth wires for open circuit.
Q: Is the check result normal?
YES :
The trouble can be an intermittent
malfunction (Refer to GROUP 00
− How to
Cope with Intermittent Malfunction
NO :
Repair the wiring harness.

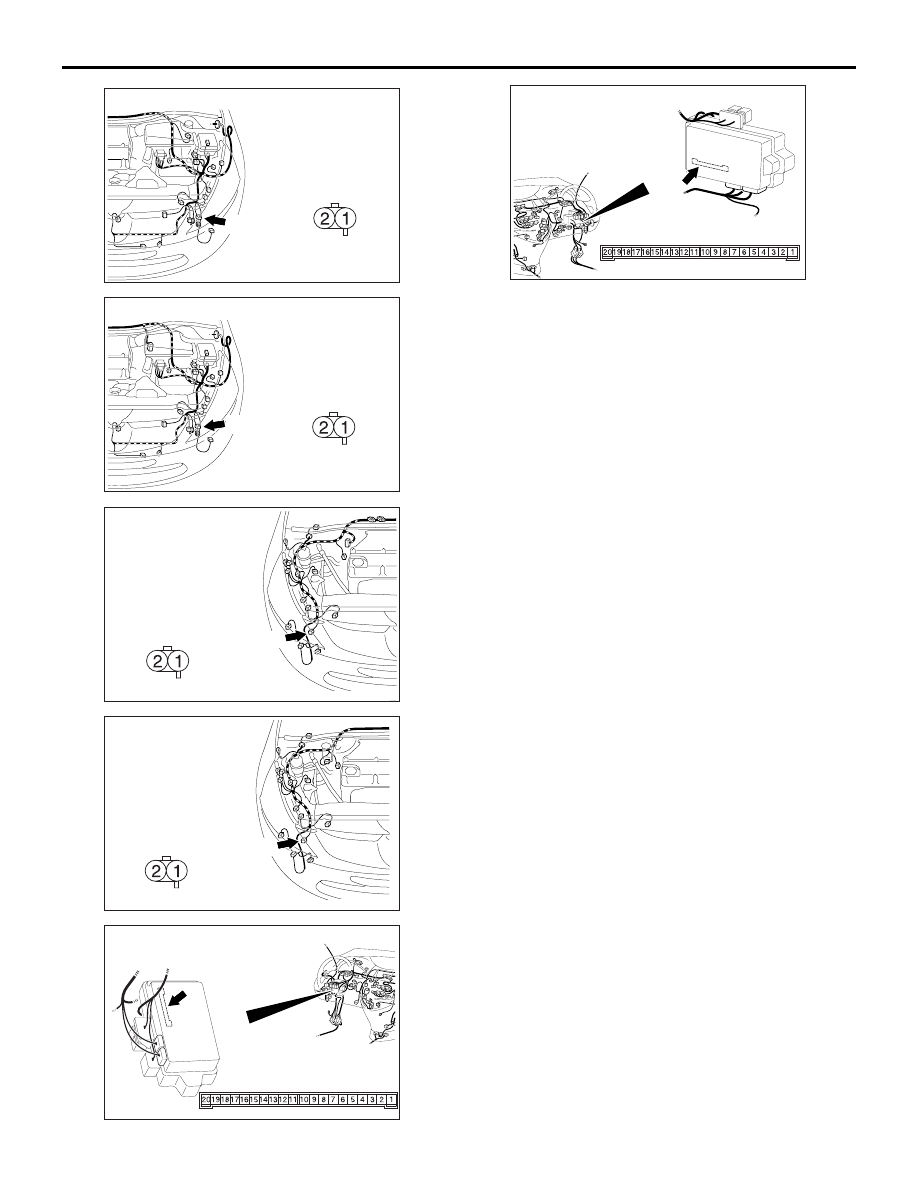

AC310222

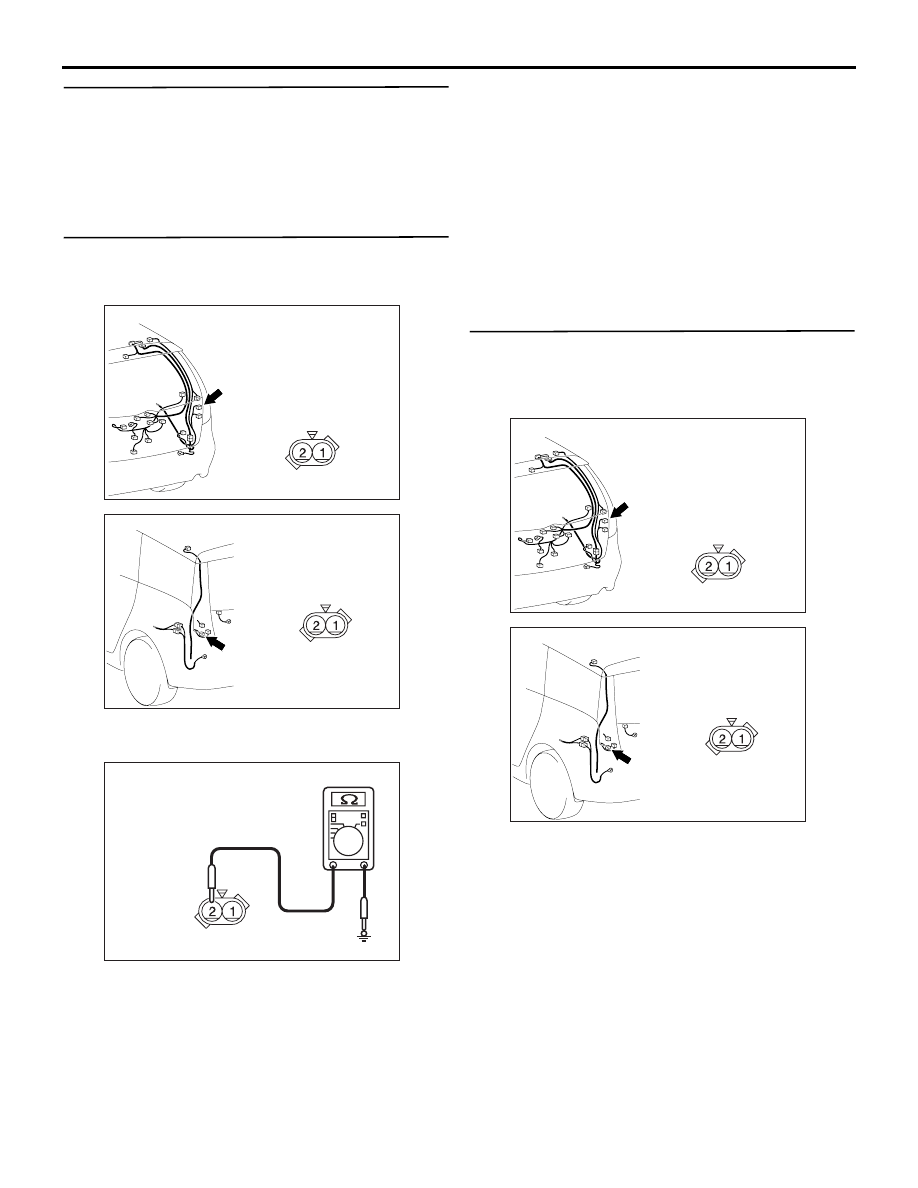

Connector: G-09
AG
Harness side
G-09 (B)
AC310220
Connector: G-25
AF
G-25 (B)
Harness side
AC310506BR
Connectors G-09, G-25
(Harness side)
AC310222
Connector: G-09
AG
Harness side
G-09 (B)
AC310220
Connector: G-25
AF
G-25 (B)
Harness side
