INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-461

Inspection Procedure Q-12: The hazard warning lamp switch signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

ETACS-
ECU

HAZARD
WARNING
LAMP SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

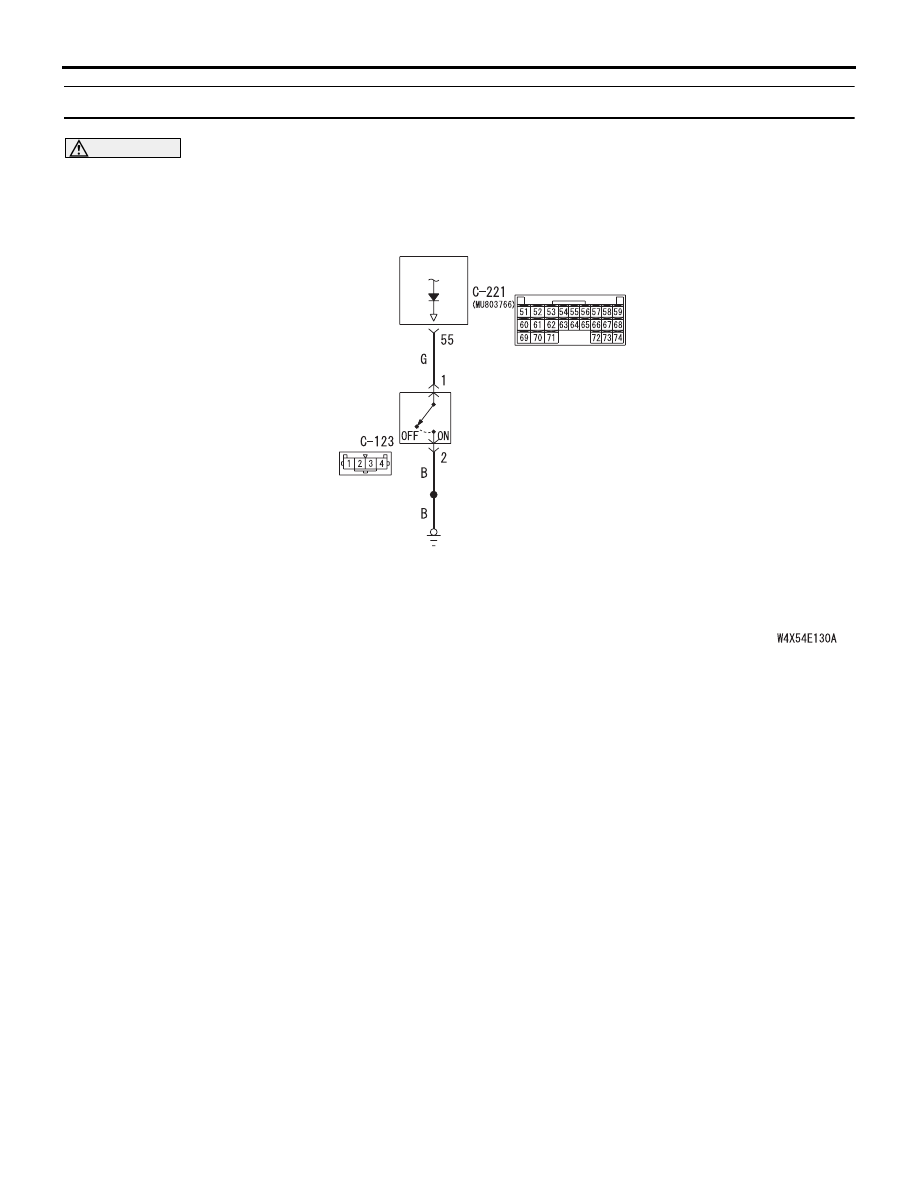

Hazard Warning Lamp Switch Input Circuit <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-462

COMMENTS ON TROUBLE SYMPTOM

Input signal from the hazard warning lamp switch is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

• Keyless entry system (encrypted code

registration)

• Hazard warning lamp

POSSIBLE CAUSES

• Malfunction of the hazard warning lamp switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Connector check: C-123 hazard warning
lamp switch connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

ETACS-
ECU

HAZARD
WARNING
LAMP SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

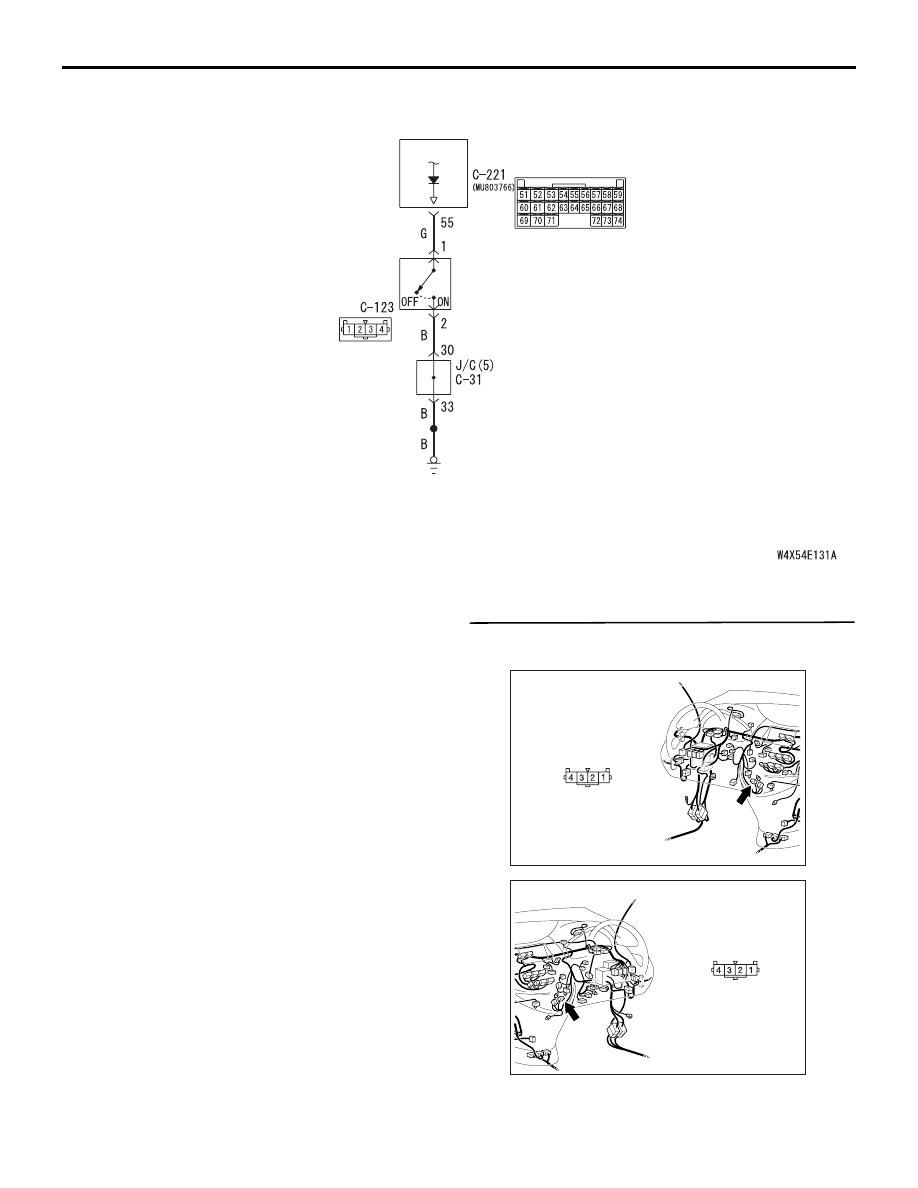

Hazard Warning Lamp Switch Input Circuit <RHD>

AC312031

AD

Connector: C-123 <LHD>

Harness side

AC312043AD

Connector: C-123 <RHD>

Harness side

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-463

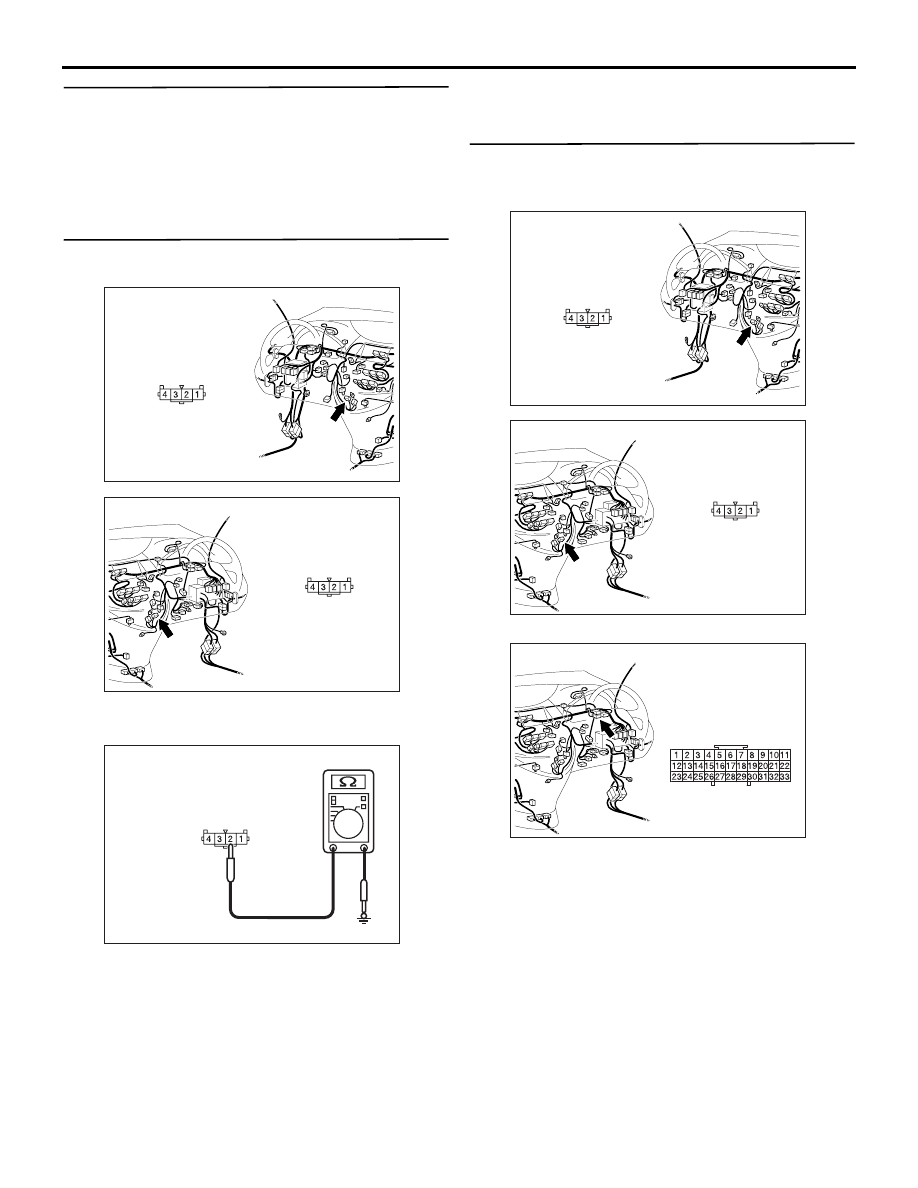

Step 2. Check the hazard warning lamp switch.
Refer to GROUP 54A

− Hazard warning lamp switch

P.54A-101

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the hazard warning lamp switch.

Step 3. Resistance measurement at the C-123
hazard warning lamp switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between C-123 hazard warning lamp

switch connector terminal No.2 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between C-123
hazard warning lamp switch connector terminal
No.2 and the body earth.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-31 <RH drive vehicles>, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC312031

AD

Connector: C-123 <LHD>

Harness side

AC312043AD

Connector: C-123 <RHD>

Harness side

AC312730AD

Connector C-123
(Harness side)

AC312031

AD

Connector: C-123 <LHD>

Harness side

AC312043AD

Connector: C-123 <RHD>

Harness side

AC312043AE

Connector: C-31 <RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-464

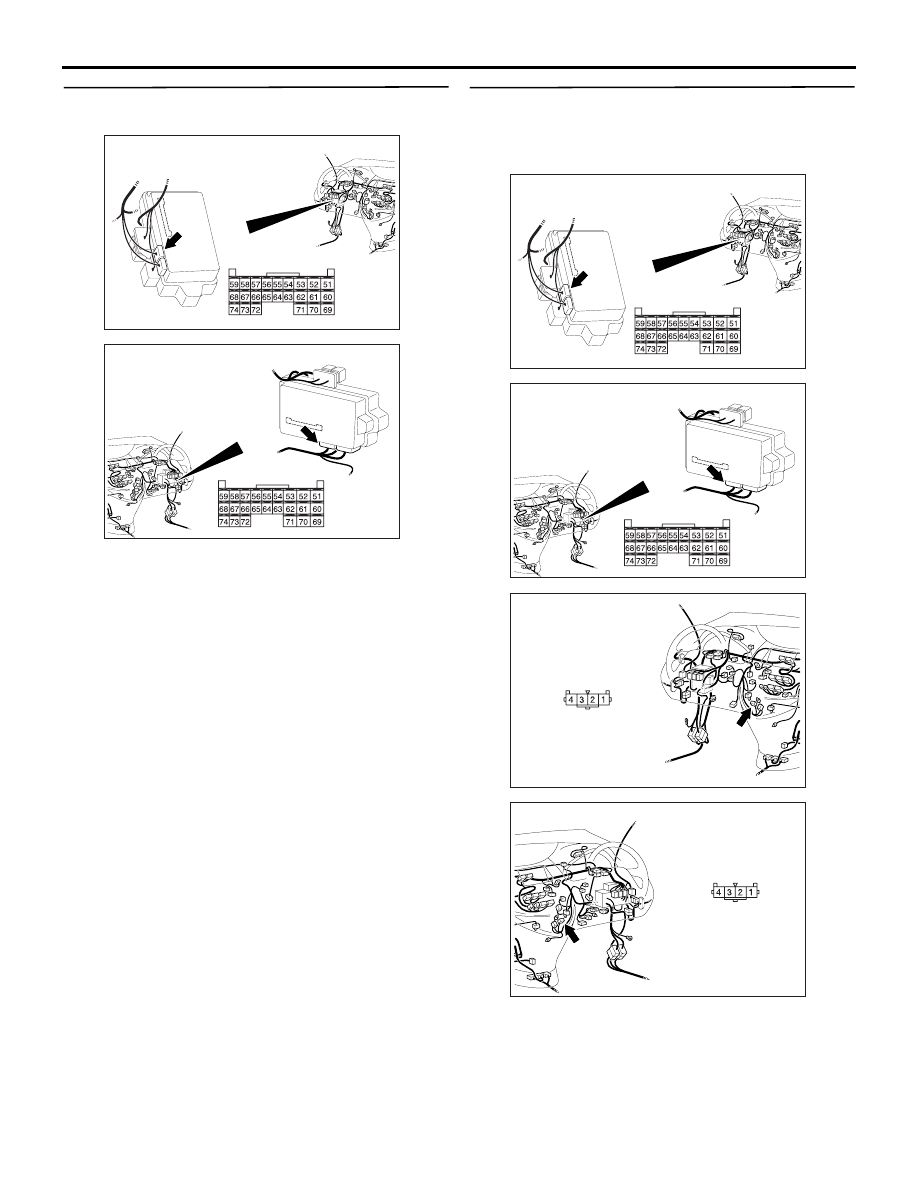

Step 5. Connector check: C-221 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness between C-221
ETACS-ECU connector terminal No.55 and C-123
hazard warning lamp switch connector terminal
No.1.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC312037

Connector: C-221  <LHD>

Junction block (Rear view)

AD

Harness side

AC312047

Connector: C-221  <RHD>

Junction block (Rear view)

AD

Harness side

AC312037

Connector: C-221  <LHD>

Junction block (Rear view)

AD

Harness side

AC312047

Connector: C-221  <RHD>

Junction block (Rear view)

AD

Harness side

AC312031

AD

Connector: C-123 <LHD>

Harness side

AC312043AD

Connector: C-123 <RHD>

Harness side
