SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-237

Prior to the wiring harness inspection, check
intermediate connector G-14and junction block
connectors C-202, C-210, and repair if necessary.

• Check the power supply line for open or short

circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector.

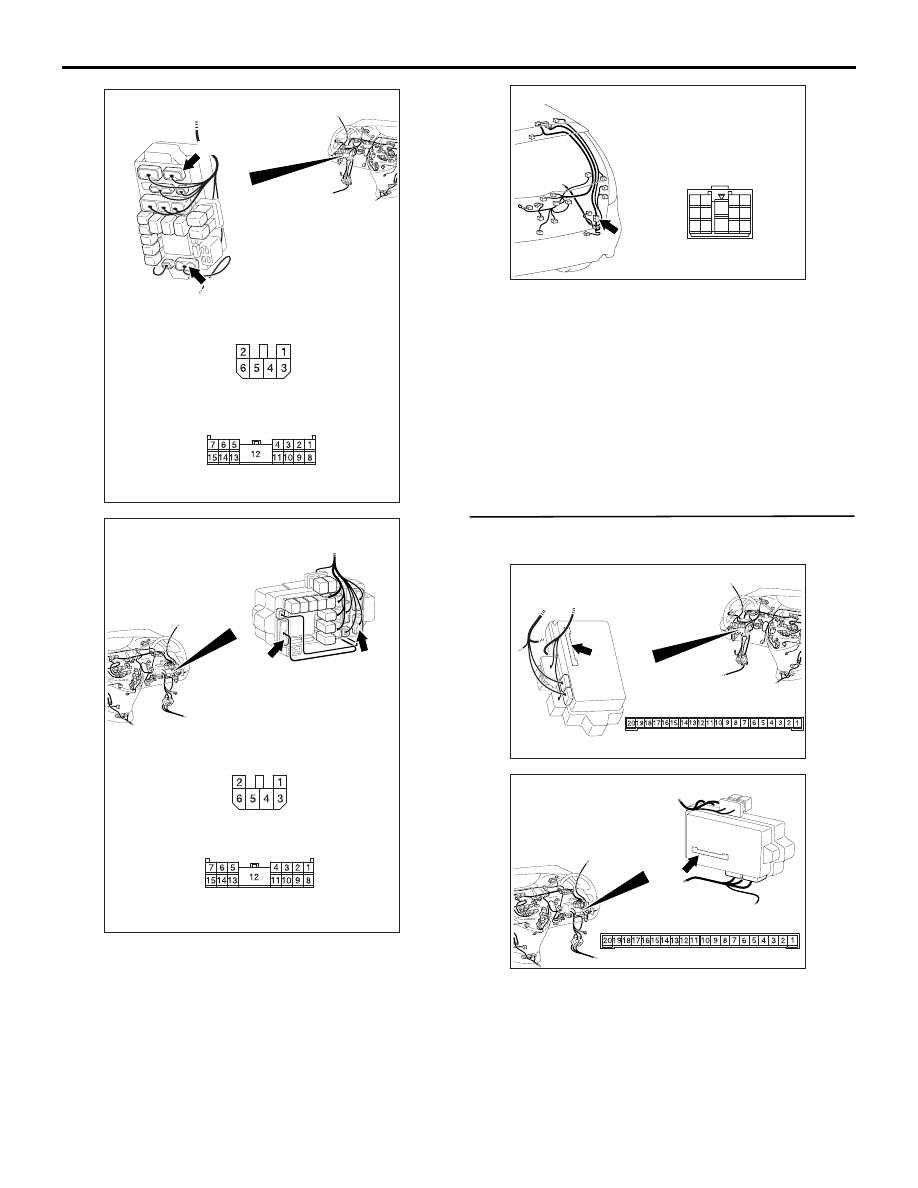

AC310624

Connectors: C-202, C-210 <LHD>

AT

Junction block (Front view)

C-210

C-202

C-210

Harness side

C-202

Harness side

AC310619

Connectors: C-202, C-210 <RHD>

AT

Junction block (Front view)

C-210

C-202

C-210

Harness side

C-202

Harness side

AC310222

Connector: G-14

AF

2

1

4

3

13

8

11

10

5

7

12

6

14

9

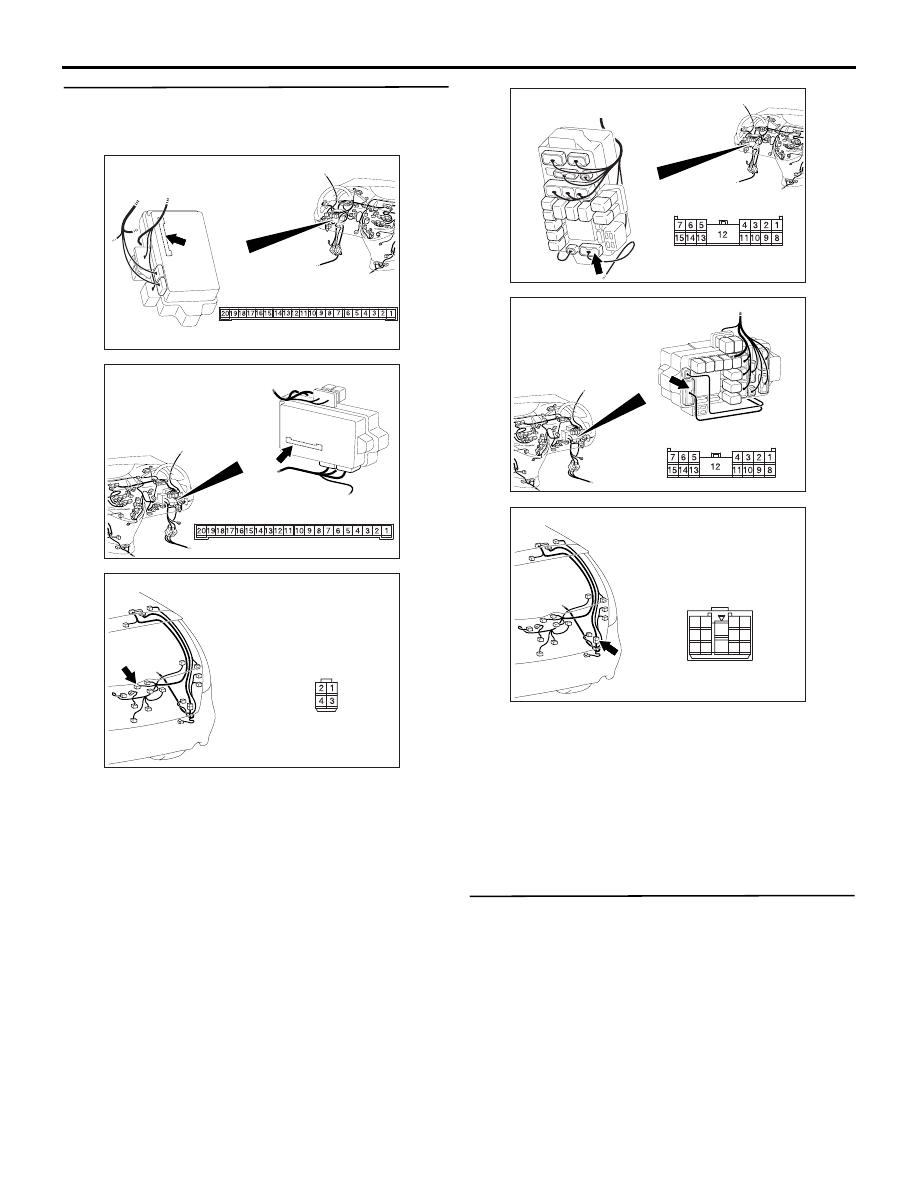

AC310626AD

Connector: C-219 <LHD>
Junction block (Rear view)

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-238

Step 6. Check the wiring harness between C-219
ETACS-ECU connector terminal No.17 and G-05
rear wiper motor connector terminal No.2.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector G-14, junction block
connectors C-210, and repair if necessary.

• Check the power supply line for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the rear wiper auto stop function works
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC310626AD

Connector: C-219 <LHD>
Junction block (Rear view)

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310222

Connector: G-05

AH

Harness side

AC310623

Connector: C-210

AN

<LHD>

Junction block (Front view)

Harness side

AC310618

Connector: C-210 <RHD>

AO

Junction block (Front view)

Harness side

AC310222

Connector: G-14

AF

2

1

4

3

13

8

11

10

5

7

12

6

14

9

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-239

INSPECTION PROCEDURE H-3: When the selector lever is moved to "R" position during the rear
wiper operation, the rear wiper does not operate at the continuous mode. <A/T>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the rear wiper does not operate consecutively
when the selector lever is moved to the R position
during the rear wiper operation, the shift position
input signal circuit or the ETACS-ECU may be
defective.

POSSIBLE CAUSES

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the operation of the rear wiper.
Check that the rear wiper system should work
normally by operating the rear wiper switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure H-1 "Rear
wiper does not work at all

P.54B-230

."

Step 2. Pulse check
Check the input signal, which are related to the R
(reverse) gear-linked rear wiper operation.

OK: The MUT-III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to diagnosis code No.11 inspection
procedure  "Engine-A/T-ECU time-out
(related to engine)

P.54B-68

 ."

Step 3. Retest the system.
Check that the rear wiper operates consecutively
when the selector lever is moved to the R position
during the rear wiper operation.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

"R" Position During Wiper Operation Circuit <A/T>

ETACS-ECU

· IGNITION SWITCH (IG1)
· REAR WIPER SWITCH

ENGINE-A/T-
ECU

CAN COMMUNICATION LINE
(CAN_L LINE)

CAN COMMUNICATION LINE
(CAN_H LINE)

INPUT SIGNAL

INPUT SIGNAL

INHIBITOR SWITCH ("R" POSITION)

System switch

Check condition

Inhibitor switch (reverse
position)

When the ignition switch
is turned ON and the
selector lever is moved
to the R position.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-240

INSPECTION PROCEDURE H-3: When the shift lever is moved to "R" position during the rear wiper
operation, the rear wiper does not operate at the continuous mode. <M/T>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the rear wiper does not operate consecutively
when the selector lever is moved to the R position
during the rear wiper operation, the input signal
circuit to the back-up lamp switch ("R" position) or
the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the back-up lamp switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

Step 1. Confirm the operation of the rear wiper.
Check that the rear wiper work normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure H-1 "The rear
wiper does not work at all

P.54B-230

."

Step 2. Pulse check
Check the input signal, which are related to the R
(reverse) gear-linked rear wiper operation.

OK: The MUT-III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure Q-3 "The
back-up lamp switch signal is not received

P.54B-423

."

Step 3. Retest the system.
Check that the rear wiper operates consecutively
when the shift lever is moved to the R position during
the rear wiper operation.

Q: Is the check result normal?

IGNITION
SWITCH (ACC)

ETACS-ECU

J/B SIDE

REAR
WIPER
RELAY

INPUT SIGNAL

· BACK-UP LAMP SWITCH
· REAR WIPER SWITCH

REAR WIPER
MOTOR

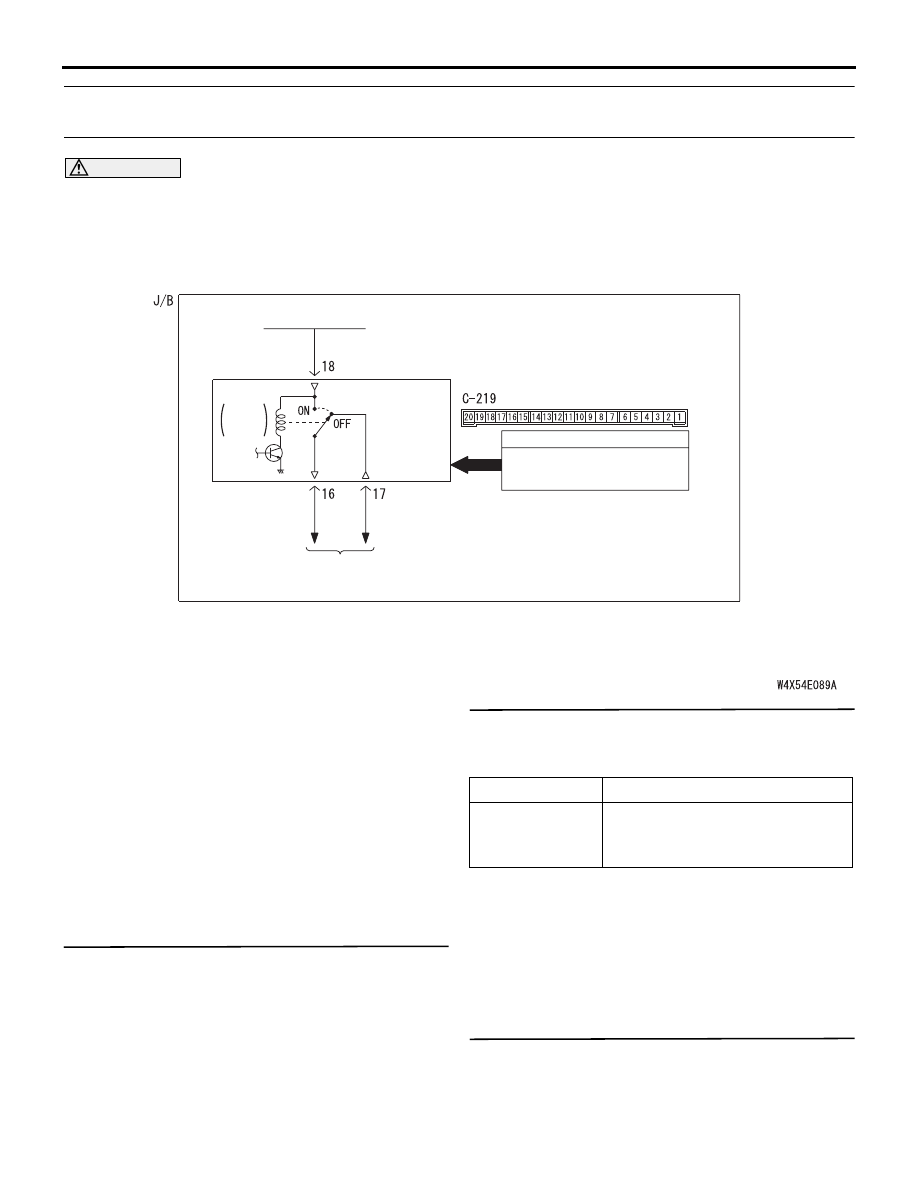

"R" Position During Rear Wiper Operation Circuit <M/T>

System switch

Check condition

Back-up lamp
switch

When the ignition switch is
turned ON and the shift lever is
moved to the R position.
