DOOR

CONFIGURATION DIAGRAMS

80-22

DOOR

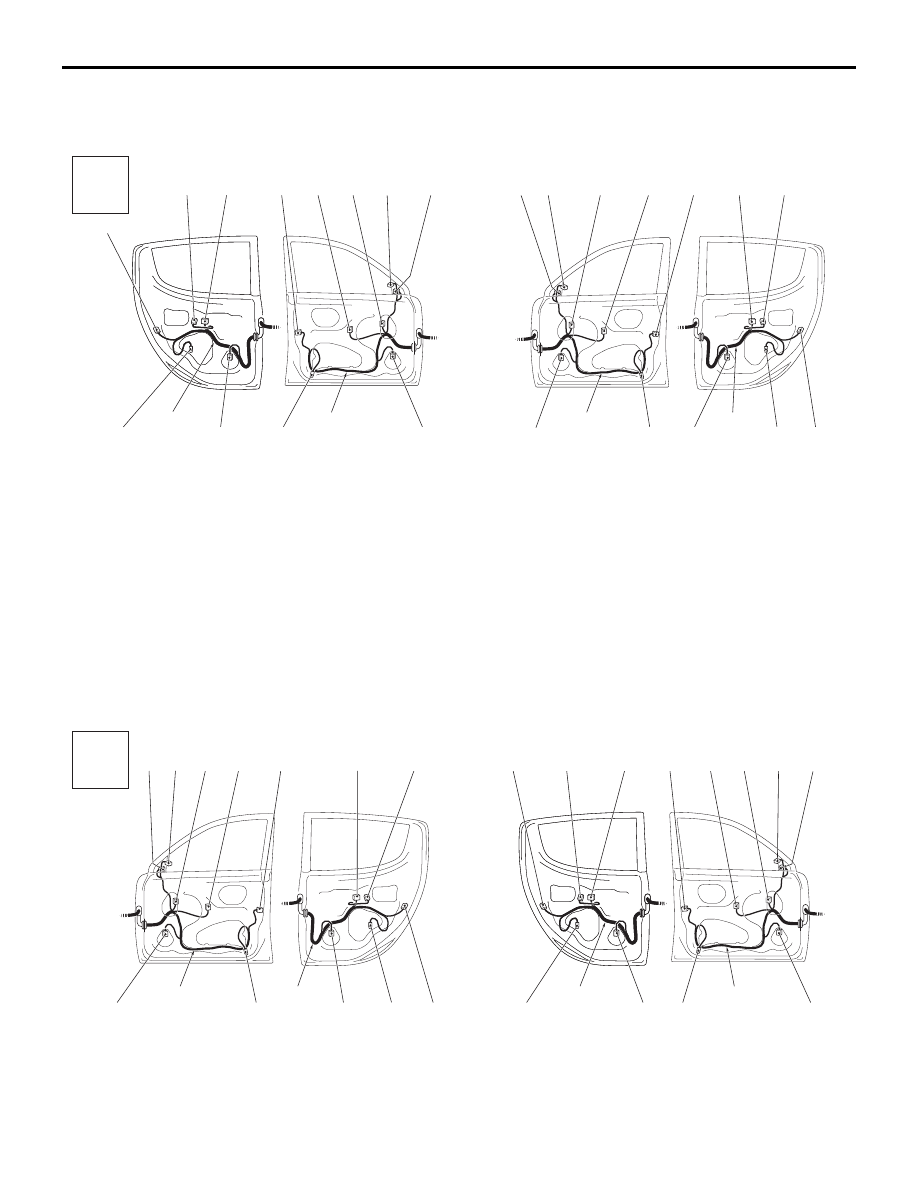

DOOR <LHD>

M1801001402730

AC509453

Connector
symbol

E

<Driver's side>

E-17

E-03

E-13

E-18

E-24

E-23

E-22

E-20

E-19

E-14

AB

Rear door
wiring
harness (LH)

Front door
wiring
harness (LH)

<Passenger's side>

E-25

E-01

E-04

E-05

E-06

E-02

E-11

E-10

E-09

E-07

E-26

Rear door
wiring
harness (RH)

Front door
wiring
harness (RH)

E-15

E-12

E-08

E-01

(6-B)

Power window motor (front: RH)

E-02

(7)

Remote controlled mirror (RH)

E-03

(14)

Power window main switch

E-04

(6-B)

Front door lock actuator (RH)

E-05

(6-B)

Power window motor (rear: RH)

E-06

(8)

Power window sub switch (rear: RH)

E-07

(6-B)

Rear door lock actuator (RH)

E-08

(2)

Door courtesy lamp (rear: RH)

E-09

(2)

Rear door speaker (RH)

E-10

(2)

Door courtesy lamp (front: RH)

E-11

(2)

Front door speaker (RH)

E-12

(6-B)

Rear door lock actuator (LH)

E-13

(8)

Power window sub switch (rear: LH)

E-14

(6-B)

Power window motor (rear: LH)

E-15

(6-B)

Front door lock actuator (LH)

E-17

(7)

Remote controlled mirror (LH)

E-18

(6-B)

Power window motor (front: LH)

E-19

(2)

Front door speaker (LH)

E-20

(2)

Door courtesy lamp (front: LH)

E-22

(2)

Rear door speaker (LH)

E-23

(2)

Door courtesy lamp (rear: LH)

E-24

(2-B)

Tweeter (LH)

E-25

(2-B)

Tweeter (RH)

E-26

(8)

Power window sub switch (front: RH)

DOOR <RHD>

M1801001401588

AC509897

Connector
symbol

E

<Driver's side>

E-25

E-02

E-03

E-05

E-06

E-11

E-10

E-08

E-09

E-07

E-04

AB

Rear door
wiring
harness (RH)

Front door
wiring
harness (RH)

<Passenger's side>

E-12

E-13

E-15

E-16

E-24

E-17

E-23

E-22

E-20

E-19

E-14

Front door
wiring
harness (LH)

Rear door
wiring
harness (LH)

E-01

E-18

E-01

(6-B)

Power window motor (front: RH)

E-02

(7)

Remote controlled mirror (RH)

E-03

(14)

Power window main switch

E-04

(6-B)

Front door lock actuator (RH)

E-05

(6-B)

Power window motor (rear: RH)

E-06

(8)

Power window sub switch (rear: RH)

E-07

(6-B)

Rear door lock actuator (RH)

E-08

(2)

Door courtesy lamp (rear: RH)

E-09

(2)

Rear door speaker (RH)

E-10

(2)

Door courtesy lamp (front: RH)

FRAME

CONFIGURATION DIAGRAMS

80-23

FRAME

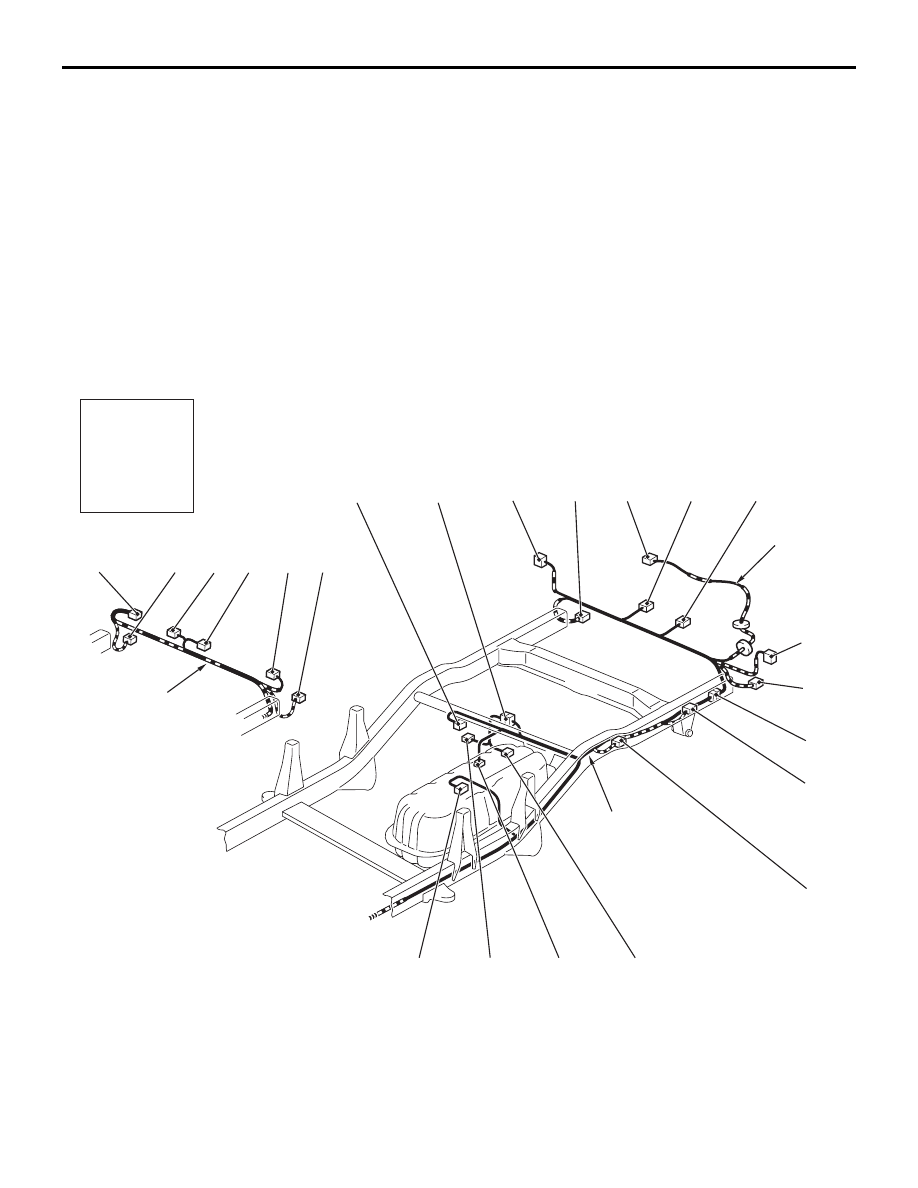

FRAME <2WD EXCEPT HIGH RIDER>

M1801003700441

ACA01276AB

Connector
symbol

F

Frame wiring
harness

F-14

F-03

F-02

F-11

F-10

Rear body
wiring
harness

F-06

F-05

F-04

F-15

F-07

F-16

F-17

F-09

<Vehicles without rear body >

F-19

F-20

F-21 F-22

Rear body
wiring harness

F-23 F-24

Connector colour code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue

NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

E-11

(2)

Front door speaker (RH)

E-12

(6-B)

Rear door lock actuator (LH)

E-13

(8)

Power window sub switch (rear: LH)

E-14

(6-B)

Power window motor (rear: LH)

E-15

(6-B)

Front door lock actuator (LH)

E-16

(8)

Power window sub switch (front: LH)

E-17

(7)

Remote controlled mirror (LH)

E-18

(6-B)

Power window motor (front: LH)

E-19

(2)

Front door speaker (LH)

E-20

(2)

Door courtesy lamp (front: LH)

E-22

(2)

Rear door speaker (LH)

E-23

(2)

Door courtesy lamp (rear: LH)

E-24

(2-B)

Tweeter (LH)

E-25

(2-B)

Tweeter (RH)

F-02

(6-B)

Rear combination lamp (RH)
<Vehicles with rear body>

F-03

(2-B)

High-mounted stop lamp

FRAME

CONFIGURATION DIAGRAMS

80-24

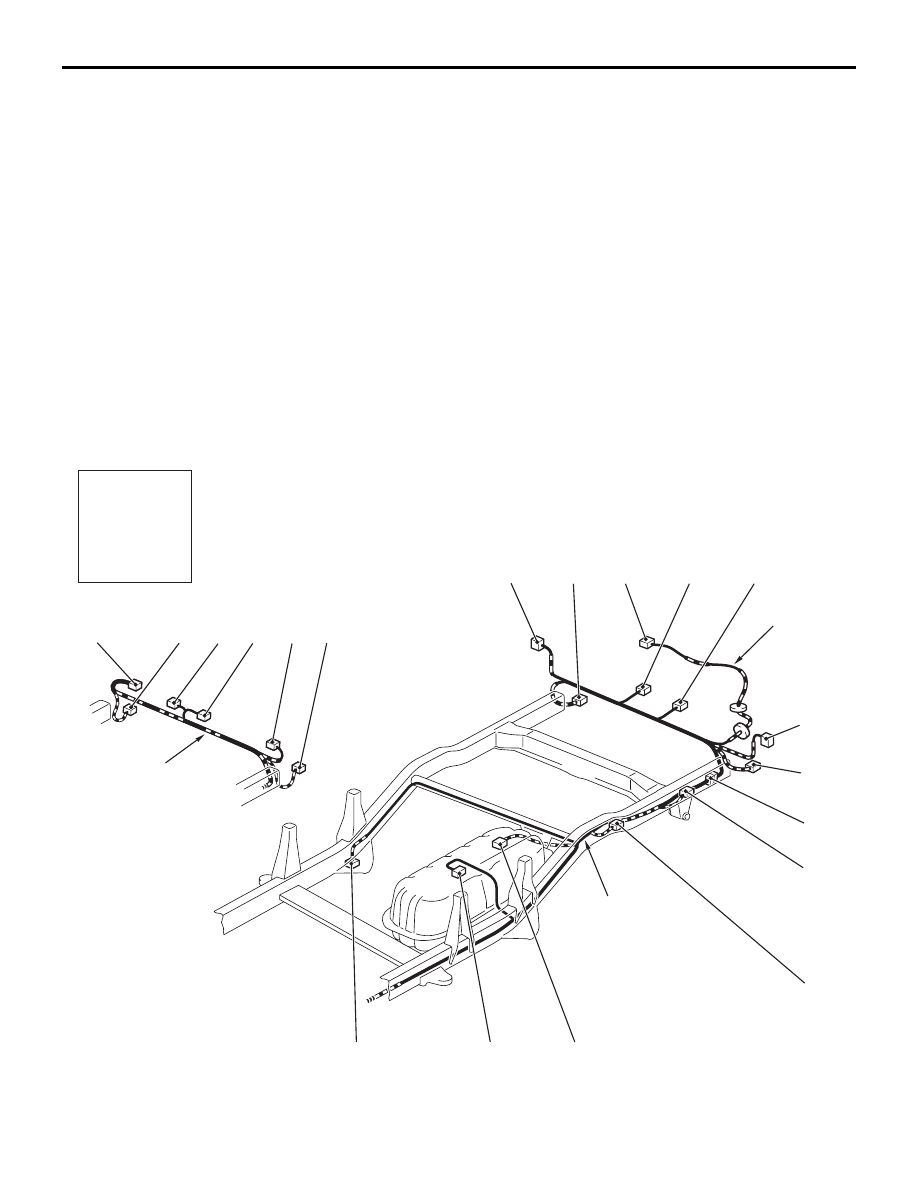

FRAME <HIGHT RIDER, 4WD>

M1801003700452

ACA01282AB

Connector
symbol

F

Frame wiring
harness

F-14

F-03

F-02

F-12

F-18

F-10

F-09

Rear body
wiring
harness

F-06

F-05

F-04

F-15

F-07

F-16

F-17

F-13

F-11

<Vehicles without rear body >

F-19

F-20

F-21 F-22

Rear body
wiring harness

F-23 F-24

Connector colour code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue

NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

F-04

(6-B)

Rear combination lamp (LH) <Vehicles
with rear body>

F-05

(2-GR)

Licence plate lamp (LH) <Vehicles
with rear body>

F-06

(2-GR)

Licence plate lamp (RH) <Vehicles
with rear body>

F-07

(8-B)

Rear body wiring harness and frame
wiring harness combination

F-09

(2)

Fuel gauge unit

F-10

(2-B)

Rear wheel speed sensor (RH)

F-11

(2-B)

Rear wheel speed sensor (LH)

F-14

(2-B)

Rear fog lamp (RH) <Vehicles with
rear body>

F-15

(2-B)

Rear fog lamp (LH) <Vehicles with
rear body>

F-16

(3-B)

Spare connector (for trailer)

F-17

(1-B)

Spare connector (for ACC socket)

F-19

(6)

Rear combination lamp (RH)
<Vehicles without rear body>

F-20

(2-B)

No connection <Vehicles without rear
body>

F-21

(2-B)

Licence plate lamp (RH) <Vehicles
without rear body>

F-22

(2-B)

Licence plate lamp (LH) <Vehicles
without rear body>

F-23

(6)

Rear combination lamp (LH) <Vehicles
without rear body>

F-24

(2-B)

No connection <Vehicles without rear
body>

F-02

(6-B)

Rear combination lamp (RH)
<Vehicles with rear body>

F-03

(2-B)

High-mounted stop lamp

F-04

(6-B)

Rear combination lamp (LH) <Vehicles
with rear body>

F-05

(2-GR)

Licence plate lamp (LH) <Vehicles
with rear body>

F-06

(2-GR)

Licence plate lamp (RH) <Vehicles
with rear body>

F-07

(8-B)

Rear body wiring harness and frame
wiring harness combination

FRAME

CONFIGURATION DIAGRAMS

80-25

F-09

(2)

Fuel gauge unit

F-10

(2-GR)

Rear wheel speed sensor (RH)

F-11

(2-B)

Rear wheel speed sensor (LH)

F-12

(4-B)

ABS wiring harness and frame wiring
harness combination

F-13

(2-GR)

Rear differential lock detection switch

F-14

(2-B)

Rear fog lamp (RH) <Vehicles with
rear body>

F-15

(2-B)

Rear fog lamp (LH) <Vehicles with
rear body>

F-16

(3-B)

Spare connector (for trailer)

F-17

(1-B)

Spare connector (for ACC socket)

F-18

(2-B)

Air pump assembly <Rear differential
lock system>

F-19

(6)

Rear combination lamp (RH)
<Vehicles without rear body>

F-20

(2-B)

Rear fog lamp (RH) <Vehicles without
rear body>

F-21

(2-B)

Licence plate lamp (RH) <Vehicles
without rear body>

F-22

(2-B)

Licence plate lamp (LH) <Vehicles
without rear body>

F-23

(6)

Rear combination lamp (LH) <Vehicles
without rear body>

F-24

(2-B)

Rear fog lamp (LH) <Vehicles without
rear body>
